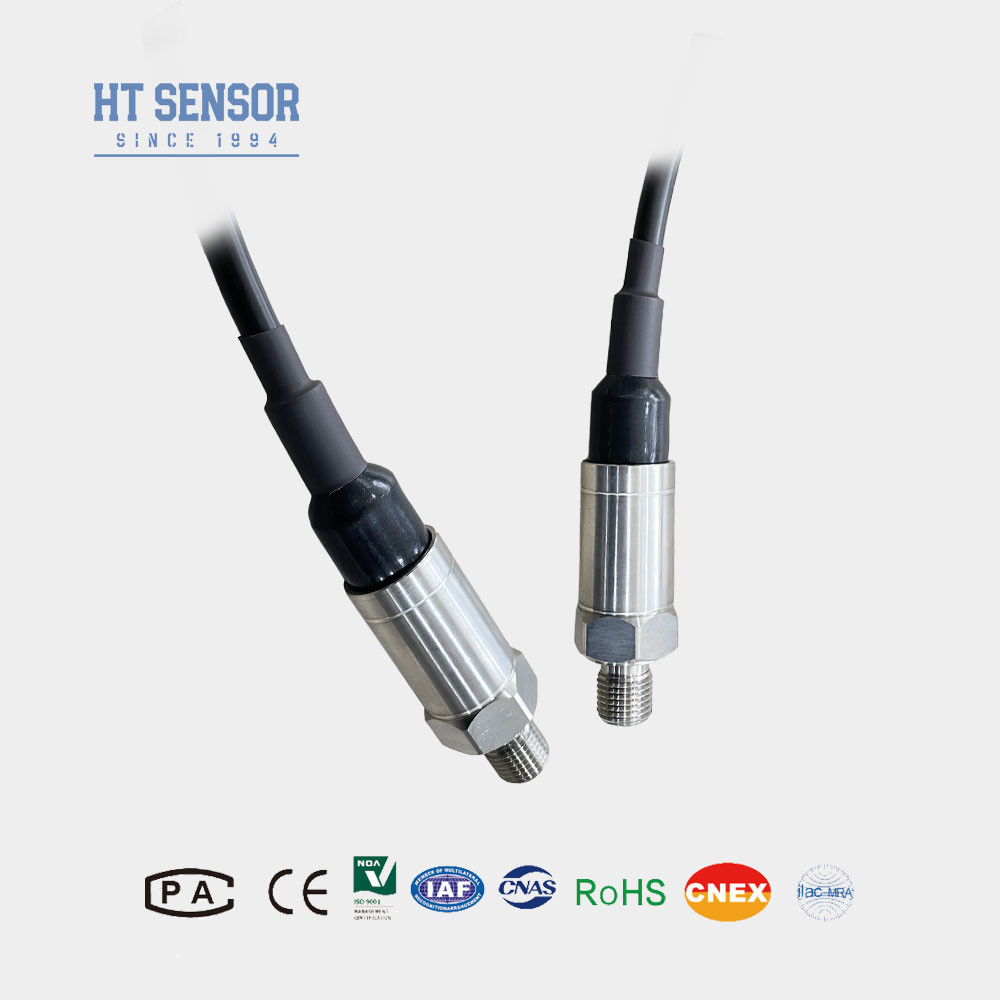

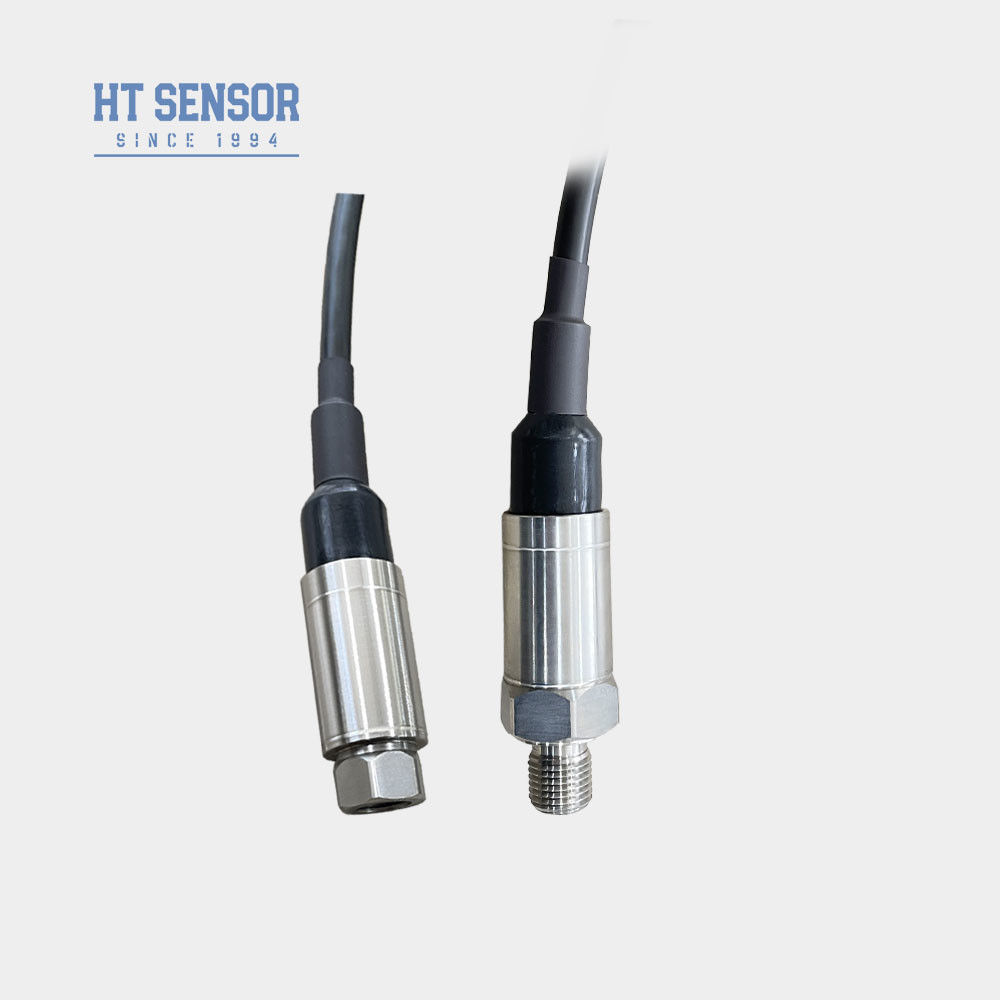

Corrosion-Resistant Pressure Transmitter Sensor in 316L Stainless Steel for Industrial Sensor
Product Details
| Model NO.: | BP156 | Range: | 0~10kpa~20Mpa |
|---|---|---|---|
| Output: | 4-20mA 0.5-4.5Vdc | Housing Material: | Stainless Steel Welded |
| Pressure Type: | Gauge / A/S | Type: | Pressure Transmitter Sensor |
| Sensor: | Oil-filled Pressure Sensor | Power: | 12-32VDC |
| Accuracy Grade: | 0.5%F.S | Connector: | IP67 Liquid Level Cable |
| Thread: | G1/4 M12*1 Or OEM | ||
| Highlight |
Industrial Pressure Transmitter Sensor,316L Stainless Steel Pressure Transmitter Sensor,Corrosion-Resistant Pressure Transmitter Sensor |
||
Product Description
316L Stainless Steel Industrial Pressure Transmitter Sensor Transmitter For Corrosion Resistance Manufcture
BP156 industrial Pressure sensor Transmitter
Introduction of mini Industrial pressure transmitter sensor :
The BP156 Compact Rod-Style Industrial Pressure Transmitter Sensor Utilizes a high-performance silicon piezoresistive pressure sensor as the core sensing element.Incorporates advanced temperature compensation, digital circuit correction, and signal conditioning to deliver standard industrial and network output signals.Features a rugged IP68 waterproof housing designed for demanding industrial environments.Each component is meticulously engineered, screened, and validated through rigorous processes including cyclic loading stress relief, aging tests, and environmental simulations to ensure long-term stability and reliability.
Product Features of mini Industrial pressure transmitter sensor :
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini Industrial pressure transmitter sensor :
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of mini Industrial pressure ransmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
- When selecting a product, it is important to ensure that the medium under test is compatible with the wetted parts of the device. This will help prevent potential material incompatibility issues.
- Please note that explosion-proof pressure transmitter models do not come equipped with a digital display as standard. If a display is required, this should be specified when placing the order.
- For transmitters with LCD or LED display heads, the power supply voltage must be no less than 20VDC to ensure proper operation. This should be taken into consideration when ordering such products.
- To guarantee reliable long-term operation, it is recommended that users install lightning protection devices on site and ensure the product and power supply are properly grounded. This helps safeguard against electrical surges and interference.
- The rated operating temperature range for fluorine rubber O-rings is -20°C to 250°C. If the application calls for temperatures below -20°C, EPDM O-rings should be selected instead to ensure a reliable seal.
- Cable assemblies are not provided by default. If a cable is required, there are three material options available: polyethylene (PE), polyvinyl chloride (PVC), and polytetrafluoroethylene (PTFE). Unless otherwise specified, the default cable material will be polyethylene.
- For special application requirements such as strong vibration, instantaneous impact, or high electromagnetic/radio frequency interference, please inform us in advance so that we can recommend and provide the appropriate customized solution.
- This more detailed paragraph format covers the same information in a more comprehensive manner, providing additional context and explanation for each key point. This can be useful for applications where more in-depth guidance is required.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
Q1:Are you manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
