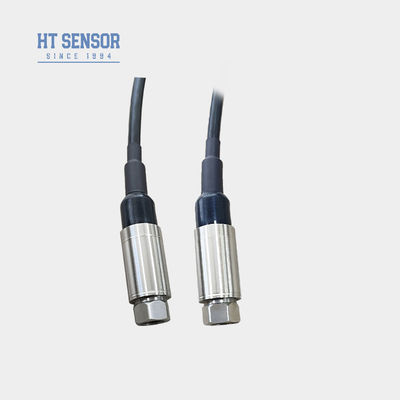

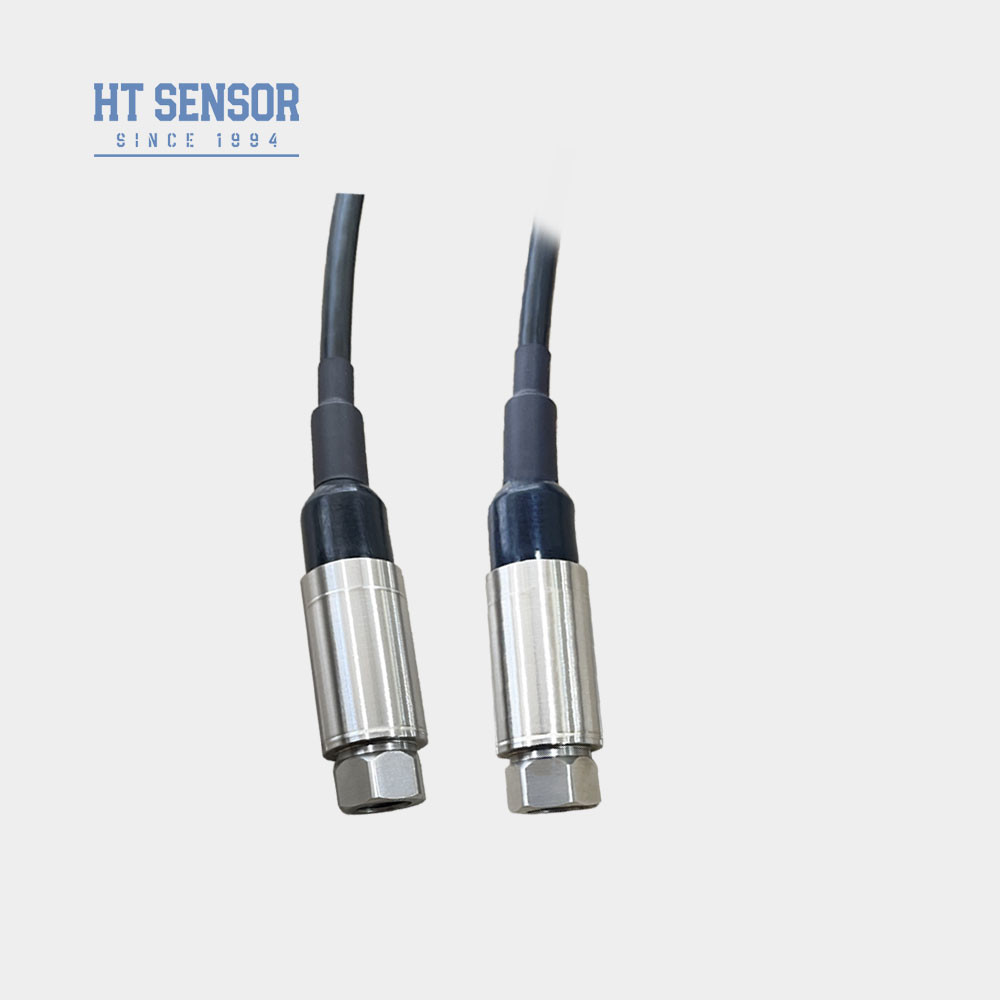

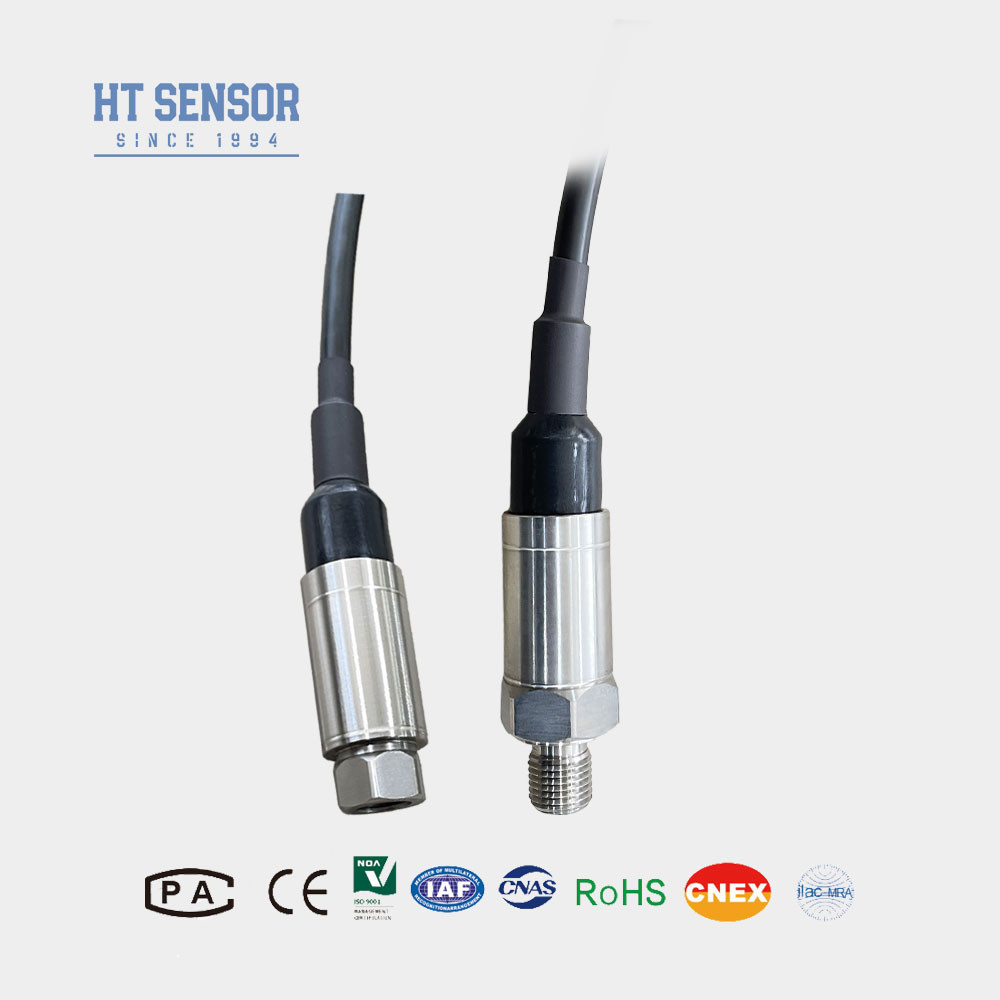

IP68 Oil-Filled Pressure Transmitter Sensor Micro Welding Liquid Level Sensor
Product Details
| Model NO.: | BP156 | Range: | 0~10kpa~35Mpa |
|---|---|---|---|
| Output: | 4-20mA 0.5-4.5Vdc | Housing Material: | Welded Stainless Steel |
| Pressure Type: | Gauge / A/S | Type: | Pressure Transmitter Sensor |
| Sensor: | Oil-filled Pressure Sensor | Power: | 12-32VDC（24VDC） |
| Accuracy Grade: | 0.5%F.S | Connector: | IP67 Liquid Level Cable |
| Thread: | G1/4 M12*1 And So On | ||
| Highlight |
Oil-Filled Pressure Transmitter Sensor,Micro Welding Liquid Level Sensor,IP68 Pressure Transmitter Sensor |
||
Product Description
IP68 Oil-Filled Pressure Transmitter Sensor Micro Welding Lquid Level Sensor
BP156 industrial Pressure sensor Transmitter
Introduction of mini Industrial pressure transmitter sensor :
BP156 industrial Pressure sensor Transmitter Each component of the BP156 is meticulously engineered, screened, and validated through an extensive series of tests and simulations.This includes cyclic loading stress relief, accelerated aging tests, and environmental chamber simulations to verify the transmitter's long-term stability and reliability.The result is a pressure transmitter that delivers precise, consistent performance over its lifetime of use.
By providing a more detailed and descriptive overview of the BP156's key features and capabilities, this expanded narrative helps to better communicate the product's value proposition to potential customers. The additional context and technical details can help build confidence in the transmitter's quality and suitability for demanding industrial applications.
Product Features of mini Industrial pressure transmitter sensor :
1. Wide measuring range, stainless steel structure.
2. Compact and lightweight design.
3. High precision, all stainless steel structure.
Applications of mini Industrial pressure transmitter sensor :
1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
2. Applied in the marine and aviation industries.
3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of mini Industrial pressure ransmitter sensor: | |
| Measurement Range | 0kPa ~ 10kPa…20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
| Ordering tips |
Product Application Guidelines
- When selecting a pressure measurement device, it is critical to ensure the compatibility between the process medium and the wetted components of the product. This will prevent any potential issues caused by material incompatibility.
- Please note that explosion-proof pressure transmitters do not come equipped with a digital display as standard. If a display is required, this should be specified when placing the order.
- To guarantee the reliable long-term operation of the product, it is recommended that users install lightning protection devices on site and ensure the product and power supply are properly grounded. This helps safeguard against electrical surges and interference.
- The rated operating temperature range for fluorine rubber O-rings is -20°C to 250°C. If the application calls for temperatures below -20°C, EPDM O-rings should be selected instead to ensure a reliable seal.
- Cable assemblies are not provided by default. If a cable is required, there are three material options available: polyethylene (PE), polyvinyl chloride (PVC), and polytetrafluoroethylene (PTFE). Unless otherwise specified, the default cable material will be polyethylene.
- For special application requirements such as strong vibration, instantaneous impact, or high electromagnetic/radio frequency interference, please inform us in advance so that we can recommend and provide the appropriate customized solution.
- This more detailed paragraph format covers the same information in a more comprehensive manner, providing additional context and explanation for each key point. This can be useful for applications where more in-depth guidance is required.
| Order Guide | |||||||||
| BP15X | Analog Pressure Transmitter | ||||||||
| Code | Outline Construction | ||||||||
| 5 | Packard plug | 6 | Sealed Direct Output Cable 1.5 meters | ||||||
| 7 | Mini Hirschmann Connector | 8 | Large Hirschmann Connector | ||||||
| Measurement Range | 0kPa ~ 10kPa…5MPa | ||||||||
| (0-X)Kpa or MPa |
X: Indicates the Actual Measuring Range | ||||||||
| Code | Power Supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 5VDC | ||||||||
| D3 | Other | ||||||||
| Code | Output Signal | ||||||||
| S1 | 4~20mADC | S5 | 0~20mADC | ||||||
| S2 | 1~5VDC | S6 | 0~10VDC | ||||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | ||||||
| S4 | 0~10mADC | ||||||||
| Code | Pressure Connection | ||||||||
| J1 | M20×1.5 | ||||||||
| J2 | G1/2 | ||||||||
| J3 | G1/4 | ||||||||
| J4 | 7/16-20UNF | ||||||||
| J5 | Others(¢50.4 Flange) | ||||||||
| Code | Electrical Connection | ||||||||
| B1 | Hirschmann | ||||||||
| B2 | PG7 | ||||||||
| B3 | Cable Sealed Outlet 1.5 meters | ||||||||
| B4 | Other | ||||||||
| Code | Pressure Type | ||||||||
| G | Gauge Pressure | ||||||||
| A | Absolute Pressure | ||||||||
| S | Sealed Reference Pressure | ||||||||
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: Our pressure sensor transmitters are characterized by high precision, durability, and excellent performance, with the option for customization.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs through our OEM and ODM services.
3. Q: What is your production capacity?
A: Our manufacturing facilities have the capability to produce up to 30,000 pressure sensor transmitters per month, ensuring that we can fulfill large-scale orders. However, it is advisable to contact our sales team in advance for smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: Standard models typically have a delivery period of 5~8 working days, while customized products may vary.
5. Q: How are the products priced? Any discounts?
A: We offer competitive pricing with discounts available for bulk orders or long-term partnerships.
6. Q: What is the warranty of your products? And after-sales service?
A: Our products come with a 24-month warranty from shipment date, and our after-sales service ensures prompt responses within 24 hours along with remote instruction support via PC network.
