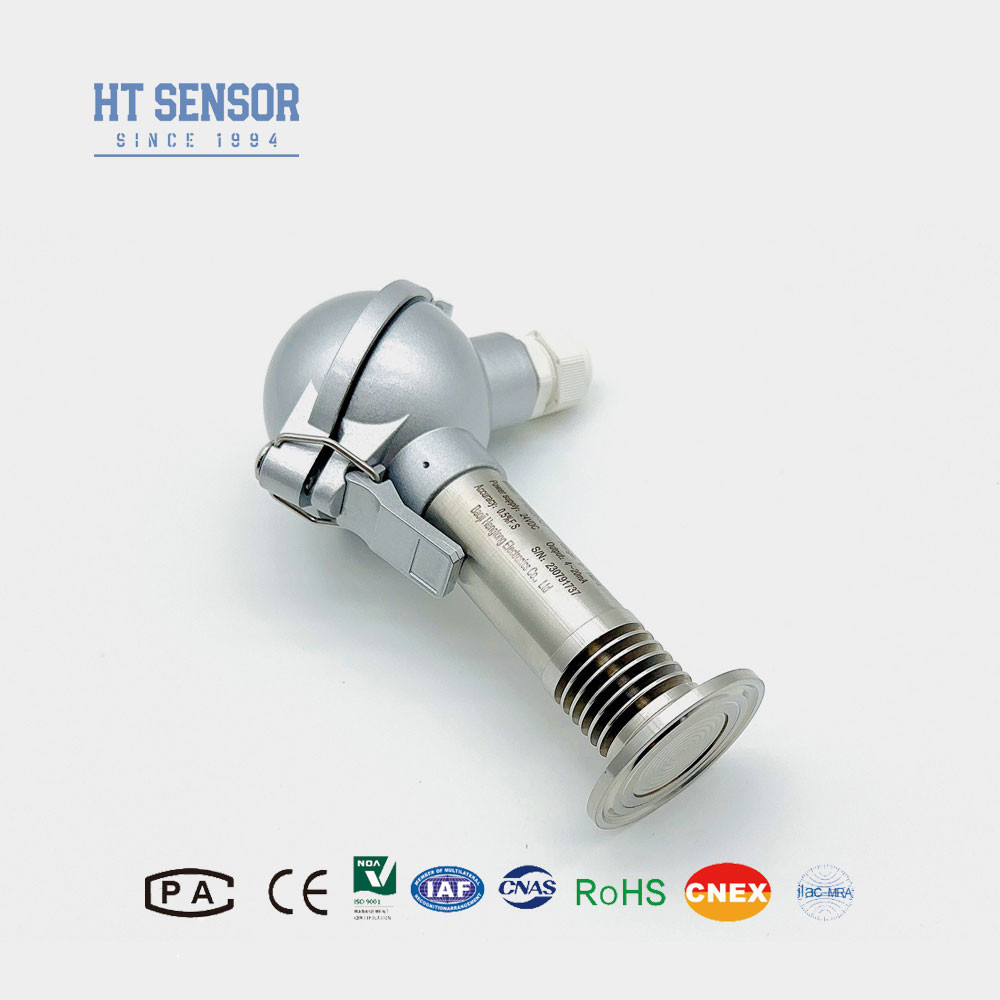

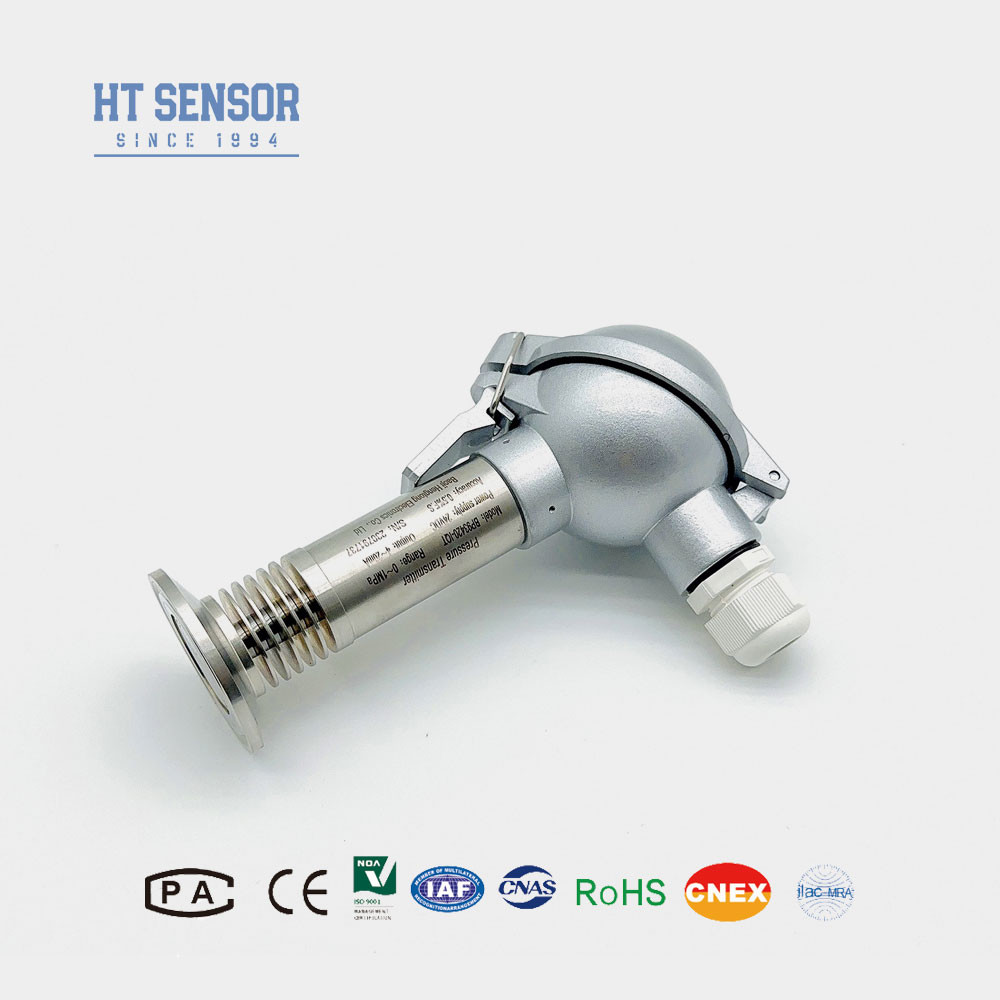

BP93420-IQT Pressure Transmitter
Introduction of flush Diaphragm pressure sensor:
The BP93420-IQT flat membrane pressure sensor Through its robust construction, advanced measurement principle, and versatile application capabilities, the BP93420-IQT compact flush diaphragm pressure sensor transmitter demonstrates exceptional stability and reliability. These features make it a versatile choice for a wide range of industrial pressure monitoring and control tasks, particularly in challenging process environments.
Performance Parameters of flush Diaphragm pressure sensor: | |
Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
Overload | ≤ 1.5 times of the rated range |
Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
Repeatability | ≤0.1%FS |
Hysteresis | ≤0.1%FS |
Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
Frequency Response | 2.4Khz |
Compensation Temperature | 0-70ºC(customizable) |
Operating Temperature | -20ºC~80ºC |
Storage Temperature | -40ºC~120ºC |
Vibration | 10g,55Hz ~ 2kHz |
Housing Material | 304,316L |
Diaphragm Material | 316L |
Insulation Resistance | 100MΩ 100VDC |
Protection Rating | IP65 |
Weight | ~0.3kg |
Product Features of flush Diaphragm pressure sensor:
1. Wide measurement range,Various pressure interface options.
2. Diverse output signal options.
3. Adjustable zero and full-scale.
4. High accuracy,multiple sterile process connections.
Output Signal | Supply Voltage | Output Type |
4~20mA | 12~30VDC | 2/3/4 wire |
0~10/20mA | 3 wire |
|
0/1~5V | ||
0/1~10V | ||
0.5~4.5V | 5VDC | |
RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
Ordering tips |
1. Media Compatibility
When selecting a product, ensure the media under measurement is compatible with the wetted components of the sensor. This compatibility is crucial for the reliable and proper functioning of the device.
2. Explosion-Proof Products
Please note that explosion-proof products do not include a digital display as standard when placing an order. This is an important factor to consider if a digital display is required for your application.
3. Grounding and Lightning Protection
To guarantee the reliable operation of the product, we recommend installing lightning protection devices on-site and ensuring the proper grounding of both the product and power supply. This will help safeguard the sensor against electrical disturbances, maintaining consistent performance.
4. Cable Options
The product does not come with a default attached cable. If a cable is needed, there are three material choices available: polyethylene, PVC, and armored. Unless otherwise specified, the polyethylene cable option will be used by default. If you require a different cable material, please indicate this in your order form.
5. Special Requirements
For applications with special requirements, such as strong vibration, instantaneous impact force, or intense electromagnetic/radio frequency interference, please inform us and provide the details in your order. This will allow us to verify the product's suitability for your unique application needs.
Order Guide of flush Diaphragm pressure sensor | ||||||||
BP93420XX | Pressure Transmitter | |||||||
Code | Outline Construction | |||||||
IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
IC | High-temperature Pressure Transmitter | |||||||
IQ1/IQ2 | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
Code | Power Supply | |||||||
D1 | 24VDC | |||||||
D2 | 5VDC | |||||||
D3 | Other | |||||||
Code | Output Signal | |||||||
S1 | 4~20mADC | S5 | 0~20mADC | |||||
S2 | 1~5VDC | S6 | 0~10VDC | |||||
S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
S4 | 0~10mADC | |||||||
Code | Pressure Connection | |||||||
J1 | M20×1.5 | |||||||
J2 | G1/2 | |||||||
J3 | G1/4 | |||||||
J4 | 7/16-20UNF | |||||||
J5 | Other | |||||||
Code | Electrical Connection | |||||||
B1 | Hirschmann | |||||||
B2 | PG7 Plug | |||||||
B3 | Sealed Cable Output | |||||||
B4 | 2088 Industrial Casing | |||||||
B5 | 2088 Industrial Casing with Display | |||||||
B6 | Other | |||||||
Code | Pressure Type | |||||||
G | Gauge Pressure | |||||||
A | Absolute Pressure | |||||||
S | Sealed Reference Pressure |
