12-32VDC High Temperature Industrial Pressure Sensor with Stainless Steel Structure
Product Details
| Model NO.: | BP93420-IC | Pressure Range: | -100KPA-0-10kpa-60Mpa |
|---|---|---|---|
| Output: | 4-20mA | Power: | 12-32VDC |
| Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed | Structure Type: | Industrial Pressure Sensor Transmitter |
| Measuring Medium: | Liquid,gas | Accuracy Grade: | 0.5% |
| Thread: | G1/4 OEM | Customization: | OEM And ODM |
| Highlight |
Stainless Steel Industrial Pressure Sensor,12-32VDC Industrial Pressure Sensor,High Temperature Industrial Pressure Sensor |
||
Product Description

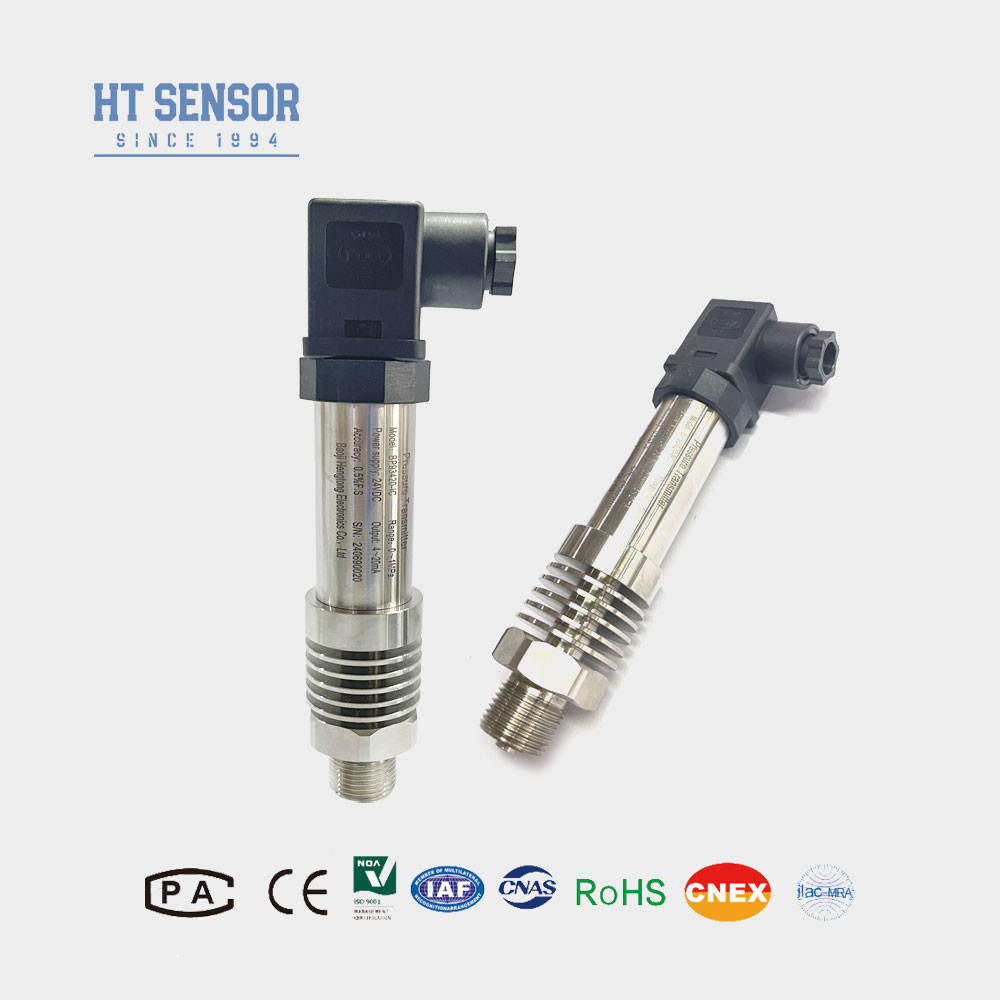

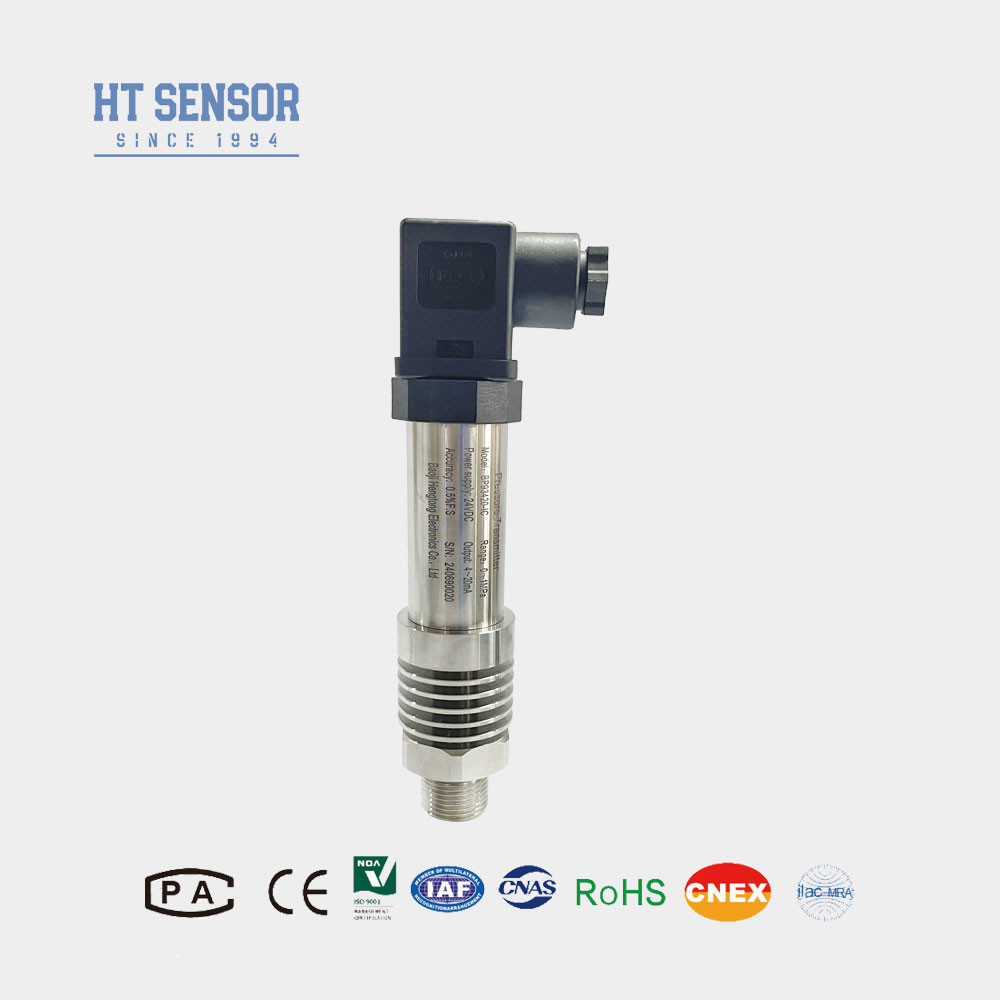

High Temperature Industrial Pressure Sensor with Stainless Steel Structure
BP93420IC Industrial Pressure Sensor
Introduction of Industrial pressure sensor:
BP93420-IC is a high temperature industrial pressure sensor transmitter, utilizing the our HT19 series silicon pressure isolation oil-filled core as the primary measurement element. The sensor effectively captures the pressure of the measured medium through a dedicated heat dissipation structure integrated into the transmitter, mitigating the impact of high temperatures on product pressure. This specialized design makes it well-suited for demanding high temperature environments, making it ideal for applications involving temperature fluctuations or operation in elevated conditions. It is widely utilized in industrial processes and systems where precise and reliable pressure measurements are necessary even in challenging high temperature environments.
Product Features of Industrial pressure sensor:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
- 2. IP65 protection rating stainless steel structure.
- 3. High precision, all stainless steel structure.
- 4.Human measurement of liquids in high temperature environments.
Applications of Industrial pressure sensor:
- 1. Pressure measurement of non-corrosive gases and liquids using 316L stainless steel.
- 2. Applied in the marine and aviation industries.
- 3. Employed in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
- 4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of Industrial pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Max) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Max) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304 or 316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 | 3.6~30V | 4 wire |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When placing an order, please note that explosion-proof products do not include a digital display.
3. When ordering a transmitter with an LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
4. In order to ensure the reliable operation of the product, it is recommended that users install lightning protection devices on the site and ensure that the product and the power supply are reliably grounded.
5. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃. When operating temperatures fall below -20 ° C, EPDM O-type sealing rings should be selected.
6. The cable does not come with default cable attached. If you require cable, there are three materials to choose from. If no specific instructions are given, polyethylene cable materials will be used by default.If different cable materials are required, please indicate in your order form.
7.In case of special requirements such as strong vibration, instantaneous impact,strong electromagnetic or radio frequency interference ,please inform us and indicate in your order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
