BP93420-IC High Temperature Pressure Transmitter Sensor with Heat Dissipation Device Sensor
Product Details
| Model NO.: | BP93420-IC | Pressure Range: | -100KPA-0-10kpa-40Mpa |
|---|---|---|---|
| Output: | 0.5-4.5VDC/4-20mA /0-5VDC And So On | Power: | 12-36VDC (24VDC) |
| Pressure Type: | Gauge Pressure, Absolute, Sealed Pressure | Structure Type: | Oil-filled Pressure Transmitter |
| Measuring Medium: | Liquid And Gas | Accuracy Grade: | 0.5% |
| Sensor: | Stainless Steel Sensor | Customization: | OEM And ODM |
| Highlight |
high temperature pressure transmitter sensor,pressure sensor with heat dissipation,BP93420-IC pressure transmitter sensor |
||
Product Description

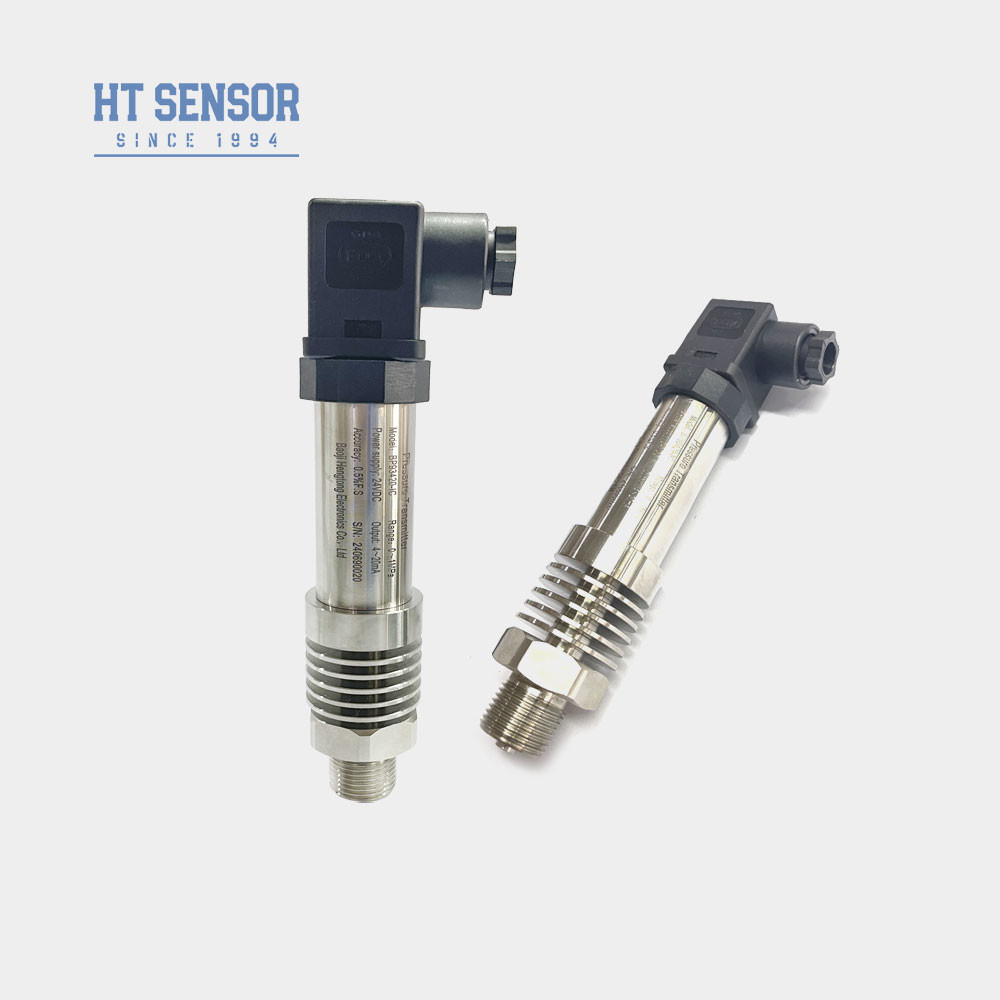

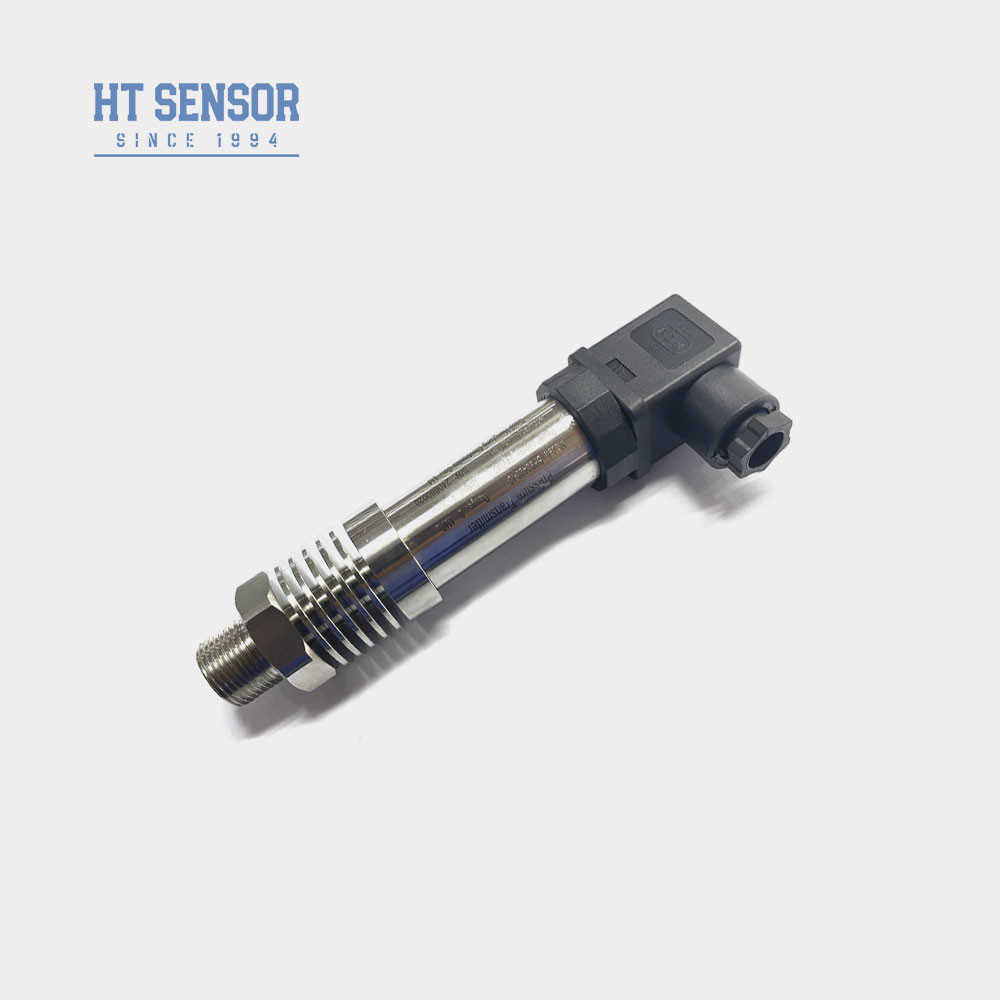

BP93420-IC High Temperature Pressure Transmitter Sensor with Heat Dissipation Device
BP93420IC Pressure Transmitter Sensor
Introduction of pressure transmitter sensor:
The BP93420-IC is a high-temperature pressure transmitter sensor that utilizes the advanced HT19 series silicon pressure isolation oil-filled core as its core measurement element. A heat dissipation device has been incorporated at the front end to significantly cool the medium in contact with the sensor. This particular design renders it well-suited for demanding high-temperature environments, making it ideal for applications involving temperature fluctuations or operation under elevated conditions. It finds wide application in industrial processes and systems where accurate and reliable pressure measurements are essential, even in challenging high-temperature environments.
Product Features of pressure transmitter sensor:
- 1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
- 2. IP65 protection rating stainless steel structure.
- 3. Zero and full-scale adjustable.
- 4. High precision, all stainless steel structure.
Applications of pressure transmitter sensor:
- 1. Pressure measurement of non-corrosive gases and liquids with 316L stainless steel.
- 2. Applied in the marine and aviation industries.
- 3. Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology.
- 4. Utilized in hydraulic and pneumatic control systems.
| Performance Parameters of pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…40MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~150ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -0.1. . .0~0.01...100MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
