Industrial Grade Flush Diaphragm Pressure Sensor For Harsh Condition Level Transmitter
Product Details
| Model NO.: | BPHT24 | Range: | 0-10kpa~035mpa |
|---|---|---|---|
| Power: | 5vdc /24vdc | Output: | 0.5-4.5VDC /4-20mA /0-10VDC |
| Connect: | Thread：G1/2 1/2NPT M20*1.5 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Type: | Flush Diaphragm Pressure Sensor | Measuring Medium: | Liquid |
| Accuracy Grade: | 0.5%F.S 0.25%F.S | IP Rating: | IP65 |
| Highlight |
Industrial Grade Flush Diaphragm Pressure Sensor,Harsh Condition Pressure Sensor,Harsh Condition Flush Diaphragm Pressure Sensor |
||
Product Description

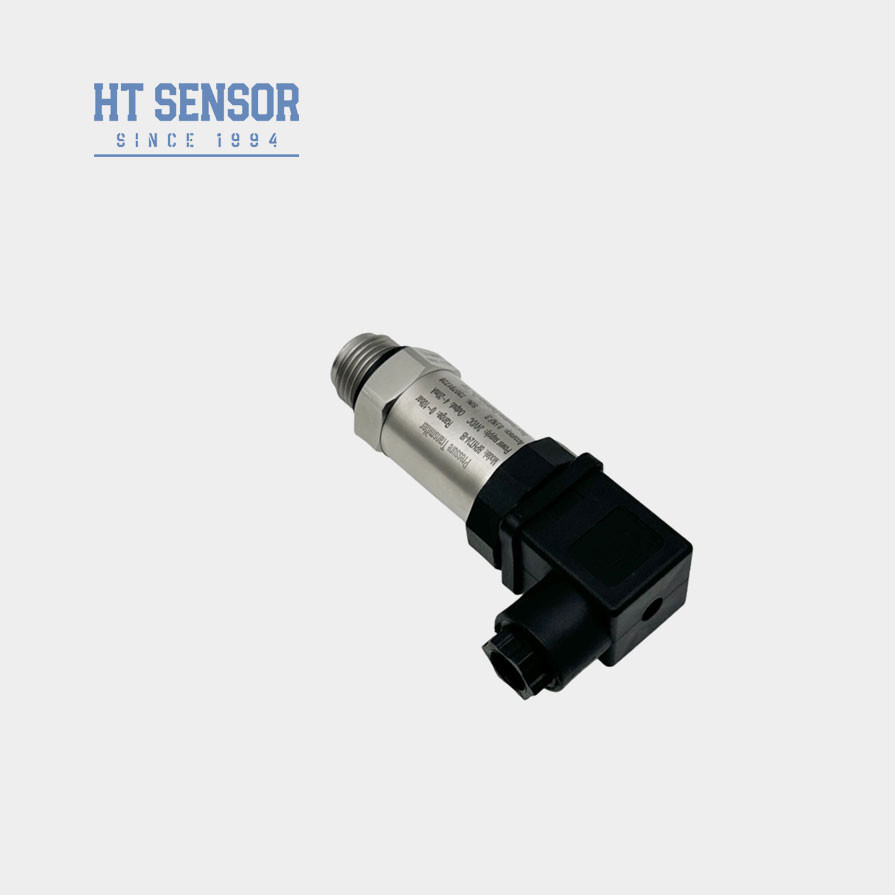

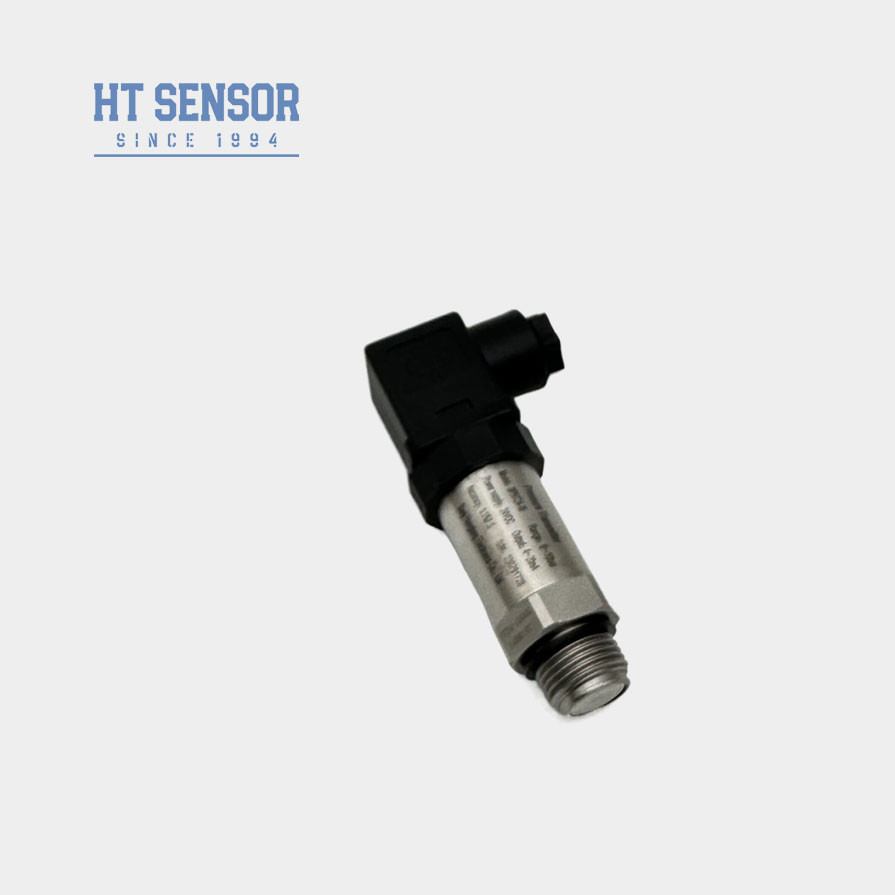

Industrial Grade Flush Diaphragm Pressure Sensor For Harsh Condition
BPHT24 Pressure Transmitter
Introduction of flush diaphragm pressure sensor :
BPHT24 flush diaphragm pressure sensor transmitter uses a flat membrane structure. The pressure transmitter uses a corrugated membrane to directly feel the pressure. The sensor's flat diaphragm prevents fouling, unsanitary and sticky liquid clogging. It has the characteristics of small size, light weight and good long-term stability, and is widely used in food, medicine, health and wine industry.
Flush membrane type pressure sensor elastomer adopts imported material, diaphragm isolation technology, test head without pressure hole, integrated structure design, there is no viscous medium blockage in the measurement process.
Product Features of flush diaphragm pressure sensor:
1. Various pressure interface options
2. Designed for hygienic applications to prevent medium scaling
3. High accuracy with a fully stainless steel structure
4. Easy to clean
Applications of flush diaphragm pressure sensor:
1. Suitable for measuring non-corrosive gases and liquids with 316L.
2. Ideal for environmental protection and chemical industries.
3. Used in the marine and aviation industries.
4. Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.
| Performance Parameters of flush diaphragm pressure sensor | |
| Measurement Range | 0~35Kpa…~20MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.15kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Order Guide of flush diaphragm pressure sensor | ||||||||
| BPHT24 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IX | Display Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| T | High-temperature resistant Pressure Transmitter | |||||||
| Measurement Range | 0~35Kpa…~20MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
FAQ:
Q&A
Q1:Areyou manufactrade company?
A1:We are manufactrader with more than 29 years of experience.
Q2:Customized Product
A2:We provide OEM and Custom-Design services.
Q3:Quality Quarantee
A3:Our products have a limited 12 to 18 months warranty from shipment date to the original purchaser.Hengtong will replace or repair defective products free of charge.This warranty does not apply to any units have been modified,misused,neglected.
Q4:Shipment&packing
A4:Products are generally shipped by international Express including UPS,FedEx,DHL and INT for freight prepaid,also can use your shipment account to collect,Standard export packing,including inspection certification.
Q5:Contact US
A5:We have an active and experienced sales team to serve you on technical question and business issue.Just leave us message or click the Online Service.
