BP93420-IIIQ Flush Diaphragm Pressure Sensor Ideal for Liquid Pressure Testing

Introduction of flush diaphragm pressure sensor:

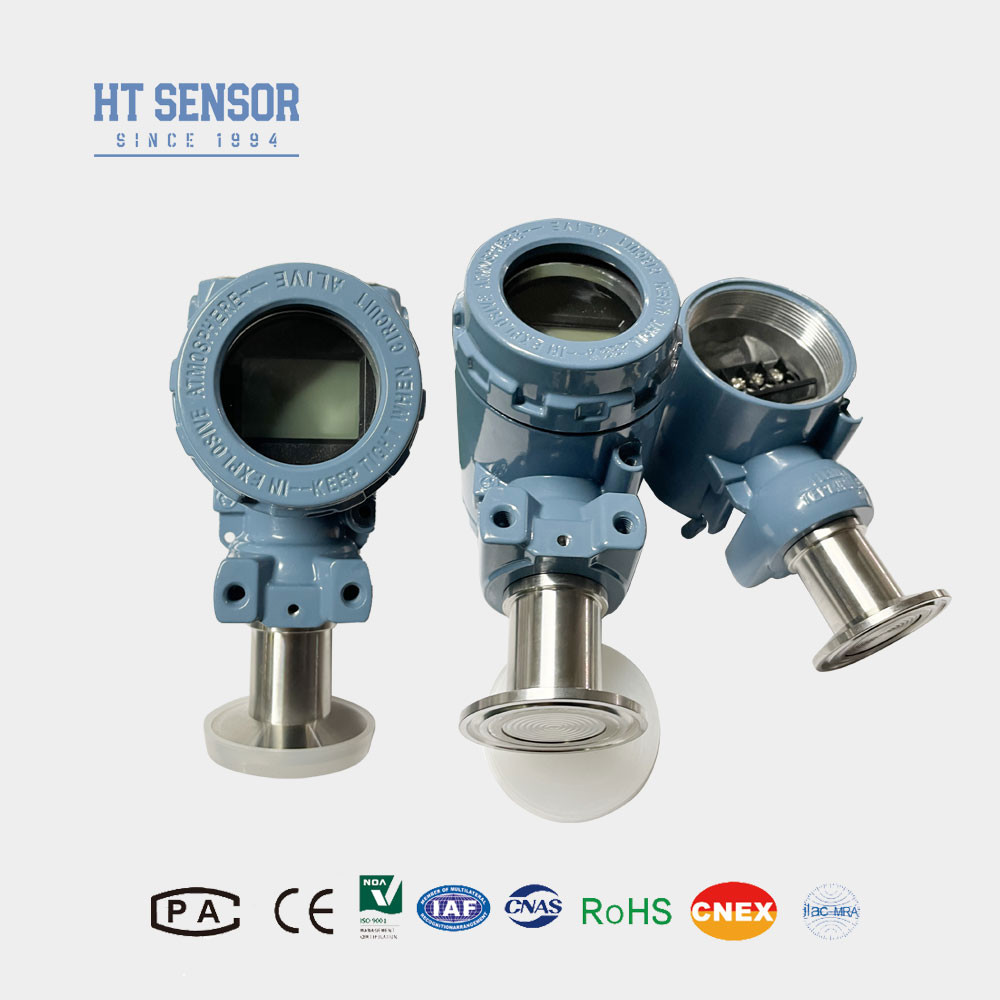

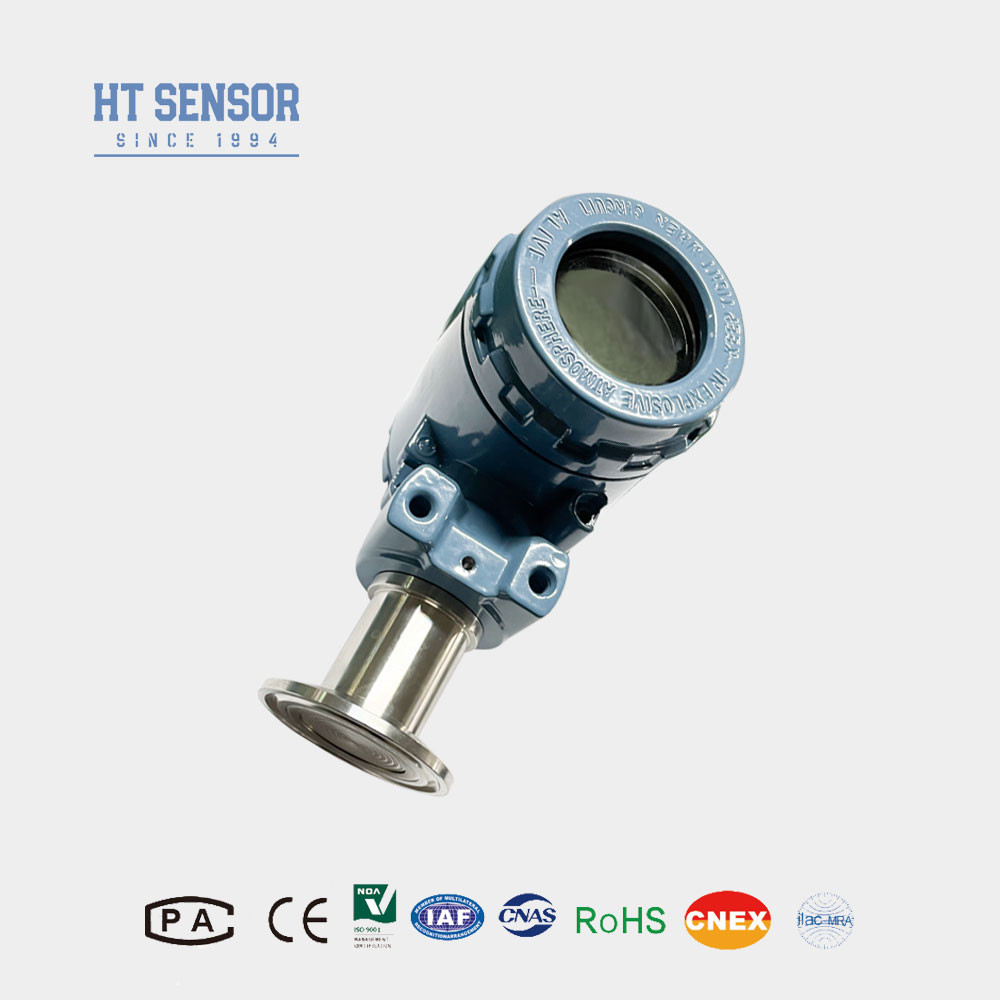

BP93420-IIIQ film pressure sensor transmitter is a simulation of pressure transmitter, using flat film structure, increasing the contact area with the medium.Wide temperature range, strong overload capacity, strong corrosion resistance, wide application. Simple structure, easy to clean, especially suitable for liquid food pressure measurement.

Product Features of flush diaphragm pressure sensor:

• 1. Wide measurement range,Various pressure interface options
• 2. Diverse output signal options
• 3. Adjustable zero and full-scale
• 4. High accuracy,multiple sterile process connections

Applications of flush diaphragm pressure sensor:

• 1. Suitable for measurement of non-corrosive gases and liquids with 316L.
• 2. Used for aseptic processing in medical, biopharmaceutical, food hygiene and other industries.
• 3. Used in the paper and chemical industries, as well as in sewage level and beverage tank pressure measurement, suitable for hydraulic and pneumatic control systems​.

• 1. When selecting the product, please ensure that the tested medium is compatible with the contact part of the product.
• 2. When placing an order, please note that explosion-proof products do not include digital display heads.
• 3. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be less than 20VDC.
• 4. To ensure the reliable operation of the product, you are advised to install lightning protection devices on site and ensure that the product and power supply are reliably grounded.
• 5. The rated operating temperature range of fluorine rubber O-ring is -20℃~ 250℃. When the operating temperature of the product is lower than -20 ° C, EPDM O-type sealing ring should be selected.
• 6. The default cable length is 1.5m and there are three kinds of materials to choose from. If there are no special instructions, polyethylene cable materials can be used. If you need a different cable material, please specify it in the order form.
• 7. In case of special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or RF interference, please inform us and indicate in the order.​



Order Guide of  flush diaphragm pressure sensor
BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter
	IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
					Code	Pressure Connection
					J1	M20×1.5
					J2	G1/2
					J3	G1/4
					J4	7/16-20UNF
					J5	Other
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure
