4-20mA Clamp Flat Film Pressure Transmitter Flush Diaphragm Pressure Transmitter Sensor

Basic Information

Place of Origin:	Baoji，China
Brand Name:	HT SENSOR
Certification:	CE, RoHs, ISO9001
Model Number:	BP93420-IQ

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month

Get Best Price Contact Now

Detail Information

Model NO.:	BP93420-IQ	Power Supply:	24VDC
Output Signal:	Gauge Pressure, Absolute Pressure, Sealed Pressure	Accuracy:	0.25%F.S, 0.5%F.S
Pressure Range:	-100kPa...0kPa ~35kPa...3.5MPa	Customization:	Available \| Customized Request
Model:	1
Highlight:	Flush Diaphragm Pressure Transmitter Sensor , 4-20mA Clamp Pressure Transmitter Sensor , Clamp flat film Pressure Transmitter Sensor

Product Description

4-20mA Clamp flat film Pressure Transmitter Flush Diaphragm Pressure Transmitter Sensor

BP93420-IQ Pressure Transmitter

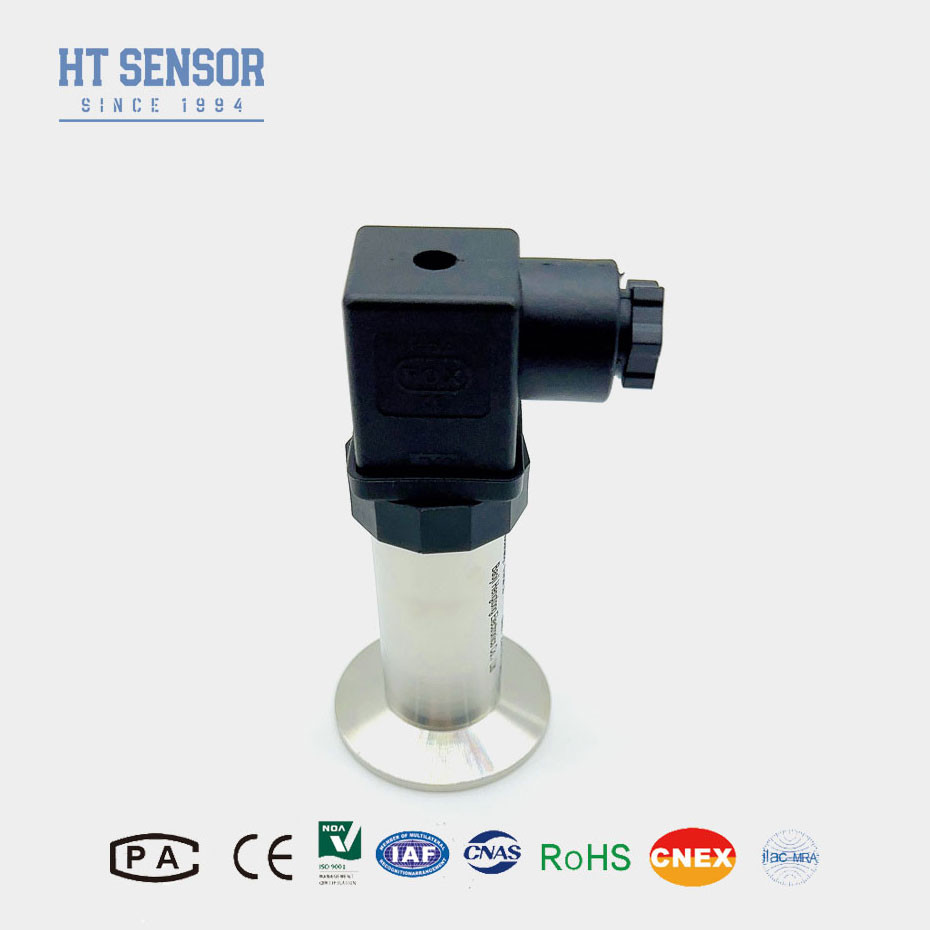

4-20mA Clamp Flat Film Pressure Transmitter Flush Diaphragm Pressure Transmitter Sensor 0

Introduction of Pressure Transmitter Sensor

BP93420-IQ pressure transmitters usually use heat sinks to improve the heat dissipation performance of the sensor. The heat sink is in close contact with the sensor, and the heat generated by the sensor is rapidly transmitted to the heat sink through the thermal conductive material, and is emitted through the surface of the heat sink to keep the working temperature of the sensor within a reliable range

Product Features:

Various pressure interface options
Designed for hygienic applications to prevent medium scaling
High accuracy with a fully stainless steel structure
Easy to clean.

Applications:

Suitable for measuring non-corrosive gases and liquids with 316L
Ideal for environmental protection and chemical industries
Used in the marine and aviation industries
Well-suited for use in the medical, biopharmaceutical, and food hygiene industries.

Performance Parameters:

Measurement Range	0~35Kpa…~3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)

Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	-20-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.55kg

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V
0/1~10V
0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

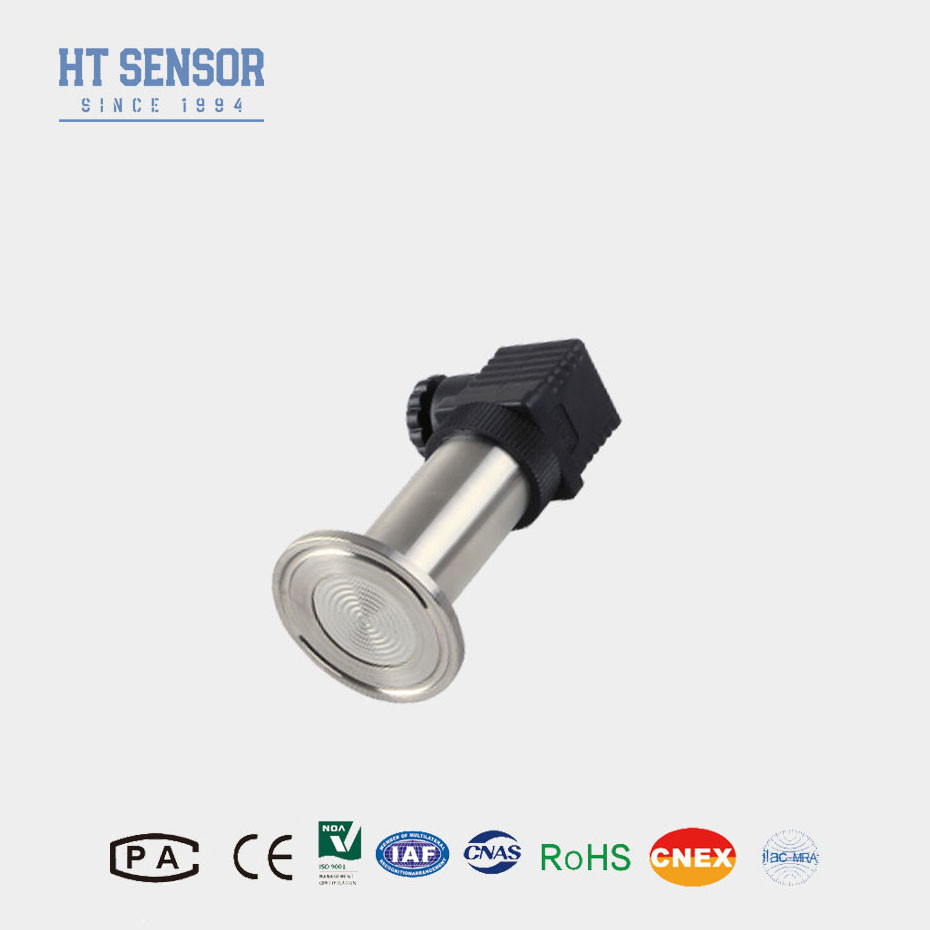

4-20mA Clamp Flat Film Pressure Transmitter Flush Diaphragm Pressure Transmitter Sensor 1

Hengtong 4-20mA Stainless Steel Pressure Transmitter Sensor OEM High Stability

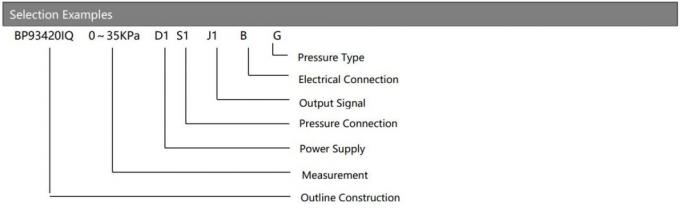

Order Guide:

BP93420XX	Pressure Transmitter
	Code	Outline Construction
	IB	General Pressure Transmitter			IX	Display Pressure Transmitter
	IE	Shock-resistant Aviation Pressure Transmitter			IIC/III	Industrial General/ Display Pressure Transmitter
	IF	Moisture-proof Pressure Transmitter			IIE/IIIE	General/Display Pressure Transmitter
	IN	Air Conditioning Dedicated Pressure Transmitter			IC	High-temperature Pressure Transmitter
	IQ/IQT	Large Diaphragm /High-temperature Pressure Transmitter
		Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
		(0-X)Kpa or MPa	X: Indicates the Actual Measuring Range
			Code	Power Supply
			D1	24VDC
			D2	5VDC
			D3	Other
				Code	Output Signal
				S1	4~20mADC	S5	0~20mADC
				S2	1~5VDC	S6	0~10VDC
				S3	0~5VDC	S7	0.5~4.5VDC
				S4	0~10mADC
						Code	Electrical Connection
						B1	Hirschmann
						B2	PG7 Plug
						B3	Sealed Cable Output
						B4	2088 Industrial Casing
						B5	2088 Industrial Casing with Display
						B6	Other
							Code	Pressure Type
							G	Gauge Pressure
							A	Absolute Pressure
							S	Sealed Reference Pressure
