Detail Information

Model NO.:	BP93420-IIIQT	Measuring Medium:	Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~35kpa...3.5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Frequency Response:	2.4kHz
Weight:	~1kg	Diaphragm Material:	316L
Insulation Resistance:	100MΩ 100VDC	Explosion-proof Rating:	Ex Db IIC T6 Gb
Operating Temperature:	-20ºC~80ºC	Storage Temperature:	-40ºC~120ºC
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485
Highlight:	316L pressure transmitter for food industry , IP65 industrial pressure sensor , high accuracy 0.5% pressure transmitter

Product Description

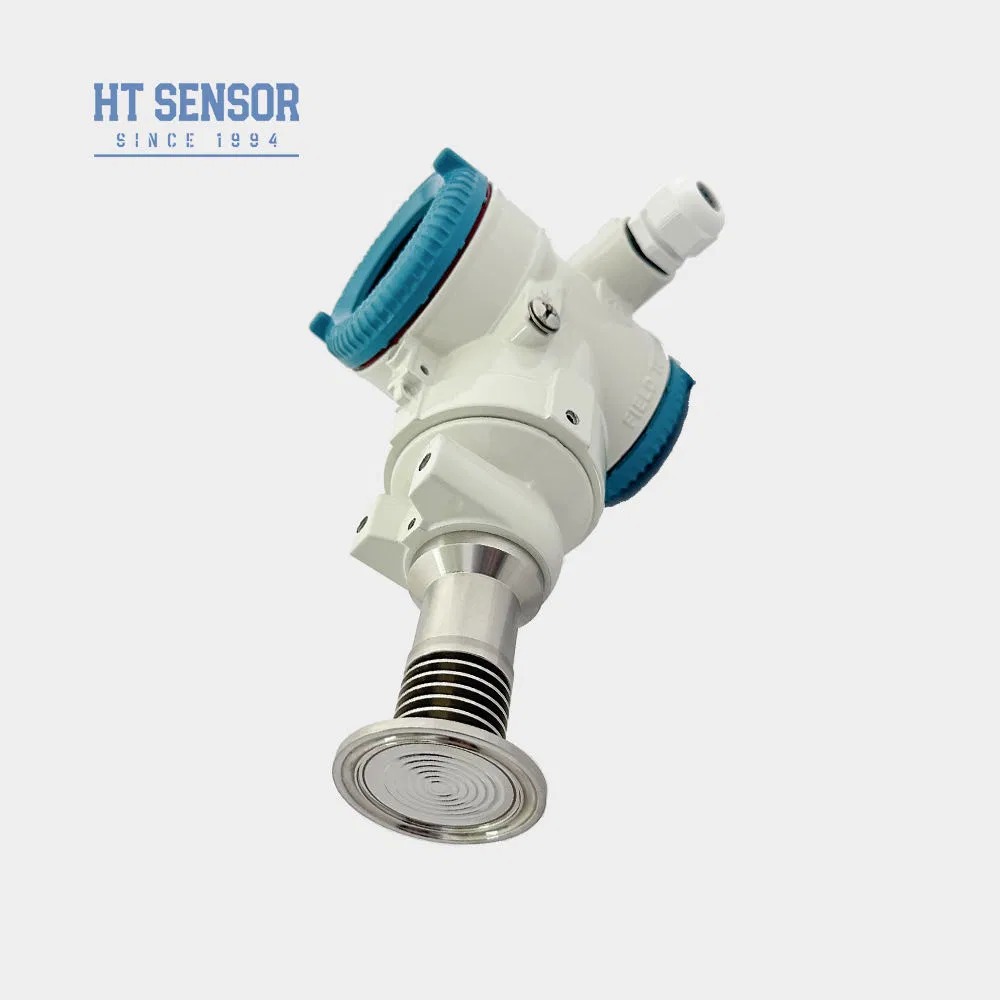

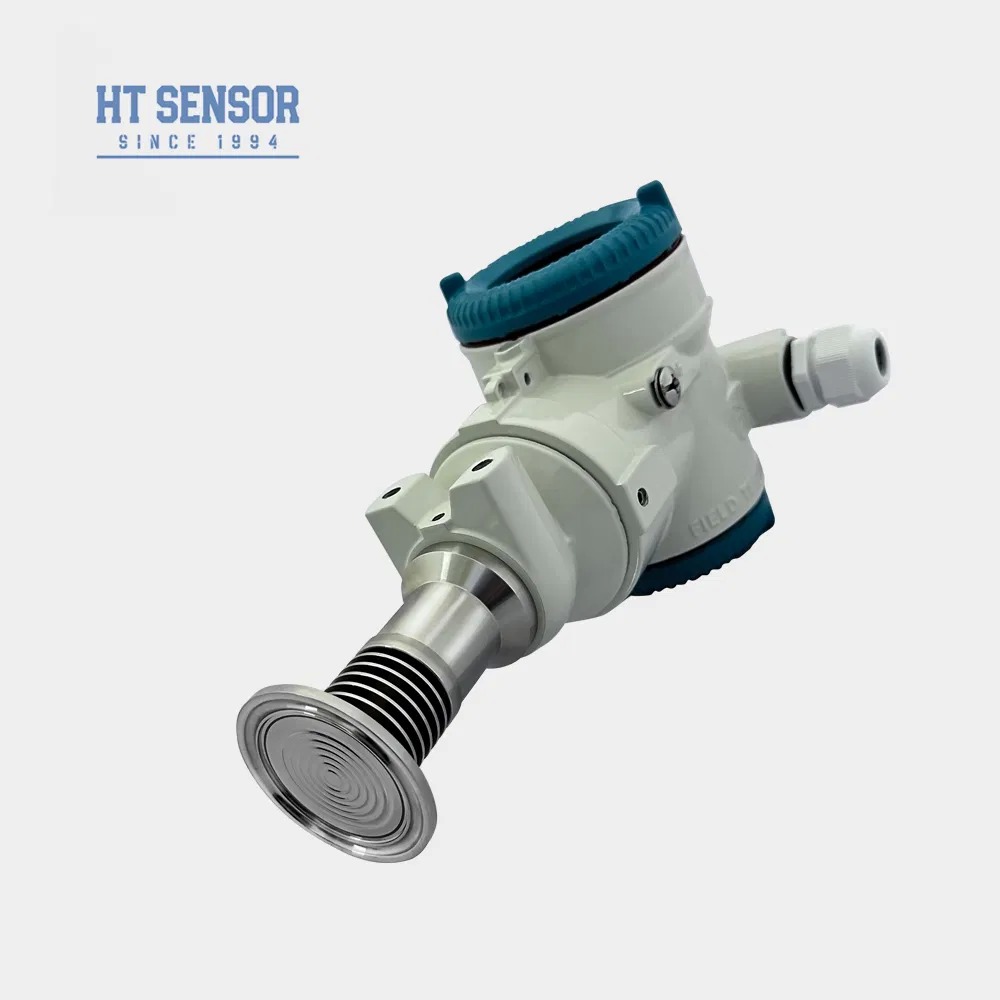

BPHT24-III Hengtong Digital Output 2088 Pressure Transmitter

Product Overview

The BPHT24-III pressure transmitter utilizes the HT series silicon pressure-resistance isolation oil-filled core as the signal measuring element. It features a full metal flush diaphragm and direct welding with the process connection, ensuring precise connections between the process connection and the measuring diaphragm. The product has undergone rigorous testing for stable, reliable performance and effectively prevents pressure hole blockage caused by crystallizing media.

Key Features

Wide measurement range with various pressure interface options
Diverse output signal options for flexible integration
Adjustable zero and full-scale calibration
High accuracy with multiple sterile process connections

Applications

Measuring non-corrosive gases and liquids with 316L compatibility
Medical, biopharmaceutical, and food hygiene industries for sterile processing
Paper and chemical industries, sewage level and beverage can pressure measurements
Hydraulic and pneumatic control systems

Performance Specifications

Parameter	Specification
Measurement Range	-100kPa…0kPa ~ 35kPa…3.5MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Operating Temperature	-20ºC~80ºC
Housing Material	304, 316L
Protection Rating	IP65
Explosion-proof Rating	Ex db IIC T6 Gb

Output Signal Options

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V, 0/1~10V, 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Important Notes

Ensure medium compatibility with product contact parts
Explosion-proof models don't include digital display heads
Minimum 20VDC power supply required for transmitters with LCD/LED displays
Install lightning protection devices and ensure proper grounding
Default cable length: 1.5m (polyethylene material)

Order Guide

Code	Description
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
D1	24VDC Power Supply
S1	4~20mADC Output
J1	M20×1.5 Pressure Connection
G	Gauge Pressure Type

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

What is your production capacity?

Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.

What's the typical delivery period?

5-8 working days for standard models. Customized products may vary.

What is the warranty and after-sales service?

24-month warranty with 24-hour response time for support queries. Remote assistance available.
