Detail Information

Model NO.:	BP93420-III	Measuring Medium:	Liquid
Accuracy Grade:	0.5%	Pressure Range:	-100kpa...0kpa ~10kpa...100MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Frequency Response:	2.4kHz
Weight:	~1.2kg	Overload:	≤ 1.5 Times Of The Rated Range
Accuracy @ 25ºC:	±0.25% (Typical) ±0.5% (Maximum)	Long-Term Stability:	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Operating Temperature:	-20ºC~80ºC	Storage Temperature:	-40ºC~120ºC
Insulation Resistance:	100MΩ 100VDC
Highlight:	Digital Pressure Transmitter 0-100MPa , Industrial Pressure Sensor IP65 , Pressure Transmitter with Warranty

Product Description

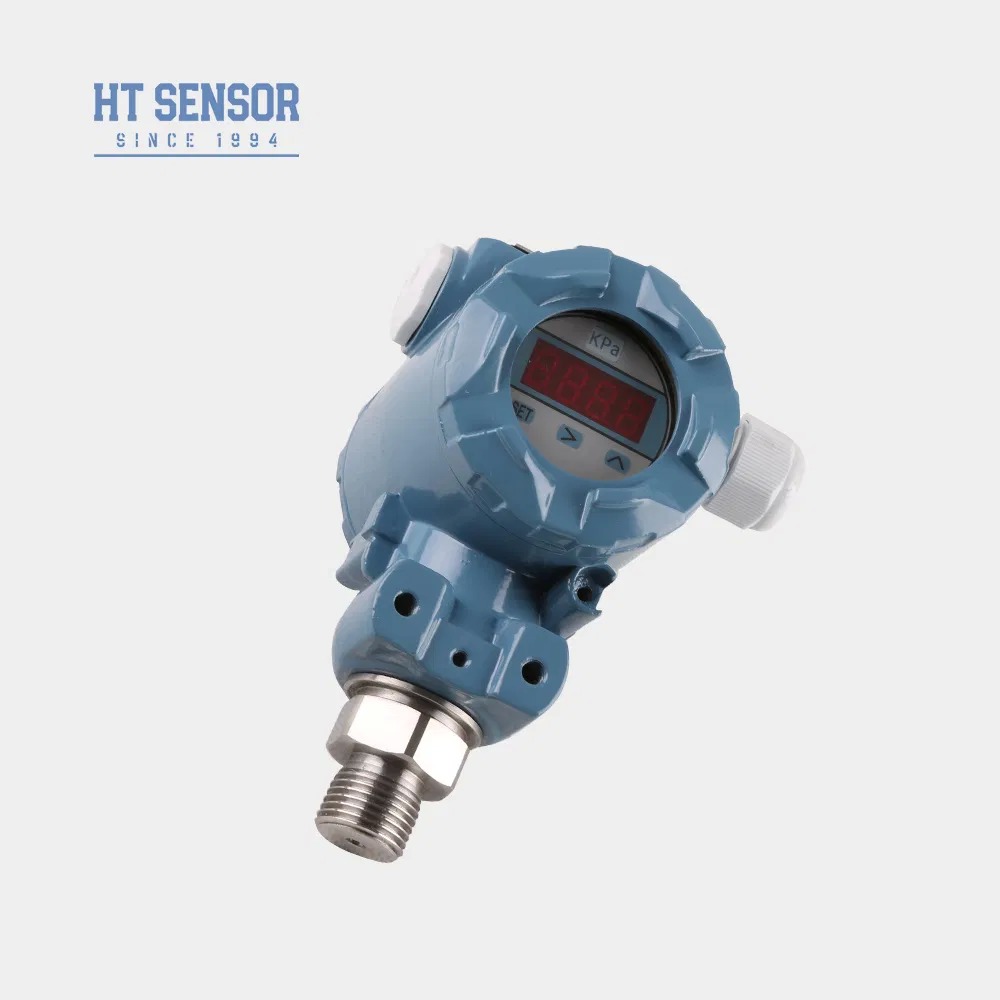

High Stable 0-20bar Digital Pressure Transmitter OEM with Display

BP93420-III Pressure Transmitter

The BP93420III pressure transmitter utilizes HT series silicon piezoresistive isolation oil-filled core technology for signal measurement. The signal processing circuit converts sensor signals into standard output signals. Rigorous testing and aging screening of components ensure stable, reliable performance with strong anti-interference capability.

Product Features

Wide measuring range with multiple pressure interface options and IP65 protection
Adjustable output signals with display capability
Zero point and full scale adjustment
High-precision diffused silicon piezoresistive pressure sensor core

Applications

Measurement of non-corrosive gases and liquids in 316L stainless steel systems
Petroleum, chemical, metallurgical, power, and hydrological industries
Pressure measurement in harsh outdoor industrial environments
Hydraulic and pneumatic control systems

Performance Parameters

Parameter	Specification
Measurement Range	-100kPa...0kPa ~10kPa...100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	≤±0.1%FS
Hysteresis	≤±0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response	2.4Khz
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	Cast aluminum
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~1.2kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC
RS485 Communication Protocol	3.6~30V / Battery	4 wire

Ordering Information

Ordering Tips

Ensure medium compatibility with product contact parts
Explosion-proof models exclude digital display heads
Transmitters with LCD/LED displays require ≥20VDC power supply
Install lightning protection devices and ensure proper grounding
For temperatures below -20ºC, specify EPDM O-ring seals
Default cable length: 1.5m (polyethylene material)
Specify special requirements (vibration, EMI/RFI, etc.) in orders

Order Guide

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ/IQT	Large Diaphragm/High-temperature Pressure Transmitter

Measurement Range: -100kPa...0kPa ~ 35kPa...3.5MPa (0-X)Kpa or MPa (X indicates actual measuring range)

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Pressure Connection
J1	M20×1.5
J2	G1/2
J3	G1/4
J4	7/16-20UNF
J5	Other

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Custom products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with bulk order and long-term partnership discounts.

Q: What is the warranty and after-sales service?

A: 24-month warranty with 24-hour response time. Remote technical support available.
