Detail Information

Model NO.:	BP155	Measuring Medium:	Gas
Accuracy Grade:	0.2G	Pressure Range:	0kpa~10kpa...5MPa
IP Rating:	IP65	Pressure Type:	Gauge Pressure, Absolute Pressure, Sealed Pressure
Housing Material:	316L	Long-Term Stability:	0.1%F.S/Year
Measurement Range:	0kPa ~ 10kPa…20MPa	Overload:	≤ 1.5 Times Of The Rated Range
Accuracy @ 25ºC:	±0.25% (Typical) ±0.5% (Maximum)	Repeatability& Hysteresis:	0.02%F.S(Typ.) 0.05%F.S(Max.)
Zero Point Temperature Drift:	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)	Full Scale Temperature Drift:	±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa)
Frequency Response:	2.4Khz
Highlight:	BP155 gas pressure transmitter , IP65 industrial pressure sensor , 0.2G accuracy pressure transmitter

Product Description

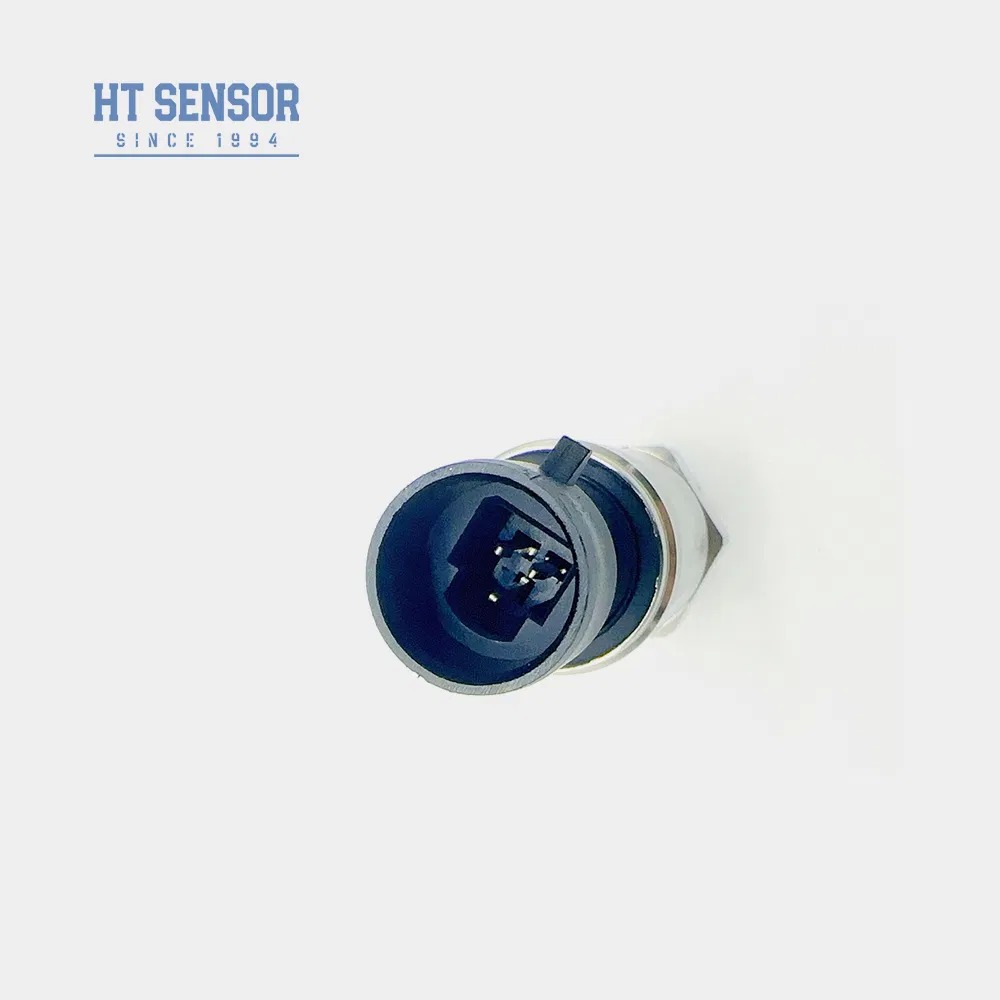

HT Series Diffusion Oil-Filled Pressure Transmitter BP155 Air Water Gas Measurement Sensor

Product Overview

The BP155 Pressure Transmitter is a cost-effective solution specifically designed for air compressors and refrigeration equipment. Incorporating advanced technology and our proprietary high-performance transmitter circuit, this transmitter features a compact design with superior moisture resistance and excellent anti-electromagnetic interference capabilities. Rigorous testing and aging selection processes ensure stable and reliable performance.

Key Features

Wide measuring range with stainless steel construction
Multiple pressure interface options available
Compact and lightweight design for easy installation
Adjustable zero and full-scale settings
High precision measurement with all stainless steel structure

Applications

Pressure measurement of non-corrosive gases and liquids (316L stainless steel)
Marine and aviation industry applications
Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
Hydraulic and pneumatic control systems

Technical Specifications

Parameter	Specification
Measurement Range	0kPa ~ 10kPa...20MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload Capacity	≤ 1.5 times of rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Long-Term Stability	±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.)
Operating Temperature	-20ºC~80ºC
Housing Material	304, 316L Stainless Steel
Protection Rating	IP65

Output Signal Options

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V, 0/1~10V, 0.5~4.5V	5VDC

Ordering Information

Important Notes:

Ensure medium compatibility with product contact parts
Explosion-proof models exclude digital display heads
Minimum 20VDC required for transmitters with LCD/LED displays
Recommended installation of lightning protection devices
Default cable length: 1.5m (polyethylene material)
Special requirements must be specified during ordering

Order Guide:

Feature	Options
Outline Construction	5: Packard plug, 6: Sealed Direct Output Cable, 7: Mini Hirschmann, 8: Large Hirschmann
Measurement Range	0kPa ~ 10kPa...5MPa (customizable)
Power Supply	D1: 24VDC, D2: 5VDC, D3: Other
Output Signal	S1: 4~20mADC, S2: 1~5VDC, S3: 0~5VDC, etc.
Pressure Connection	J1: M20×1.5, J2: G1/2, J3: G1/4, etc.

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.

Q: What is your production capacity?

A: Our facilities can produce up to 30,000 units monthly. Contact our sales team for large orders.

Q: What's the typical delivery period?

A: 5-8 working days for standard models. Custom products may vary.

Q: How are the products priced?

A: Competitive pricing with bulk order discounts available.

Q: What is the warranty and after-sales service?

A: 24-month warranty with 24-hour response time for technical support.

Tag:

Certification:	CE, RoHS

Minimum Order Quantity:	1
Price:	15
