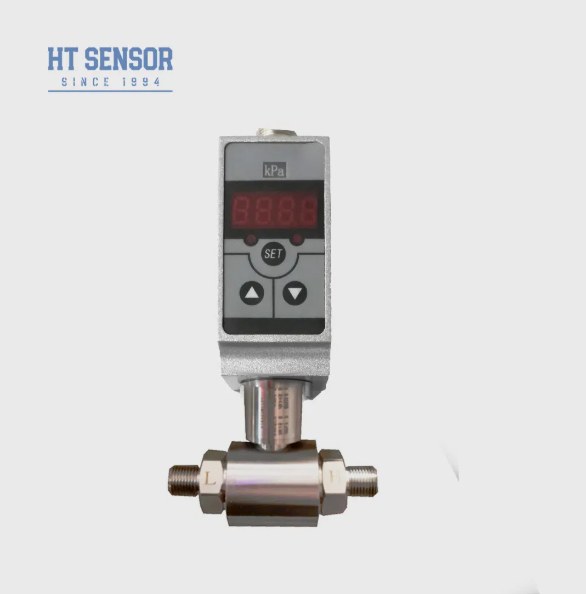

BPZK04D LED Display Differential Pressure Sensor with 2 Point Switch and 0-100 psi Range for Industrial Applications
Product Details
| Material: | 316L | Measurement Range: | 0-100 Psi |
|---|---|---|---|
| Process Connection: | 1/4" NPT | Seal: | EPDM, FPM, FKM |
| Diaphragm Material: | 316L | Measuring Range: | 3.5Mpa |
| High: | OEM | Certifications: | CE, RoHS |
| Housing Material: | Stainless Steel | ||
| Highlight |
2 Point Switch Differential Pressure Sensor,0-100 psi Range Pressure Transmitter Sensor,1/4" NPT Connection Electronic Pressure Switch |
||
Product Description
- Stainless steel structural design with versatile pressure interface options
- High-brightness LED pressure display
- 24VDC power supply
- Up to two control relay outputs with customizable relay values and states
- High accuracy measurement
| Parameter | Specification |
|---|---|
| Measurement Range | 0-10KPa~2MPa (Differential Pressure) |
| Pressure Type | Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | Vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.65kg |
- Ensure the measured medium is compatible with the product's contacting parts when selecting.
- Specify power supply, accuracy grade, number of control points, and RS485 interface requirement when ordering.
- Flat diaphragm pressure controller measurement range is 0~35KPa...20MPa.
- For differential pressure measurement, consider the relationship between differential pressure range and allowable overpressure of high/low pressure chambers to match field requirements. Install a three-valve manifold between measuring point and transmitter for safety.
- Install lightning protection devices and ensure proper grounding for reliable operation. Specify special requirements (vibration, impact, EMI/RFI) in your order.
