10VDC Power HT24V Silicon Pressure Sensor with 316L Stainless Steel Housing for Industrial Applications

Name: 10VDC Power HT24V Silicon Pressure Sensor with 316L Stainless Steel Housing for Industrial Applications
Brand: Baoji Hengtong Electronics Co., LTD
Price: 25.00 USD
Availability: InStock

Basic Information

Get Best Price Contact Now

Detail Information

Highlight:

10VDC Power Pressure Sensor

HT24V Silicon Pressure Transmitter

316L Stainless Steel Pressure Sensor

Product Description

10VDC Power HT24V Silicon Pressure Sensor Cell G1/2 Level Sensor

HT24V Silicon Piezoresistive Pressure Sensor

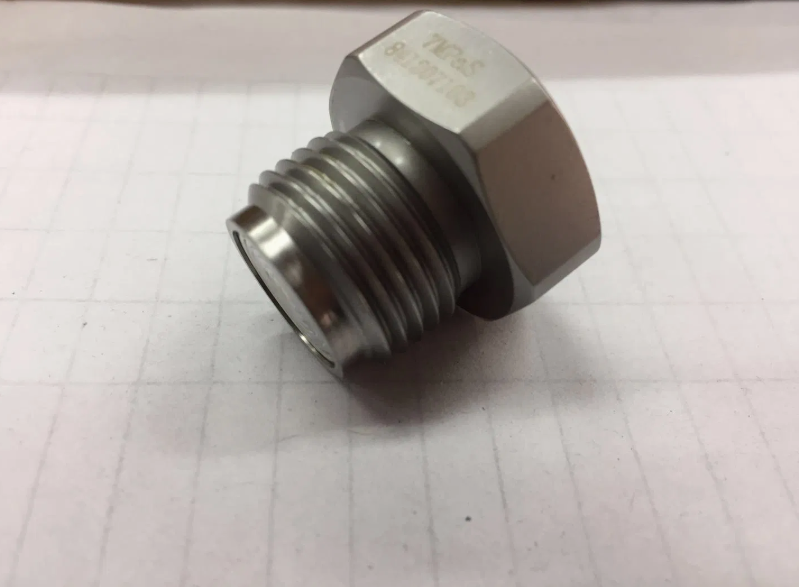

HT24V is a flush diaphragm pressure sensor equipped with a highly stable diffused silicon chip. Its innovative design allows for the transmission of pressure to the sensitive chip through a stainless steel diaphragm, with the added protection of sealed silicon oil. The flush diaphragm structure enhances the ease of cleaning and contributes to its exceptional reliability. This sensor is ideal for various applications, particularly in industries such as food and hygiene, where stringent requirements for cleanliness and accuracy are crucial.

Product Features

Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphragm
Employing thick-film circuits for temperature compensation and zero-point correction, offering outstanding reliability, repeatability, and stability
Flush diaphragm structure for easy cleaning

Applications

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility
Food and beverage industry
Industrial process control
Pharmaceutical industry

Electrical Performance

Power Supply: ≤10VDC

Common Mode Voltage Output: 50% of the input (typical)

Input Impedance: 4KΩ~20KΩ

Output Impedance: 2.5KΩ~6KΩ

Electrical Connection: 100mm high-temperature wire, paper ribbon cable

Technical Specifications

Measurement Range
Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
Sealed(S)	3500KPaS,7MPaS,10MPaS,20MPaS,35MPaS

Parameter	Typ	Max	Unit
Nonlinearity	±0.15	±0.3	%F.S
Repeatability	0.05	0.1	%F.S
Hysteresis	0.05	0.1	%F.S
Zero Offset Output	0±1	0±2	mV
Full Scale Output (≤20KPa)	50±1	50±2	mV
Full Scale Output (≥35kPa)	100±1	100±2	mV

Electrical Connection and Compensation

Selection Examples

Ordering Tips

Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the required airtightness
During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate
If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order
Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing
Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber
If there are any changes to the pin leads, follow the label on the actual core for reference

The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC
