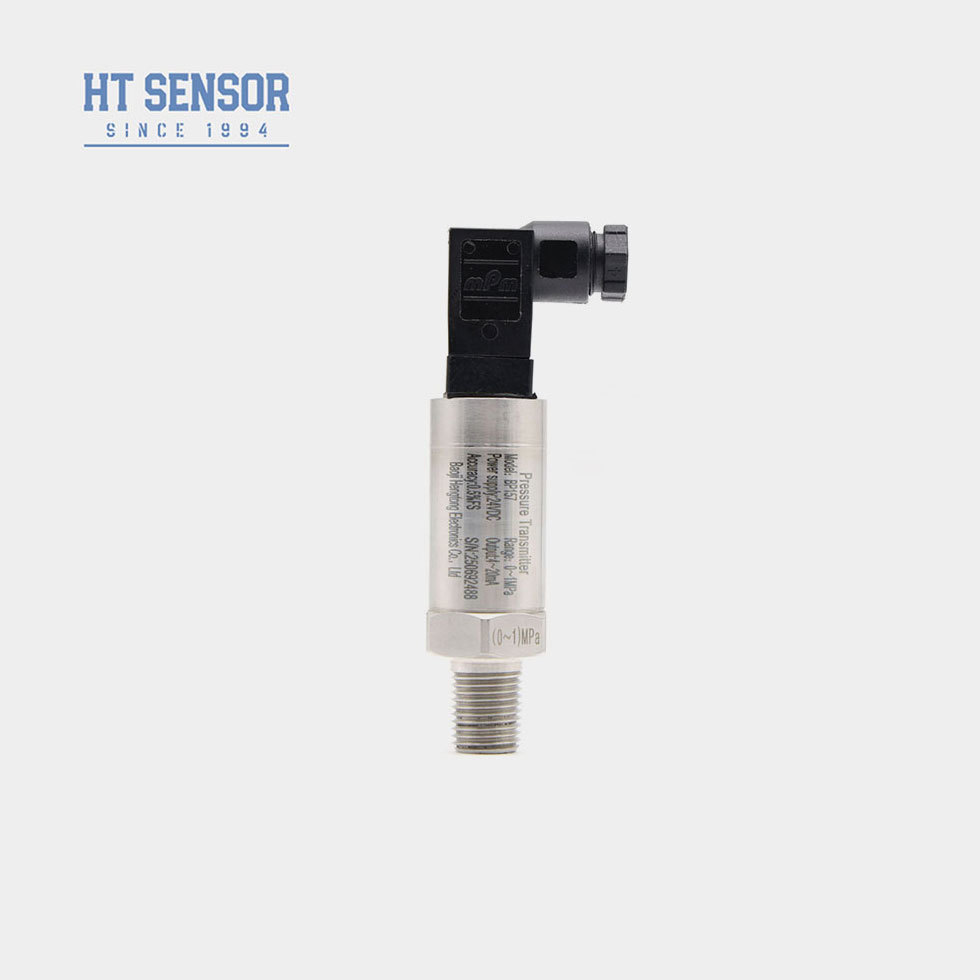

Hengtong Compact Design 0-5V Silicon Pressure Transmitter Sensor for Hygienic Applications with Easy to Clean and Explosion-proof Features
Product Details
| Highlight |
Hygienic Applications Pressure Transmitter Sensor,Easy to Clean Pressure Transducer,Explosion-proof Pressure Sensor |
||
|---|---|---|---|
Product Description
BP93420-IQT High temperature transmitters feature heat sinks to improve heat dissipation performance. The heat sink maintains close contact with the sensor, rapidly transferring heat through thermal conductive material to keep the sensor's working temperature within a reliable range.
- Multiple pressure interface options
- Hygienic design prevents medium scaling
- High accuracy with fully stainless steel construction
- Easy to clean surface
- Measurement of non-corrosive gases and liquids with 316L compatibility
- Environmental protection and chemical industries
- Marine and aviation applications
- Medical, biopharmaceutical, and food hygiene industries
| Measurement Range | 0~35Kpa…~3.5MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | -20-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex db IIC T6 Gb |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.55kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure the measured medium is compatible with the product's contact parts
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD/LED displays, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- Fluoro rubber O-ring rated for -20ºC to 250ºC; use EPDM O-ring for temperatures below -20ºC
- Default cable length is 1.5m (polyethylene material); specify alternative materials when ordering
- Notify us of special requirements (vibration, impact, EMI/RFI interference) when ordering
| Outline Construction | |
|---|---|
| IB | General Pressure Transmitter |
| IX | Display Pressure Transmitter |
| IE | Shock-resistant Aviation Pressure Transmitter |
| IIC/III | Industrial General/Display Pressure Transmitter |
| IF | Moisture-proof Pressure Transmitter |
| IIE/IIIE | General/Display Pressure Transmitter |
| IN | Air Conditioning Dedicated Pressure Transmitter |
| IC | High-temperature Pressure Transmitter |
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter |
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa (0-X)Kpa or MPa (X indicates actual measuring range) |
|---|
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 Plug |
| B3 | Sealed Cable Output |
| B4 | 2088 Industrial Casing |
| B5 | 2088 Industrial Casing with Display |
| B6 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
