Hengtong Compact Design 0-5V Silicon Pressure Transducer BP93420-IB with Adjustable Zero and Full-Scale for Wide Measuring Range

Name: Hengtong Compact Design 0-5V Silicon Pressure Transducer BP93420-IB with Adjustable Zero and Full-Scale for Wide Measuring Range
Brand: Baoji Hengtong Electronics Co., LTD
Price: 25.00 USD
Availability: InStock

Basic Information

Get Best Price Contact Now

Detail Information

Highlight:

0-5V Output Pressure Transducer

Adjustable Zero and Full-Scale Pressure Sensor

Wide Measuring Range Pressure Transmitter Sensor

Product Description

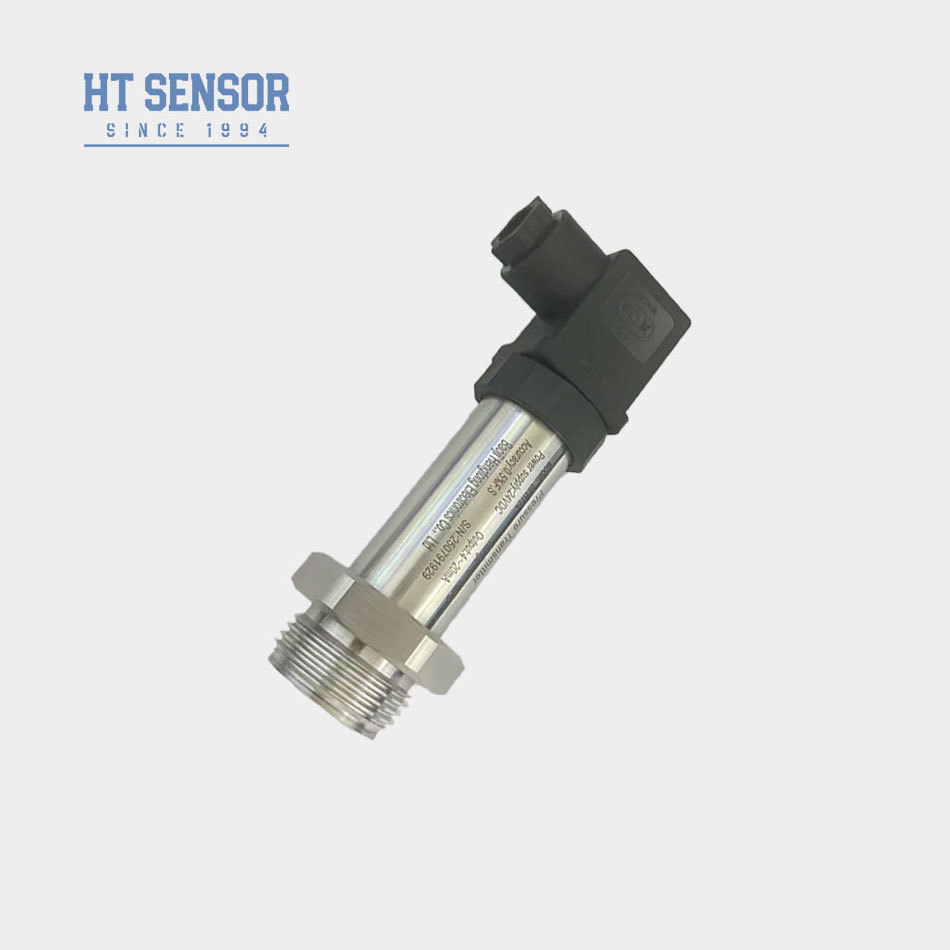

BP93420IB Pressure Transmitter

The BP93420IB pressure transmitter utilizes an HT-series diffused silicon, oil-filled isolated core as its signal sensing element. The signal processing circuitry is housed within a stainless steel enclosure, where it converts the sensor signal into a standard output signal. This product undergoes strict testing and aging screening at the component, semi-finished, and finished-product stages, guaranteeing stable and reliable performance.

Product Features

Wide measuring range, stainless steel structure, diverse pressure interface forms
Compact and lightweight design
Zero and full-scale adjustable
High precision, all stainless steel structure
Adjustable zero and full-scale

Applications

Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
Applied in the marine and aviation industries
Used in industrial on-site processes such as petroleum, chemical, metallurgy, power generation, and hydrology
Utilized in hydraulic and pneumatic control systems

Performance Parameters

Parameter	Value
Measurement Range	-100kPa…0kPa ~ 10kPa…100MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealed Pressure
Overload	≤ 1.5 times of the rated range
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	0.1%FS
Hysteresis	0.1%FS
Long-Term Stability	±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum)
Zero Point Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Full Scale Temperature Drift	±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa)
Compensation Temperature	0-70ºC(≤10mpa,customizable)
Operating Temperature	-20ºC~80ºC
Storage Temperature	-40ºC~120ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Ex db IIC T6 Gb
Protection Rating	IP65
O-Ring Seal	Fluoro rubber
Weight	~0.15kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0/1~10V 0.5~4.5V	5VDC

Ordering Tips

When selecting the product, please ensure the measured medium is compatible with the wetted parts of the product.
Please note that explosion-proof versions do not include digital display heads unless specified when ordering.
For transmitters equipped with an LCD or LED display head, the power supply voltage must not be lower than 20 VDC.
To ensure reliable operation, it is recommended to install lightning protection devices on-site and ensure both the product and power supply are properly grounded.
The standard Fluoroelastomer (FKM) O-ring is rated for a temperature range of -20°C to 250°C. For operating temperatures below -20°C, an EPDM O-ring must be selected.
The default cable length is 0 meters, supplied in polyethylene (PE) material unless otherwise specified. Alternative cable materials are available upon request at the time of order.
For applications involving strong vibration, sudden impact, strong electromagnetic interference, or radio frequency interference, please inform us and specify these conditions in the order.

Order Guide

BP93420XX | Pressure Transmitter

Code	Outline Construction
IB	General Pressure Transmitter
IX	Display Pressure Transmitter
IE	Shock-resistant Aviation Pressure Transmitter
IIC/III	Industrial General/ Display Pressure Transmitter
IF	Moisture-proof Pressure Transmitter
IIE/IIIE	General/Display Pressure Transmitter
IN	Air Conditioning Dedicated Pressure Transmitter
IC	High-temperature Pressure Transmitter
IQ1/IQ2	Large Diaphragm /High-temperature Pressure Transmitter

Measurement Range

-0.1...0~0.01...100MPa (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range

Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other

Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC

Code	Pressure Connection
J1	M20×1.5
J2	G1/2
J3	G1/4
J4	7/16-20UNF
J5	Other

Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	2088 Industrial Casing
B5	2088 Industrial Casing with Display
B6	Other

Code	Pressure Type
G	Gauge Pressure
A	Absolute Pressure
S	Sealed Reference Pressure

Frequently Asked Questions

Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners.

Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
