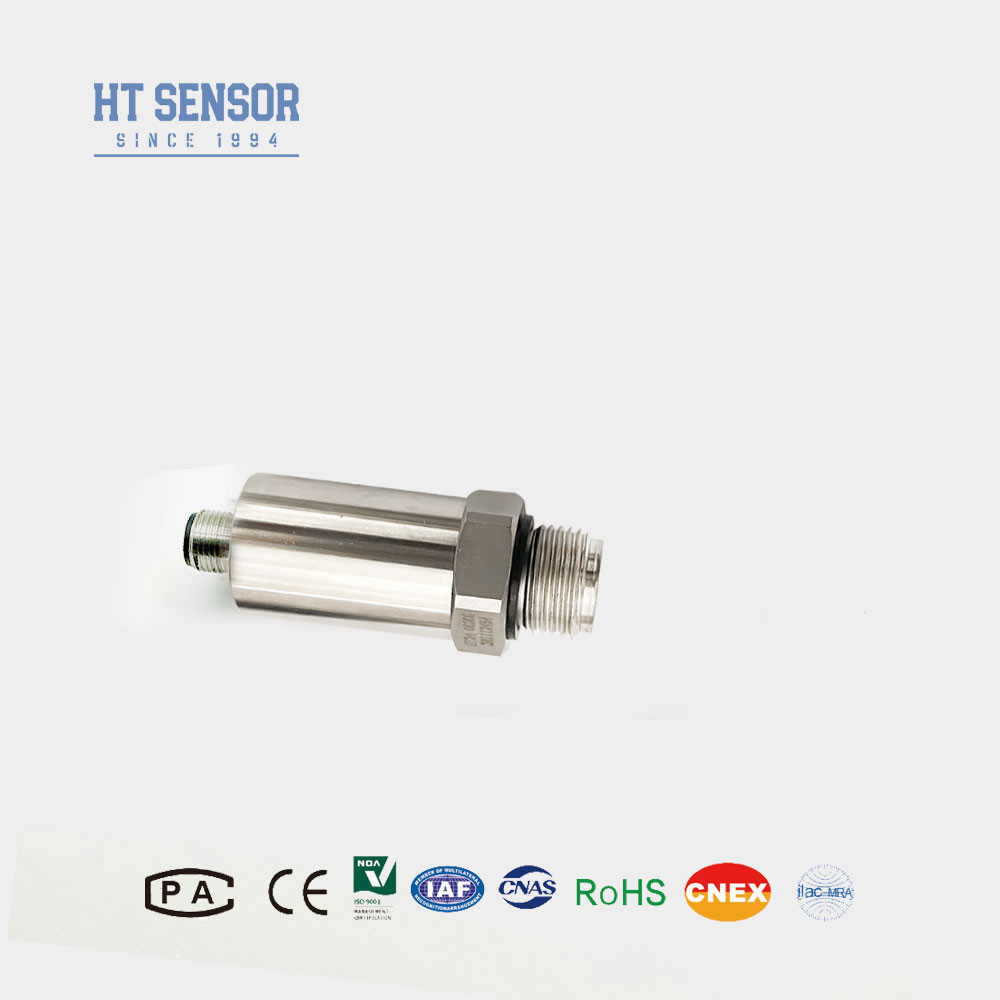

BP156 Compact Design OEM Pressure Transmitter with Wide Measuring Range and Zero Adjustable for Industrial Applications
Product Details
| Highlight |
Ex ia IIC T6 Ga Explosion-proof Pressure Transmitter,Wide Measuring Range Pressure Sensor,Zero Adjustable Pressure Transducer |
||
|---|---|---|---|
Product Description
- Wide measuring range with stainless steel structure and diverse pressure interface forms
- IP65 protection rating stainless steel construction
- Adjustable zero and full-scale settings
- High precision with all stainless steel structure
- Pressure measurement of non-corrosive gases and liquids with 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | 0kPa ~ 10kPa…5MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC |
- Ensure the measured medium is compatible with the product's contact parts
- Note that explosion-proof type products do not include digital display heads
- Install lightning protection devices and ensure proper grounding for reliable operation
- For temperatures below -20ºC, select EPDM O-ring seals instead of standard Fluoro rubber
- Default cable length is 1.5m (polyethylene material) - specify alternatives when ordering
- Inform us of special requirements (vibration, impact, EMI/RFI) in your order
| Code | Outline Construction |
|---|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| Code | Power Supply |
|---|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
|---|---|
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
|---|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
