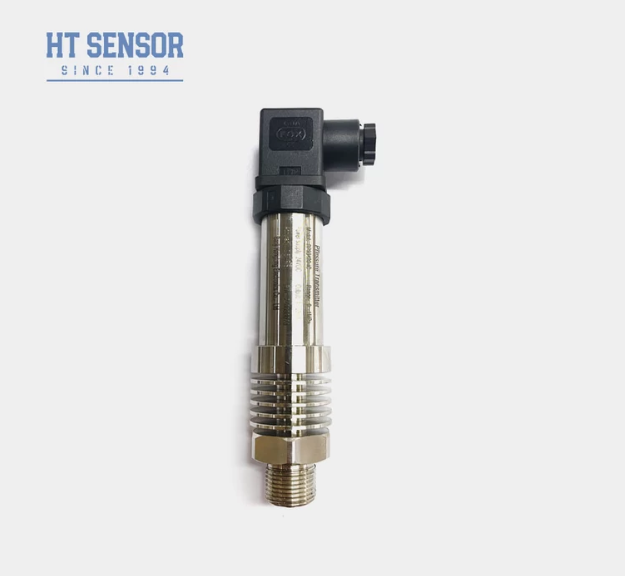

BP93420-IC High Temperature Pressure Transmitter Sensor with IP65 Protection and Ex ia IIC T6 Ga Explosion-proof for Accurate Measurements
Product Details
| Highlight |
IP65 Protection Pressure Transmitter Sensor,Ex ia IIC T6 Ga Explosion-proof Pressure Sensor,0-70ºC Compensation Temperature Pressure Transducer |
||
|---|---|---|---|
Product Description
- Wide measuring range with stainless steel construction and multiple pressure interface options
- IP65 protection rating with durable stainless steel housing
- High precision measurement with all-stainless steel structure
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial processes including petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Parameter | Specification |
|---|---|
| Measurement Range | -100kPa...0kPa ~ 10kPa...40MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload Capacity | ≤ 1.5 times of rated range |
| Accuracy @ 25°C | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year (Typical) ±0.2%F.S/Year (Maximum) |
| Zero Point Temperature Drift | ±0.02%F.S/°C (≤100KPa) ±0.01%F.S/°C (>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/°C (≤100KPa) ±0.01%F.S/°C (>100KPa) |
| Frequency Response | 2.4Khz |
| Operating Temperature | -20°C~150°C |
| Housing Material | 304, 316L Stainless Steel |
| Protection Rating | IP65 |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V, 0/1~10V, 0.5~4.5V | 5VDC | |
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
- Ensure medium compatibility with product contact materials
- Explosion-proof models exclude digital displays
- Transmitters with LCD/LED displays require ≥20VDC power supply
- Install lightning protection and ensure proper grounding for reliable operation
- Default configuration excludes cables - specify requirements when ordering
- Notify special requirements (vibration, impact, EMI/RFI) when ordering
| Code | Configuration |
|---|---|
| BP93420XX | Pressure Transmitter Base Model |
| IC | High-temperature Pressure Transmitter |
| D1 | 24VDC Power Supply |
| S1 | 4~20mADC Output |
| J1 | M20×1.5 Pressure Connection |
| B1 | Hirschmann Electrical Connection |
| G | Gauge Pressure Type |
