BPZ2008 Differential Pressure Transmitter Gauge Within 9V battery Powered Pressure Gauge
Product Details
| Model NO.: | BPZ2008 | Measuring Range: | Low-pressure Gauge |
|---|---|---|---|
| Type: | General Pressure Gauge | Accuracy: | 0.25 |
| Display: | Digital | Application: | Industrial |
| Structure: | Fluid Column Pressure Gauge | Connection Type: | Thread |
| Function: | Local Indication Type, Electric Signal-controlled | Installation Structure: | Direct Mounting |
| Features Of Measurement Medium: | General Pressure Gauge | Indicating Pressure Reference: | Differential Pressure Gauge |
| Power: | 9V Battery | Shell Material: | 304S.S And Plastic |
| Thread: | G1/2 And So On | Display Value: | Pressure |
| Transport Package: | Carton | Specification: | 10kpa~100mpa |
| Trademark: | HengTong | Origin: | China |
| HS Code: | 80328100 | Production Capacity: | 50000PCS/Year |
| Highlight |
BPZ2008 differential pressure transmitter,9V battery powered pressure gauge,pressure transmitter sensor with warranty |
||
Product Description

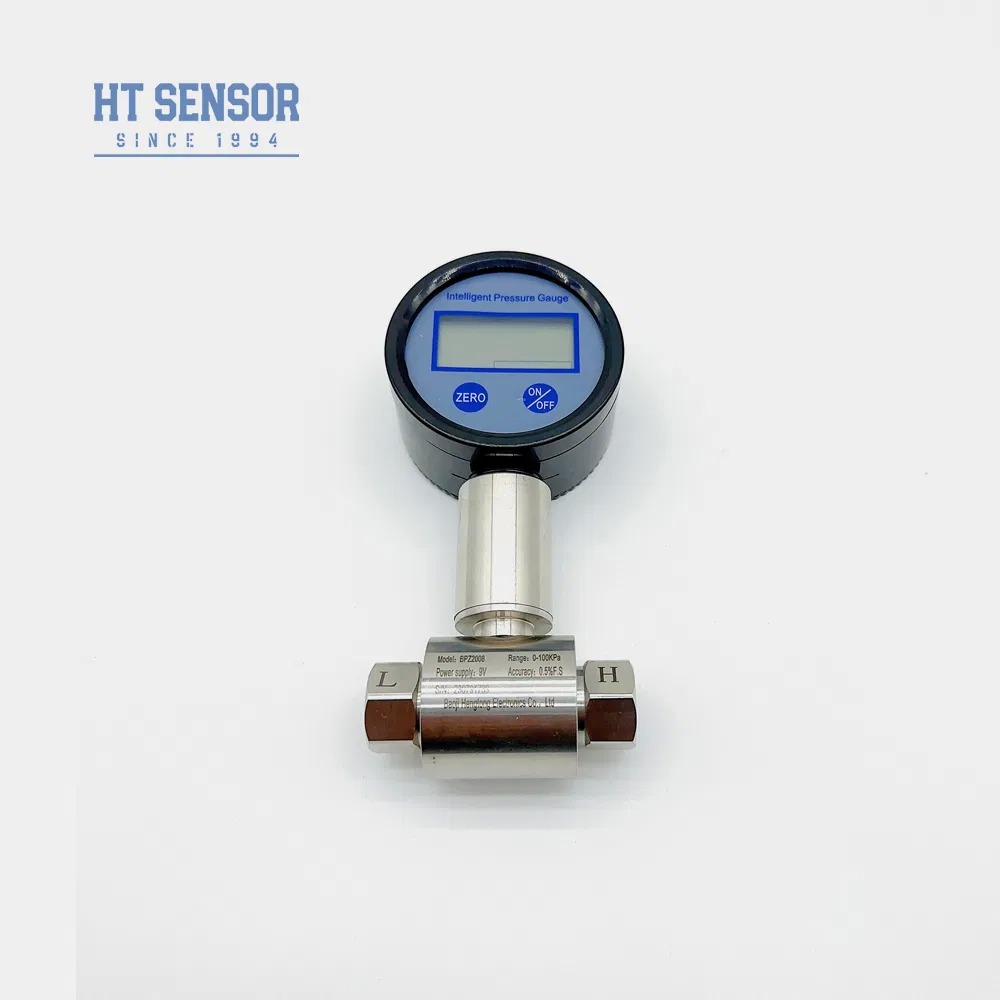

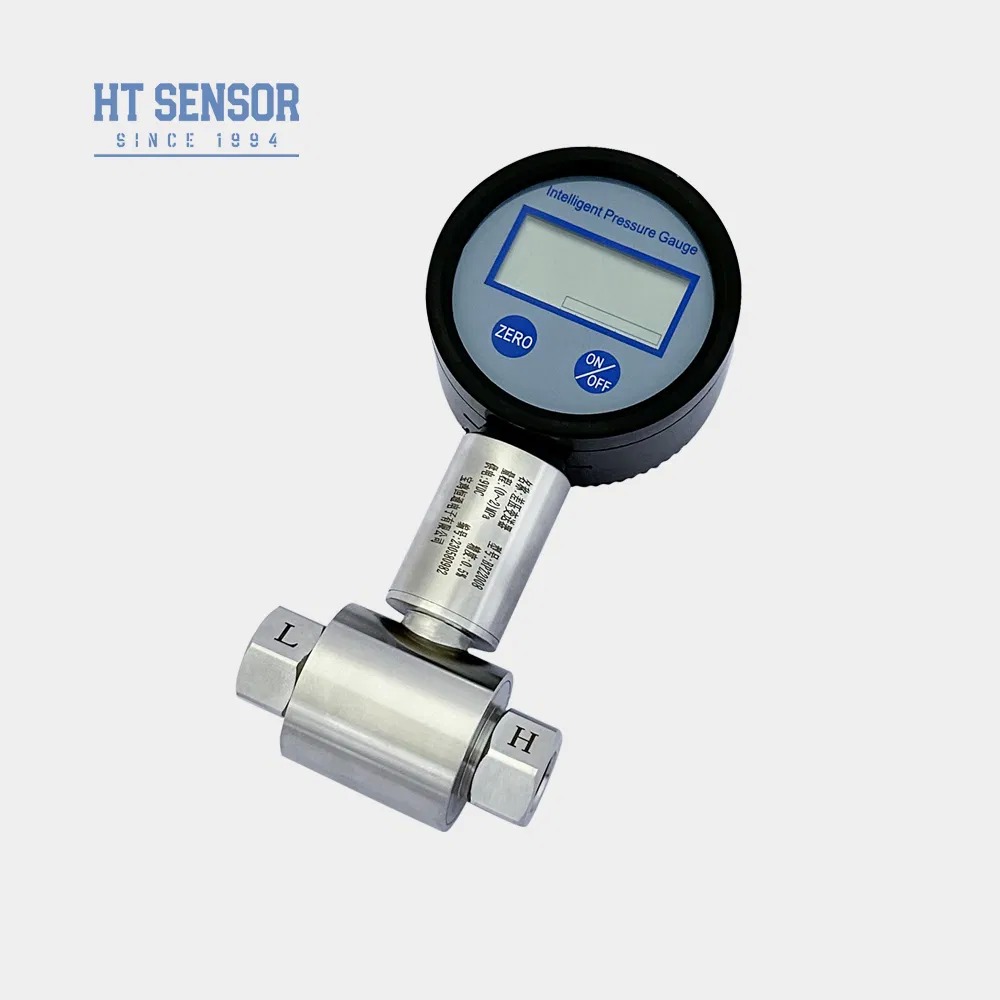

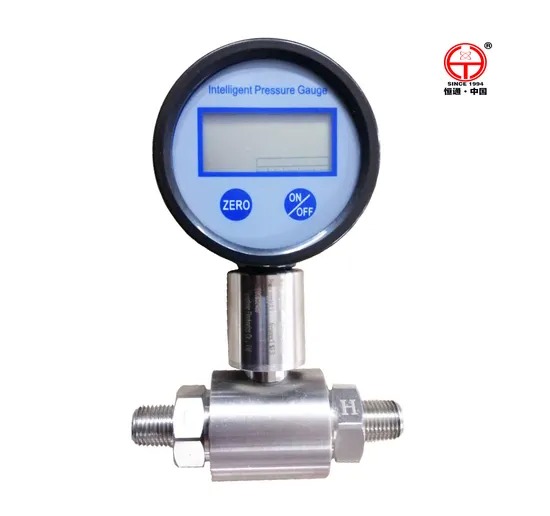

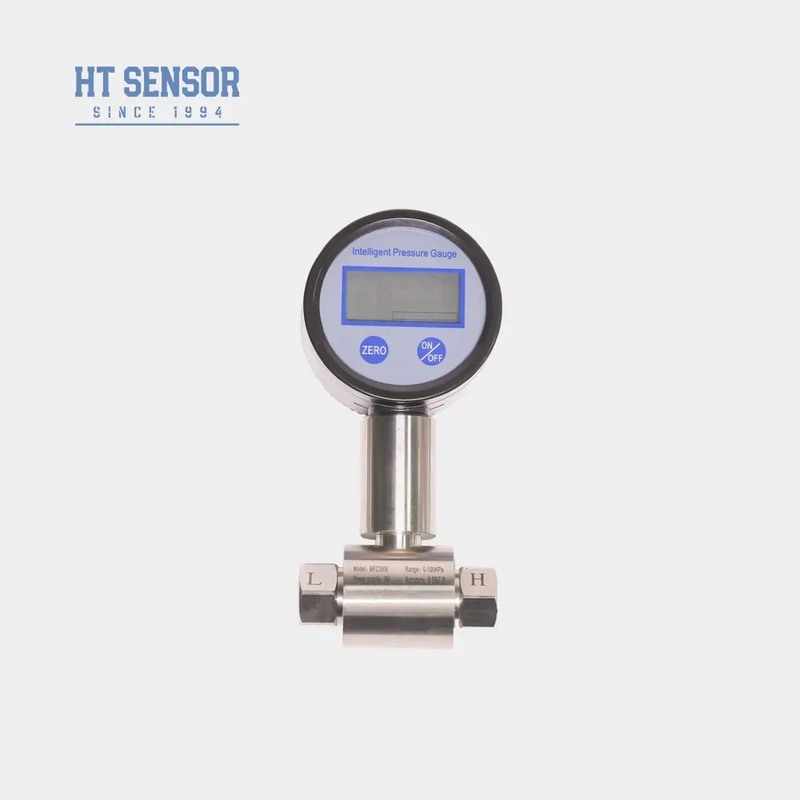

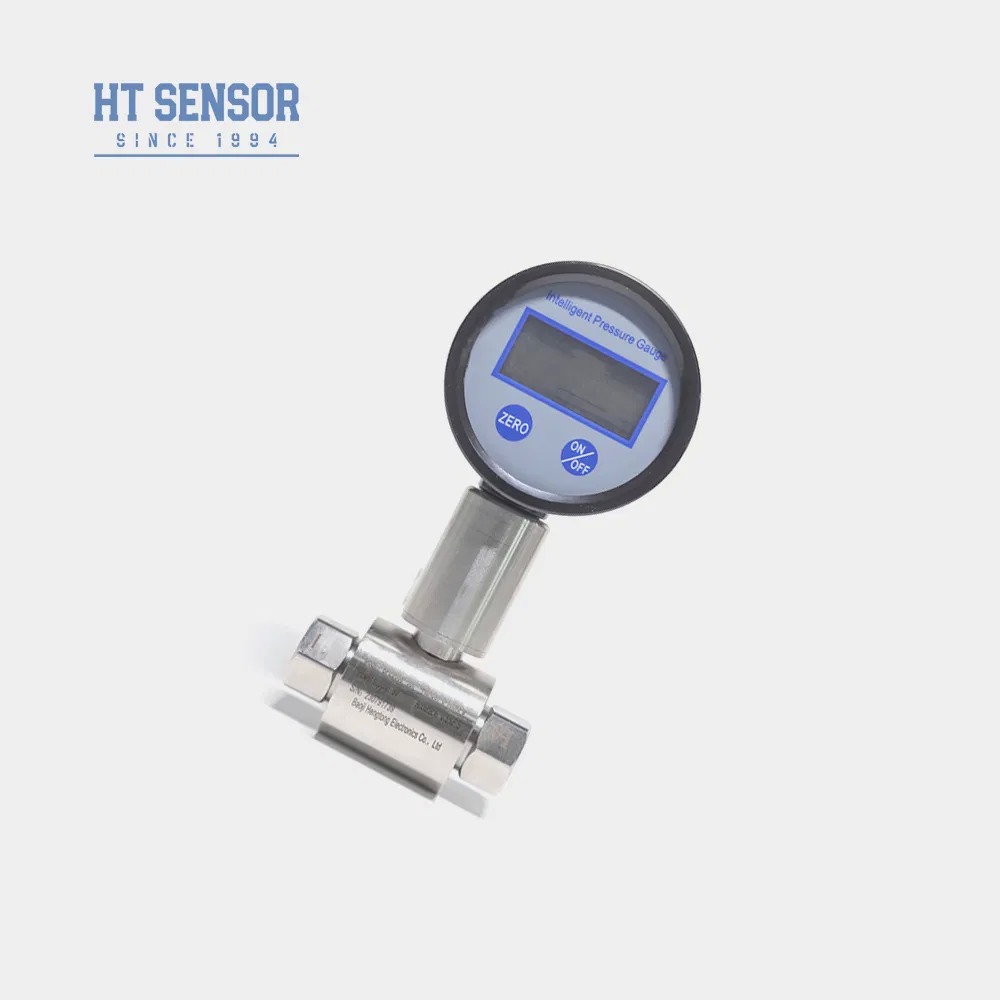

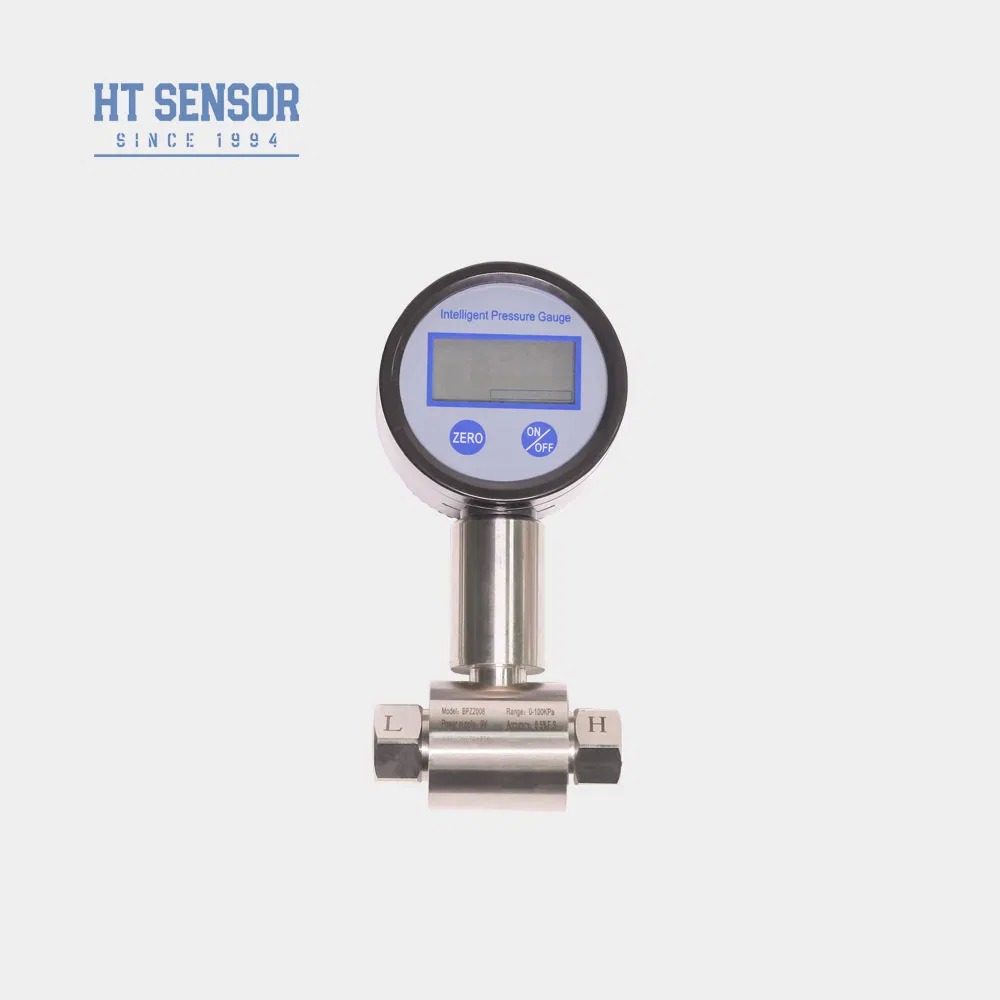

BPZ2008 DifferentiaL Pressure Transmitter Gauge Within 9V battery Powered
BPZ2008 Differential Pressure Transmitter gauge
Introduction:
- 5-digit LCD display
- Powered by a 9V battery
- Selectable units of measurement: bar, psi, kg/cm2, KPa, MPa
- Peak hold and continuous reading functions
Differential pressure measurement for various gases and liquids in industries such as petroleum, chemical, power, and hydrology for pipeline applications.
| Performance Parameters | |
| Measurement Range | 0-10KPa...~4MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Power Supply | 9V alkaline battery. |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | 0.1%FS |
| Hysteresis | 0.1%FS |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Point Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±1%F.S/ºC(≤100KPa) ±2%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -1ºC~49ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | ABS,1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Outline Construction | |
| Dimension | |
| Ordering tips |
- When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
- To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
- . During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
- . The 9V alkaline battery is not included in the product package. Please purchase it separately.
- For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order.
