OEM 4-20mA High Stable Pressure Transmitter Sensor for Water Gas Liquid Measurement Level Transmitter
Product Details
| Model NO.: | BP156 | Measuring Medium: | Gas And Liquid |
|---|---|---|---|
| Pressure Range: | 0kPa~10kPa...40MPa | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316L | Operating Temp.: | -20℃~80℃ |
| Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) | Diaphragm Material: | 316L |
| Output Signal: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V | Supply Voltage: | 12~30VDC, 5VDC |
| Highlight |
4-20mA pressure transmitter for liquid measurement,high stable pressure sensor for water gas,OEM silicon pressure transmitter with warranty |
||
Product Description

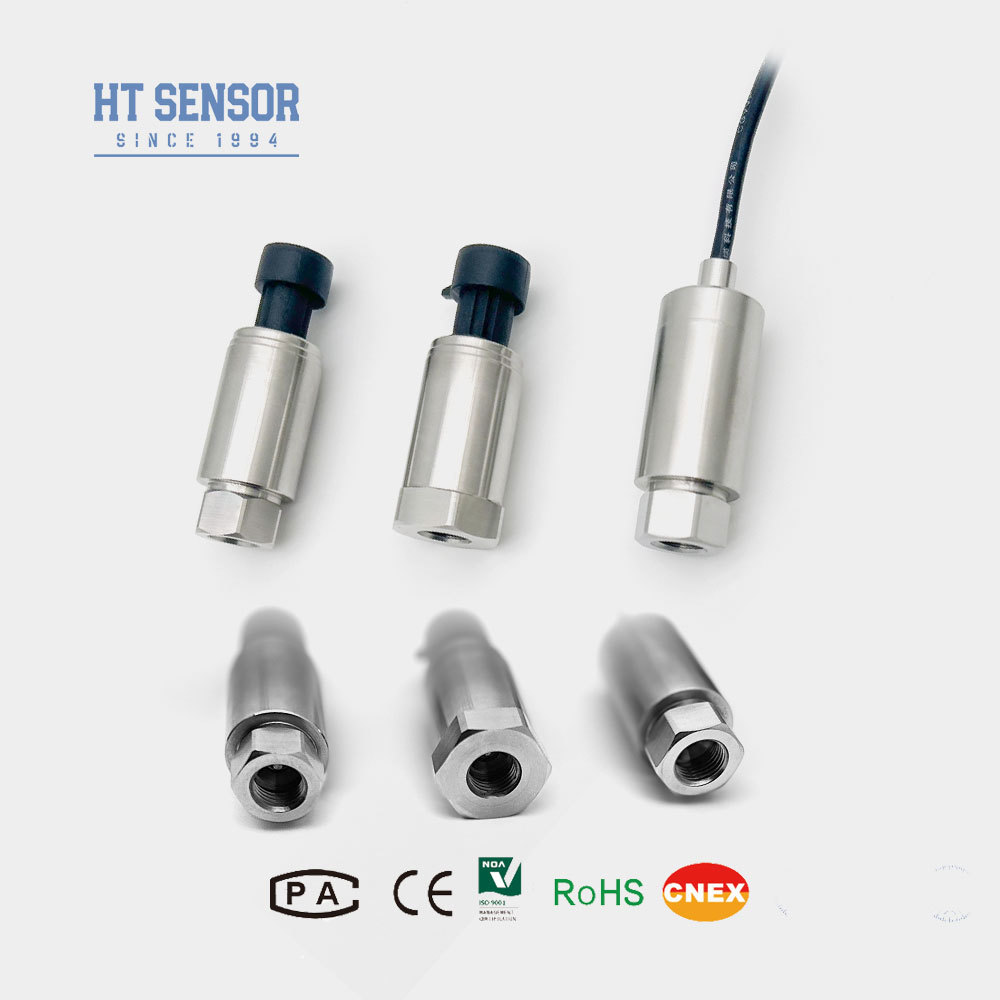

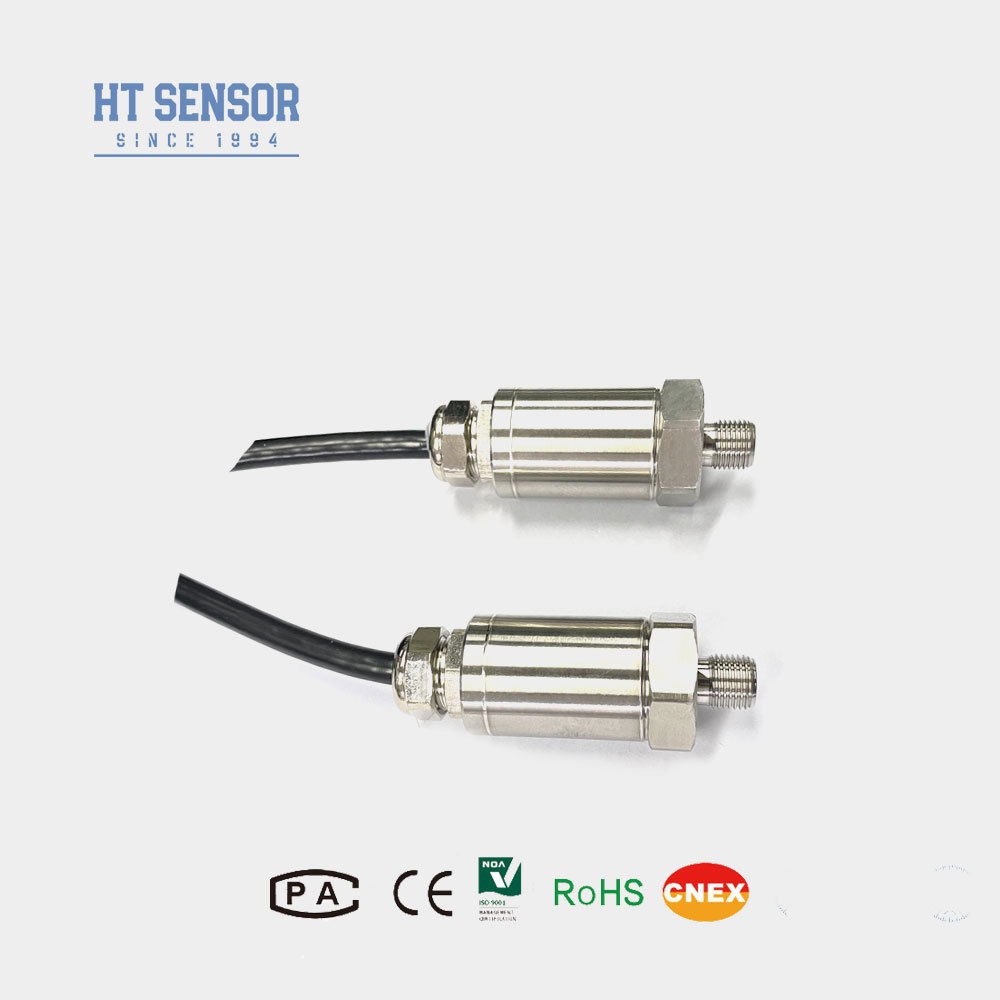

OEM 4-20mA High Stable Pressure Transmitter Sensor for Water Gas Liquid Measurement
- Wide measuring range with stainless steel construction and diverse pressure interface options
- IP65 protection rating with stainless steel housing
- High precision with all-stainless-steel construction
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…5MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10MPa, customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g, 55Hz ~ 2kHz |
| Housing Material | 304, 316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 5VDC | 3 wire |
| 0/1~5V | - | |
| 0/1~10V 0.5~4.5V |
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof type products do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seals
- Default cable length is 1.5m (polyethylene material) - specify alternatives in your order
- Notify us of special requirements including strong vibration, impact forces, or electromagnetic interference
| 5 | Packard plug |
|---|---|
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
| D1 | 24VDC |
|---|---|
| D2 | 5VDC |
| D3 | Other |
| S1 | 4~20mADC |
|---|---|
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| J1 | M20×1.5 |
|---|---|
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others (¢50.4 Flange) |
| B1 | Hirschmann |
|---|---|
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| G | Gauge Pressure |
|---|---|
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service. - Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling. - Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary. - Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners. - Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond to your questions in 24hrs, remote instruction by PC network is always available.
