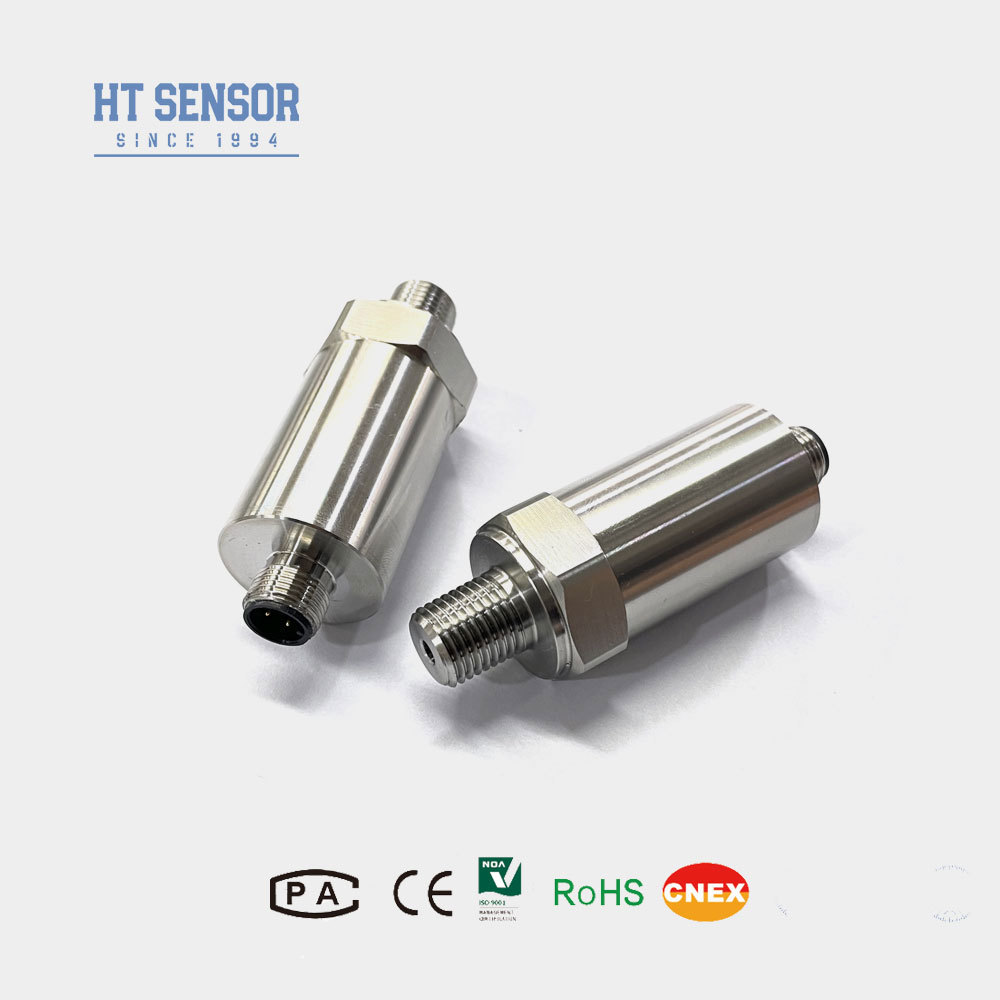

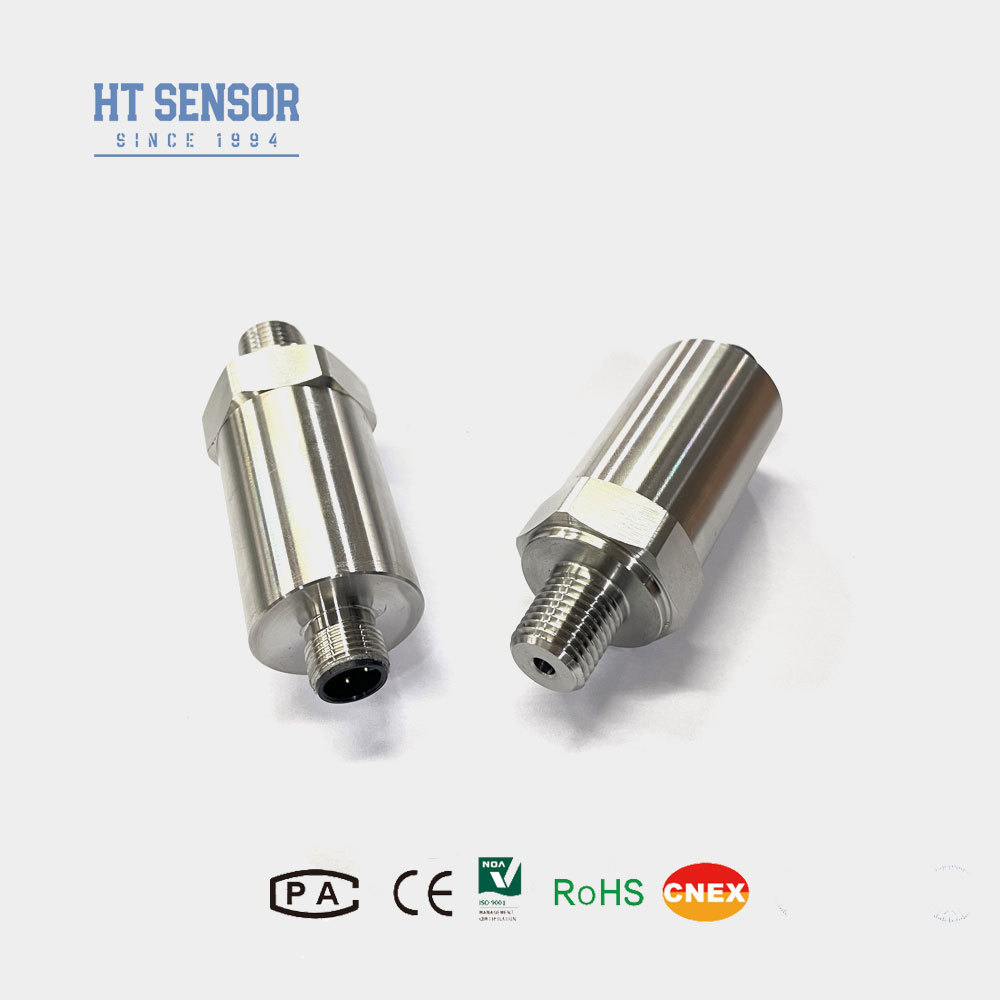

Hengtong BP156 Small Size M12 Pressure Sensor Oil Water Pressure Transmitter
Product Details
| Model NO.: | BP156 | Measuring Medium: | Liquid |
|---|---|---|---|
| Accuracy Grade: | 0.5G | Pressure Range: | 0kpa~10kpa...40MPa |
| IP Rating: | IP65 | Pressure Type: | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Housing Material: | 316LS.S. Or 304S.S. | Compensation Temperature: | -10℃~70℃ |
| Operating Temperature: | -20ºC~80ºC | Storage Temperature: | -40ºC~120ºC |
| Diaphragm Material: | 316L | Insulation Resistance: | 100MΩ 100VDC |
| Weight: | ~0.25kg | ||
| Highlight |
M12 pressure transmitter sensor,small size oil pressure transmitter,silicon pressure sensor with warranty |
||
Product Description
The BP156 pressure transmitter utilizes HT series silicon pressure-resistant isolation membrane oil-filled core technology as the signal measuring element. The signal processing circuit is housed within a stainless steel enclosure, converting sensor signals into standard output signals. Rigorous testing and aging screening of components, semi-finished products, and finished products ensure stable and reliable performance.
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- IP65 protection rating with stainless steel housing
- Zero and full-scale adjustment capability
- High precision measurement accuracy
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
| Measurement Range | 0kPa ~ 10kPa…5MPa |
|---|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Ex ia IIC T6 Ga |
| Protection Rating | IP66 |
| Weight | ~0.25kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V | 5VDC |
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof models do not include digital display heads
- For transmitters with LCD or LED display heads, power supply should not be lower than 20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seals instead of standard Fluoro rubber
- Default cable length is 1.5m with polyethylene material - specify alternatives when ordering
- Notify us of special requirements including strong vibration, impact forces, or electromagnetic interference
| BP15X | Analog Pressure Transmitter |
|---|---|
| Outline Construction | 5: Packard plug | 6: Sealed Direct Output Cable 1.5 meters | 7: Mini Hirschmann Connector | 8: Large Hirschmann Connector |
| Measurement Range | 0kPa ~ 10kPa…5MPa (0-X)Kpa or MPa where X indicates actual measuring range |
| Power Supply | D1: 24VDC | |
| Output Signal | S1: 4~20mADC | |
| Pressure Connection | J1: M20×1.5 | J2: G1/2 | J3: G1/4 | J4: 7/16-20UNF | J5: Others(¢50.4 Flange) |
| Electrical Connection | B1: Hirschmann | B2: PG7 | B3: Cable Sealed Outlet 1.5 meters | B4: Other |
| Pressure Type | G: Gauge Pressure | A: Absolute Pressure | S: Sealed Reference Pressure |
- What are the features of your pressure sensor transmitters?
- High precision, durability, and excellent performance. Customization available.
- Can I customize special specifications?
- Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
- What is your production capacity?
- Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
- What's the typical delivery period?
- 5-8 working days for standard models. Customized products may vary.
- How are the products priced? Any discounts?
- Competitive pricing with discounts for bulk orders or long-term partners.
- What is the warranty of your products? And after-sales service?
- Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
