BP93420D-I Differential Pressure Transmitter with 0.25% Accuracy IP65 Protection and Stainless Steel Structure for Industrial Applications

Basic Information

Certification:	CE

Minimum Order Quantity:	1
Price:	25

Get Best Price Contact Now

Detail Information

Model NO.:	BP93420D-I	Measuring Medium:	Gas
Accuracy Grade:	0.25%	Pressure Range:	0-10kpa...~2MPa
IP Rating:	IP65	Pressure Type:	Differential Pressure
Thread:	M10*1 Or Customized	Cable Material:	Polyvinyl Chloride
Measurement Range:	0-500Pa...~200kPa	Operating Temperature:	-30ºC~80ºC
Storage Temperature:	-40ºC~100ºC	Housing Material:	304,316L
Diaphragm Material:	316L	Weight:	~0.2kg
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Highlight:	0.25% Accuracy Differential Pressure Transmitter , IP65 Protection Pressure Sensor , Stainless Steel Structure Pressure Transducer

Product Description

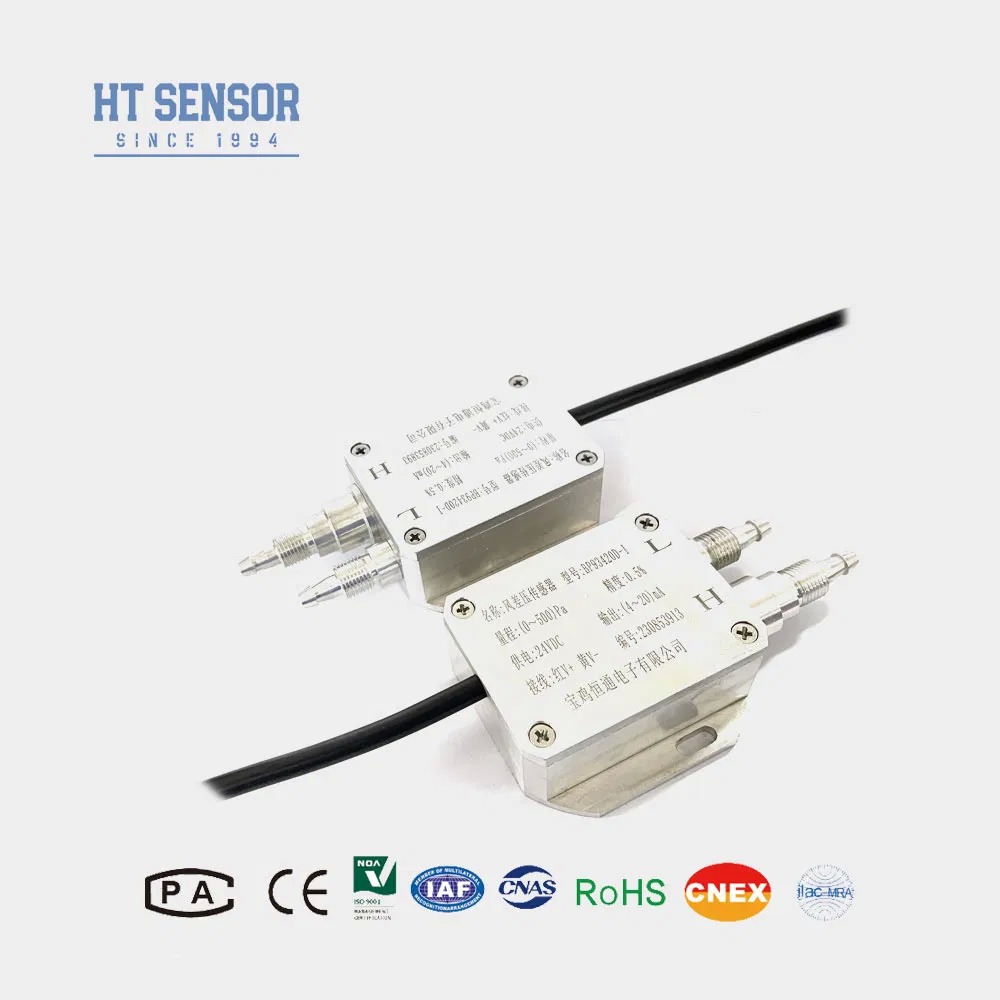

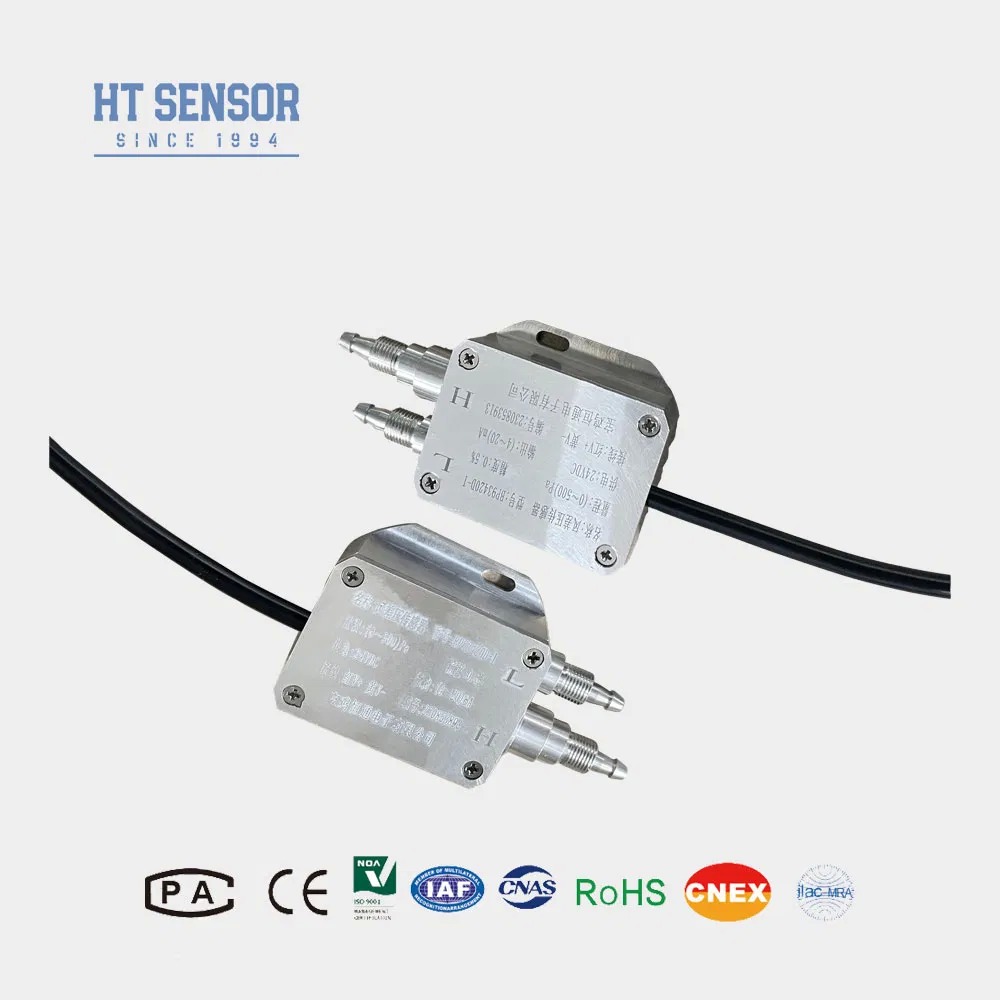

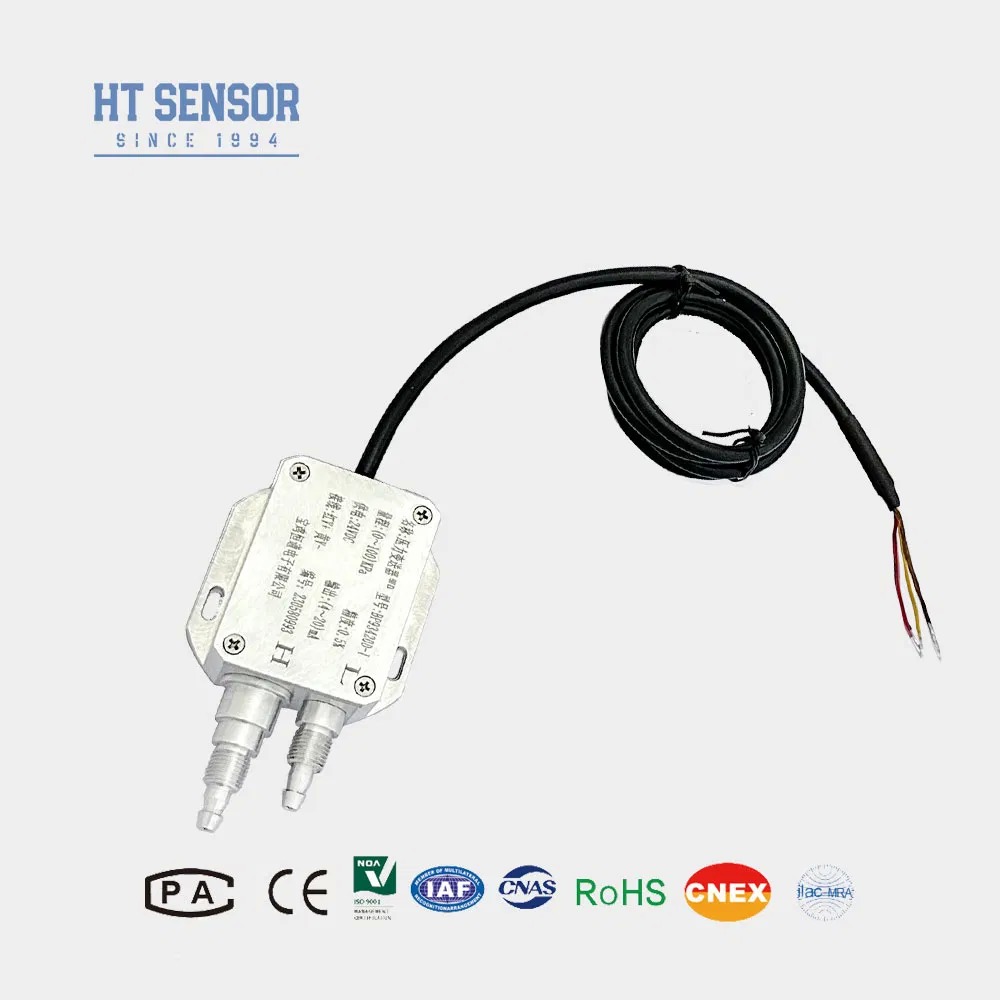

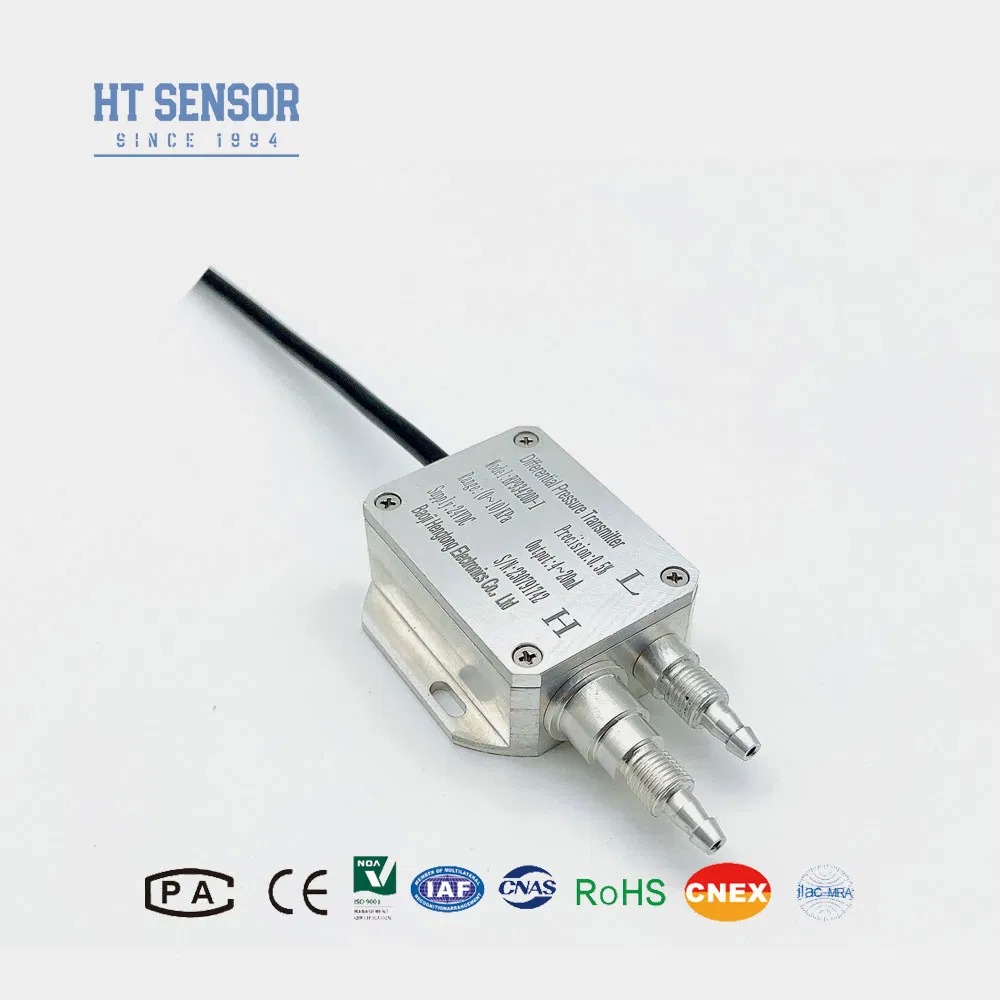

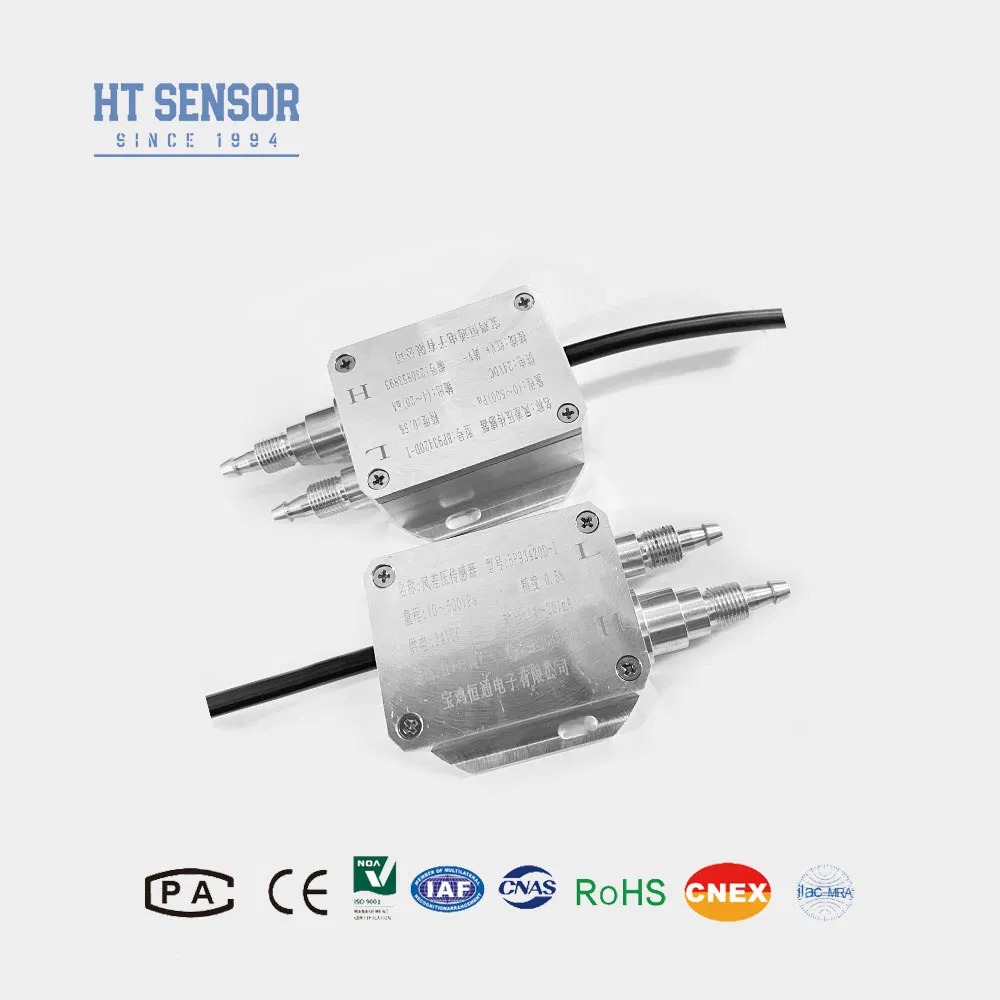

BP93420DI Differential Pressure Transmitter

The BP93420DI differential pressure transmitter accurately measures differential pressure through a Wheatstone bridge sensor chip. When differential pressure acts on the corrugated diaphragms at both ends, the output signal maintains a precise linear relationship with the pressure differential. This industrial-grade sensor is specifically designed for dry air testing applications across various industries.

Key Features

Stainless steel structural design for compact installation
Rigorous temperature compensation and aging screening for reliable performance
Flexible electrical interface options: plug-in or direct wiring

Industrial Applications

Differential pressure measurement for gases and liquids in pipeline systems
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Pressure measurement for pipelines and furnace chambers

Performance Parameters

Measurement Range	0-500Pa...~200kPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature	-30ºC~80ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.2kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0.5~4.5V	5VDC

Installation Guidelines

Verify measured medium compatibility with product contacting parts
Install a three-valve manifold between measurement point and transmitter for uniform pressure application
Position pressure interfaces horizontally to minimize installation location impact
Specify special requirements (vibration, electromagnetic interference, etc.) during ordering

Ordering Guide

Component	Code	Description
Pressure Transmitter	BP93420XX	Base Model
Outline Construction	DII	Differential Pressure Transmitter
Measurement Range		0-10KPa...~2MPa
Power Supply	D1	24VDC
Power Supply	D2	5VDC
Power Supply	D3	Other
Output Signal	S1	4~20mADC
Output Signal	S2	1~5VDC
Output Signal	S3	0~5VDC
Output Signal	S4	0~10mADC
Output Signal	S5	0~20mADC
Output Signal	S6	0~10VDC
Output Signal	S7	0.5~4.5VDC
Pressure Connection	J1	M20×1.5 Male
Pressure Connection	J2	G1/2 Male
Pressure Connection	J3	G1/4 Male
Pressure Connection	J4	1/2 NPT Male
Pressure Connection	J5	Other
Electrical Connection	B1	Hirschmann
Electrical Connection	B2	PG7 Plug
Electrical Connection	B3	Sealed Cable Output
Electrical Connection	B4	Other
Pressure Type	D	Differential Pressure

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization available.

Can I customize special specifications?

Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.

What's the typical delivery period?

5~8 working day for standard models. Customized products may vary.

How are the products priced? Any discounts?

Competitive pricing with discounts for bulk orders or long-term partners.

What is the warranty of your products? And after-sales service?

Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
