BP93420D-II Differential Pressure Transmitter with 0.25% Accuracy, IP65 Protection, and Stainless Steel Structure for Industrial Applications

Basic Information

Certification:	CE, RoHS, ISO9001

Minimum Order Quantity:	1
Price:	51

Get Best Price Contact Now

Detail Information

Model NO.:	BP93420D-II	Measuring Medium:	Liquid
Accuracy Grade:	0.25%, 0.5%	Pressure Range:	0-10kpa...~2MPa
IP Rating:	IP65	Housing Material:	304 SS
Weight:	~0.45kg	Compensation Temp.:	-10~70
Single-side Overload:	≤3 Times Of The Rated Range	Static Pressure:	The Minimum Value Between 5 Times The Rated Range Or 7 MPa
Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)	Long-Term Stability:	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Operating Temperature:	-30ºC~80ºC	Storage Temperature:	-40ºC~100ºC
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Highlight:	0.25% Accuracy Differential Pressure Transmitter , IP65 Protection Pressure Sensor , Stainless Steel Structure Silicon Pressure Sensor

Product Description

HT BP93420-DII Differential Pressure Transmitter

Professional differential pressure transmitter for precise measurement of pressure differential and flow sensing applications across industrial environments.

Product Overview

The BP93420DII differential pressure transmitter utilizes advanced piezoresistive diffused silicon sensor technology. When differential pressure acts on the corrugated diaphragms, the Wheatstone bridge output provides accurate linear measurement suitable for gas and liquid differential pressure applications in petroleum, chemical, power, and hydrology industries.

Key Features

Stainless steel construction for compact design and easy installation
Rigorous temperature compensation and aging screening for stable performance
Flexible electrical interface options: plug-in or direct wiring

Industrial Applications

Differential pressure measurement for gases and liquids in pipeline systems
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology
Pressure measurement for pipelines and furnace chambers

Performance Specifications

Measurement Range	0-10KPa...~2MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of rated range
Static Pressure	Minimum of 5 times rated range or 7 MPa
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature	-30ºC~80ºC
Storage Temperature	-40ºC~100ºC
Vibration Resistance	10g, 55Hz ~ 2kHz
Housing Material	304, 316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.45kg

Output Signal Configuration

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V	5VDC
0.5~4.5V	5VDC

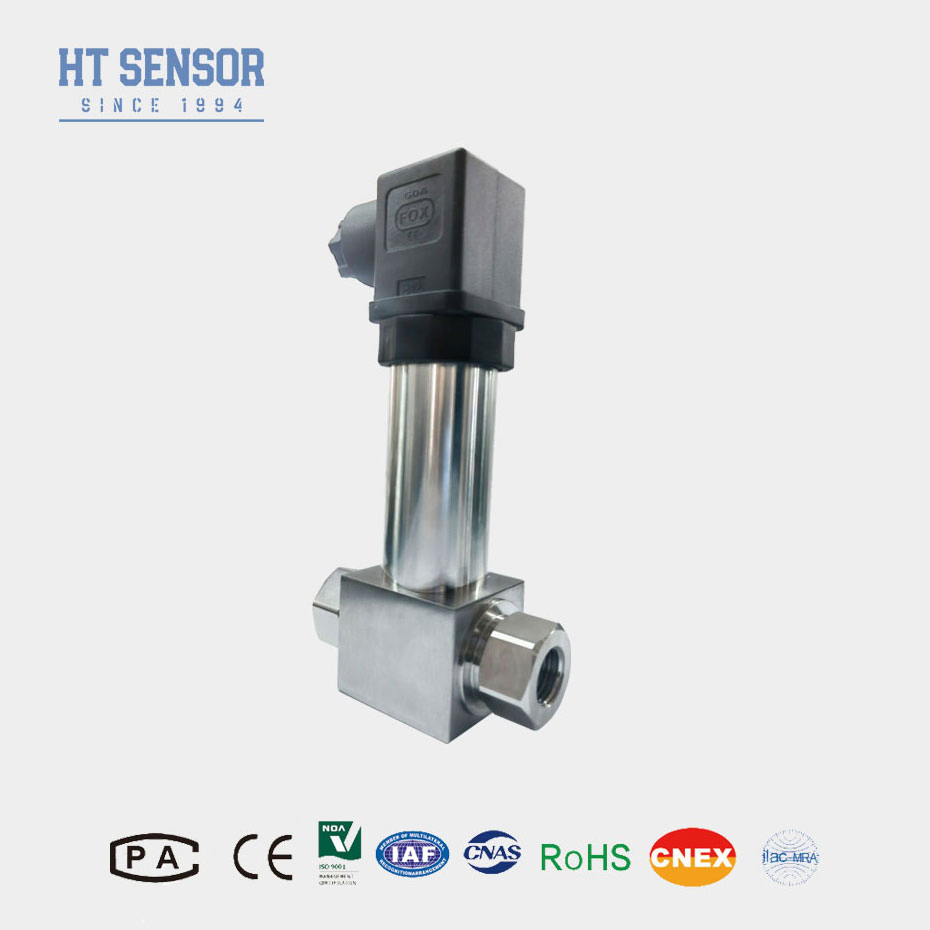

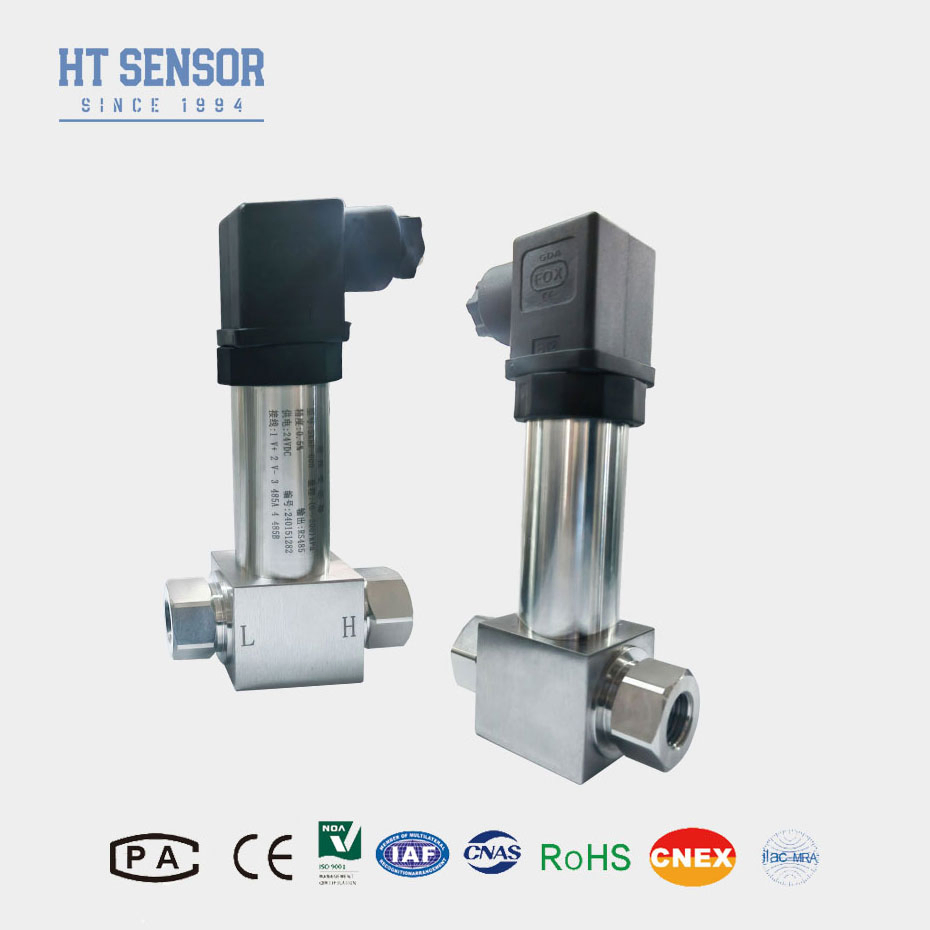

Product Images

Installation Guidelines

Verify measured medium compatibility with product contacting parts
Install three-valve manifold for controlled pressure application to positive and negative chambers
Position pressure interfaces horizontally to minimize installation impact
Specify special requirements for vibration, impact, or electromagnetic interference during ordering

Ordering Guide

Component	Code	Description
Outline Construction	DII	Differential Pressure Transmitter
Measurement Range		0-10KPa...~2MPa
Power Supply	D1	24VDC
Power Supply	D2	5VDC
Power Supply	D3	Other
Output Signal	S1	4~20mADC
Output Signal	S2	1~5VDC
Output Signal	S3	0~5VDC
Output Signal	S4	0~10mADC
Output Signal	S5	0~20mADC
Output Signal	S6	0~10VDC
Output Signal	S7	0.5~4.5VDC
Pressure Connection	J1	M20×1.5 Male
Pressure Connection	J2	G1/2 Male
Pressure Connection	J3	G1/4 Male
Pressure Connection	J4	1/2 NPT Male
Pressure Connection	J5	Other
Electrical Connection	B1	Hirschmann
Electrical Connection	B2	PG7 Plug
Electrical Connection	B3	Sealed Cable Output
Electrical Connection	B4	Other
Pressure Type	D	Differential Pressure

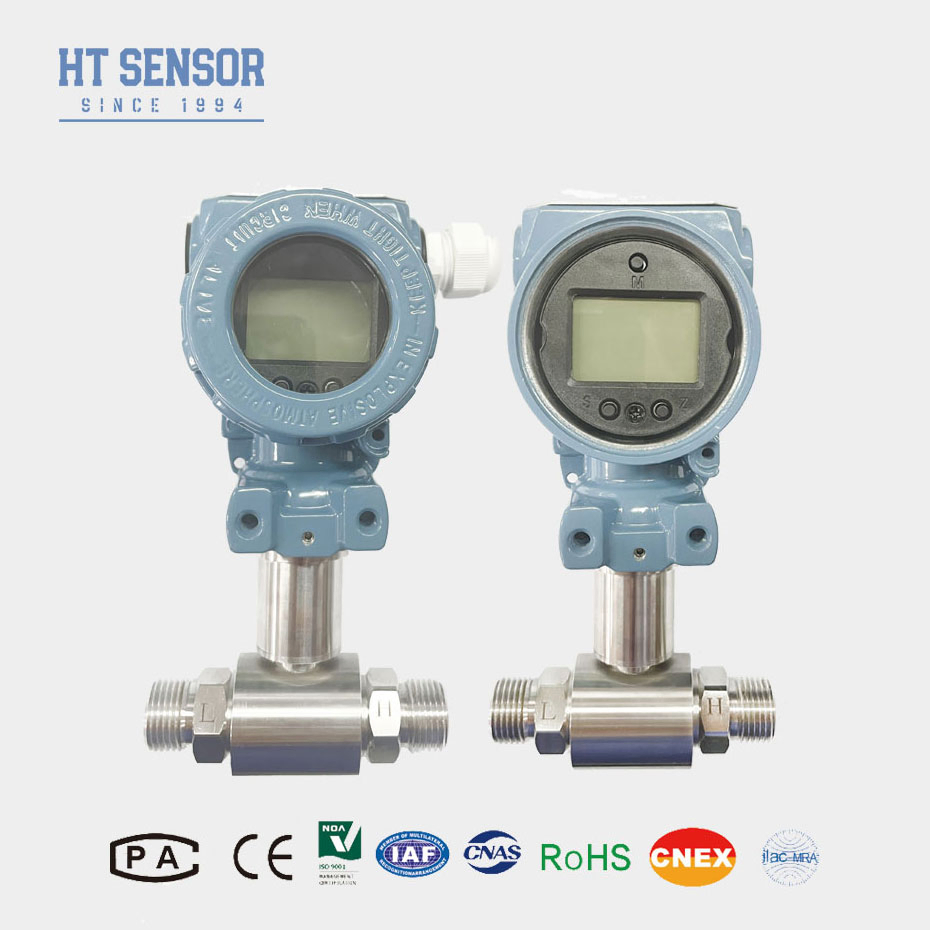

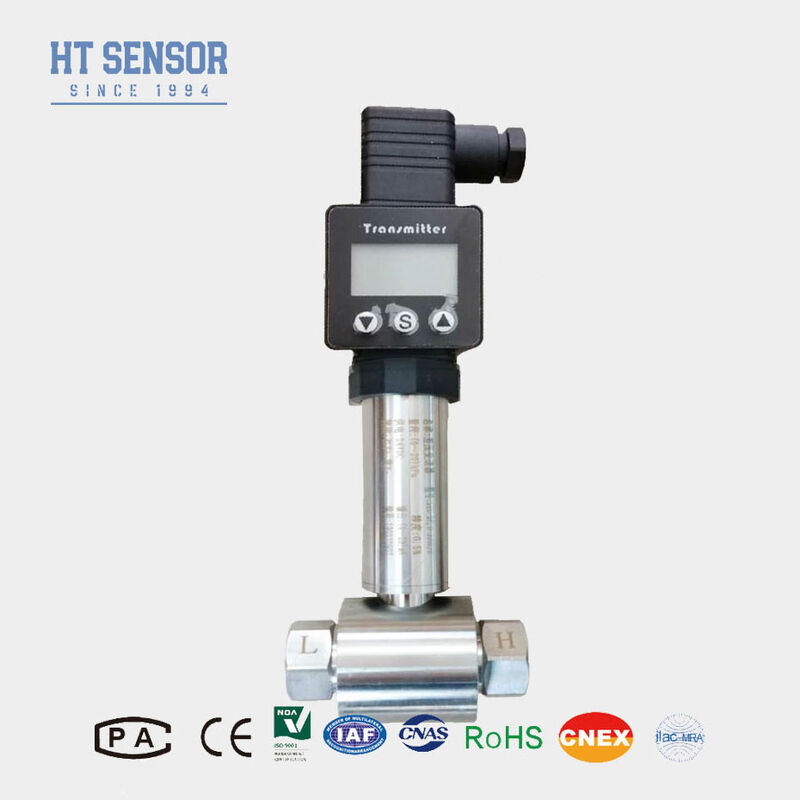

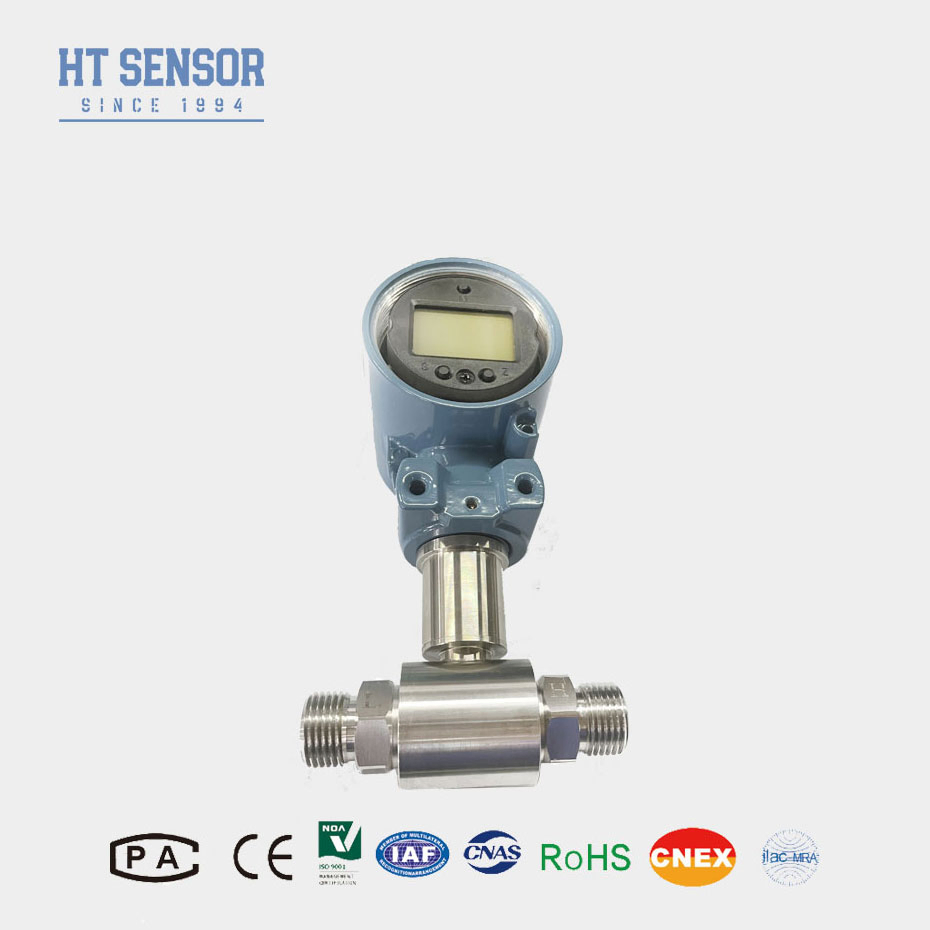

Additional Product Views

Frequently Asked Questions

What are the features of your pressure sensor transmitters?

High precision, durability, and excellent performance. Customization options available to meet specific requirements.

Can I customize special specifications?

Yes, our engineering team can tailor products to meet specific application needs. We provide comprehensive OEM and ODM services.

What is your production capacity?

Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters monthly, ensuring we can handle large-scale orders. Contact our sales team in advance for optimal production and delivery scheduling.

What's the typical delivery period?

Standard models: 5-8 working days. Customized products may require additional time based on specifications.

How are the products priced? Any discounts?

Competitive pricing structure with volume discounts available for bulk orders and long-term partnership agreements.

What is the warranty of your products? And after-sales service?

24-month warranty from shipment date. Our after-sales team responds to inquiries within 24 hours, with remote PC network support always available.
