0.25% Accuracy IP65 Protection Stainless Steel Differential Pressure Transmitter for Level Measurement

Basic Information

Certification:	ISO

Minimum Order Quantity:	1
Price:	50

Get Best Price Contact Now

Detail Information

Model NO.:	BP93420D-II	Measuring Medium:	Liquid
Accuracy Grade:	0.25%, 0.5%	Pressure Range:	0-10kpa...~2MPa
IP Rating:	IP65	Housing Material:	304 S.S.
Weight:	~0.45kg	Single-side Overload:	≤3 Times Of The Rated Range
Static Pressure:	The Minimum Value Between 5 Times The Rated Range Or 7 MPa	Repeatability:	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability:	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)	Operating Temperature:	-30ºC~80ºC
Storage Temperature:	-40ºC~100ºC	Diaphragm Material:	316L
Output Signal:	4~20mA, 0~10/20mA, 0/1~5V, 0.5~4.5V
Highlight:	0.25% Accuracy Differential Pressure Transmitter , IP65 Protection Pressure Sensor , Stainless Steel Structure Level Sensor

Product Description

Static Pressure Differential Pressure Transmitter Level Measurement Differential Level Sensor

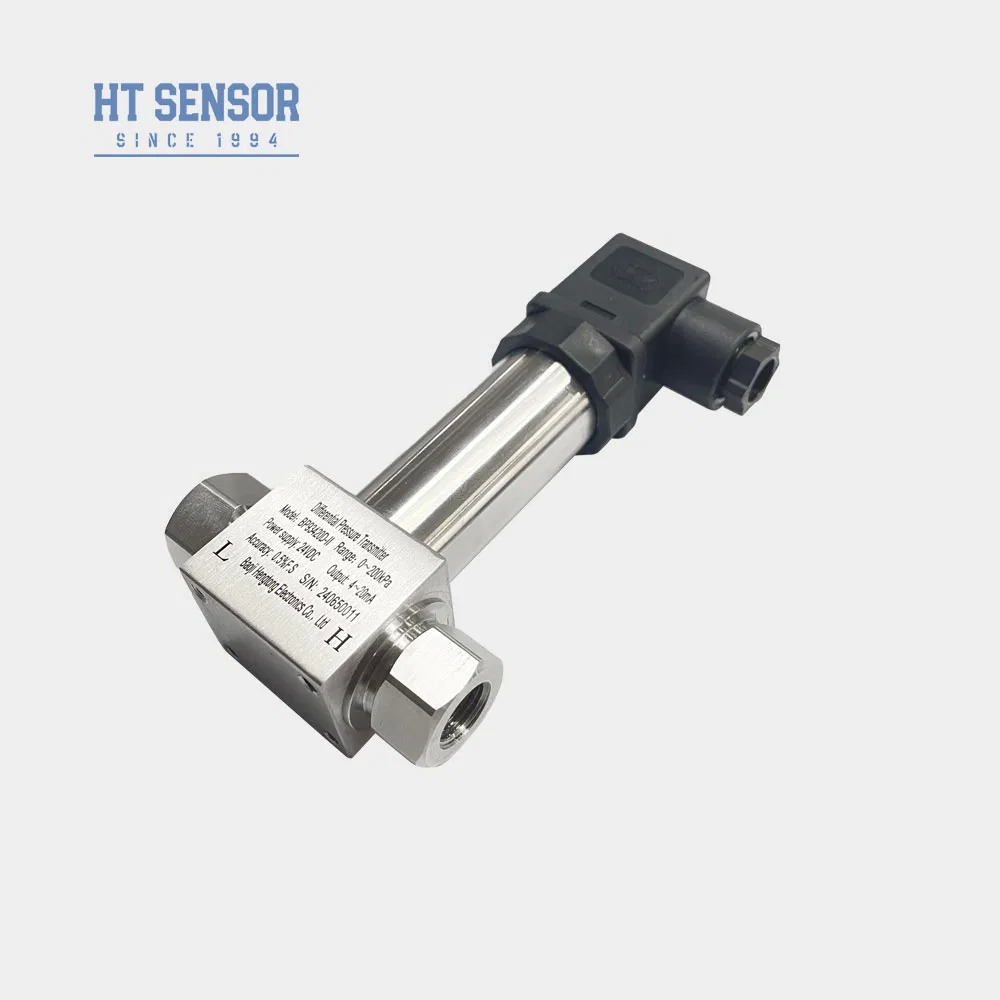

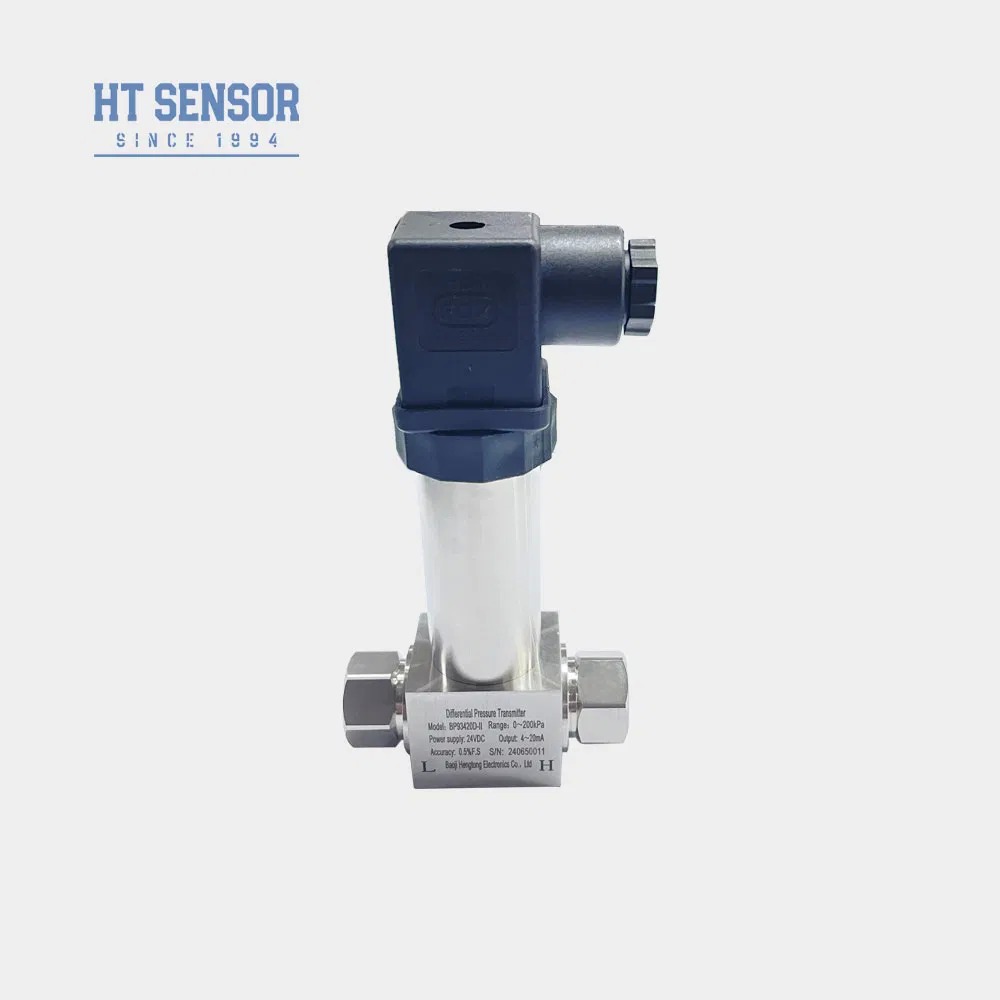

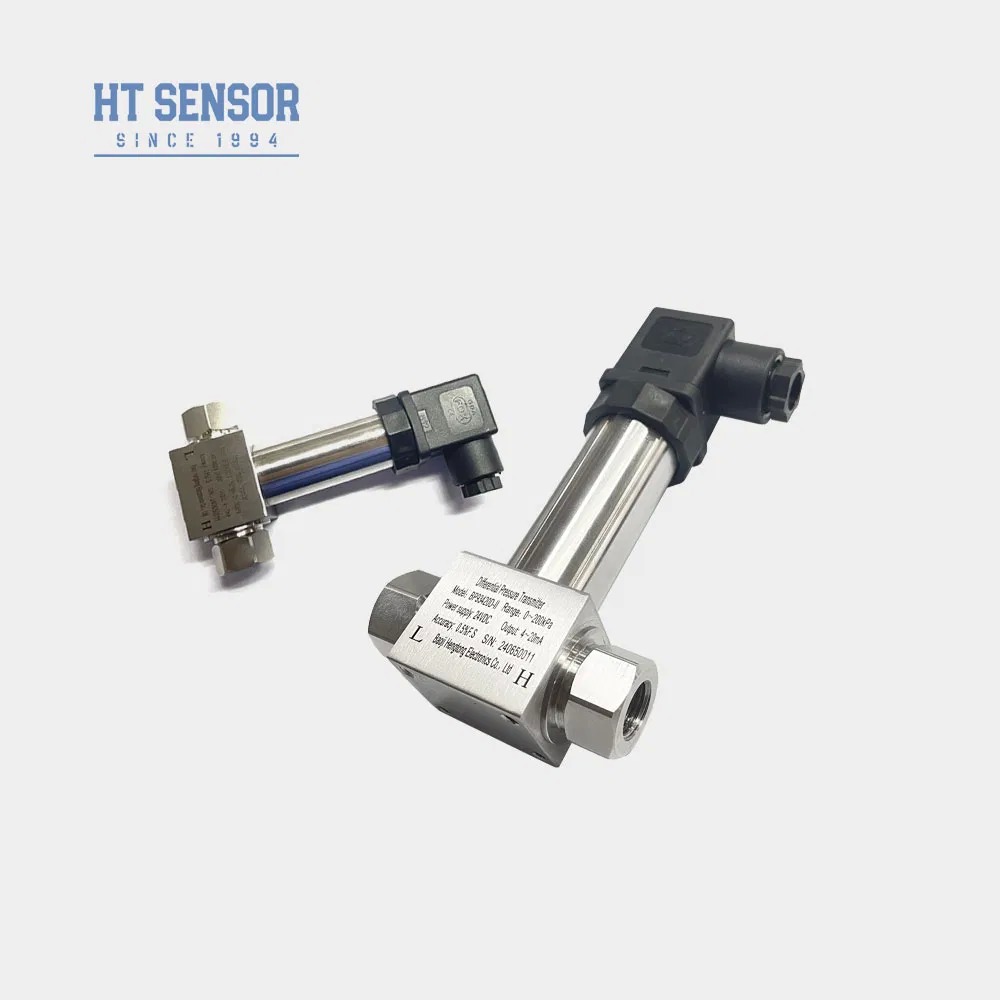

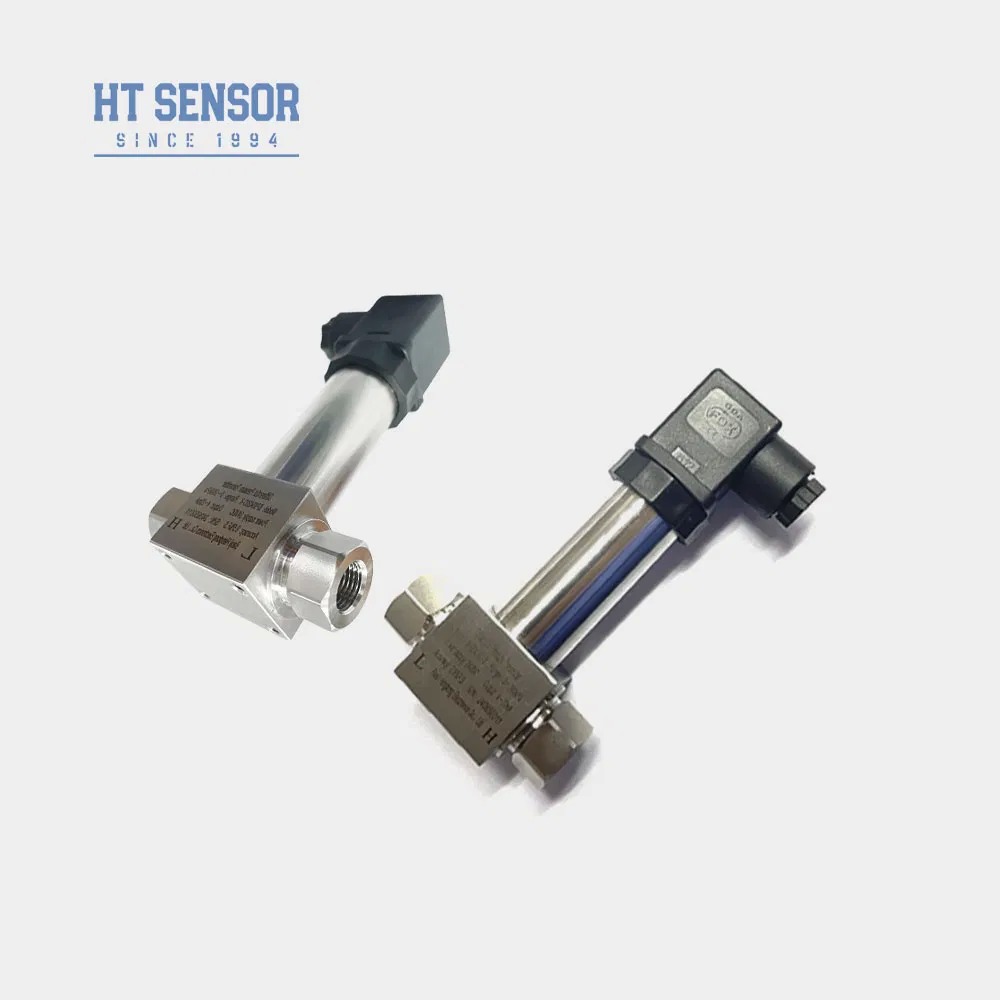

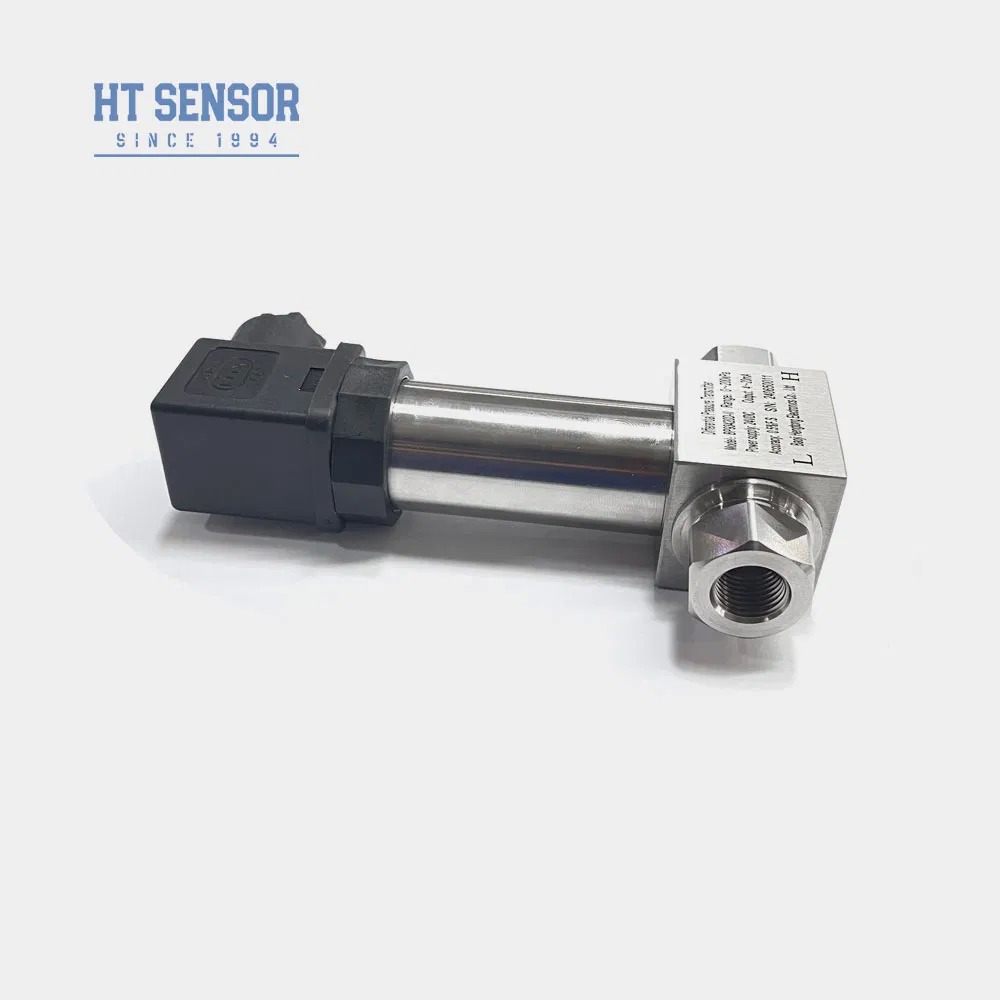

BP93420DII Differential Pressure Transmitter utilizes piezoresistive diffused silicon sensor technology for precise differential pressure measurement in industrial applications.

Product Overview

The BP93420DII differential pressure transmitter employs piezoresistive diffused silicon sensor technology. When differential pressure from the measured medium acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with differential pressure, ensuring accurate measurement. Ideal for gas and liquid differential pressure measurement in petroleum, chemical, power, and hydrology industries for pipeline applications.

Key Features

Stainless steel structural design for compact size and easy installation
Rigorous temperature compensation and aging screening for stable, reliable performance
Flexible electrical interface options: plug-in or direct wiring

Applications

Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology pipeline industries
Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology sectors
Pressure measurement for pipelines and furnace chambers

Performance Parameters

Measurement Range	0-10KPa...~2MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25ºC	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift	±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature	0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC
Operating Temperature	-30ºC~80ºC
Storage Temperature	-40ºC~100ºC
Vibration	10g,55Hz ~ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.45kg

Output Signal Specifications

Output Signal	Supply Voltage	Output Type
4~20mA	12~30VDC	2/3/4 wire
0~10/20mA		3 wire
0/1~5V 0.5~4.5V	5VDC

Ordering Information

Selection Guidelines

Ensure measured medium compatibility with product contacting parts
Install three-valve manifold between measurement point and transmitter for reliable operation
Position pressure interfaces horizontally during installation to minimize location impact
Specify special requirements for strong vibration, instant impact, electromagnetic interference, or radio frequency interference

Order Guide

BP93420XX	Pressure Transmitter
Code	Outline Construction
DII	Differential Pressure Transmitter
Measurement Range	0-10KPa...~2MPa
Code	Power Supply
D1	24VDC
D2	5VDC
D3	Other
Code	Output Signal
S1	4~20mADC
S2	1~5VDC
S3	0~5VDC
S4	0~10mADC
S5	0~20mADC
S6	0~10VDC
S7	0.5~4.5VDC
Code	Pressure Connection
J1	M20×1.5 Male
J2	G1/2 Male
J3	G1/4 Male
J4	1/2 NPT Male
J5	Other
Code	Electrical Connection
B1	Hirschmann
B2	PG7 Plug
B3	Sealed Cable Output
B4	Other
Code	Pressure Type
D	Differential Pressure
