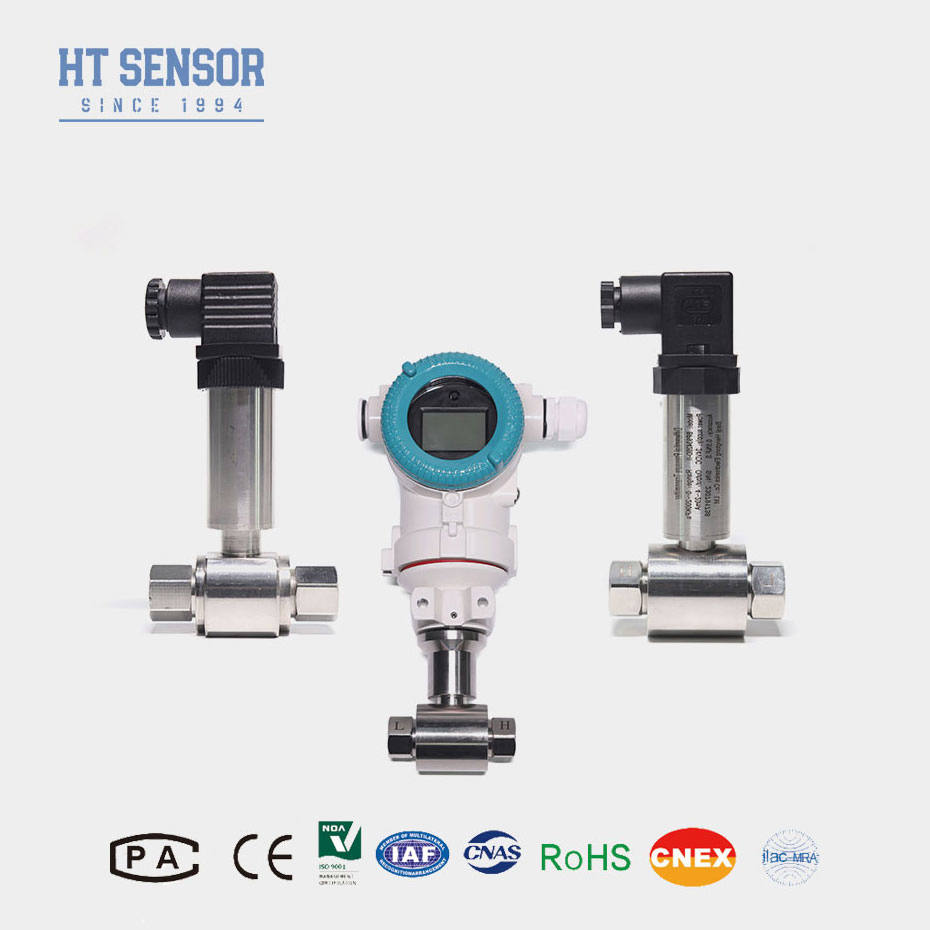

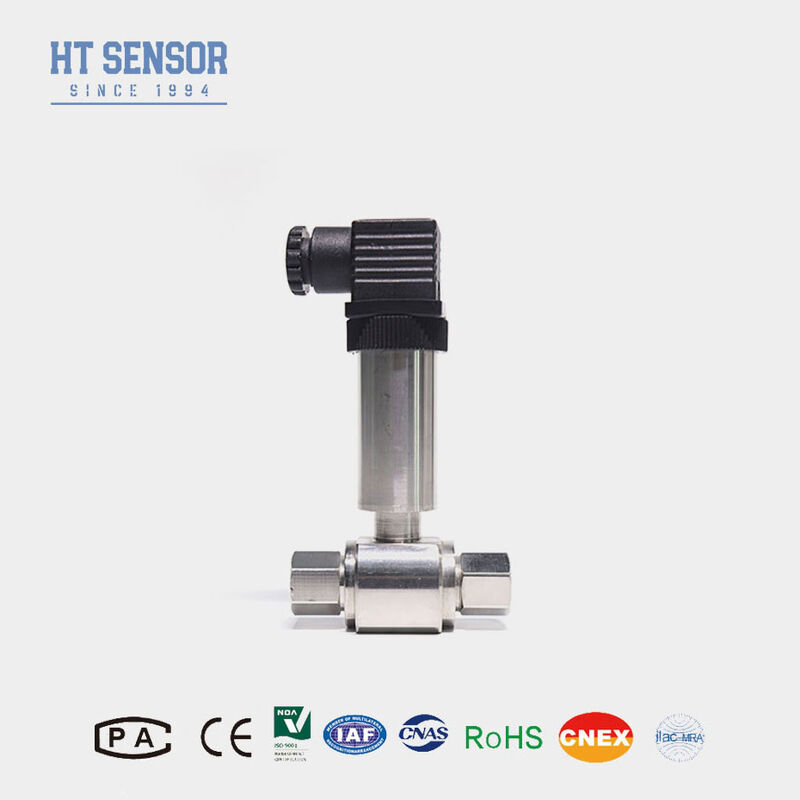

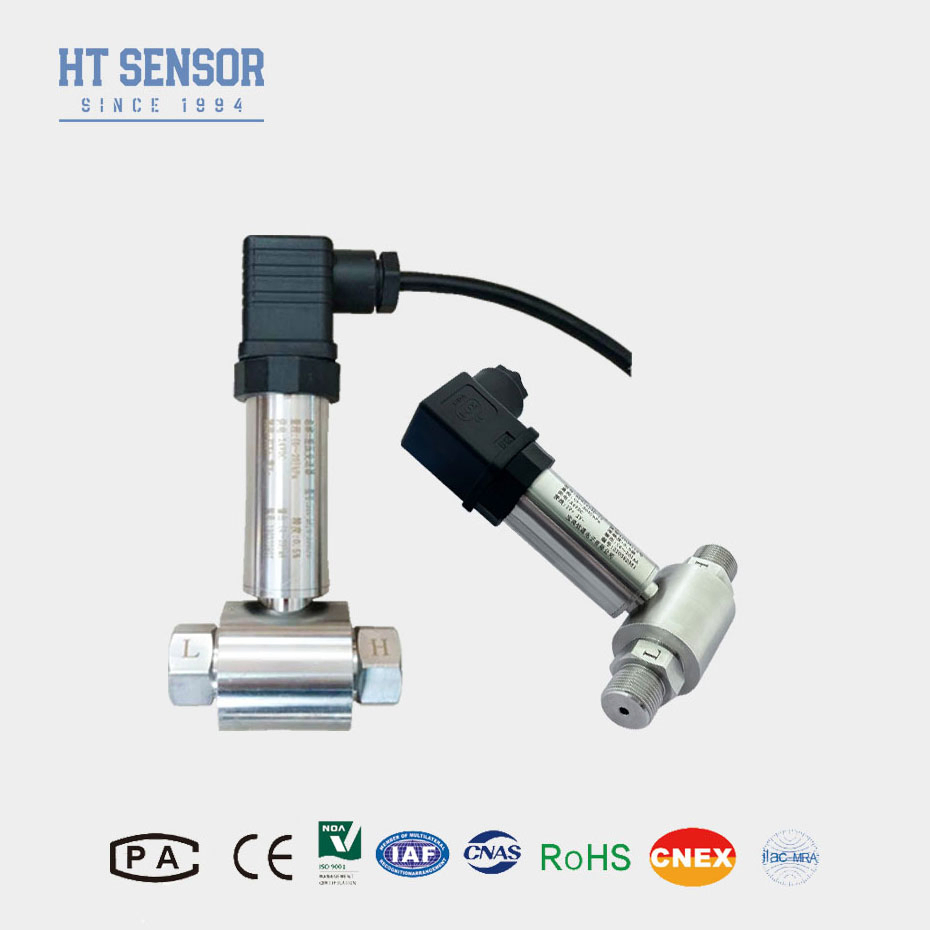

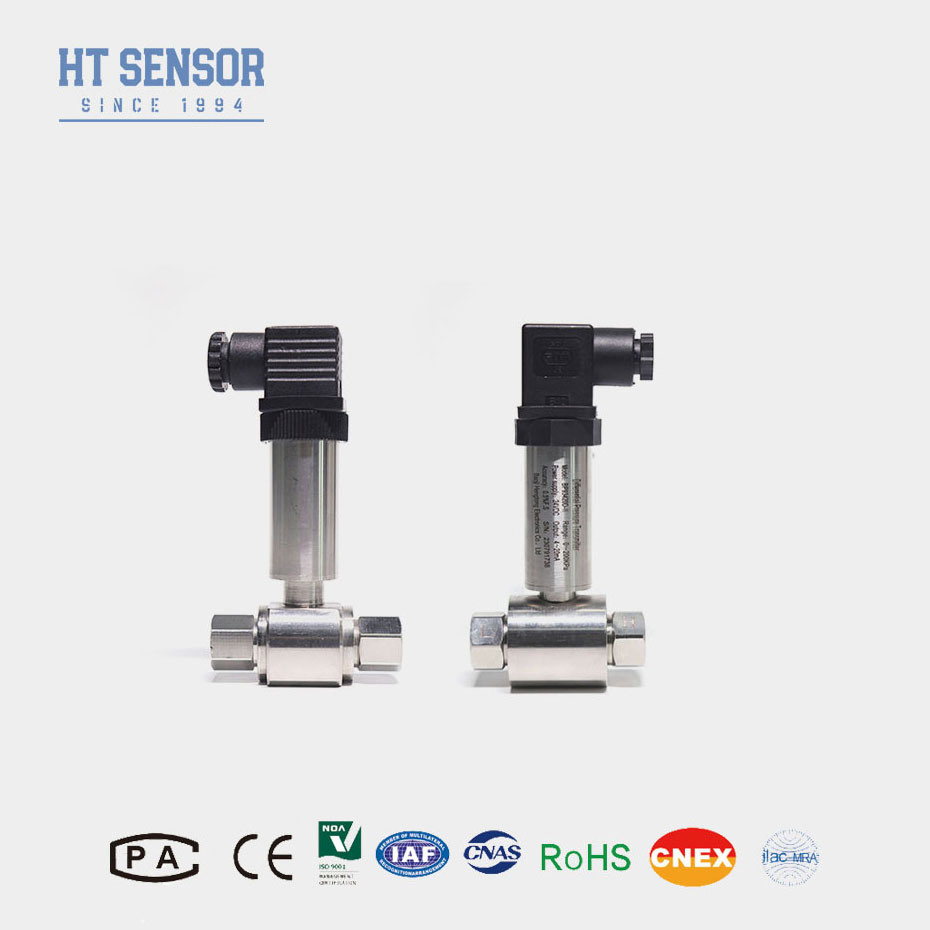

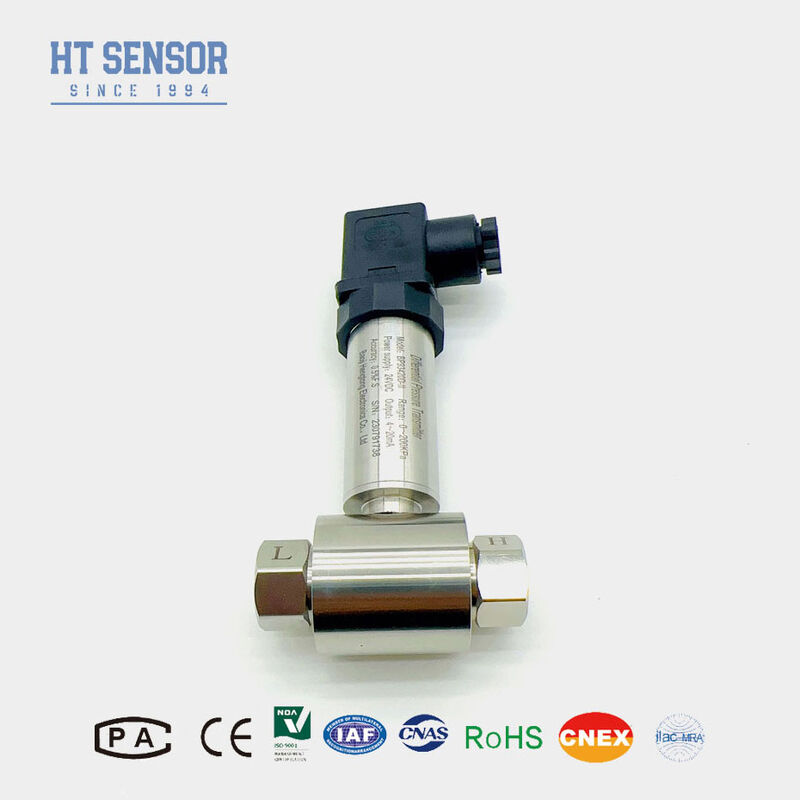

BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection

BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection
BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection
Basic Information
Certification: CE, RoHS. ISO9001
Minimum Order Quantity: 1
Price: 60
Get Best Price Contact Now
Detail Information
Model NO.: BP93420DII Measuring Medium: Gas Or Liquid
Accuracy Grade: 0.25%, 0.5% Pressure Range: 0-10kpa...~2MPa
IP Rating: IP65 Pressure Type: Differential Pressure
Min Range: 10kpa Max Range: 2mpa
Output Signal: 4-20mA Static Pressure: 5 Times Of Rated Pressure Or 7MPa
Operating Temperature: -30ºC~80ºC Storage Temperature: -40ºC~100ºC
Housing Material: 304,316L Diaphragm Material: 316L
Weight: ~0.45kg
Highlight:

4-20mA Output Differential Pressure Transmitter

,

0.25% Accuracy Pressure Transducer

,

IP65 Protection Silicon Pressure Sensor

Product Description

BP93420DII 4-20mA Differential Pressure Transducer & Transmitter
The BP93420DII differential pressure transmitter utilizes a piezoresistive diffused silicon sensor technology. When differential pressure from the measured medium acts on the corrugated diaphragms at both sensor ends, the Wheatstone bridge output signal maintains excellent linear correlation with the differential pressure, ensuring precise measurement accuracy.
BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 0 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 1 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 2 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 3
Key Features
  • Stainless steel construction for compact design and easy installation
  • Rigorous temperature compensation and aging screening for stable, reliable performance
  • Flexible electrical interface options: plug-in or direct wiring configurations
Industrial Applications
  • Differential pressure measurement for gases and liquids in petroleum, chemical, power, and hydrology industries
  • Industrial process monitoring in petroleum, chemical, metallurgy, power generation, and hydrology applications
  • Pipeline and furnace chamber pressure measurement systems
Performance Specifications
Measurement Range 0-10KPa...~2MPa
Pressure Type Differential Pressure
Single-side Overload ≤3 times of rated range
Static Pressure Minimum of 5 times rated range or 7 MPa
Accuracy @ 25ºC ±0.25% (Typical) ±0.5% (Maximum)
Repeatability ±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis ±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa)
Zero Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Span Temperature Drift ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa)
Compensation Temperature 0-50ºC(0-10KPa, 0-20KPa), 0-70ºC, -10-70ºC
Operating Temperature -30ºC~80ºC
Storage Temperature -40ºC~100ºC
Vibration Resistance 10g, 55Hz ~ 2kHz
Housing Material 304, 316L Stainless Steel
Diaphragm Material 316L Stainless Steel
Insulation Resistance 100MΩ 100VDC
Explosion-proof Rating Intrinsically safe and explosion-proof
Protection Rating IP65
Weight ~0.45kg
Output Signal Configuration
Output Signal Supply Voltage Output Type
4~20mA 12~30VDC 2/3/4 wire
0~10/20mA 3 wire
0/1~5V
0.5~4.5V		 5VDC
BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 4 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 5 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 6 BP93420DII Differential Pressure Transmitter with 4-20mA Output 0.25% Accuracy and IP65 Protection 7
Installation Guidelines

When selecting the product, verify that the measured medium is compatible with the product's contacting parts.

For reliable operation, install a three-valve manifold between the measurement point and transmitter to ensure slow, uniform pressure application to both positive and negative pressure chambers.

During installation, position pressure interfaces horizontally to minimize installation location impact on performance.

For special requirements including strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please specify these conditions when ordering.

Ordering Information
Code Description Options
BP93420XX Pressure Transmitter Outline Construction
DII Differential Pressure Transmitter Measurement Range: 0-10KPa...~2MPa
Power Supply D1: 24VDC D2: 5VDC | D3: Other
Output Signal S1: 4~20mADC | S5: 0~20mADC S2: 1~5VDC | S6: 0~10VDC
S3: 0~5VDC | S7: 0.5~4.5VDC S4: 0~10mADC
Pressure Connection J1: M20×1.5 Male J2: G1/2 Male | J3: G1/4 Male
J4: 1/2 NPT Male J5: Other
Electrical Connection B1: Hirschmann B2: PG7 Plug | B3: Sealed Cable Output
B4: Other
Pressure Type D: Differential Pressure
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, capable of meeting large-scale orders. Contact our sales team in advance for production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts for bulk orders or long-term partners.
What is the warranty and after-sales service?
24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction always available.
