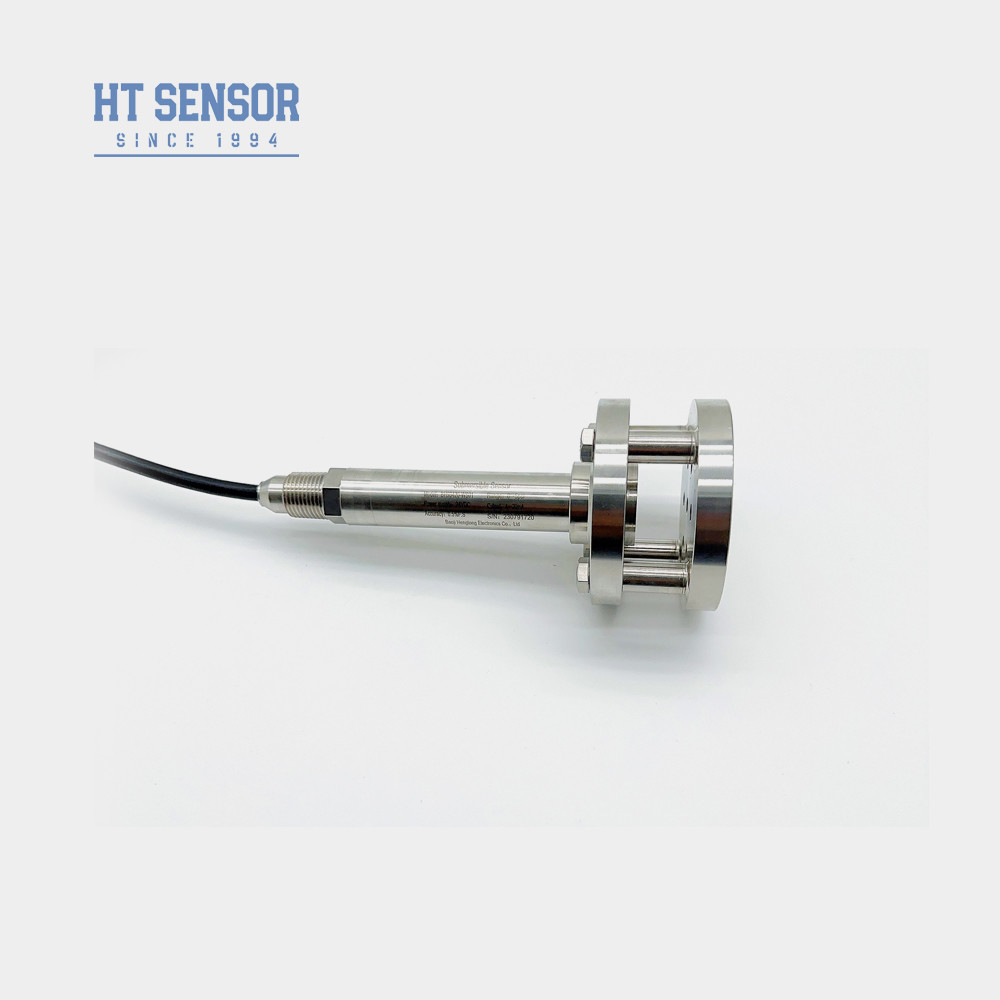

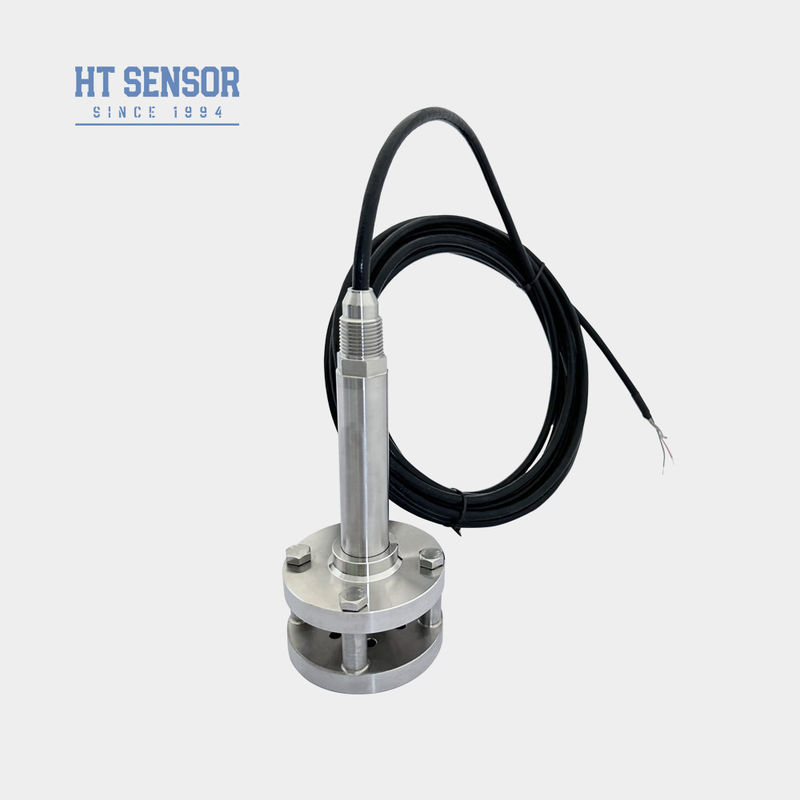

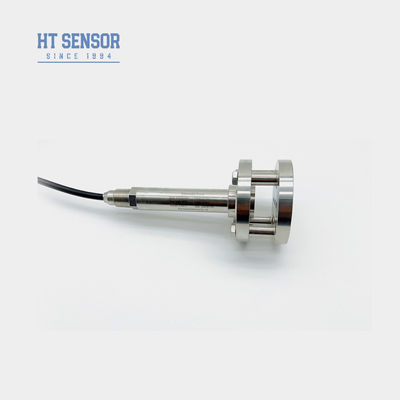

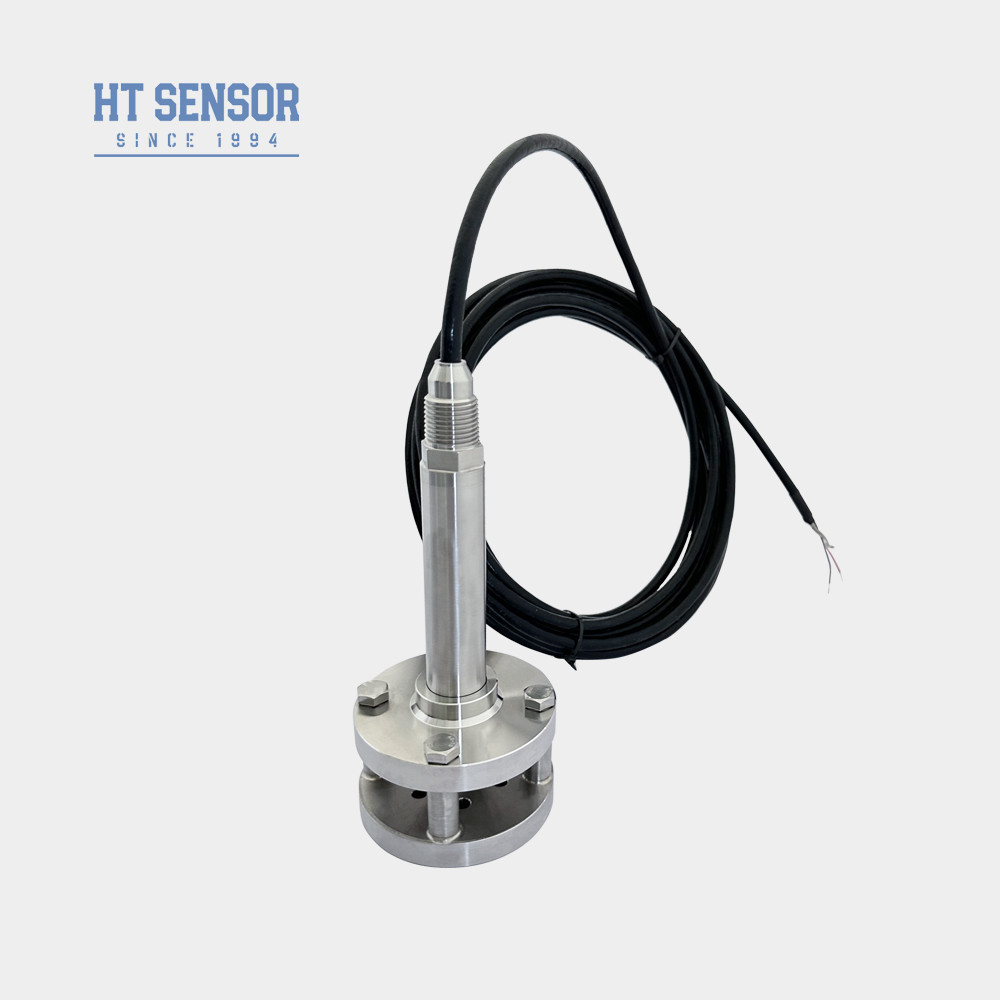

Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor
Product Details
| Accuracy: | 0.5%F.S | Material: | Stainless Steel |
|---|---|---|---|
| Measurement Range: | 0~10m...400m | Output Signal: | 4-20mA |
| Power Supply: | DC24V | Product Name: | Sewage Level Sensor |
| Protection Level: | IP68 | Model: | BH93420-WS |
| Highlight |
stainless steel level sensor,flange weight swage pressure transmitter,level measurement pressure sensor |
||
Product Description
Stainless Steel Level Measurement With Flange Weight Swage Level Sensor Pressure Transmitter Sensor
BH-WS Sewage Level Sensor
Introduction:
The BH93420-WS submersible level sensor employs a high-accuracy piezoresistive silicon sensing element housed in 316L stainless steel for maximum corrosion resistance. Designed for harsh liquid measurement applications, it reliably monitors fluid levels in:
- Wastewater treatment: Sludge tanks, digesters, clarifiers
- Chemical processing: Alum tanks, chemical storage vessels, lime slurry
- Industrial storage: Oil tanks, sewage sumps, water reservoirs
With its fully welded construction and sealed electronics, this rugged transmitter withstands aggressive media while maintaining long-term stability—making it ideal for contaminated or abrasive liquids.
Product Features:
- Specially designed for harsh environments
- Explosion-proof marking : ExiaIICT6
- High protection : IP68
- Full 316L stainless steel structure with excellent corrosion resistance
- High precision and good stability
Applications:
- Compatible with 316LSS,noncorrosive liquids
- Monitoring of oil level in diesel tanks, fuel tanks, and other fuel containers
- Level measurement in polluted liquids, such as sludge tanks, clarifiers, digesters, alum tanks, chemical storage tanks, sewage pits, and water reservoirs
| Performance Parameters | |
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | -10-80ºC |
| Operating Temperature | -20~100ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~2.1Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane,Teflon |

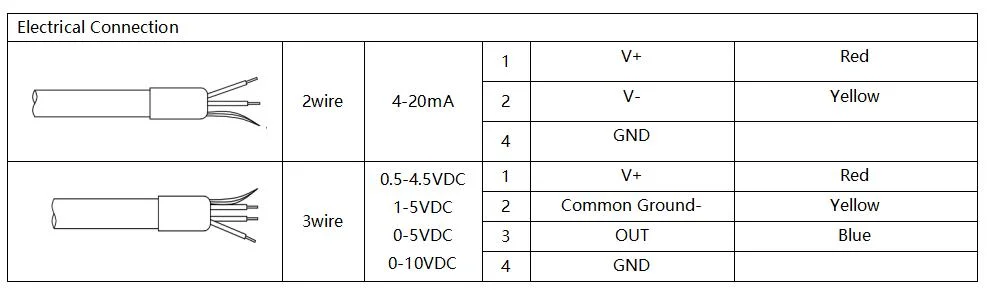

| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0/1~10V | ||
| 0.5~4.5V | 5VDC |

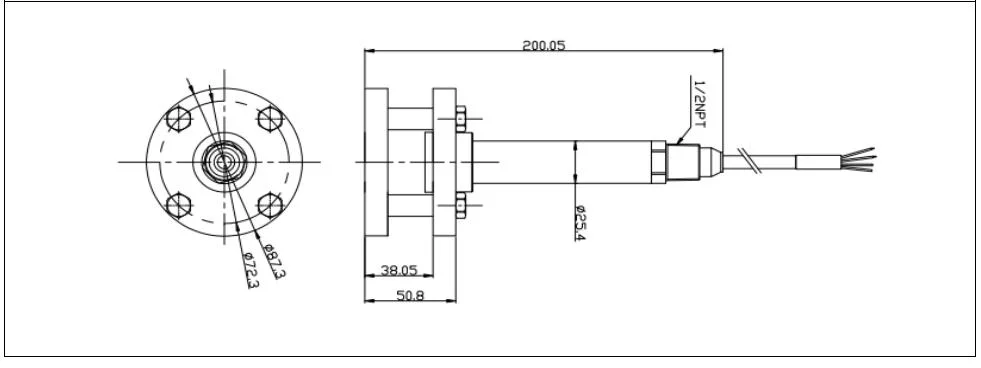

| Outline Construction |
1. Please ensure that the measured medium is compatible with the product components in contact with it during selection.
2. The density of the measured medium should be specified.
3. For strong electromagnetic or radio frequency interference, please provide details to our company and indicate it in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
| Order Guide | ||||||||
| BH | Code | Outline Construction | ||||||
| WS | Pressure Transmitter | |||||||
| Measurement Range | 0~10m…400m(H2O) | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
| Code | Cable Material | |||||||
| C1 | PE | |||||||
| C2 | PU | |||||||
| C3 | PTFE | |||||||
