Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core

Product Description

Baoji Hengtong HT26V pressure sensors cell for transmitter

HT26V Silicon Piezoresistive Pressure Sensor

Introduction:
HT26V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon sensing element. It accurately measures the pressure of liquids and gases by transmitting the differential pressure of the medium to the silicon diaphragm via a 316L isolation diaphragm and sealed silicone oil, utilizing the piezoresistive effect of silicon.The sensor comes with an O-ring for reliable pressure sealing, ensuring easy and secure installation.

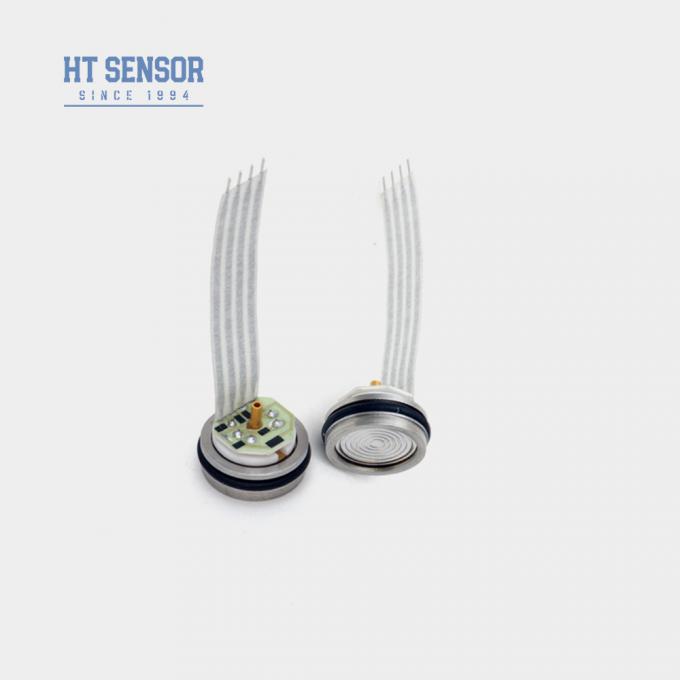

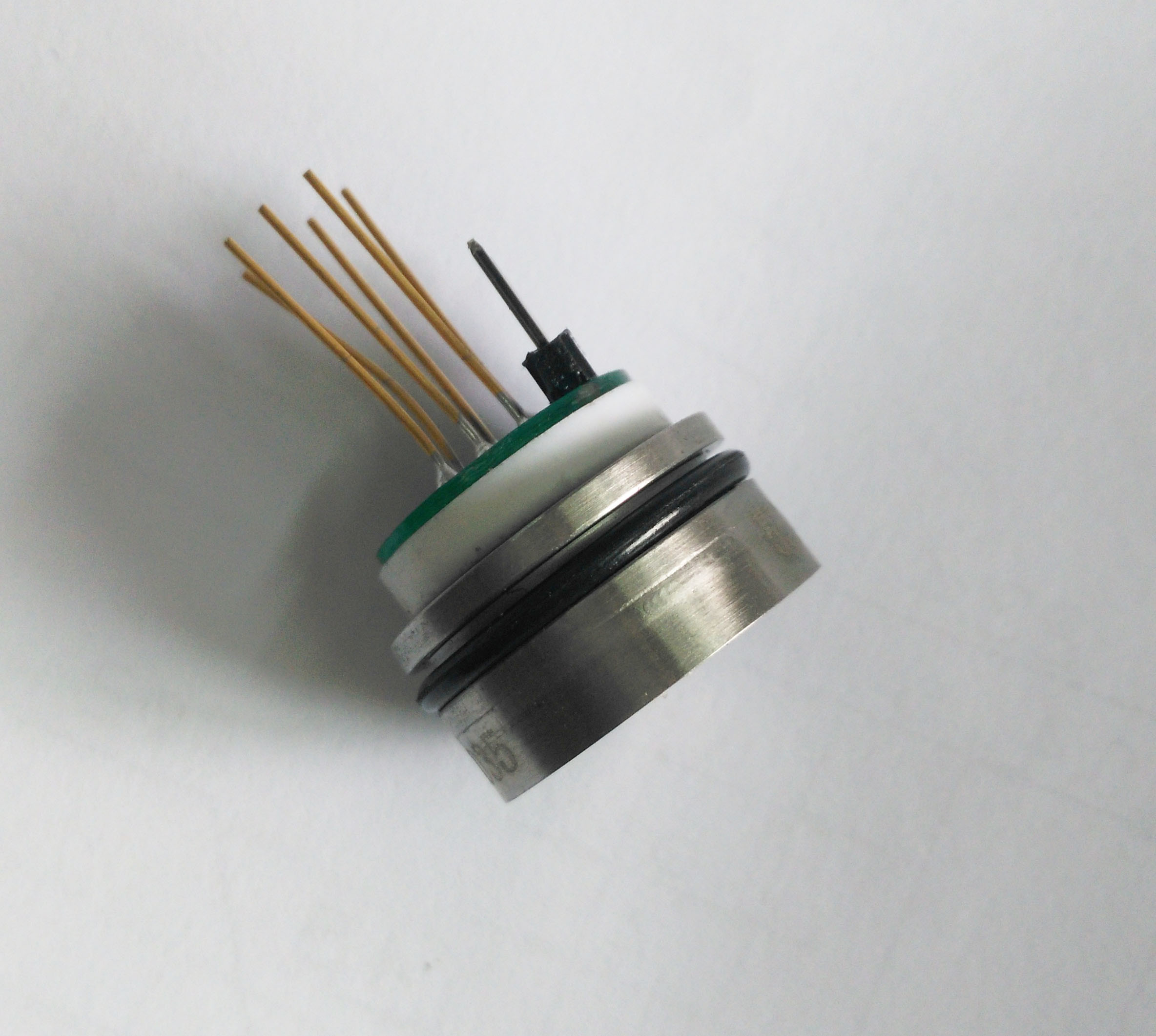

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 1

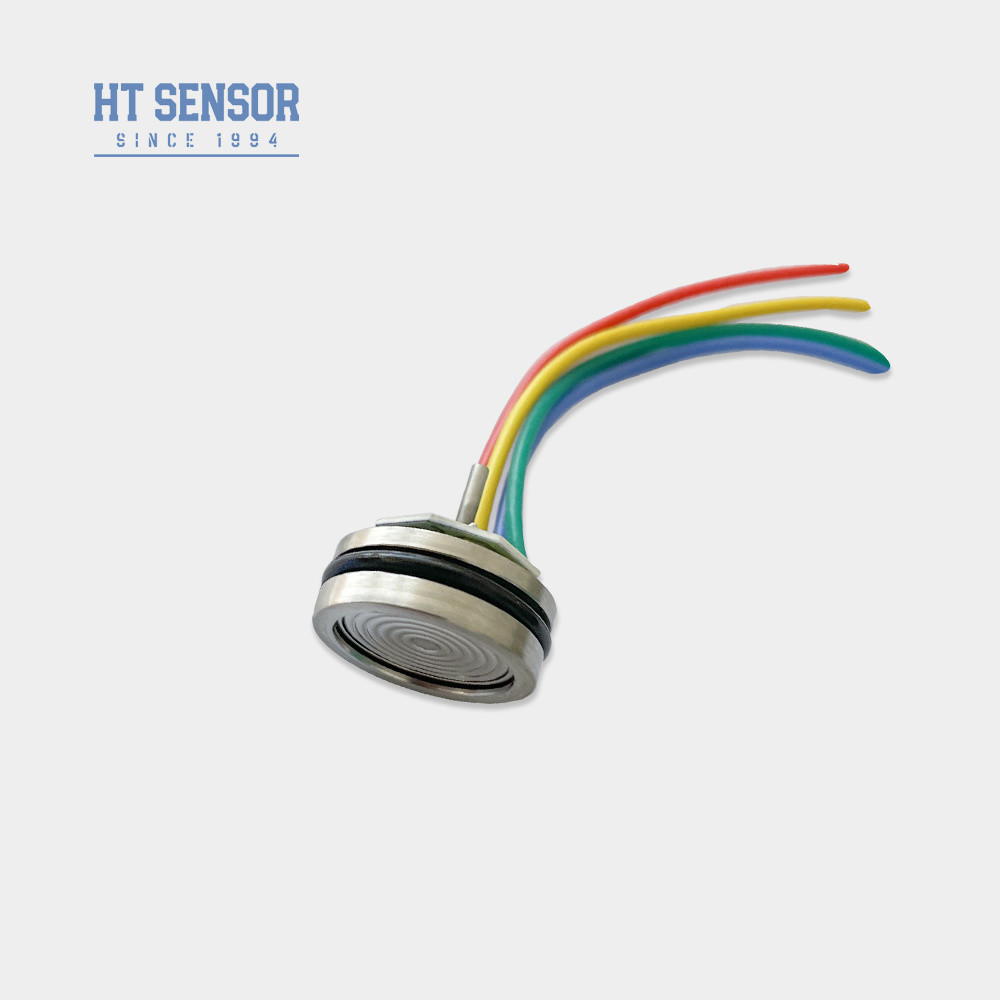

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 2

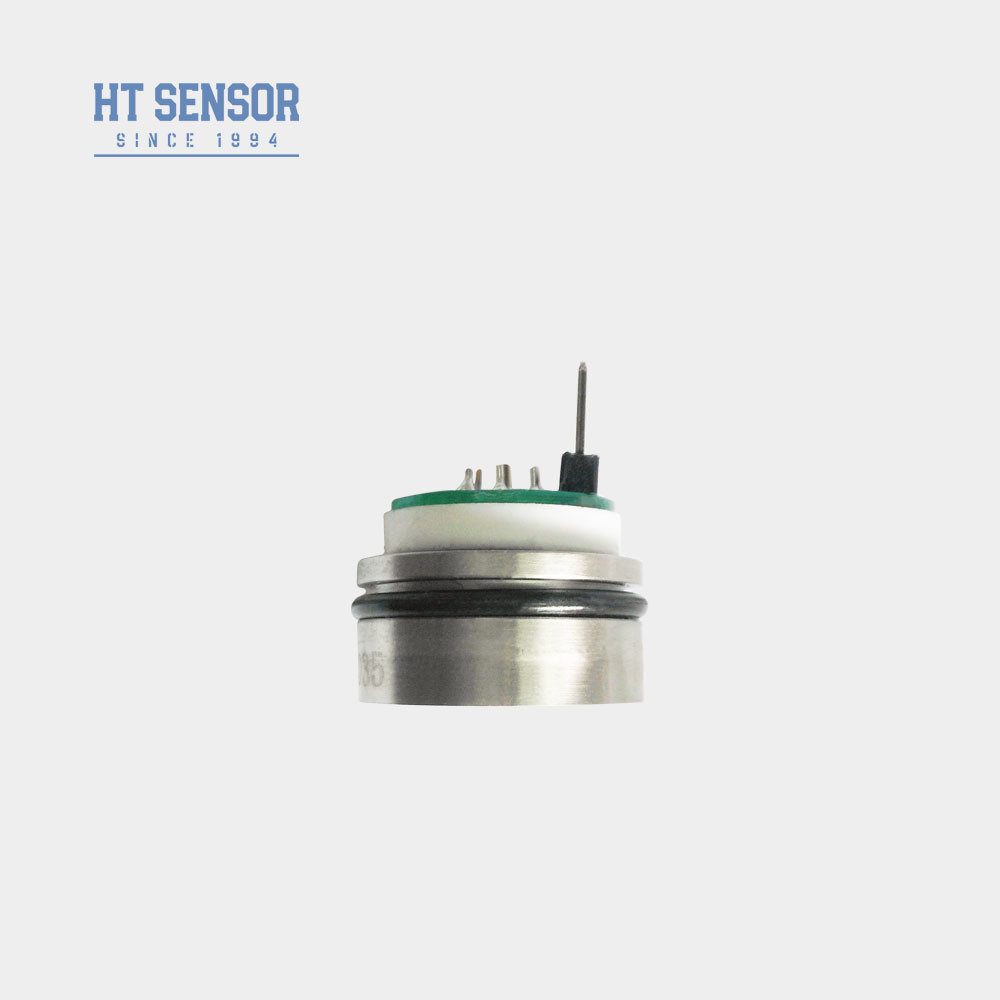

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 3

Product Features:

Constant voltage supply and outputs standard signals
High reliability and excellent stability
The height is 7mm, various structures can be customized

Applications:

Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology .
Used in marine and aviation industries
Suitable for hydraulic and pneumatic control systems
Utilized in process control applications

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire,ribbon cable and pin connectors.

Performance Parameters:
Measurement Range		Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000KPa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS,7MPaS,10MPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±1		50±2	mV
	≥35kPa	100±1		100±2	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2.5	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		3 times the full scale
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~25g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC

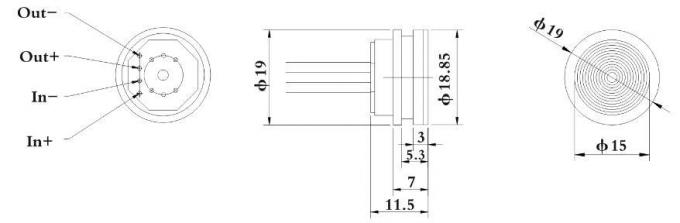

Outline Construction
Pressure Tube <3.5MPaS
Normal ≥3.5MPaS <40MPaS

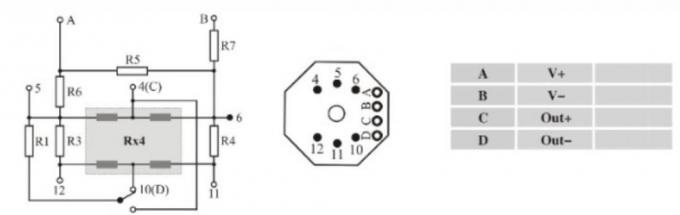

Electrical connection and compensation

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 6

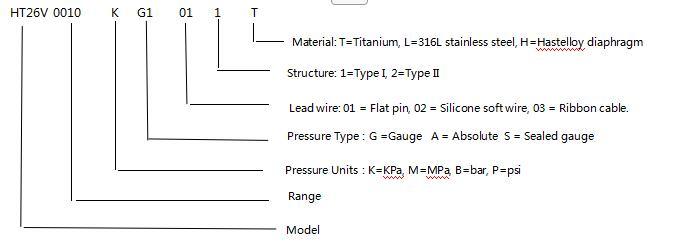

Selection Examples

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 7

Baoji Hengtong HT26V Pressure Sensor Cell for Transmitter 19mm Dia Sensor Core 8

Ordering tips

During assembly, ensure proper fit between the core and transmitter housing to meet specified airtightness requirements.
When assembling the housing, maintain vertical alignment and apply even pressure to prevent jamming or damage to the compensation plate.
If the measured medium is incompatible with the core diaphragm or housing material (316L), special instructions must be provided at the time of order placement.
Do not touch the sensor diaphragm with hands or sharp objects to avoid core damage caused by deformation or puncture.
For gauge pressure cores, keep the pressure port vented to the atmosphere and prevent moisture, steam, or corrosive media from entering the negative pressure chamber.
Always refer to the labeling on the physical core for pin lead connections, especially if modifications have been made.
