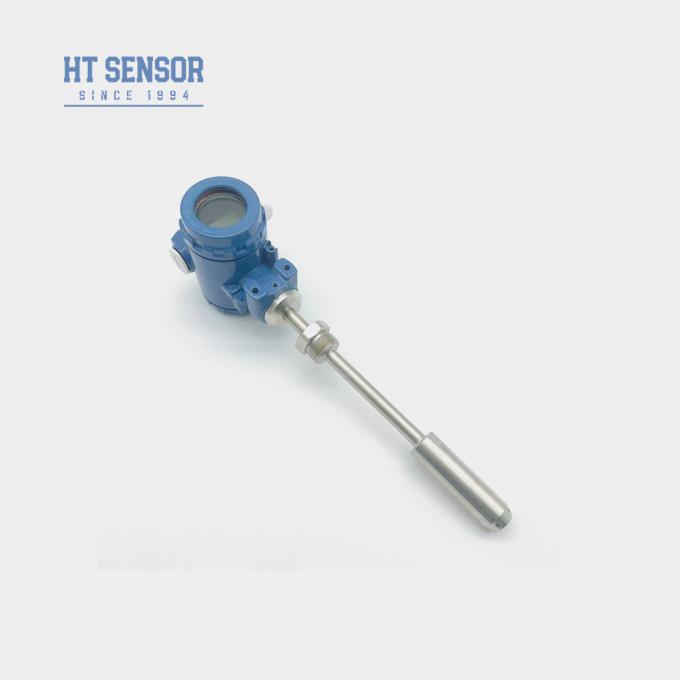

BH93420 IIIK Water level Transmitter
Introduction of water level transmitter:
BH93420-IIK/IIIK armoured water level transmitters are welded together using a standard flange mounting process. This armored construction ensures the transmitter's durability and reliability, making it ideal for challenging environments with corrosive substances. Solid structure, no moving parts, high reliability, long service life, from water, oil to viscous paste can be measured with high accuracy, not affected by foaming, deposition, electrical characteristics, the measured medium temperature compensation range is wide. The input level transmitter has power
supply polarity protection and overload current limiting protection.
| Performance Parameters of water level transmitter: |
| Measurement Range |
0~10m…4m |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 2 X rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.15%F.S/year (Max.) |
| Zero Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift |
±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature |
0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature |
-20~80ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Shock |
100g |
| Housing Material |
Stainless steel 1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~1.1Kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
15~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| RS485 Communication Protocol |
4 wire |

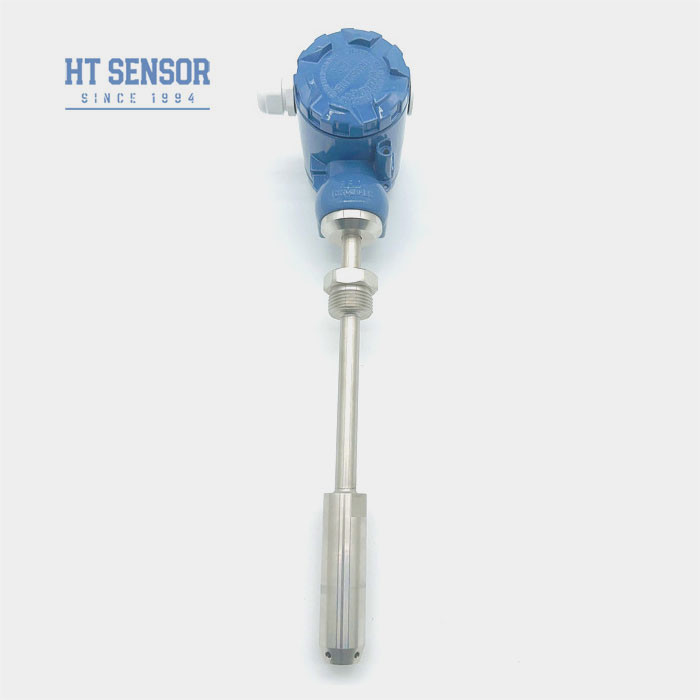

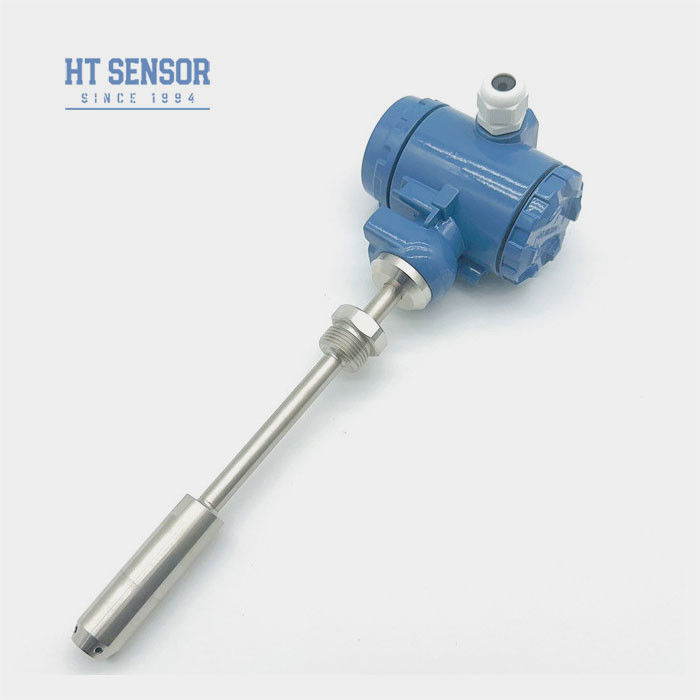

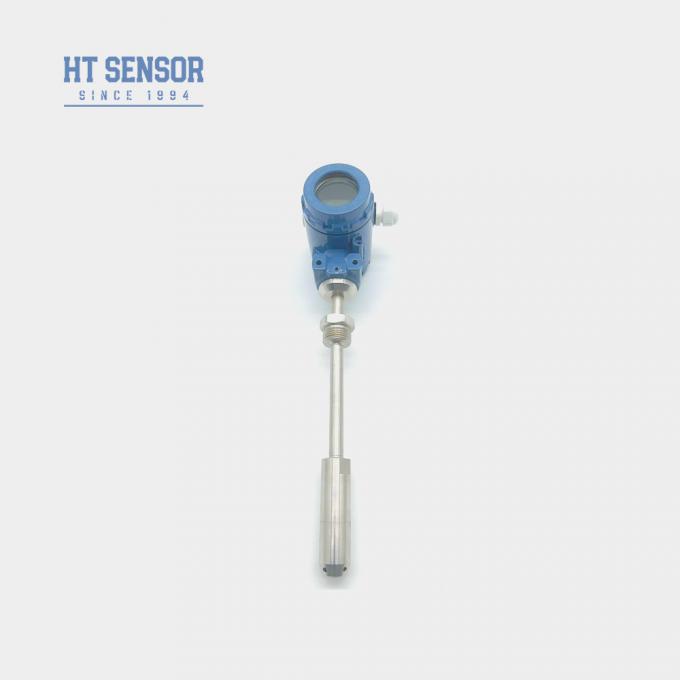

Product Features of water level transmitter:
- Armored insertion design, suitable for liquid level measurement in open containers

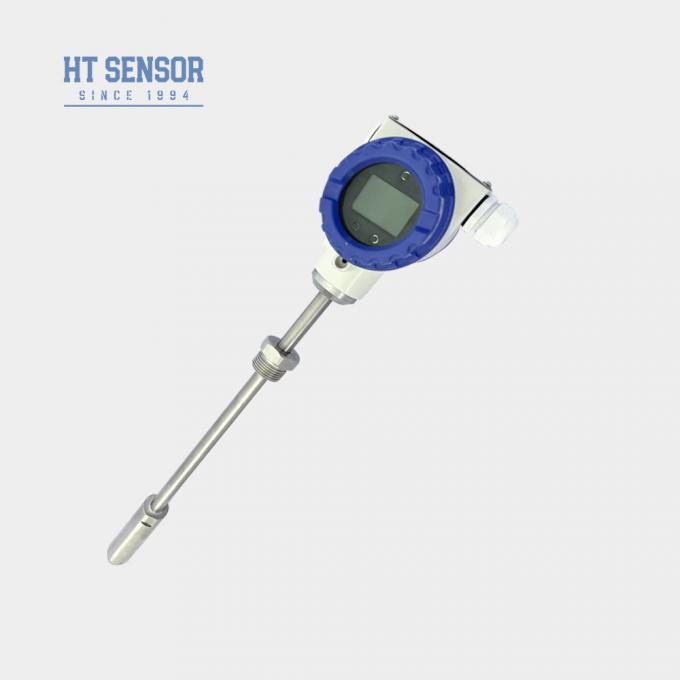

- LED or LCD display options available
- Explosion-proof rating: ExiaIICT6
- Zero and span externally adjustable
- Made of corrosion-resistant stainless steel material, suitable for various industrial fields
| Outline Construction of water level transmitter: |
| Ordering tips of water level transmitter |
1. please ensure that the measured medium is compatible with the contacting parts of the product.
2. The density of the measured medium should be specified.
3. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify in the order.
4. To ensure the reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
5. When equipped with an LED or LCD display head, the transmitter power supply voltage should not be lower than 15VDC

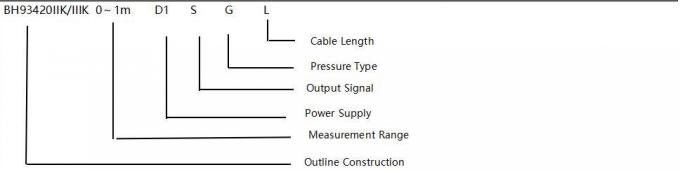

| Order Guide of water level transmitter |
| BH93420 |
Code |
Outline Construction |
| |
II/III |
Armored water level transmitter |
| |
Measurement Range |
0~10m…4m |
| |
Code |
Power Supply |
| D1 |
24VDC |
| |
Code |
Output Signal |
| S1 |
4~20mADC |
| |
Code |
Flange or interface size |
| F1 |
Stainless steel DN25 |
| F2 |
Stainless steel DN32 |
| F3 |
Stainless steel DN40 |
| F4 |
Stainless steel DN50 |
| M1 |
M27X2 |
| M2 |
M30X2 |
| M3 |
Other special threads |
| |

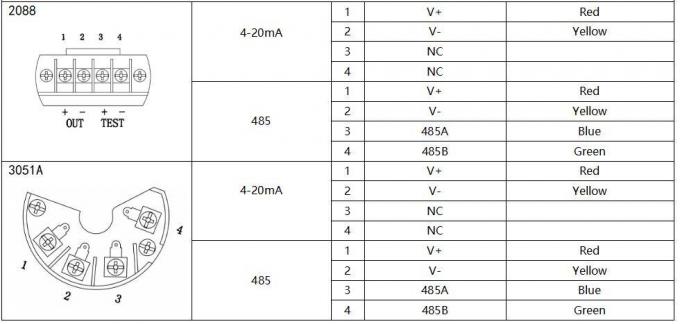

Code |
Electrical Connection |
| B4 |
2088 industrial housing |
| B5 |
2088 with display |
| B6 |
3051A housing |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
| |
Code |
Material |
| 01 |
304 Stainless Steel |
| 02 |
316L Stainless Steel |
| |
Code |
Steel pipe length |
| L |
X m |
FAQ:
1. Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
2. Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service
3. Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
4. Q: What's the typical delivery period?
A: 5~8 working day for standard models. Customized products may vary.
5. Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
6. Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
