| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BP93420D-I |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BP93420D-I | Pressure Type: | Differential Pressure |
|---|---|---|---|
| Transport Package: | Standard Export Packing With Carton | HS Code: | 9026201090 |
| Supply Ability: | 20000PCS/Year | Type: | Differential Pressure Transmitter |
| Measuring Medium: | Gas | Accuracy Grade: | 0.5%, 1% |
| Pressure Range: | 0-10kpa...~2MPa | IP Rating: | IP65 |
| Customization: | Available | Customized Request | ||
| High Light: | 10kPa Differential Pressure Transmitter,Differential Pressure Transmitter 4 20ma,10kPa 4 20ma Pressure Transmitter |
||

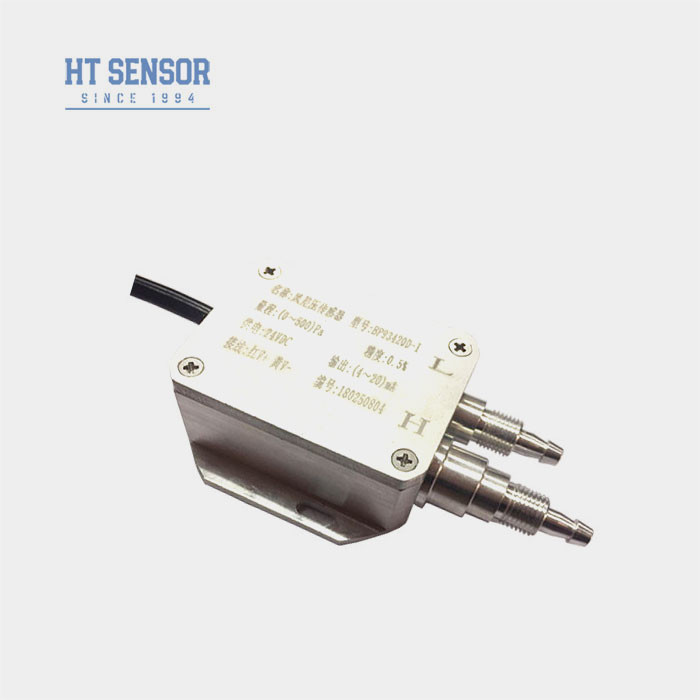

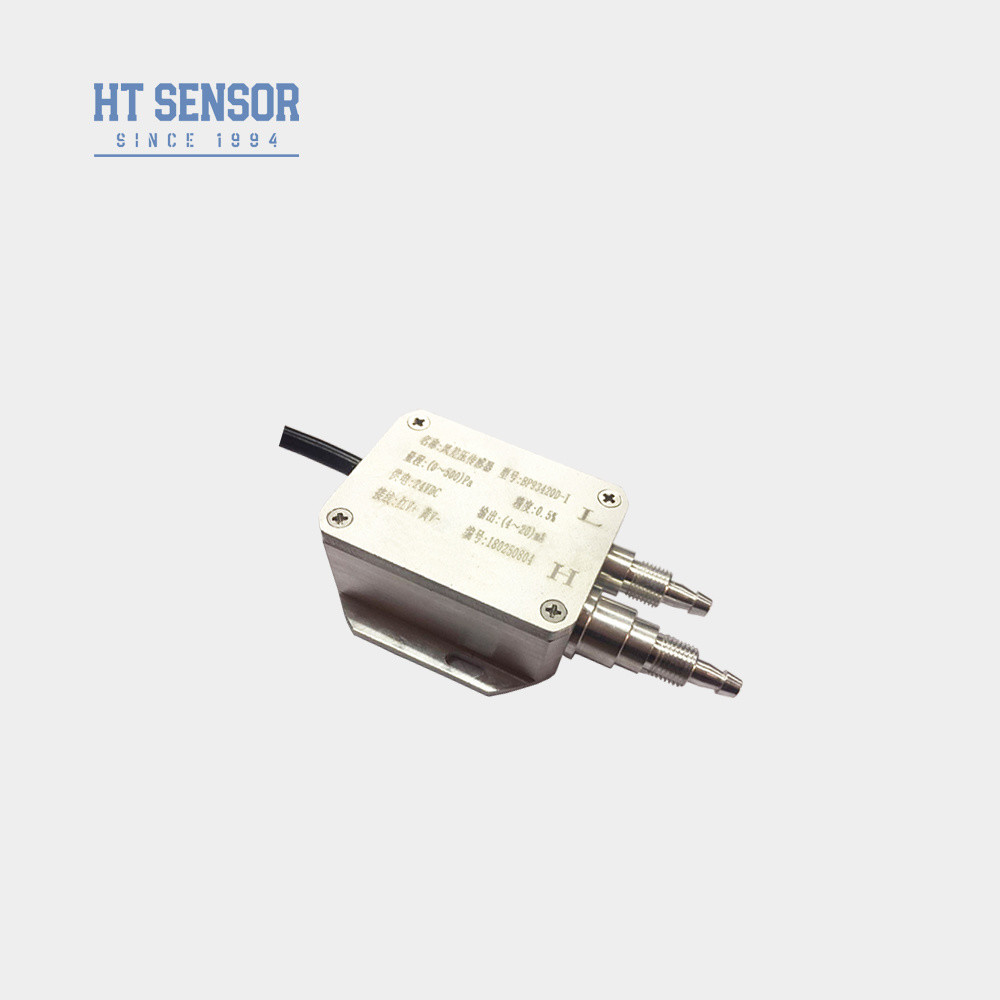

Introduction of air differential pressure transmitter:
The micro differential pressure transmitter is a device used to measure the micro differential pressure. Its working principle is based on piezoresistive sensor and differential pressure principle. The differential pressure transmitter contains a piezoresistive sensor, and the two ends of the sensor are connected with the two sides of the measuring medium. When the medium passes through the transmitter, a small pressure difference is generated on both sides, resulting in a change in the resistance value inside the sensor. This change will cause the sensor output signal to change, and then generate the corresponding electrical signal output. According to the change of the output signal of the sensor, the micro differential pressure value of the medium can be accurately calculated
1. The transmitter features a stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct wiring option.
Applications:
1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers
| Performance Parameters: | |
| Measurement Range | 0-500Pa...~200kPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.2kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0.5~4.5V | 5VDC |
|
Ordering tips: |
| Order Guide: | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa...~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
