BT93420 4 20ma Temperature Sensor PT100 High Temperature Pressure Transducer For Medium
Product Details
| Model NO.: | BT93420-II | Output Signal Type: | Analog Type |
|---|---|---|---|
| Material: | Stainless Steel | Measuring Medium: | Liquid |
| IP Rating: | IP65 | Customized: | Customized |
| Range: | -55~200 | Output: | 4-*20mA |
| Sensitive Original: | PT100 | Transport Package: | Carton |
| Trademark: | HengTong | Origin: | China |
| HS Code: | 9032100000 | Package Size: | 6.40cm * 4.30cm * 3.80cm |
| Shipping Cost: | To Be Negotiated | ||
| Highlight |
BT93420 4 20ma Temperature Sensor,4 20ma Temperature Sensor PT100,High Temperature Pressure Transducer For Medium |
||
Product Description
BT93420 stainess steel Temperature Indicator Transmitter, High Accuracy & Stability

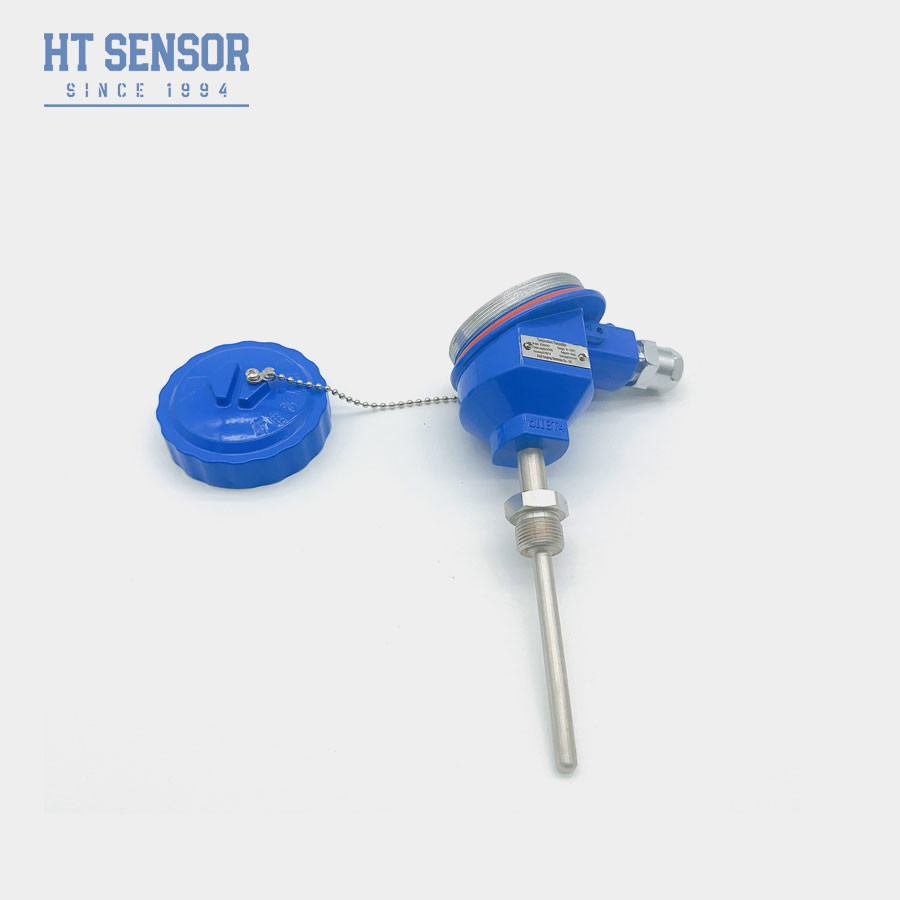

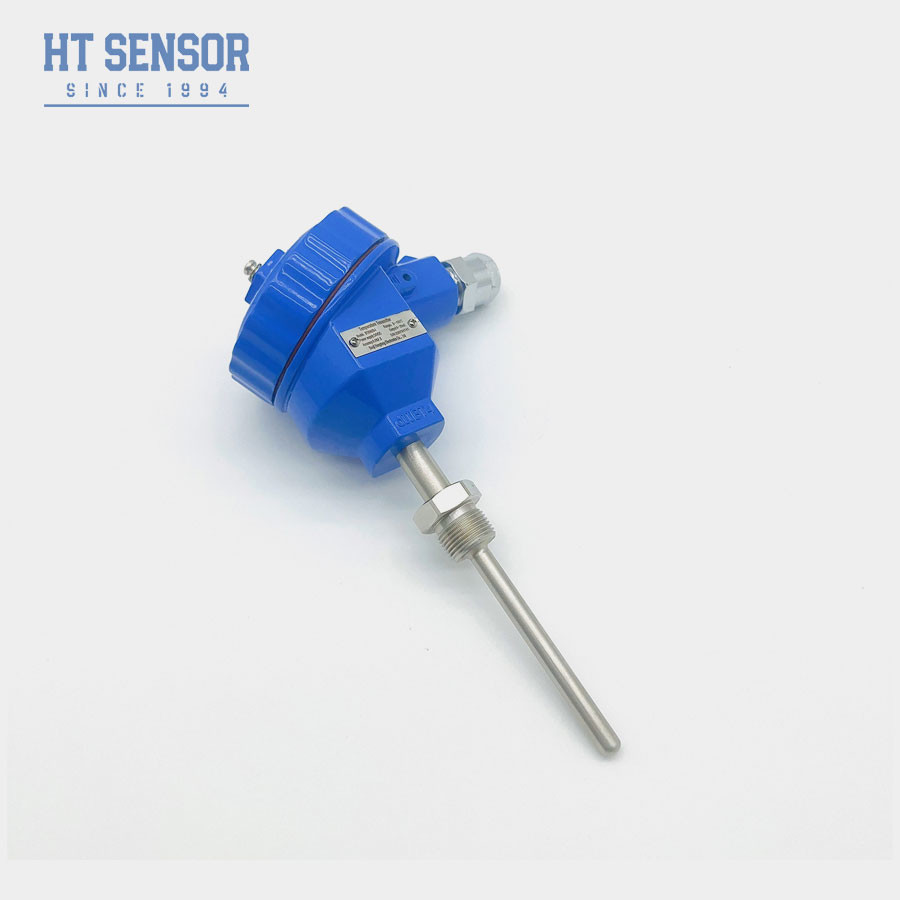

BT93420 Temperature Indicator Transmitter
Introduction of temperature indicator trasmitter:
thermistor temperature sensor is a temperature measurement device based on the principle of thermistor resistance. Its working principle is to measure the temperature of the environment or object by utilizing the characteristic of the resistance of the thermistor material changing with temperature.
The thermistor temperature sensor usually consists of a thermistor element, connecting wires, and a housing. The thermistor element is the core part of the sensor, which is made of a special material such as copper oxide or nickel oxide. These materials have different resistance values at different temperatures, and the resistance value changes correspondingly as the temperature increases or decreases.
When the thermistor temperature sensor is connected to the circuit, the temperature of the environment or object can be calculated by measuring the change in resistance value. The output of the sensor can be an analog signal or a digital signal, depending on the specific sensor design.
Thermistor temperature sensors have the characteristics of fast response, high precision, and good stability. They are widely used in various fields, including home appliances, automotive industry, medical equipment, industrial control, etc. By using different types of thermistor materials and design parameters, different temperature measurement needs in different application scenarios can be met.
- Full stainless steel structure, good corrosion resistance
- Analog output and digital output are both available for selection
- Terminal box, 2088 LCD, or LED display are available for selection
- Home appliances
- Industrial Automation.
- Medical equipment.
| Performance Parameters | |
| Measurement Range | -55~1200ºC |
| Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Operating Temperature | -30~80ºC |
| Storage Temperature | -40~100ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Maximum temperature | 120% of the rated temperature range |
| Protection Rating | IP65 |
| Weight | ~0.5Kg |

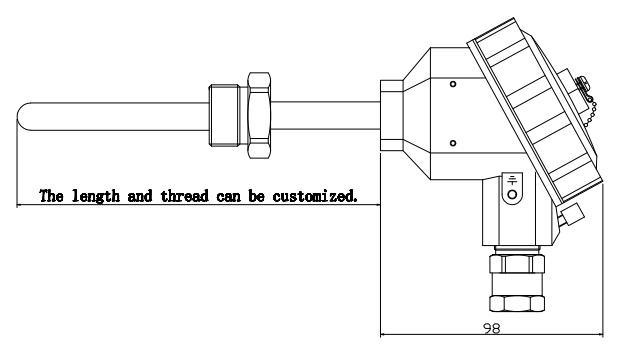

| Outline Construction | |
| Terminal Box | |
| Order Guide | |||||||
| BT93420 | Temperature Indicator Transmitter | ||||||
| Code | Outline Construction | ||||||
| I | Blue Terminal Box | ||||||
| II | 2088 housing | ||||||
| III | 2088+LED | ||||||
| IIIA | 3051+LED | ||||||
| Measurement Range | -55~1200ºC | ||||||
| Code | Power Supply | ||||||
| D1 | 24VDC | ||||||
| D2 | Other | ||||||
| Code | Output Signal | ||||||
| S1 | 4~20mADC | S4 | 0~10mADC | ||||
| S2 | 1~5VDC | S5 | 0~20mADC | ||||
| S3 | 0~5VDC | S6 | 0~10VDC | ||||
| Code | Pressure Connection | ||||||
| J1 | M27X2 Male | ||||||
| J2 | Other | ||||||
| Code | Insertion depth | ||||||
| L | Actual insertion depth | ||||||
