| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | BPZK01D |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | BPZK01D | POWER: | 24VDC / 220VAC |
|---|---|---|---|
| Output: | 4-20mA /0-10VDC | Material: | Stainless Steel |
| Dia: | 100mm | Display: | LED |
| Type: | Differential Pressure | Specification: | 10kpa~100mpa |
| Thread: | G1/4 M20*1.5 1/2NPT Or OEM | Usage: | Control Switch |
| High Light: | Control Switch Differential Pressure Transmitter,100mm Differential Pressure Transmitter,24VDC Differential Pressure Sensor |
||

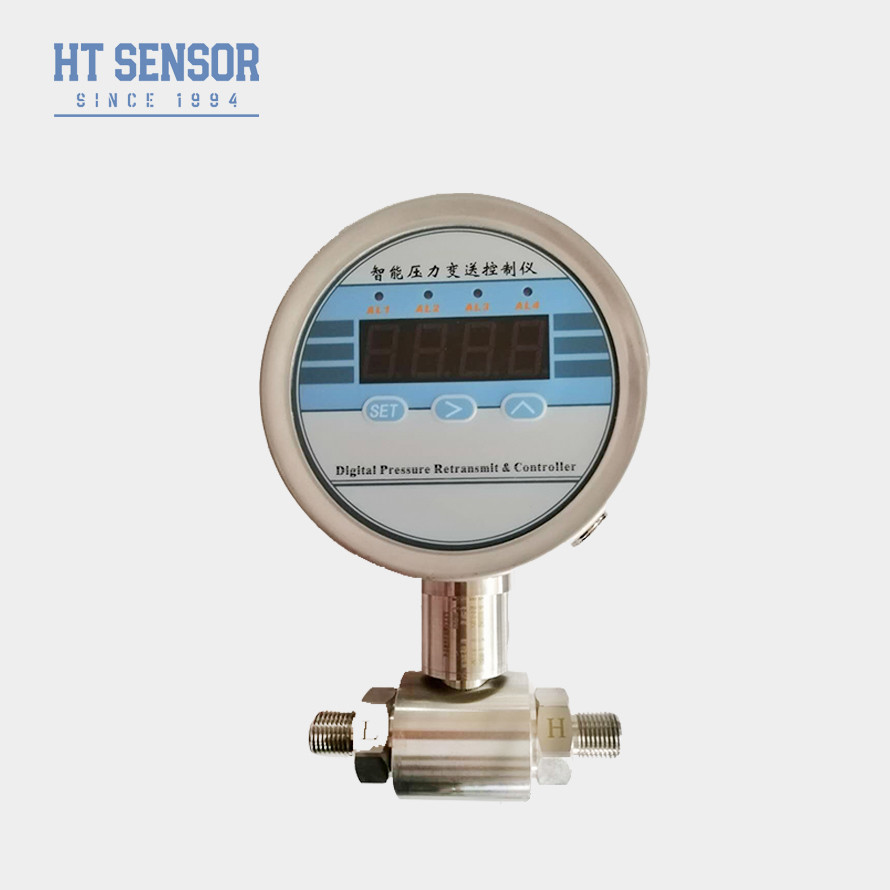

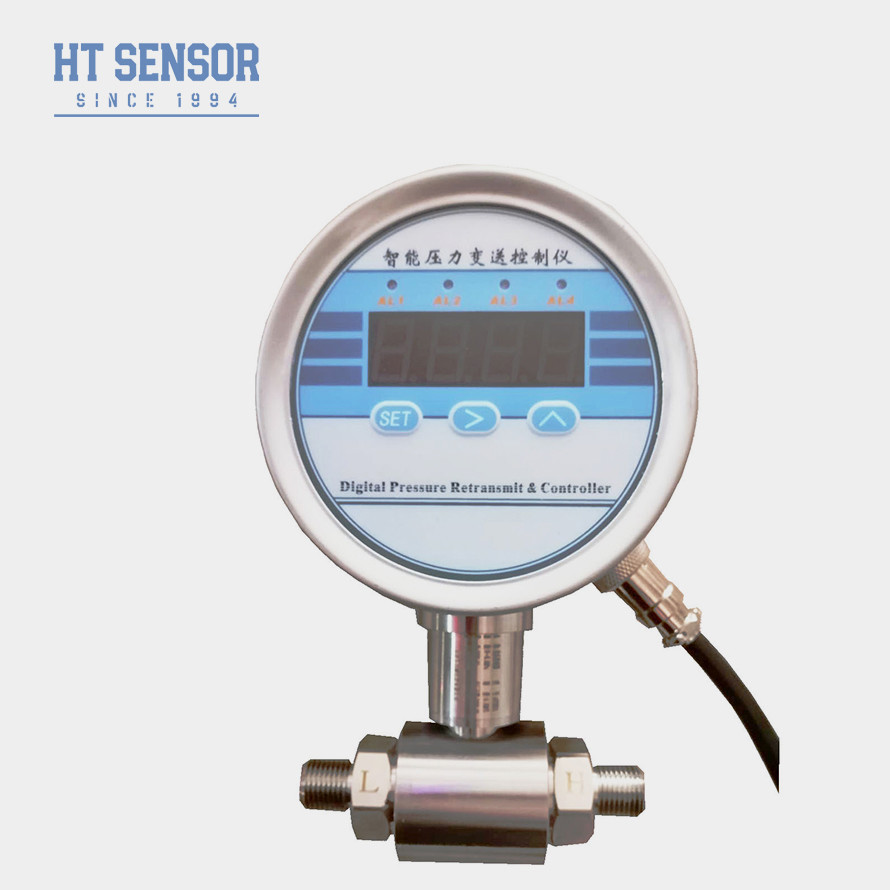

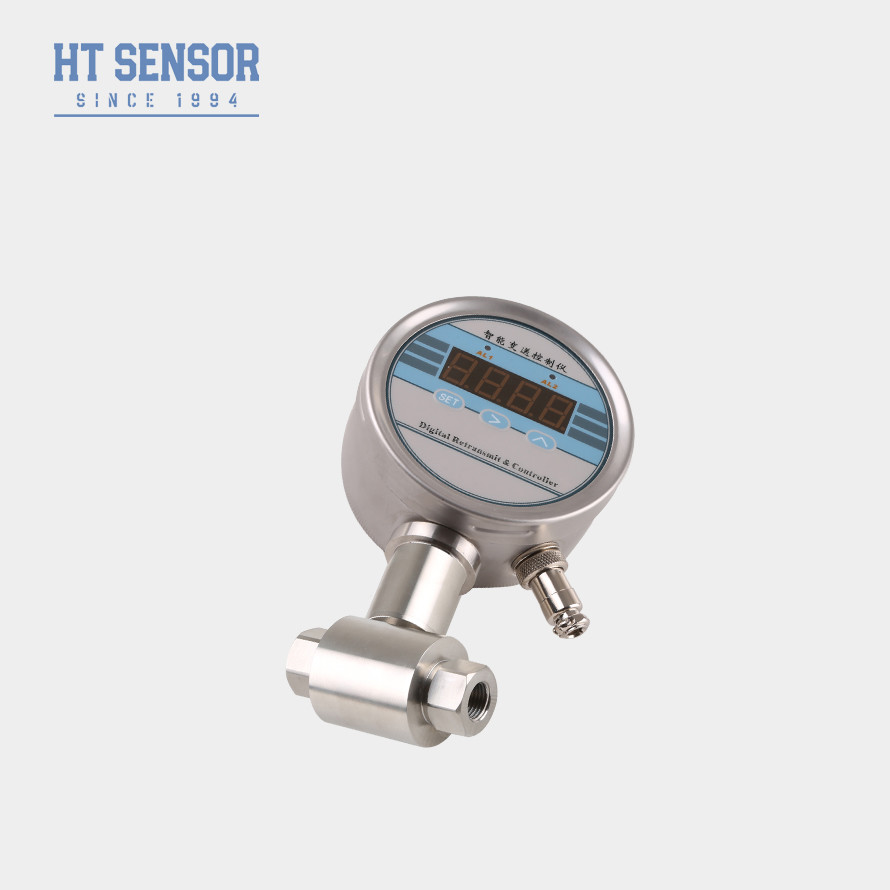

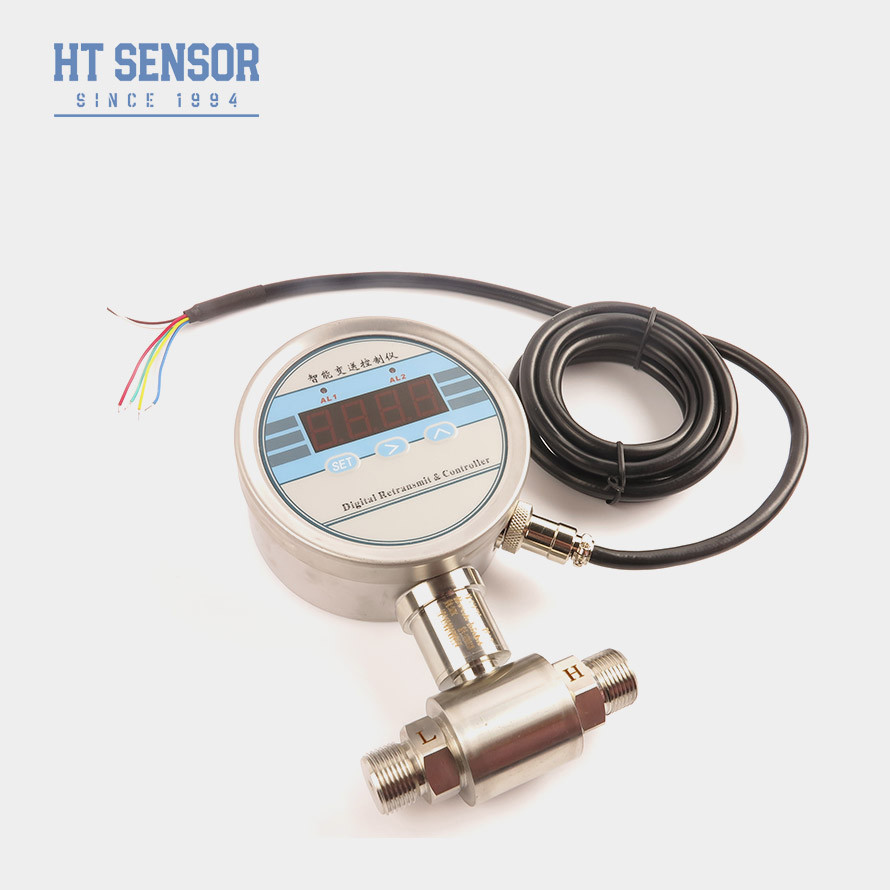

100mm Differential Pressure Transmitter Pressure Switch Controll Manufacture
BPZK01D Differential Pressure Transmitter Electronic Pressure Switch
Introduction of differential pressure transmitter :
BPK-ZK01D digital differential pressure transmitter is an intelligent digital pressure measurement and control product that integrates pressure measurement, display, output and control. Differential pressure sensor stainless steel structure design, small size, light weight, easy to install; Laser welding, fully sealed structure, shell protection class IP65; The sensor is diffused silicon piezoresistive differential pressure sensor, stainless steel 316L isolation diaphragm; After temperature compensation and aging screening, the performance is stable and reliable; It is suitable for the differential pressure measurement of various gases and liquids in petroleum, chemical, electric power, hydrology and other pipelines.
| Performance Parameters of differential pressure transmitter | |
| Measurement Range | 0-10KPa~2MPa(Differential Pressure) |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.03%F.S/ºC(≤100KPa) ±0.02%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-4 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~1.2kg |
| Outline Construction of differential pressure transmitter | |
| Dimension |  |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA / 0-20mA | 24VDC or 220VAC | 3 wire |
| 1-5VDC /0-5VDC | 24VDC or 220VAC | 3 wire |
Product Features of differential pressure transmitter:
Applications of differential pressure transmitter:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
| Ordering tips of differential pressure transmitter |
1. When selecting the product, please ensure that the tested medium is suitable for the contact part of the product..
2. Please indicate the power supply, accuracy level and number of control points when ordering.
3. For users who choose differential pressure measurement, attention should be paid to the relationship between the differential pressure range and the allowed overpressure and maximum pressure of the high and low pressure chamber, and ensure that it meets the requirements of field applications. In order to ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
4. In order to ensure the reliable operation of the product, it is recommended to install lightning protection devices on the site and ensure the reliable grounding of the product and the power supply.In case of strong vibration, instantaneous impact force, strong electromagnetic interference, radio frequency interference and other special requirements, please inform our company and indicate in the order.
