| Place of Origin: | China |
|---|---|
| Brand Name: | HT SENSOR |
| Certification: | RoHS, ISO9001 |
| Model Number: | BP93420D-II |
| Minimum Order Quantity: | 1 |
| Packaging Details: | carton |
| Delivery Time: | 5-8 workday |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 3000pcs/month |
| Modle: | BP93420D-III | Range: | 0-10kpa~2Mpa |
|---|---|---|---|
| Power: | 5VDC 24VDC | Output: | 0.5-4.5V 4-20mA AND So On |
| Material: | Stainless Steel | Thread: | Male And Female OEM |
| Pressure Type: | Differential Pressure | Protection Class: | IP65 |
| Working Temperature: | -10-70℃ | Connector: | Big DIN Or OEM |
| High Light: | DIN Liquid Differential Pressure Transmitter,Stainless Steel Liquid Differential Pressure Transmitter |
||

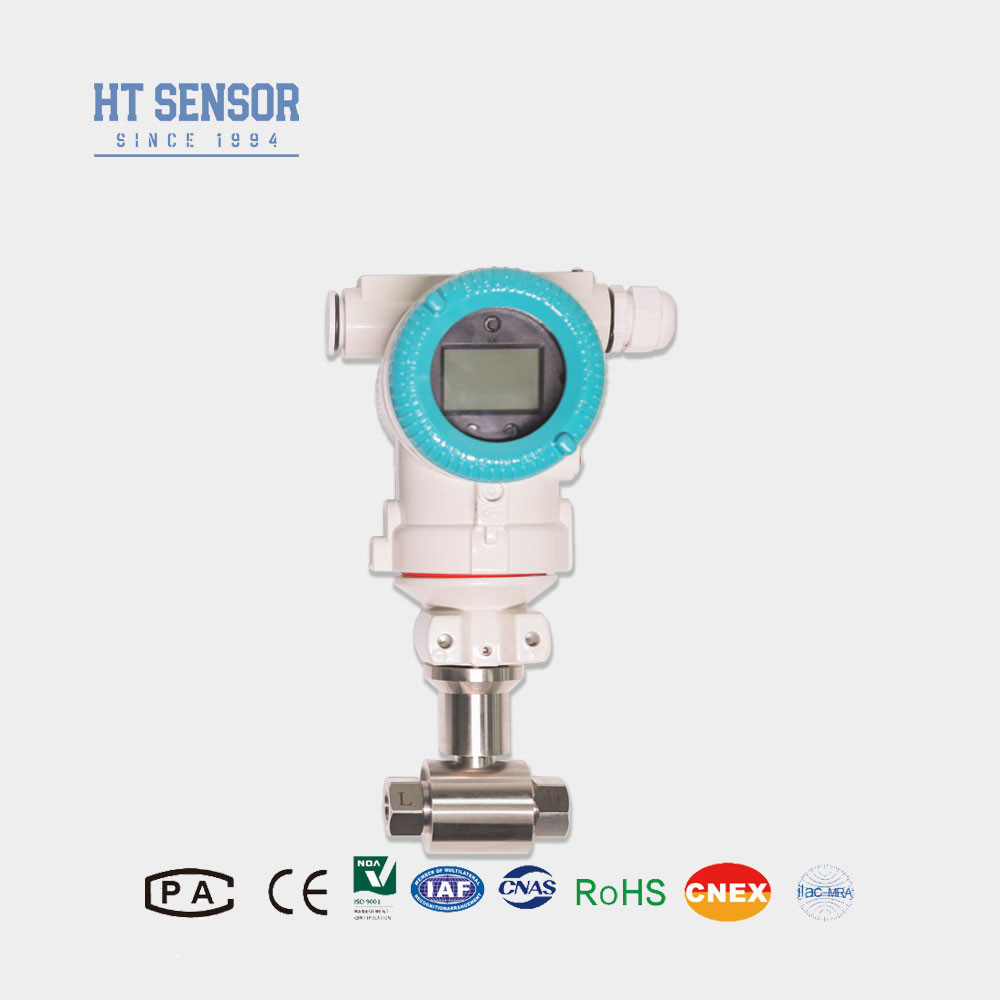

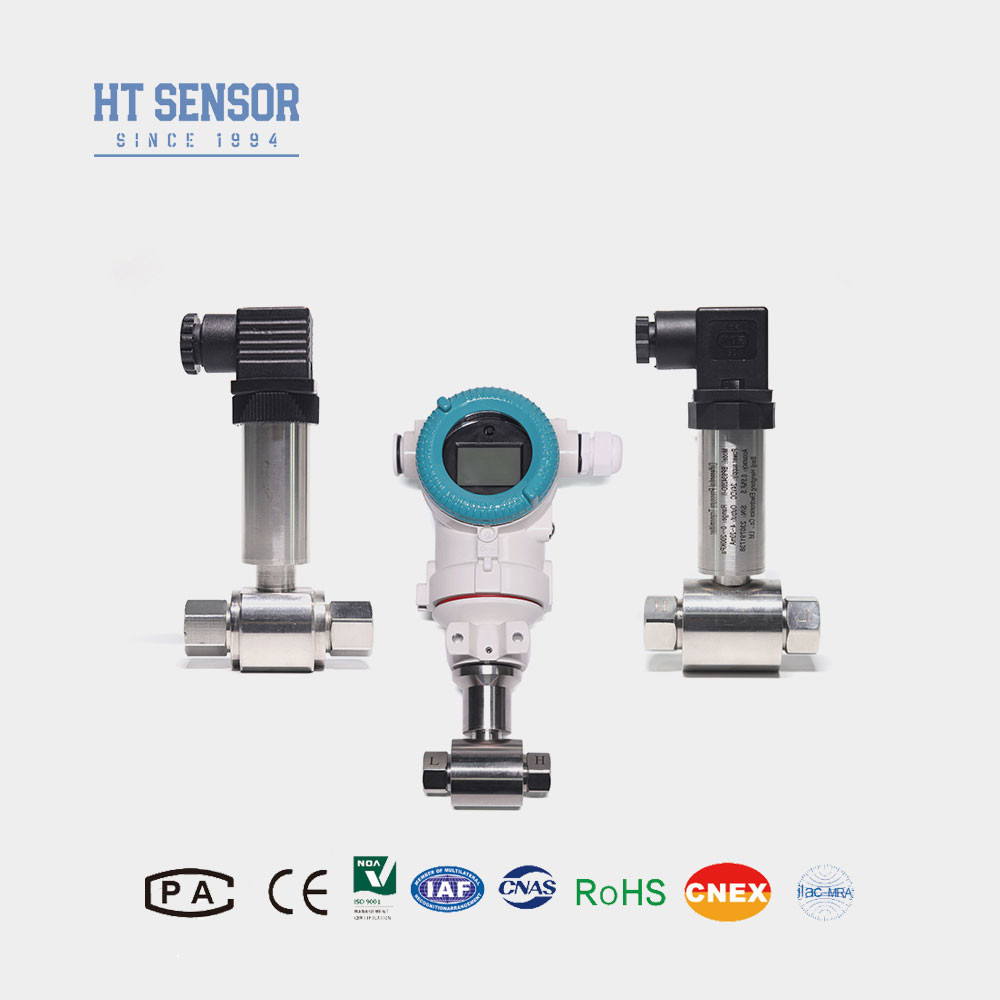

HT Sensor Liquid Differential Pressure Transmitter Stainless Steel Differential Sensor With DIN
BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DII differential pressure transmitter uses diffused silicon piezoresistive sensor.When the pressure difference of the measured medium is located on the corrugated diaphragm on both sides of the sensor, the signal output by the Wheatstone bridge of the sensor chip has a good linear relationship with the pressure difference, and the pressure difference can be accurately measured.It is suitable for pressure difference measurement of various gases and liquids in pipelines of petroleum, chemical, electric power, hydrology and other industries.
Product Features of differential pressure transmitter::
Applications of differential pressure transmitter::
| Performance Parameters of differential pressure transmitter: | |
|---|---|
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4～20mA | 12～30VDC | 2/3/4 wire |
| 0～10/20mA |
3 wire |
|
| 0/1～5V | ||
| 0.5～4.5V | 5VDC |
| Ordering tips of differential pressure transmitter: |
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
| Order Guide of differential pressure transmitter: | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S5 | 0～20mADC | |||||
| S2 | 1～5VDC | S6 | 0～10VDC | |||||
| S3 | 0～5VDC | S7 | 0.5～4.5VDC | |||||
| S4 | 0～10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
