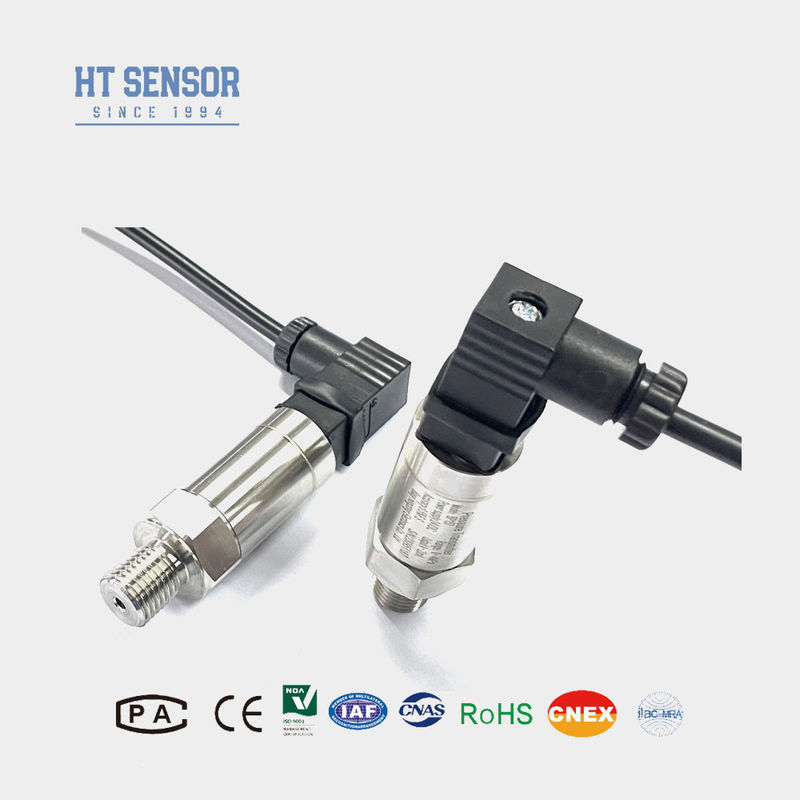

BP157 Pressure Transmitter
Introduction of mini DIN pressure transmitter sensor:
The BP157 industrial pressure sensor transmitter uses HT diffusion silicon pressure sensors as signal measurement elements.Our self-developed pcb converts sensor signals into standard output signals such as 0.5-4.5VDC or 4-20mA for easy reading and recording.Electrical connection mini DIN, small size to meet most field needs.
Product Features of mini DIN pressure transmitter sensor:
1. Wide measuring range, stainless steel structure, diverse pressure interface forms.
2. Compact and lightweight design.
3. Zero and full-scale adjustable
4. High precision, all stainless steel structure.
Applications of mini DIN pressure transmitter sensor:
1. Non-corrosive gas and liquid pressure measurement, the diaphragm is made of 316L stainless steel, the test medium is compatible with 316l stainless steel.
2. Applications in the Marine and aviation industries.
3. Used in industrial field processes, such as petroleum, chemical, metallurgy, power generation and hydrology.
4. For hydraulic and pneumatic control systems.
| Performance Parameters of mini DIN pressure transmitter sensor: |
| Measurement Range |
0kPa ~ 10kPa…20MPa |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability& Hysteresis |
0.02%F.S(Typ.) 0.05%F.S(Max.) |
| Long-Term Stability |
±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
| Zero Point Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Span Temperature Drift |
±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response |
2.4Khz |
| Compensation Temperature |
0-70ºC(≤10mpa,customizable) |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~120ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Ex ia IIC T6 Ga |
| Protection Rating |
IP65 |
| O-Ring Seal |
Fluoro rubber |
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
3 wire |
| 0/1~5V |
| 0/1~10V |
| 0.5~4.5V |
5VDC |
| Selection Examples of mini DIN pressure transmitter sensor |
1. When selecting the product, please ensure that the medium to be measured is compatible with the contact parts of the product.
2. When placing an order, please note that explosion-proof type products do not include digital display heads.
3. When ordering transmitters with an LCD or LED display head, the power supply for the transmitter should not be lower than 20VDC.
4. To ensure reliable operation of the product, it is recommended that users install lightning protection devices on-site and ensure that the product and power supply are reliably grounded.
5. The rated working temperature range of the Fluoro rubber O-ring is -20ºC to 250ºC. When the product's operating temperature is below -20ºC, it is necessary to choose an EPDM O-ring seal.
6. The default cable length is 1.5m, available in three materials. If not specified, it will be supplied with polyethylene cable material. If you require a different cable material, please specify it in the order.
7. For special requirements such as strong vibration, instantaneous impact force, strong electromagnetic or radio frequency interference, please inform our company and specify them in the order.
| Order Guide |
| BP15X |
Analog Pressure Transmitter |
| |
Code |
Outline Construction |
| 5 |
Packard plug |
6 |
Sealed Direct Output Cable 1.5 meters |
| 7 |
Mini Hirschmann Connector |
8 |
Large Hirschmann Connector |
| |
Measurement Range |
0kPa ~ 10kPa…20MPa |
(0-X)Kpa
or MPa |
X: Indicates the Actual Measuring Range |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
|
| S1 |
4~20mADC |
S5 |
0~20mADC |
| S2 |
1~5VDC |
S6 |
0~10VDC |
| S3 |
0~5VDC |
S7 |
0.5~4.5VDC |
| S4 |
0~10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 |
| J2 |
G1/2 |
| J3 |
G1/4 |
| J4 |
7/16-20UNF |
| J5 |
Others(¢50.4 Flange) |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 |
| B3 |
Cable Sealed Outlet 1.5 meters |
| B4 |
Other |
| |
Code |
Pressure Type |
| G |
Gauge Pressure |
| A |
Absolute Pressure |
| S |
Sealed Reference Pressure |
