BP93420DII Differential Pressure Transmitter for Gas and Liquid Pipeline Measurement

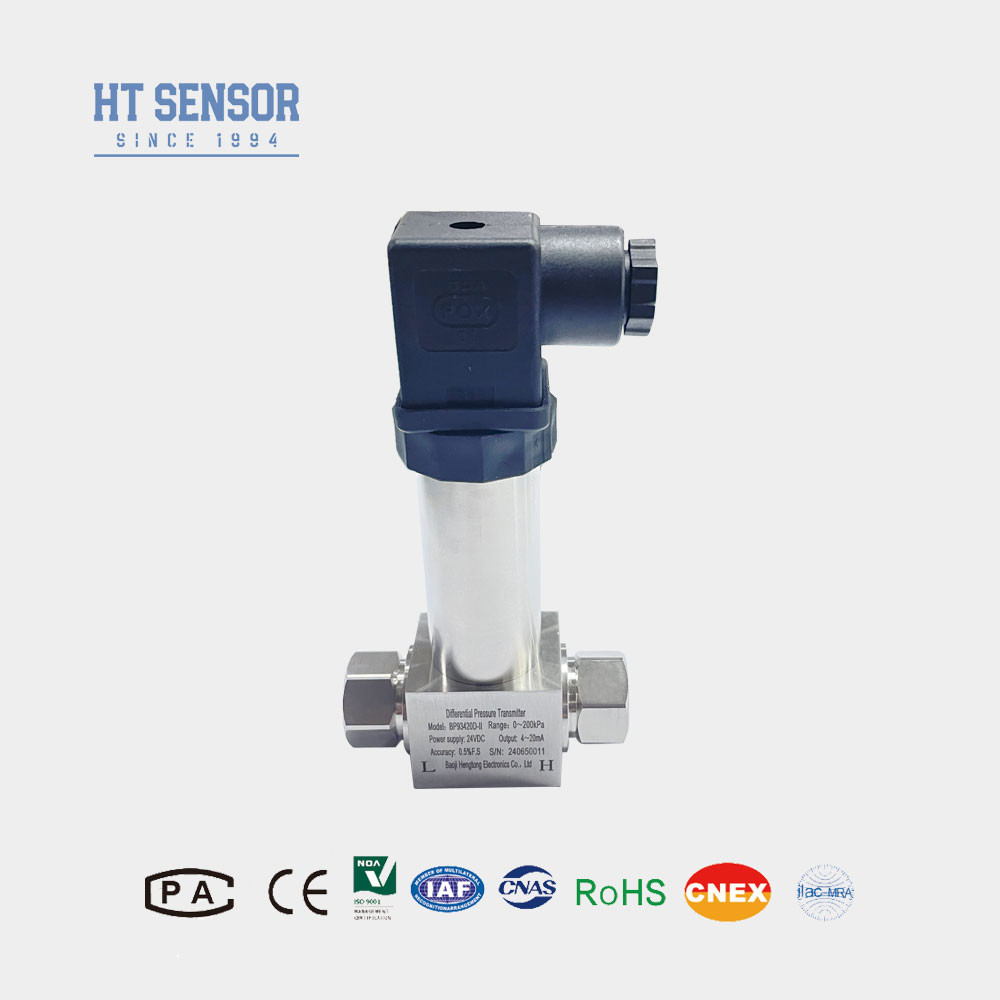

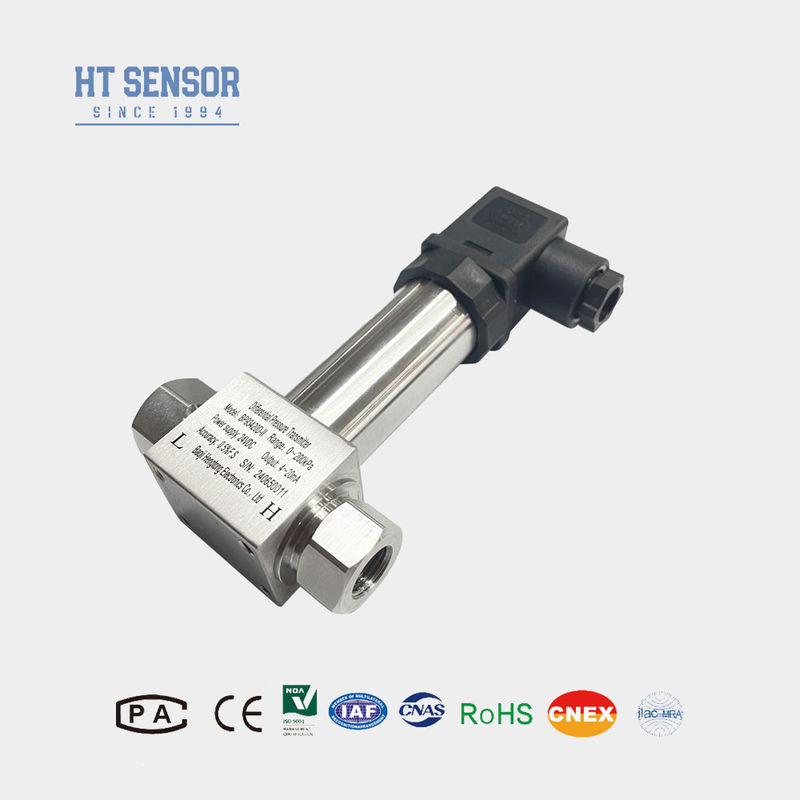

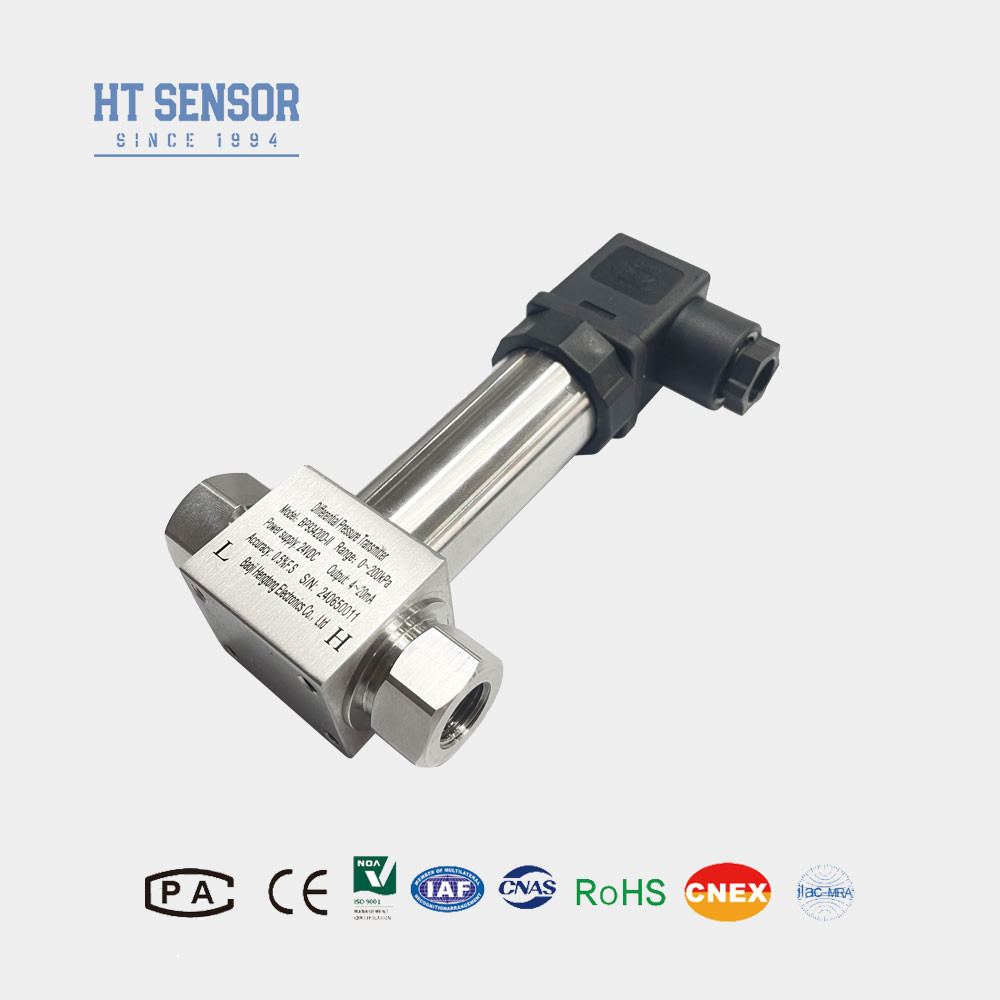

BP93420DII Differential Pressure Transmitter
Introduction of differential pressure transmitter:
BP93420DII differential pressure transmitter uses diffused silicon piezoresistive sensor. Measure and output the pneumatic hydraulic difference, such as the difference in liquid pressure in two pipes, and amplify the standard signal required by the customer and increase the field display. It is widely used in the pressure difference measurement of various gases and liquids in pipelines in petroleum, chemical, electric power, hydrology and other industries.
Product Features of differential pressure transmitter:
1. The transducer adopts stainless steel structure design, compact structure, convenient installation.
2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
3. The electrical interface can be external or directly connected.
| Performance Parameters of differential pressure transmitter: |
| Measurement Range |
0-10KPa……~2MPa |
| Pressure Type |
Differential Pressure |
| Single-side Overload |
≤3 times of the rated range |
| Static pressure |
The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ |
±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift |
±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift |
±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature |
0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature |
-30℃~80℃ |
| Storage Temperature |
-40℃~100℃ |
| Vibration |
10g,55Hz ～ 2kHz |
| Housing Material |
304,316L |
| Diaphragm Material |
316L |
| Insulation Resistance |
100MΩ 100VDC |
| Explosion-proof Rating |
Intrinsically safe and explosion-proof |
| Protection Rating |
IP65 |
| Weight |
~0.45kg |
| Output Signal |
Supply Voltage |
Output Type |
| 4～20mA |
12～30VDC |
2/3/4 wire |
| 0～10/20mA |
3 wire
|
| 0/1～5V |
| 0.5～4.5V |
5VDC |
| Order Guide of differential pressure transmitter: |
| BP93420XX |
Pressure Transmitter |
| |
Code |
Outline Construction |
| DII |
Differential Pressure Transmitter |
| |
Measurement Range |
0-10KPa……~2MPa |
| |
Code |
Power Supply |
| D1 |
24VDC |
| D2 |
5VDC |
| D3 |
Other |
| |
Code |
Output Signal |
| S1 |
4～20mADC |
S5 |
0～20mADC |
| S2 |
1～5VDC |
S6 |
0～10VDC |
| S3 |
0～5VDC |
S7 |
0.5～4.5VDC |
| S4 |
0～10mADC |
|
|
| |
Code |
Pressure Connection |
| J1 |
M20×1.5 Male |
| J2 |
G1/2 Male |
| J3 |
G1/4 Male |
| J4 |
1/2 NPT Male |
| J5 |
Other |
| |
Code |
Electrical Connection |
| B1 |
Hirschmann |
| B2 |
PG7 Plug |
| B3 |
Sealed Cable Output |
| B4 |
Other |
| |
Code |
Pressure Type |
| D |
Differential Pressure |
