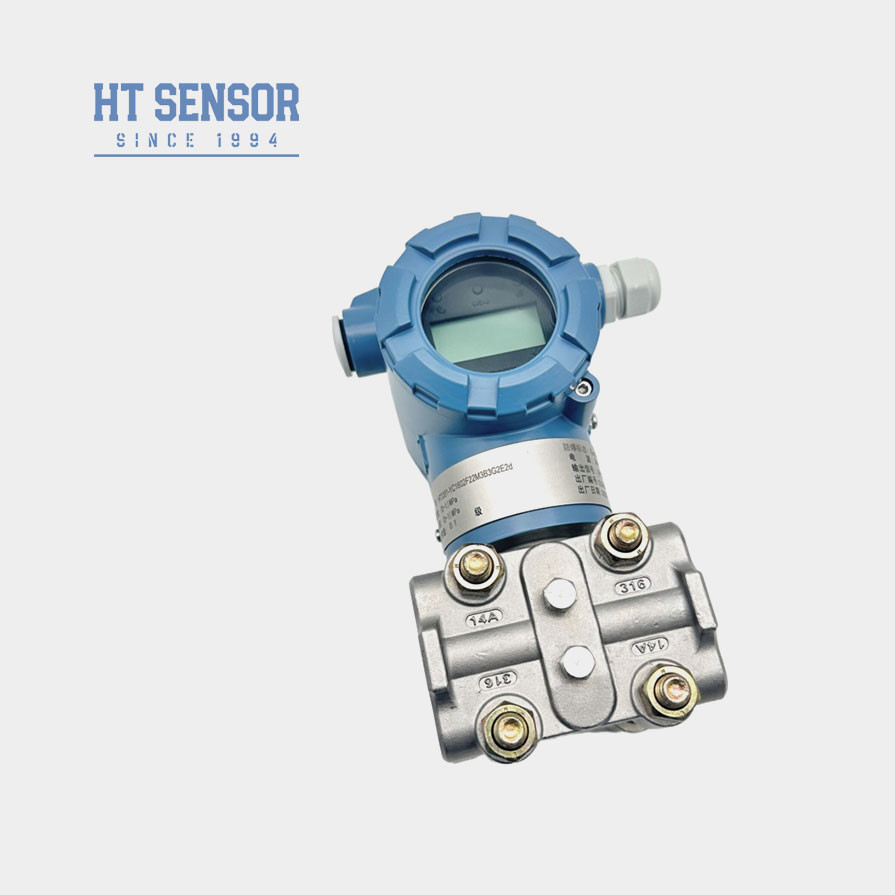

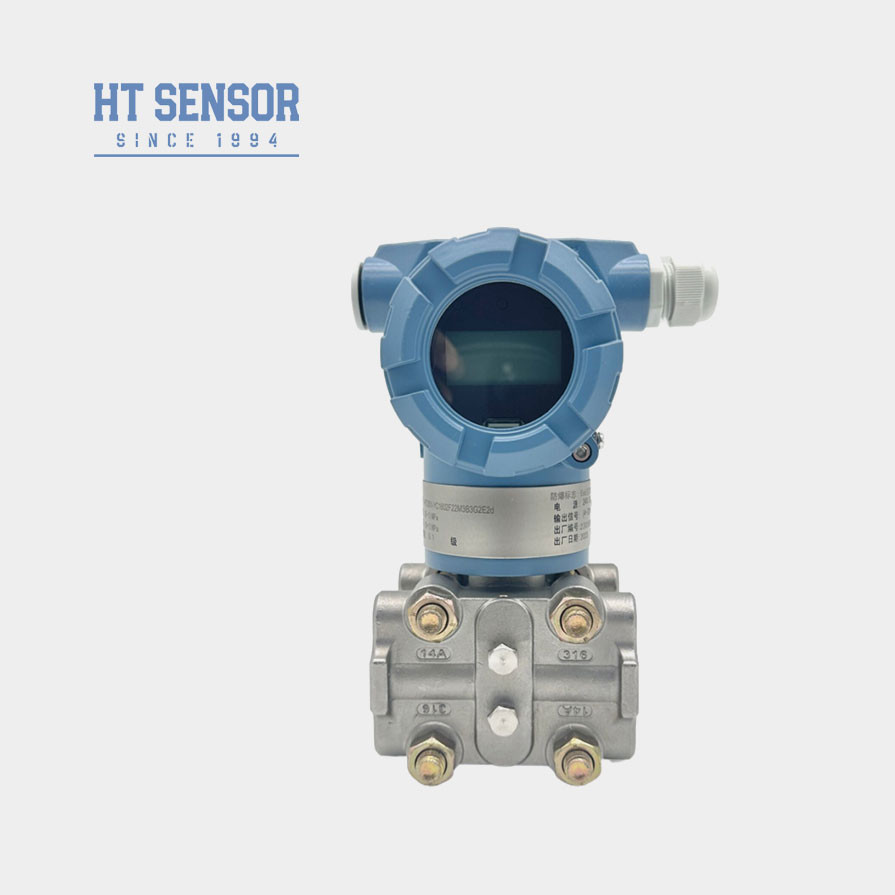

Name: BPHT3351 Differential Pressure Transmitter for Easy Installation and Compact Design
Brand: Baoji Hengtong Electronics Co., LTD
SKU: BPHT3351
Price: 22.00 USD
Availability: InStock

Detail Information

Model NO.:	BPHT3351	Power Supply:	15~45VDC
Weight:	3.6kg	Stability:	+-0.2%F.S/Year
Pressure Type:	Differential Pressure	Specification:	500pa~200kpa
Origin:	China	Type:	Capacitive Differential Pressure Transmitter
Measuring Medium:	Gas	Accuracy Grade:	0.1%
IP Rating:	IP65
Highlight:	Easy Installation Differential Pressure Transmitter , BPHT3351 Differential Pressure Transmitter , Compact Design Differential Pressure Transmitter

Product Description

BPHT3351 Differential Pressure Transmitter for Easy Installation and Compact Design

BPHT3351 Differential Pressure Transmitter

Introduction of capacitive differential pressure transmitter :

BPHT3351 Capacitive differential pressure transmitter sensor , the pressure or differential pressure will make the sensor capacitance value change, the generated analog signal after AD conversion, into a digital signal sent to the microprocessor, after the microprocessor calculation and processing output a digital signal, after DA conversion to the current control circuit, converted into 4 ~ 20mA analog current signal output.

Product Features of capacitive differential pressure transmitter:
1. The transmitter adopts stainless steel structure design, compact structure and easy installation.
2. After strict temperature compensation and aging screening, to ensure stable and reliable performance.
3. Electrical interface can be selected as plug-in or direct wiring option.
Applications of capacitive differential pressure transmitter:
1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology.
3. Pressure measurement for pipelines and furnace chambers.

Output	Analog output: two –wire 4-20mADC
Output	Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART
Power supply	supply voltage 12.5-45VDC
Limit load	Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω
Communication distance	Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max.
Display	4 digital display,5 digit LCD display, pointer type.
Explosion-proof	ExiaIICT5;explosion suppression type
Zero offset	Can positive transfer or negative transfer, but can not overstep the utmost value
Temperature	ambient temperature -40-85℃(When choose LCD : -20-70℃)
Medium temperature	-40～104℃
Static pressure and single side overpressure	3.45KPa(absolute pressure)～31.2MPa(gauge pressure)
Relative humidity	5～98%RH
Run-up time	less than 5 sec.
Capability change	Less than 0.16cm3
Damp adjust	0.20～25 second
Malfunction alarming	If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA
Configuration protection	To avoid the datas are modified random, can utilize software or protect switch lock the record data

BPHT3351 Differential Pressure Transmitter for Easy Installation and Compact Design 0

Working Principle of capacitive differential pressure transmitter:

BPHT3351 Differential Pressure Transmitter for Easy Installation and Compact Design 1

As indicated in the working principle, the outside pressure or differential pressure will cause some change in the sensor capacitance value. Through the digital signal conversion, it will change into the frequency signal, which is sent to the microprocessor. After the
calculation by microprocessor, a current control signal will be output to the current control circuit, converted into analogue 4-20mA current
output. Meanwhile, the microprocessor is responsible for the interactive and other actions (display and setting). The communication port used for digital communication needs the special port of our company. HART module will realize the transmitter HART communication.

Measurement Ways of capacitive differential pressure transmitter:

Fluid Level Measurement:
In the measurement of fluid flow, the pressure taps should be breached on the side of the process conduit to avoid the sediment of dregs. Meanwhile, the transmitter should be mounted beside or under the pressure taps, to prevent the air bubbles from being discharged into the process conduit.

BPHT3351 Differential Pressure Transmitter for Easy Installation and Compact Design 2

Tag:

Place of Origin:	Baoji，China
Brand Name:	HT sensor
Certification:	ISO9001
Model Number:	BPHT3351

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	5-8 work days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	5000PCS/Month
