Detail Information

Modle:	BP93420D-II	Range:	0-10kpa~2Mpa
Power:	5VDC 24VDC	Output:	0.5-4.5V 4-20mA AND So On
Material:	Stainless Steel	Thread:	Male Or Female OEM
Pressure Type:	Differential Pressure Sensor Transmitter	Protection Class:	IP65
Working Temperature:	-10-70℃	Connector:	Big DIN Or OEM
Highlight:	Chemical Industries Differential Pressure Transmitter , BP93420DII Differential Pressure Transmitter , Petroleum Differential Pressure Transmitter

Product Description

BP93420DII Differential Pressure Transmitter for Petroleum and Chemical Industries

BP93420DII Differential Pressure Transmitter

Introduction of differential pressure transmitter:

BP93420DII differential pressure transmitter uses diffused silicon piezoresistive sensor.When the pressure difference of the measured medium is located on the corrugated diaphragm on both sides of the sensor, the signal output by the Wheatstone bridge of the sensor chip has a good linear relationship with the pressure difference, and the pressure difference can be accurately measured.It is suitable for pressure difference measurement of various gases and liquids in pipelines of petroleum, chemical, electric power, hydrology and other industries.

Product Features of differential pressure transmitter::

The transmitter adopts stainless steel structure design, compact structure and easy installation.
After strict temperature compensation and aging screening, to ensure stable and reliable performance.
The electrical interface can be external or direct connection.

Performance Parameters of differential pressure transmitter:
Measurement Range	0-10KPa……~2MPa
Pressure Type	Differential Pressure
Single-side Overload	≤3 times of the rated range
Static pressure	The minimum value between 5 times the rated range or 7 MPa
Accuracy @ 25℃	±0.25% (Typical) ±0.5% (Maximum)
Repeatability	±0.03% (Typ.) ±0.05%FS (Max.)
Hysteresis	±0.03% (Typ.) ±0.05%FS (Max.)
Long-Term Stability	±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa)
Zero Temperature Drift	±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Span Temperature Drift	±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa)
Compensation Temperature	0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃
Operating Temperature	-30℃~80℃
Storage Temperature	-40℃~100℃
Vibration	10g,55Hz ～ 2kHz
Housing Material	304,316L
Diaphragm Material	316L
Insulation Resistance	100MΩ 100VDC
Explosion-proof Rating	Intrinsically safe and explosion-proof
Protection Rating	IP65
Weight	~0.45kg

Output Signal	Supply Voltage	Output Type
4～20mA	12～30VDC	2/3/4 wire
0～10/20mA		3 wire
0/1～5V
0.5～4.5V	5VDC

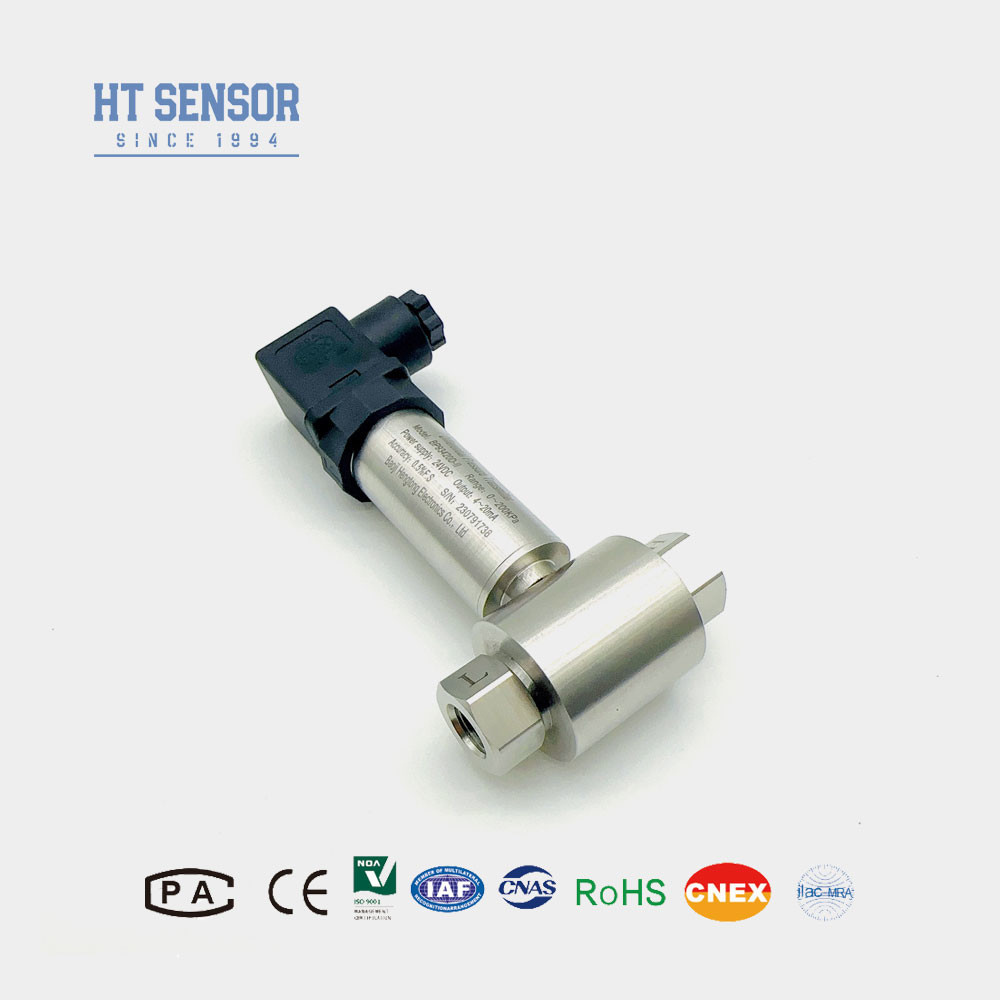

BP93420DII Differential Pressure Transmitter For Petroleum And Chemical Industries 0

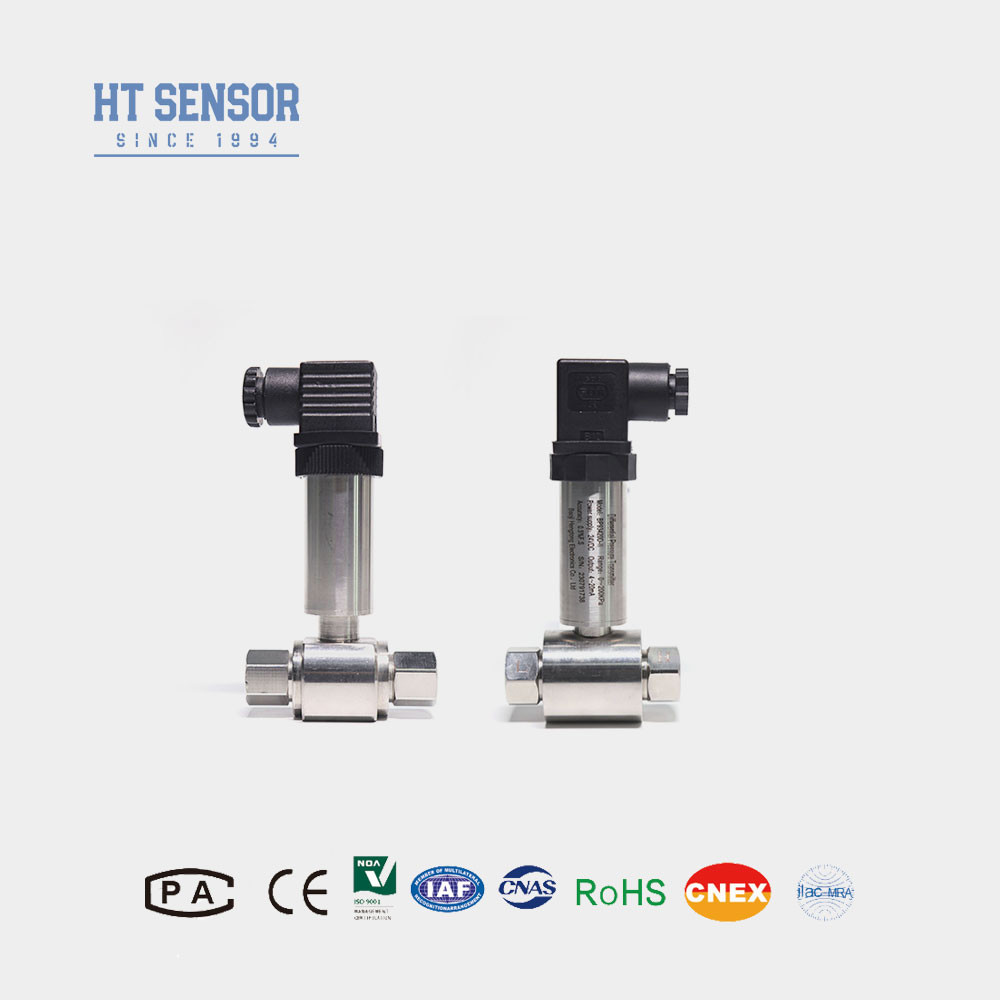

BP93420DII Differential Pressure Transmitter For Petroleum And Chemical Industries 2

BP93420DII Differential Pressure Transmitter For Petroleum And Chemical Industries 3

Ordering tips of differential pressure transmitter:

1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.

2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.

3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.

4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order.

BP93420DII Differential Pressure Transmitter For Petroleum And Chemical Industries 5

Tag:

Place of Origin:	China
Brand Name:	HT SENSOR
Certification:	RoHS, ISO9001
Model Number:	BP93420D-II

Minimum Order Quantity:	1
Packaging Details:	carton
Delivery Time:	5-8 workday
Payment Terms:	L/C, D/P, T/T
Supply Ability:	3000pcs/month
