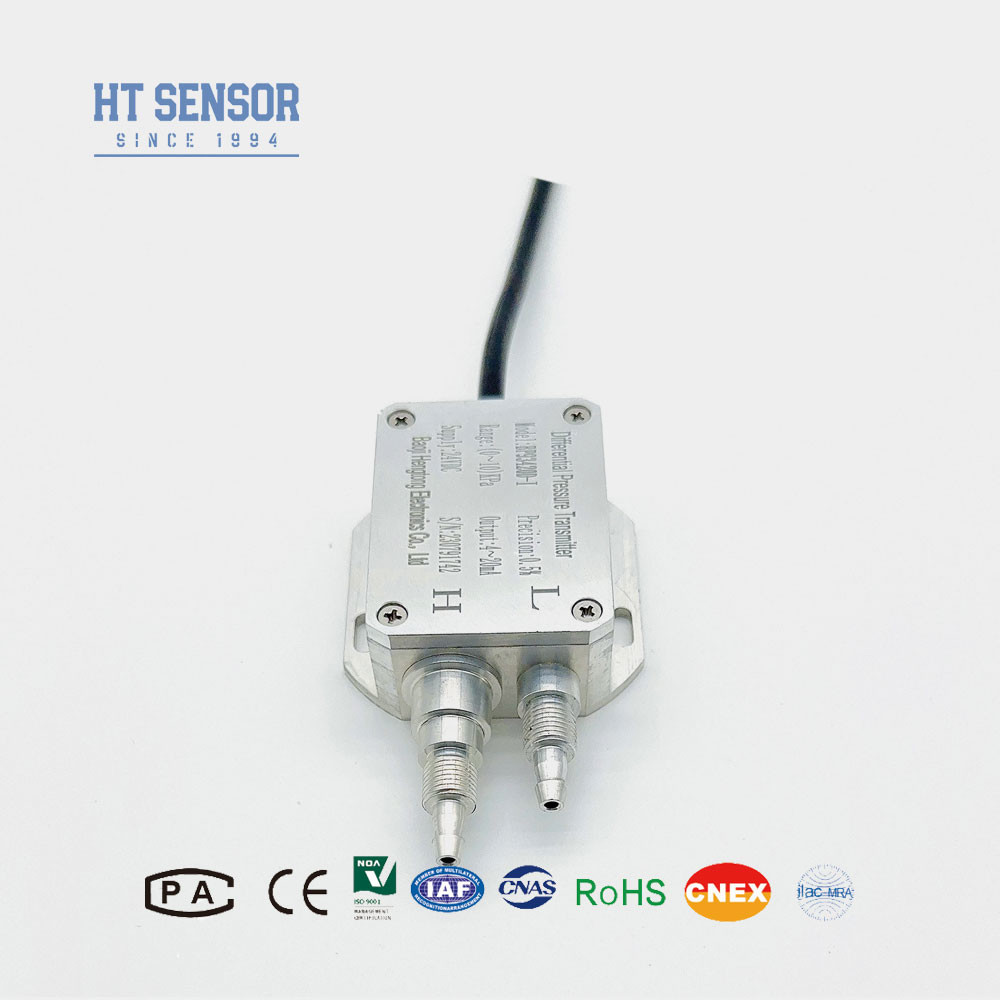

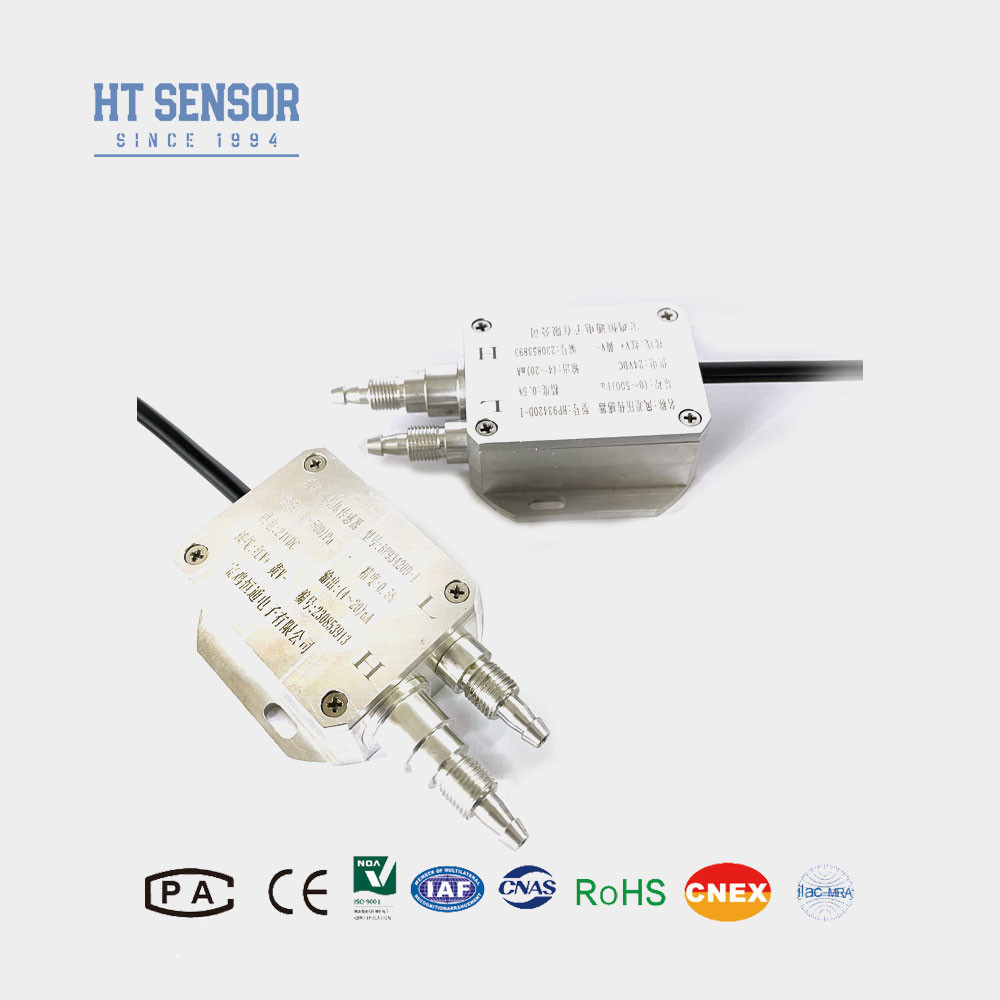

Introduction of differential pressure transmitter :
BP93420D series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.
| Performance Parameters OF Differential Pressure Transmitter |
| Measurement Range |
0-500Pa, 0-1KPa,0-2KPa, 0-5KPa, 0-7kPa, 0-10KPa,0~~~200KPa |
| Pressure Type |
Differential Pressure |
| Static pressure |
2 times of the rated range |
| Overload |
≤ 1.5 times of the rated range |
| Accuracy @ 25ºC |
±0.5% (Typical) ±1% (Maximum) |
| Zero Point Temperature Drift |
±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Full Scale Temperature Drift |
±2.5%F.S/ºC(Typical) ±3%F.S/ºC(Maximum) |
| Compensation Temperature |
0-50ºC |
| Operating Temperature |
-20ºC~80ºC |
| Storage Temperature |
-40ºC~100ºC |
| Housing Material |
Aluminum alloy,Plastic |
| Relative humidity |
0-80% |
| Pressure connection |
φ6 .φ8 air nozzle or customizable |
| Protection Rating |
IP65 |
| Cable material |
Polyethylene |
| Weight |
about 0.2kg |
Product Features of differential pressure transmitter :
- Choice of aluminum or plastic casing design.
- Lightweight and easy to install.
- Undergone rigorous high and low-temperature testing to ensure wide temperature range usability.
- Pass aging test,performance is reliable and stable.
- Marking: CNEX;
