Detail Information

Model NO.:	HT20V	For:	Diffused Silicon Pressure Transmitter
Output Signal Type:	Analog Type	Production Process:	Integration
Material:	Stainless Steel	Thread Type:	No
Wiring Type:	Four-Wire	Measuring Medium:	Gas And Liquid
IP Rating:	IP65	Customized:	Customized
Power:	5-10VDC	Output:	Mv
Pressure Type:	Differential Pressure	Length:	29.6mm
Transport Package:	Carton	Specification:	29.5mm
Trademark:	HengTong	Origin:	China
HS Code:	9026209090	Production Capacity:	50000PCS/Year
Highlight:	HT20V differential pressure sensor , piezoresistive silicon pressure transmitter , diffused silicon pressure sensor

Product Description

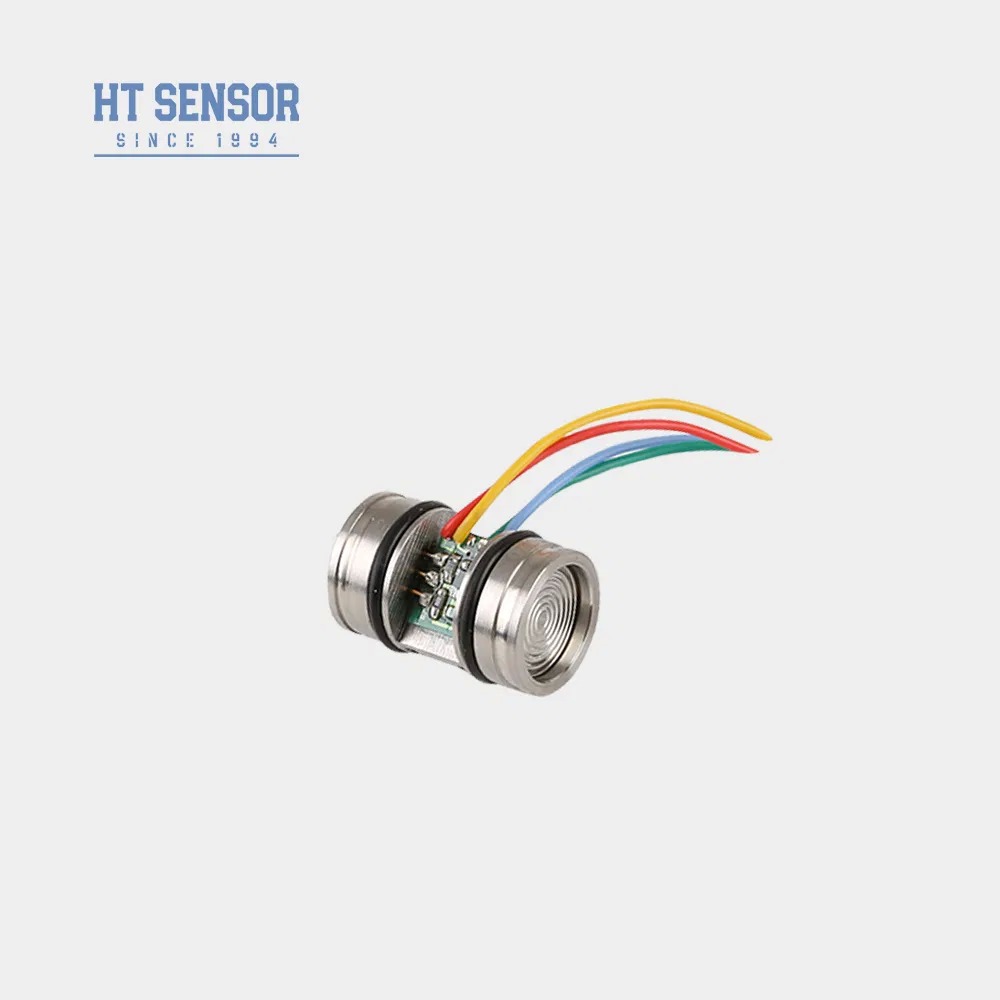

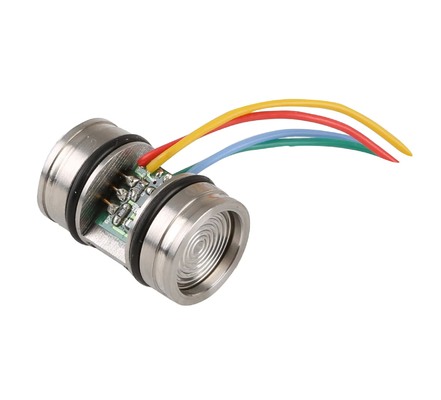

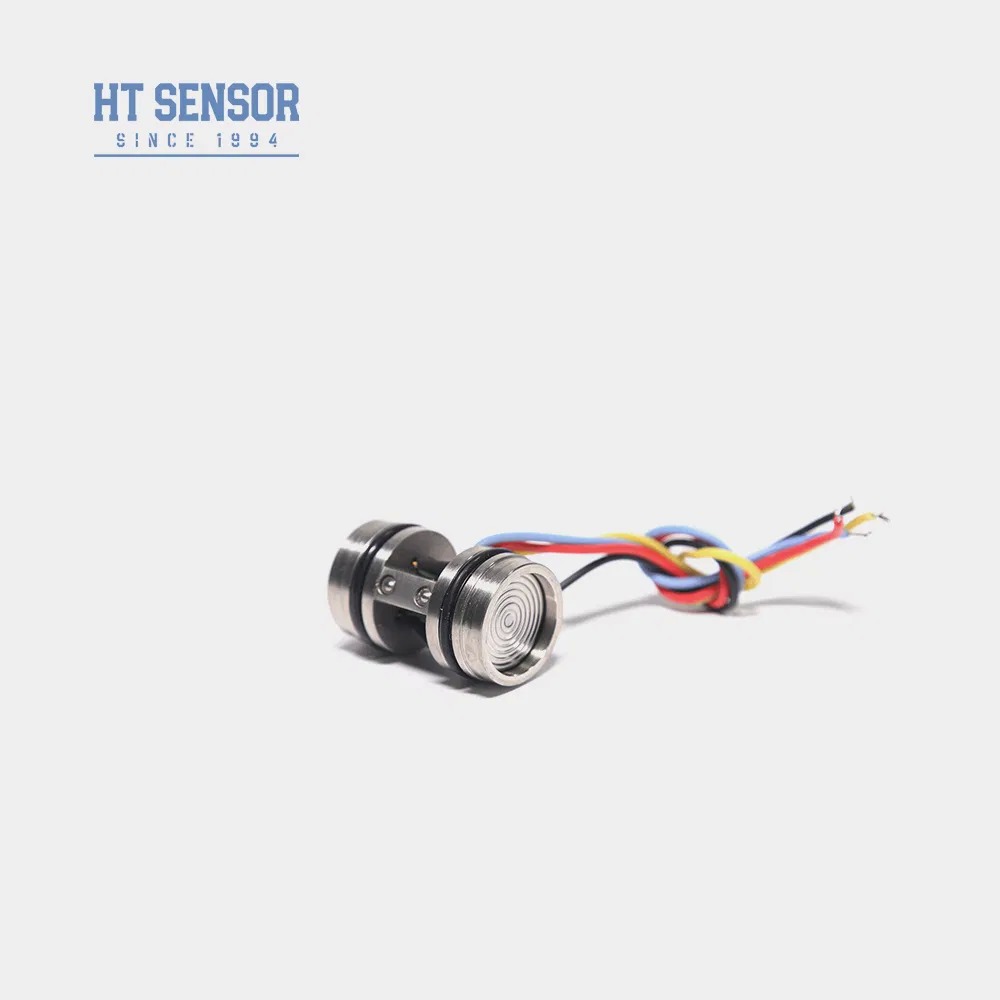

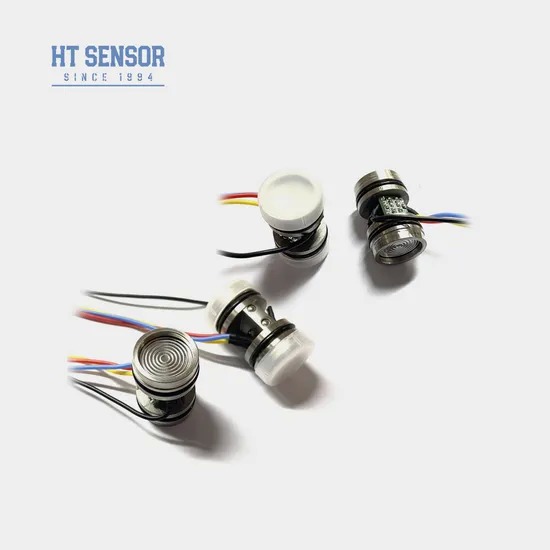

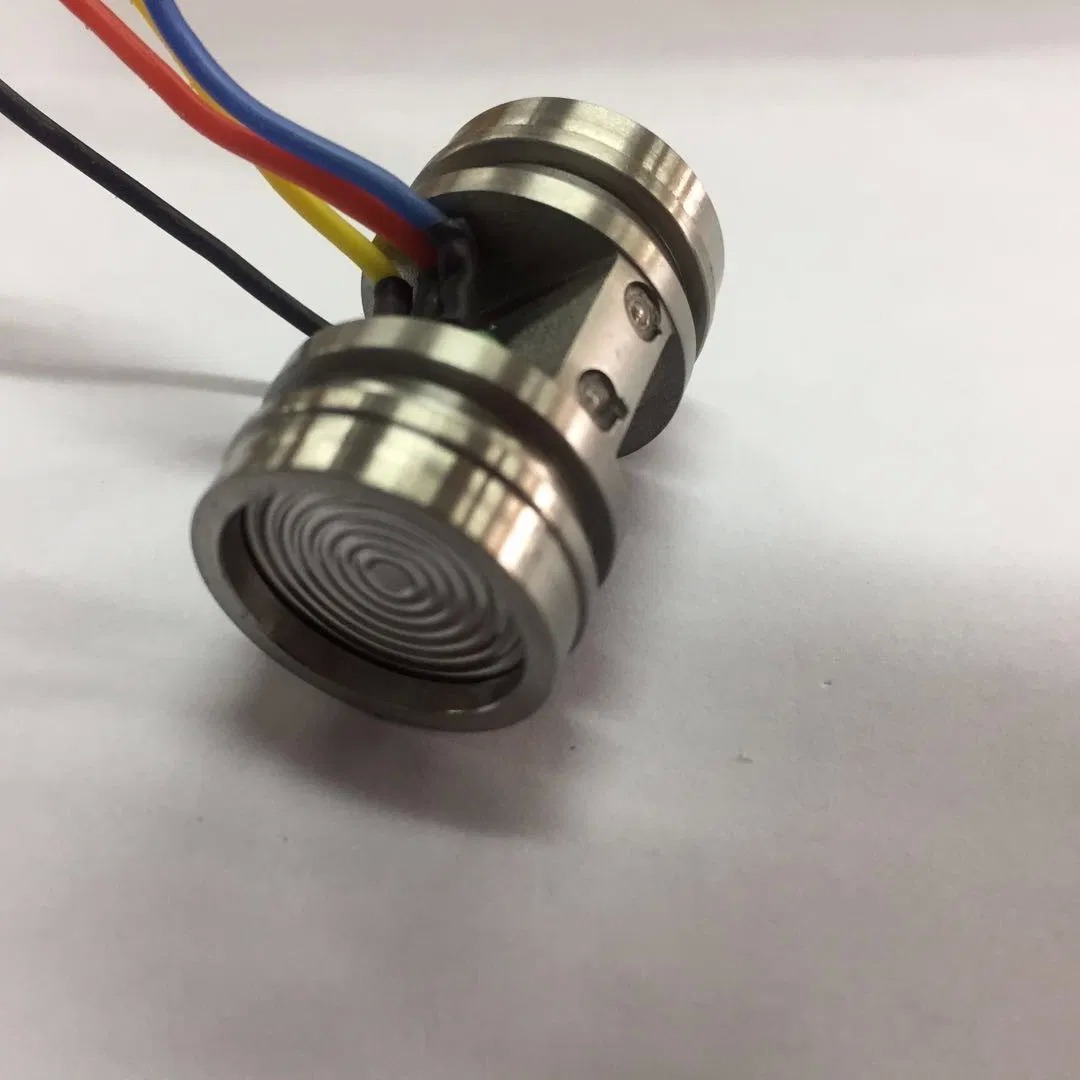

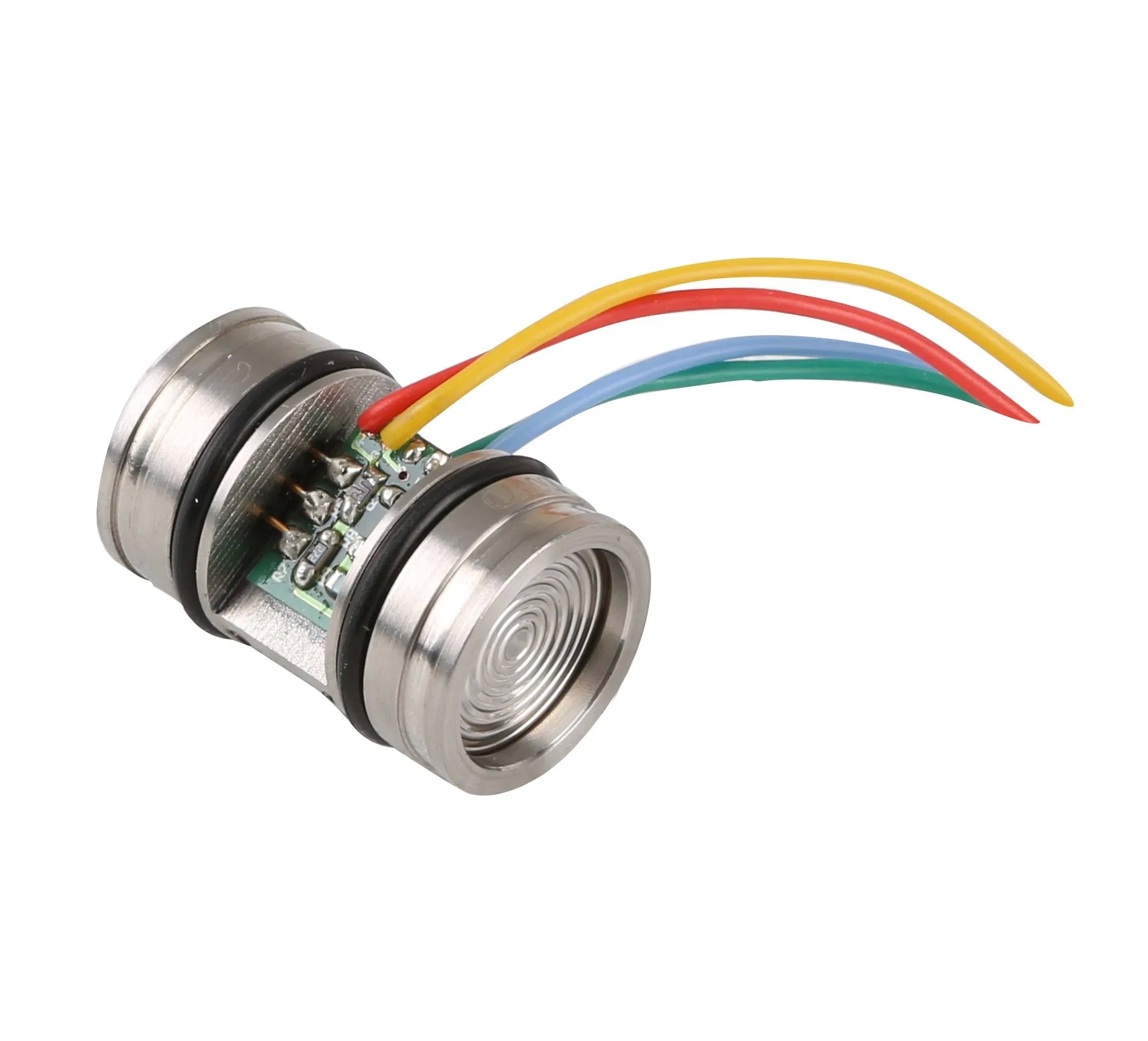

Baoji Hengtong HT20V Differential Piezoresistive Diffused Silicon Pressure Sensor

Introduction:
HT20V is a differential pressure sensor utilizing a highly stable diffused silicon element as its core. Encased in a durable 316L stainless steel housing, the sensor operates with exceptional reliability. Pressure transmission occurs through a stainless steel diaphragm and a sealed silicon oil, ensuring precise measurements by the sensitive chip. The sensitive chip remains isolated from direct contact with the measured medium, establishing a fully solid-state structure for accurate differential pressure measurement. Consequently, this versatile product is suitable for diverse applications that demand reliable and precise differential pressure measurement
Product Features:

Stable and reliable performance
High resistance to static pressure
Cost-effective

Applications:

Differential pressure detectiony
Pressure calibration instruments
Liquid level measurement

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire.

Performance Parameters:
Measurement Range		10KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Typ	Max	Unit
Linearity		±0.15	±0.3	%F.S
Repeatability		0.05	0.1	%F.S
Hysteresis		0.05	0.1	%F.S
Zero Offset Output		0±1	0±2	mV
Full Scale Output	≤20KPa	50±1	50±2	mV
	≥35kPa	100±1	100±2	mV
Zero Offset Temp. Drift	≤20KPa	±1	±2.5	%F.S
	≥35kPa	±0.8	±1.5	%F.S
Full Scale Temp. Drift	≤20KPa	±1	±2	%F.S
	≥35kPa	±0.8	±1.5	%F.S
Compensated Temp.	≤20KPa	0~50		ºC
	≥35kPa	0~70		ºC
Operating Temperature		-20~80		ºC
Storage Temperature		-40~125		ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 4MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %		F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~45g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC

Outline Construction
Dimension
Notes:The outgoing end is the positive terminal. If there are any changes in the wire colors, please refer to the label attached to the sensor for accurate information

Electrical connection and compensation

Selection Examples

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.

company

Q&A

1.Q: What are the features of your pressure sensor transmitters?

A: High precision, durability, and excellent performance. Customization available.

2.Q: Can I customize special specifications?

A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service

3.Q: What is your production capacity?

A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling
.

4.Q: What's the typical delivery period?

A: 5~8 working day for standard models. Customized products may vary.

5.Q: How are the products priced? Any discounts?

A: Competitive pricing with discounts for bulk orders or long-term partners
.

6.Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 24 months after shipment, and our after-sales will respond with your questions in 24hrs, remote instruction by PC network is always available.
