quality HT19V Pressure sensors for compressed air and gas pressure transducer factory

HT19V Pressure sensors for compressed air and gas pressure transducer

Certification: RoHS

Minimum Order Quantity: 5

Price: 15

4 20ma Pressure Transducer

Product Details

Model NO.:	HT19V	For:	Diffused Silicon Pressure Transmitter
Output Signal Type:	Analog Type	Production Process:	Integration
Material:	Stainless Steel	Thread Type:	No
Wiring Type:	Four-Wire	Measuring Medium:	Gas And Liquid
IP Rating:	IP65	Customized:	Customized
Power:	10VDC	Output:	10mv/v
Dia:	19mm	High:	OEM
Transport Package:	Carton	Specification:	Customized
Trademark:	HT Sensor	Origin:	China
HS Code:	9026209090	Production Capacity:	50000PCS/Year
Highlight	HT19V compressed air pressure sensor , gas pressure transducer with warranty , industrial pressure transmitter sensor

Product Description

OEM 10Vdc power pressure sensor for transmitter

Introduction:
HT19V is a silicon piezoresistive pressure sensor with a core of highly stable diffused silicon element. The differential pressure of the measured medium is transmitted to the silicon diaphragm through a 316L isolation diaphragm and sealed silicon oil. It utilizes the piezoresistive effect of diffused silicon to measure the pressure of liquids and gases. The HT26V pressure sensor is equipped with an O-ring for pressure sealing, making it easy to install.

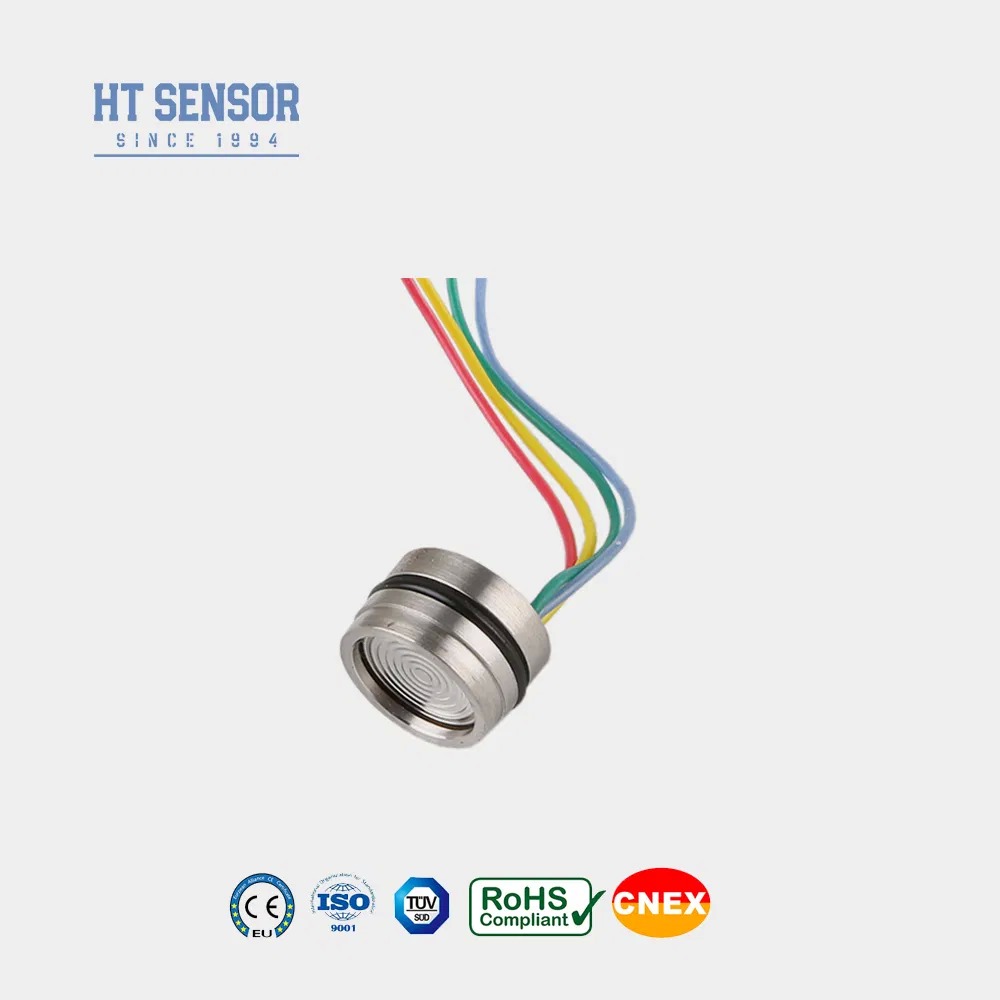

HT19V Pressure sensors for compressed air and gas pressure transducer 0

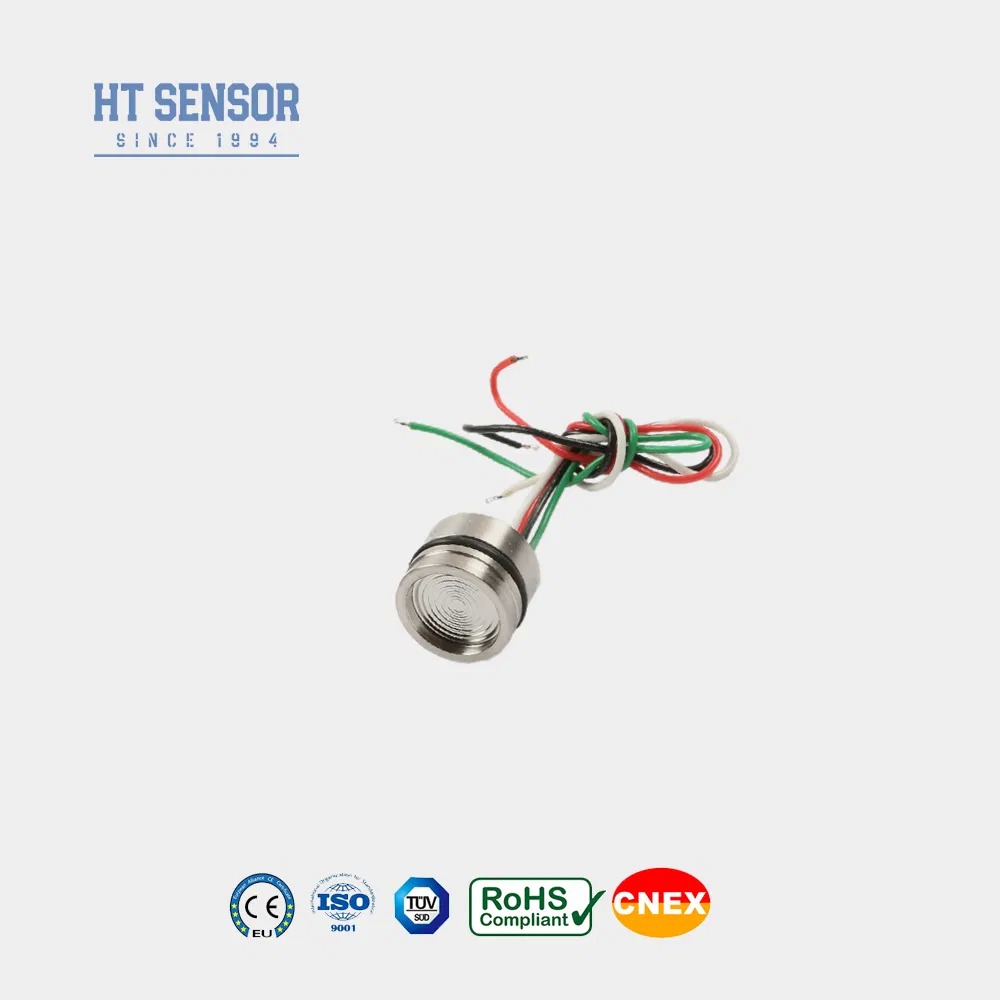

HT19V Pressure sensors for compressed air and gas pressure transducer 1

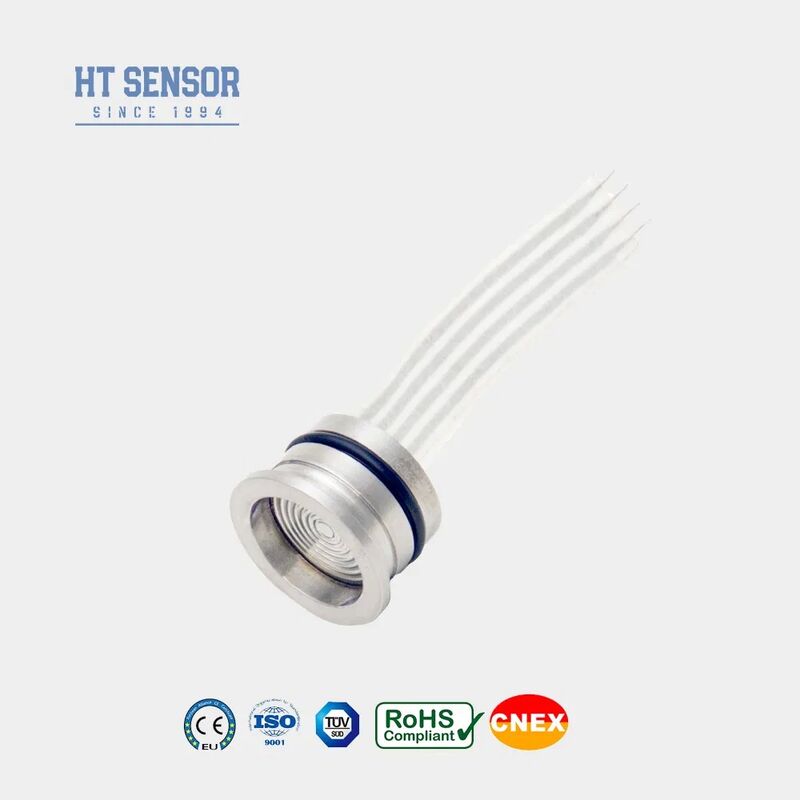

HT19V Pressure sensors for compressed air and gas pressure transducer 2

Product Features:

Constant voltage supply and outputs standard signals
High reliability and excellent stability
The height is 7mm, various structures can be customized

Applications:

Applied in various industrial process sites, including petroleum, chemical, metallurgy, power, and hydrology .
Used in marine and aviation industries
Suitable for hydraulic and pneumatic control systems
Utilized in process control applications

Electrical performance:

Power Supply: 10VDC
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire,ribbon cable and pin connectors.

Performance Parameters:
Measurement Range		Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000KPa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS,7MPaS,10MPaS
		Typ		Max	Unit
NonLinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±1		50±2	mV
	≥35kPa	100±1		100±2	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2.5	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		3 times the full scale
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~25g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC

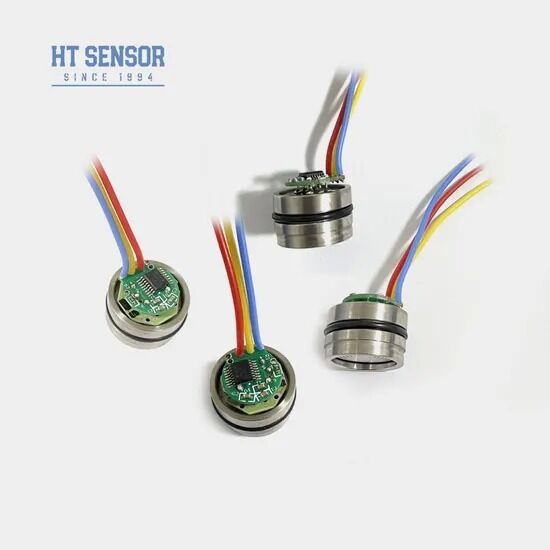

HT19V Pressure sensors for compressed air and gas pressure transducer 3

Electrical connection and compensation

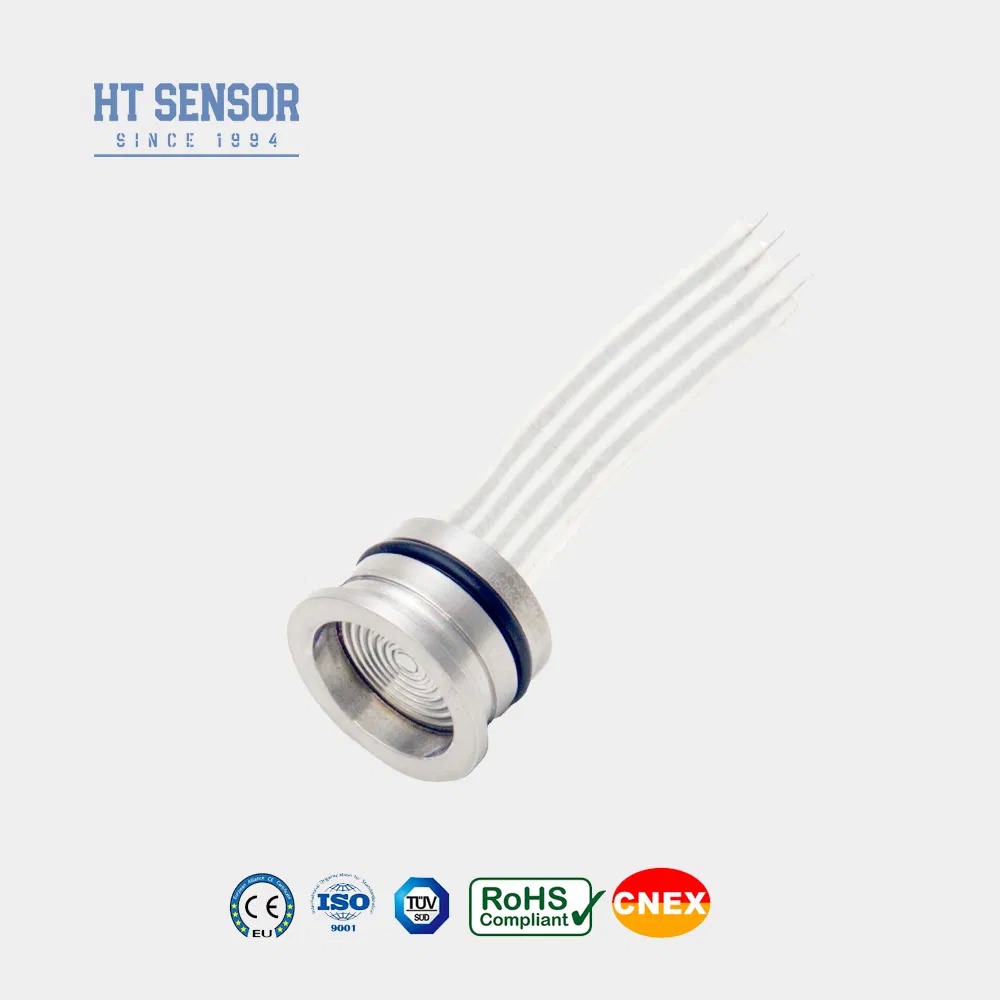

HT19V Pressure sensors for compressed air and gas pressure transducer 4

HT19V Pressure sensors for compressed air and gas pressure transducer 5

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
