Detail Information

Model NO.:	HT26V	Output Signal:	Analog Type
Material:	Stainless Steel	Wiring Type:	Four-Wire
Measuring Medium:	Gas And Liquid	IP Rating:	IP65
Power Supply:	5-10VDC	Output Signal:	MV Signal
Diameter:	19mm	Height:	7mm
Input Impedance:	4KΩ~20KΩ	Output Impedance:	2.5KΩ~6KΩ
Operating Temperature:	-20~80ºC	Storage Temperature:	-40~125ºC
Weight:	~25g
Highlight:	stainless steel oil-filled level sensor , customized 5VDC-10VDC level sensor , silicon pressure sensor with warranty

Product Description

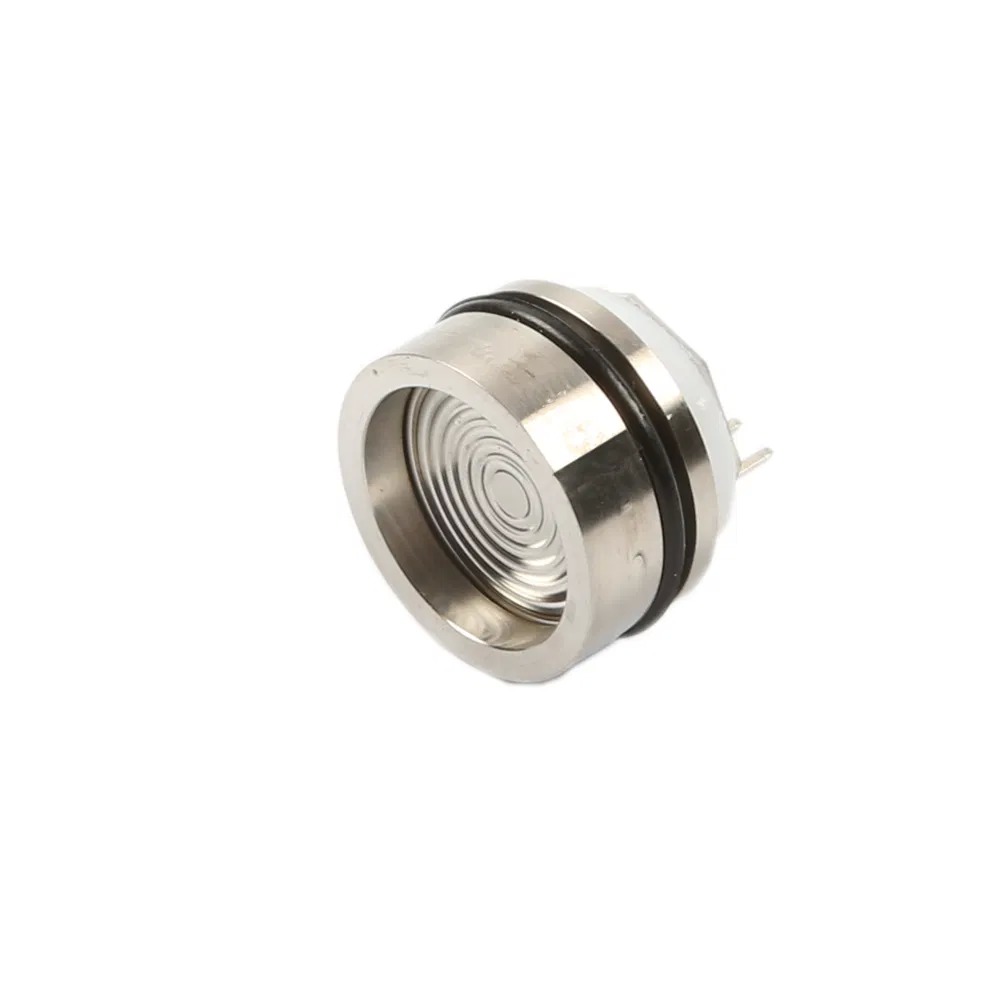

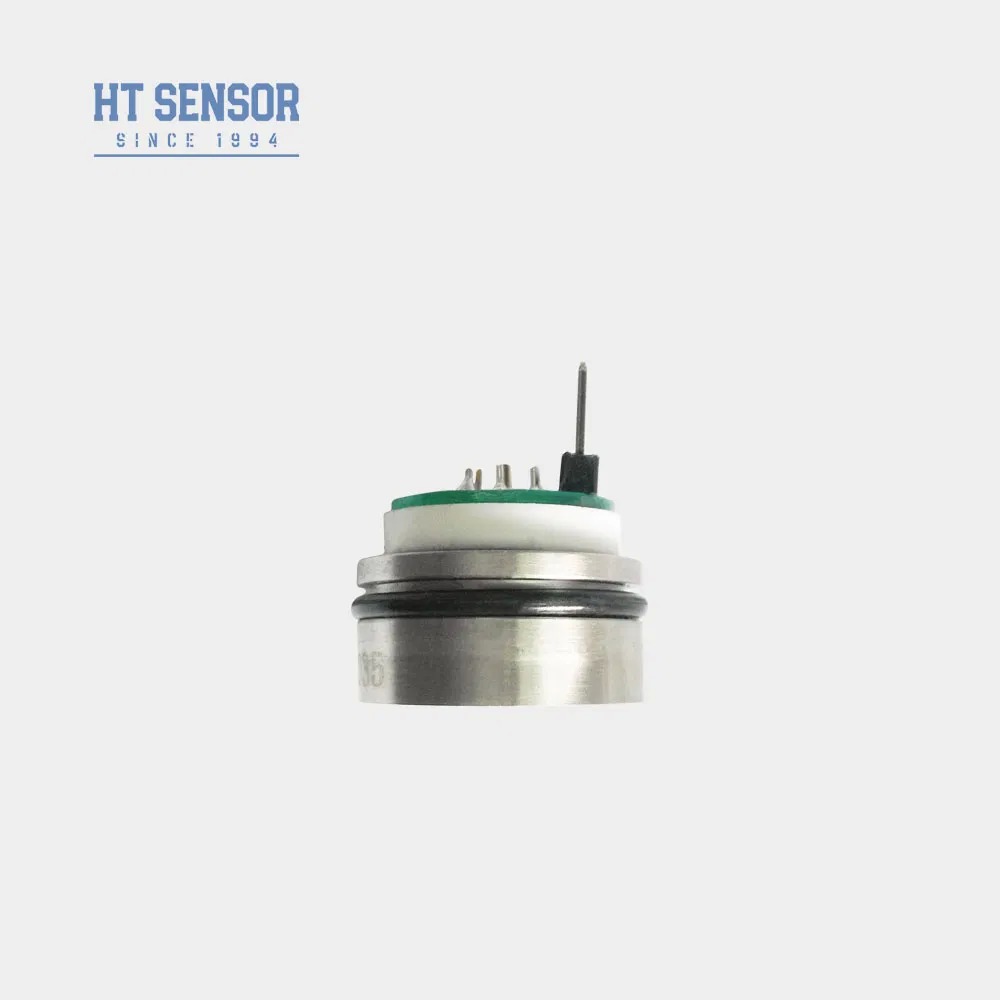

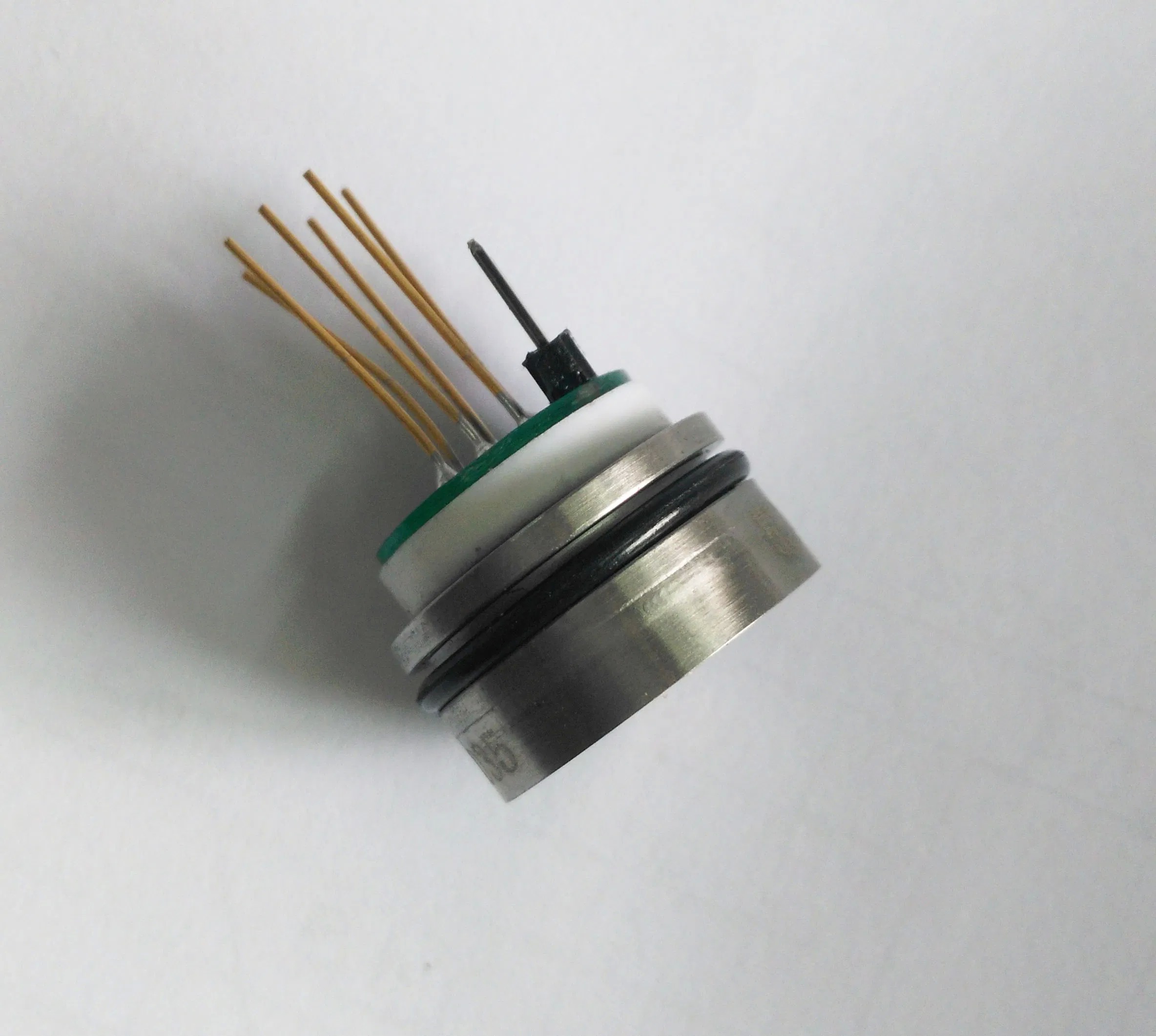

HT26V 5VDC-10VDC Supply Customized Stainless Steel Oil-Filled Sensor Core Level Sensor

Product Overview

The HT26V is a silicon piezoresistive pressure sensor featuring a highly stable diffused silicon element core. This sensor transmits differential pressure from the measured medium through a 316L isolation diaphragm and sealed silicon oil, utilizing the piezoresistive effect to accurately measure liquid and gas pressures.

Key Features

Constant voltage supply with standard signal outputs
High reliability and excellent stability
Compact 7mm height with customizable structural options
O-ring pressure sealing for easy installation

Applications

Industrial process control in petroleum, chemical, metallurgy, power, and hydrology
Marine and aviation industries
Hydraulic and pneumatic control systems
General process control applications

Electrical Performance

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of input (typical)
Input Impedance: 4KΩ~20KΩ
Output Impedance: 2.5KΩ~6KΩ

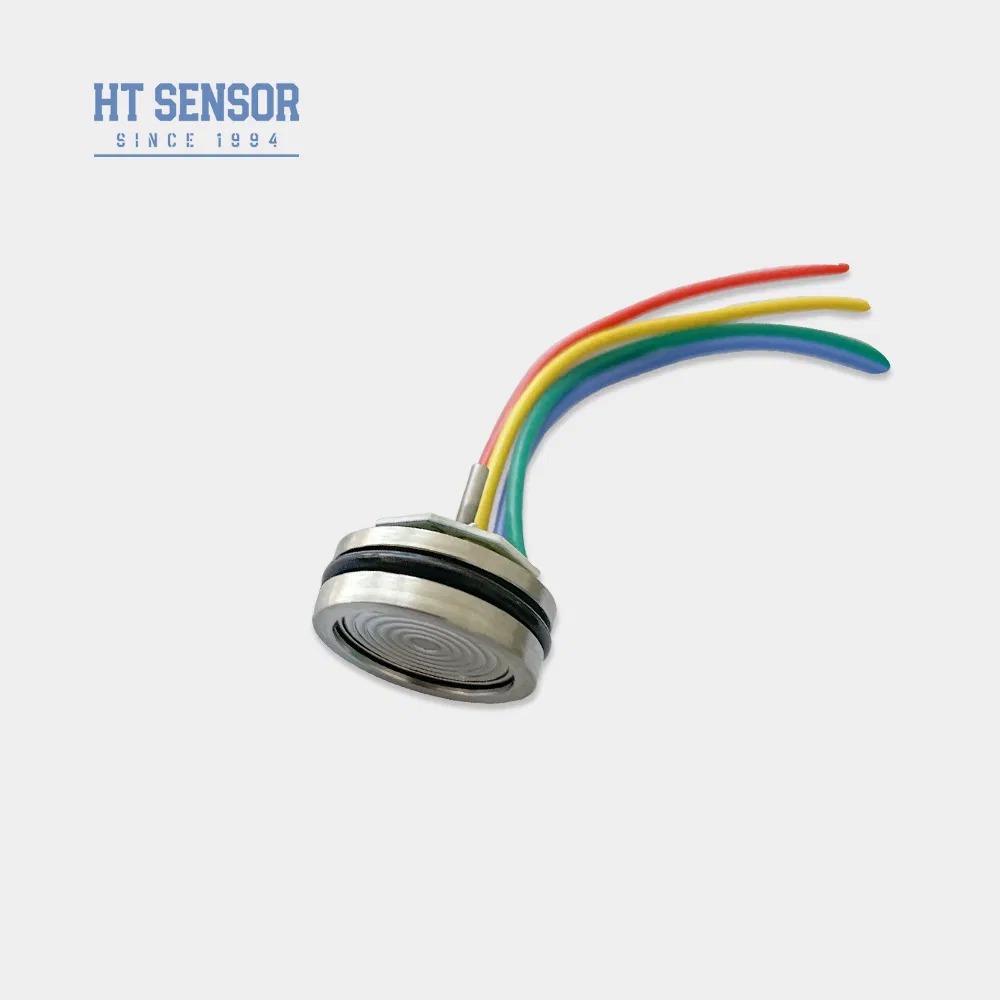

Electrical Connection: 100mm high-temperature wire, ribbon cable, and pin connectors

Performance Parameters

Parameter	Type	Typ	Max	Unit
Measurement Range	Gauge (G)	10KPa, 20KPa, 35KPa, 100KPa, 200KPa, 350KPa, 1000KPa, 2000KPa
	Absolute (A)	100KPaA, 200KPaA, 350KPaA, 700KPaA, 1000KPaA, 2000KPaA
	Sealed (S)	3500KPaS, 7MPaS, 10MPaS
NonLinearity		±0.15	±0.3	%F.S
Repeatability		0.05	0.1	%F.S
Hysteresis		0.05	0.1	%F.S
Zero Offset Output		0±1	0±2	mV
Full Scale Output	≤20KPa	50±1	50±2	mV
Full Scale Output	≥35kPa	100±1	100±2	mV
Zero Offset Temp. Drift	≤20KPa	±1	±2.5	%F.S
Zero Offset Temp. Drift	≥35kPa	±0.8	±1.5	%F.S
Full Scale Temp. Drift	≤20KPa	±1	±2	%F.S
Full Scale Temp. Drift	≥35kPa	±0.8	±1.5	%F.S
Compensated Temp.	≤20KPa	0~50		ºC
Compensated Temp.	≥35kPa	0~70		ºC
Operating Temperature		-20~80		ºC
Storage Temperature		-40~125		ºC
Allowable Overload		3 times the full scale
Burst Pressure		5X the full scale
Long-term Stability		0.2% F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g, 11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~25g

Parameters tested under constant voltage of 10V and ambient temperature of 25ºC

Outline Construction

Pressure Tube <3.5MPaS

Normal ≥3.5MPaS <40MPaS

Electrical Connection and Compensation

Selection Examples

Ordering Guidelines

Ensure proper fit between core size and transmitter housing for required airtightness
Align housing vertically during assembly and apply even pressure to avoid damaging compensation plate
Provide special instructions when ordering if measured medium is incompatible with 316L material
Avoid pressing sensor diaphragm with hands or sharp objects to prevent damage
Keep gauge pressure port open to atmosphere and prevent entry of water or corrosive media
Refer to actual core label for pin lead configuration changes
