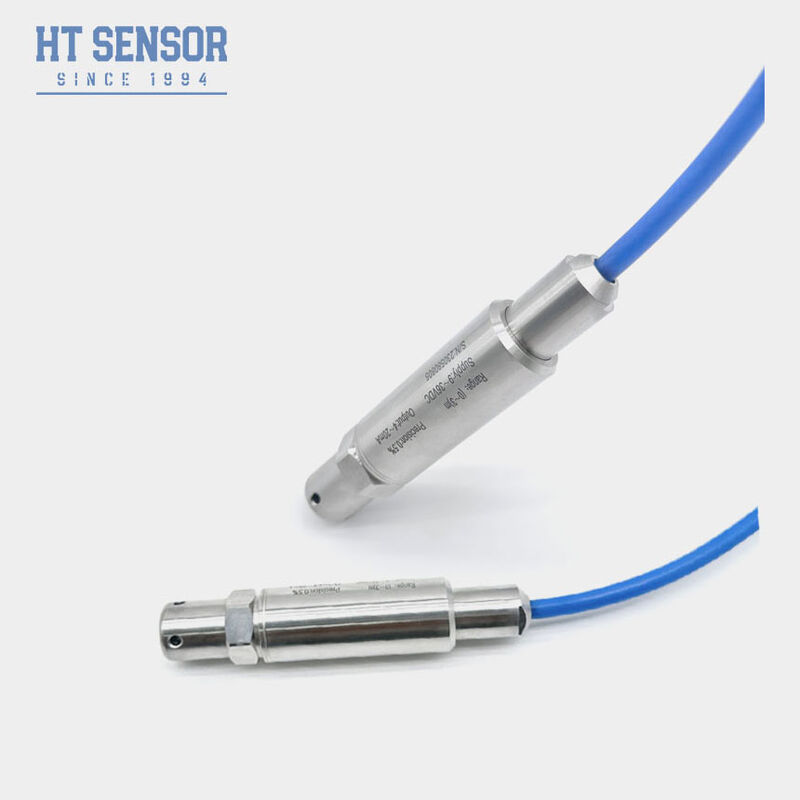

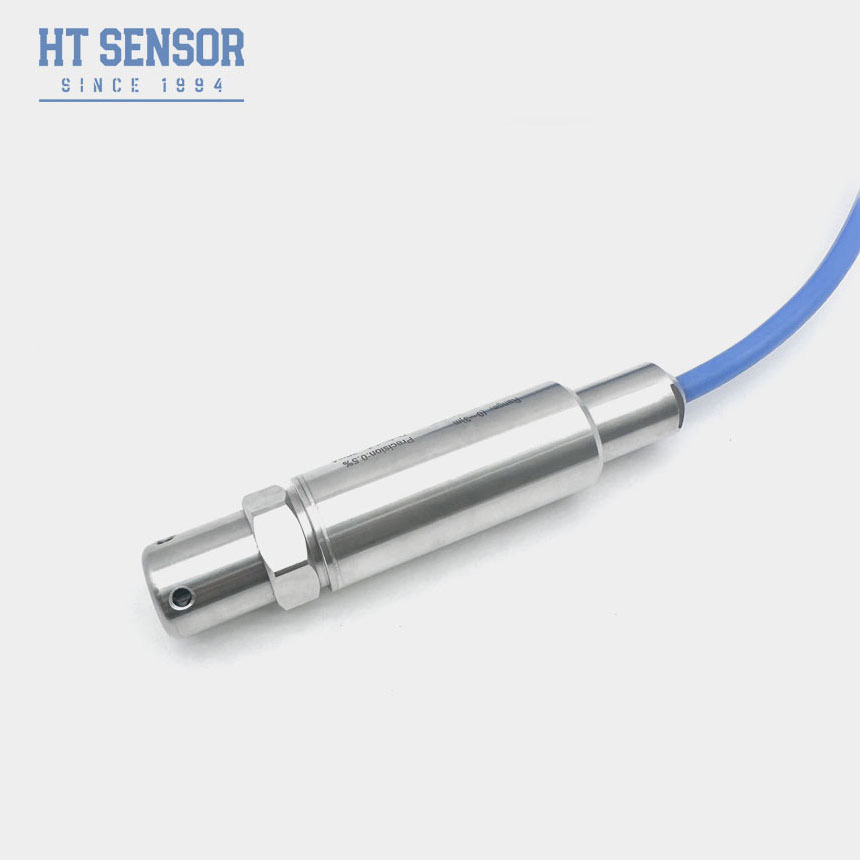

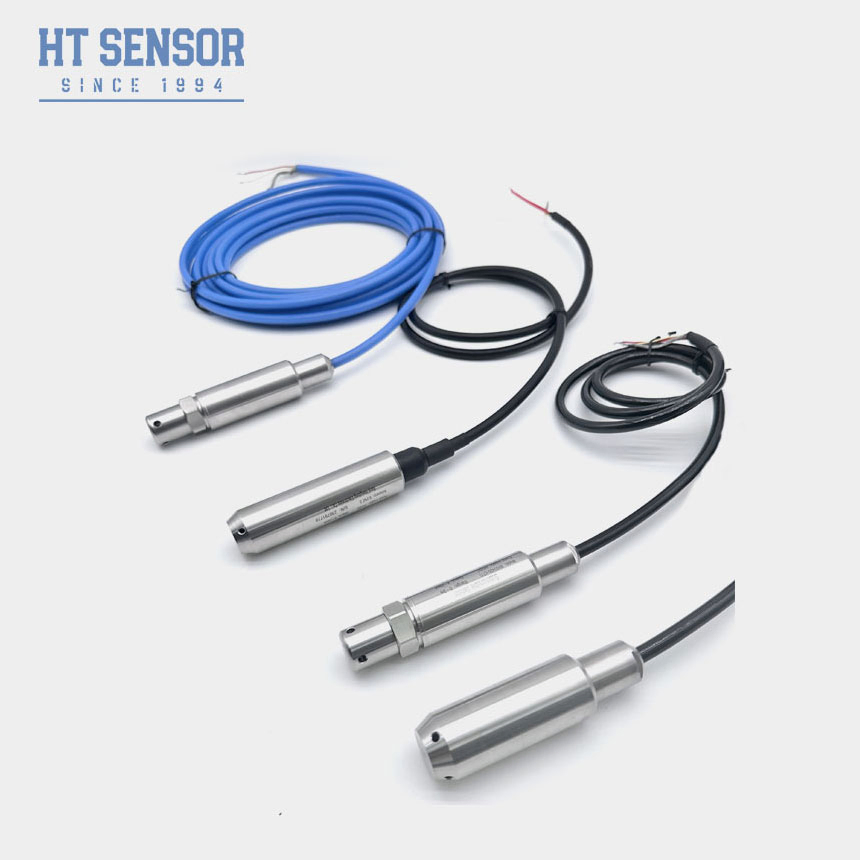

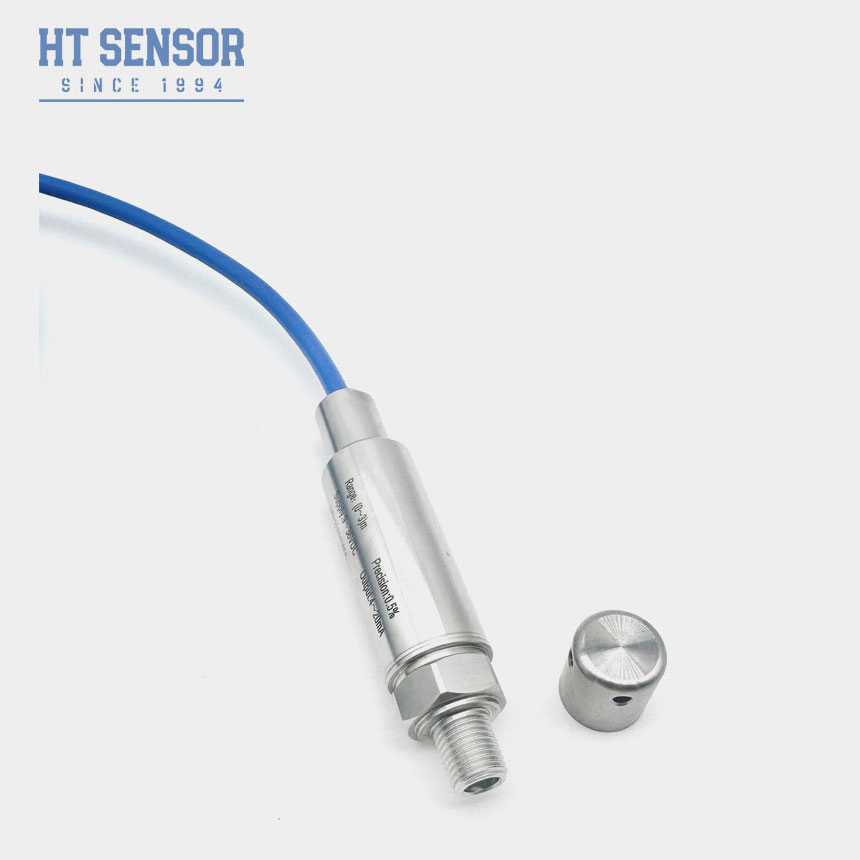

BH93420-I Water Level Transmitter
The BH93420-I water level transmitter utilizes HT series diffused silicon isolation oil-filled core technology as its signal measuring element. Featuring a full stainless steel housing and compact one-piece structure, this immersion-type sensor delivers exceptional performance in demanding liquid level measurement applications.
Product Features
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- PE or PU cable options
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring in sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel tanks
Performance Parameters
| Measurement Range |
0~10m…400m |
| Overload |
≤ 2 X of rated range |
| Accuracy @ 25ºC |
±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis |
±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability |
±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift |
±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift |
±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature |
0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature |
-20~80ºC |
| Storage Temperature |
-30~100ºC |
| Vibration |
10g,55Hz ~ 2kHz |
| Housing Material |
1Cr18Ni9Ti |
| Diaphragm Material |
316L Stainless Steel |
| Insulation Resistance |
>=100MΩ@100VDC |
| Explosion-proof Rating |
ExiaIICT6 |
| Protection Rating |
IP67, IP68 |
| O-Ring Seal |
Fluoro rubber |
| Weight |
~0.3Kg (without cable) |
| Cable Material |
Polyethylene, Polyurethane |
Output Signal Options
| Output Signal |
Supply Voltage |
Output Type |
| 4~20mA |
12~30VDC |
2/3/4 wire |
| 0~10/20mA |
|
3 wire |
0/1~5V
0/1~10V
0.5~4.5V |
5VDC |
|
| RS485 Communication Protocol |
3.6~30V / Battery |
4 wire |
Ordering Information
Ordering Tips
Please ensure compatibility between the measured medium and product components during selection. Specify the density of the measured medium. For environments with strong electromagnetic or radio frequency interference, provide details to our company and indicate in the order. Install lightning protection devices on-site and ensure reliable grounding for optimal performance.
Order Guide
| Component |
Code |
Description |
| Base Model |
BH93420 |
Pressure Transmitter |
| Outline Construction |
I |
Pressure Transmitter |
| Measurement Range |
|
0~10m…400m |
| Power Supply |
D1
D2
D3 |
24VDC
5VDC
Other |
| Output Signal |
S1
S2
S3
S4
S5
S6
S7
S8 |
4~20mADC
1~5VDC
0~5VDC
0~10mADC
0~20mADC
0~10VDC
0.5~4.5VDC
RS485 |
| Pressure Type |
G
A
S |
Gauge Pressure
Absolute Pressure
Sealed Reference Pressure |
| Material |
01
02 |
304 Stainless Steel
316L Stainless Steel |
| Cable Material |
C1
C2 |
PE
PU |
