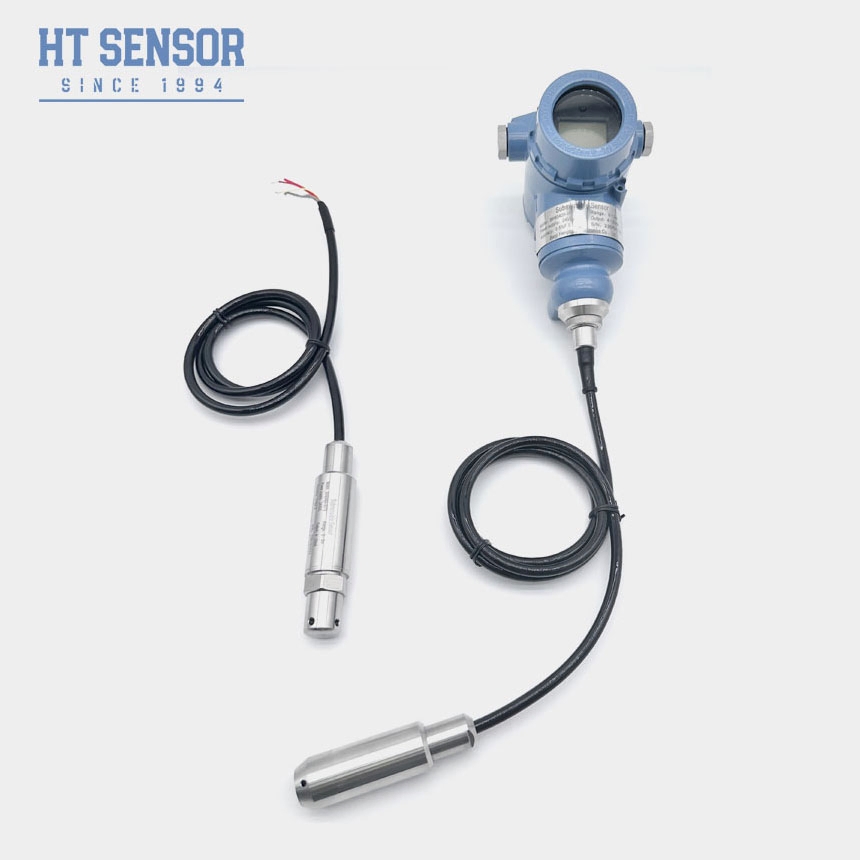

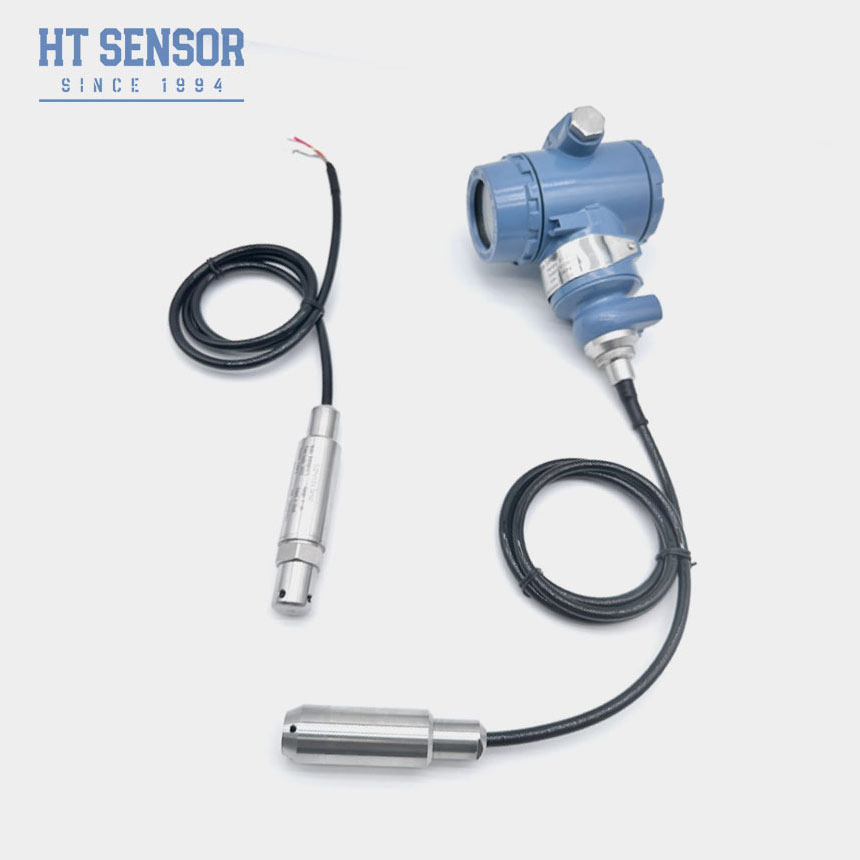

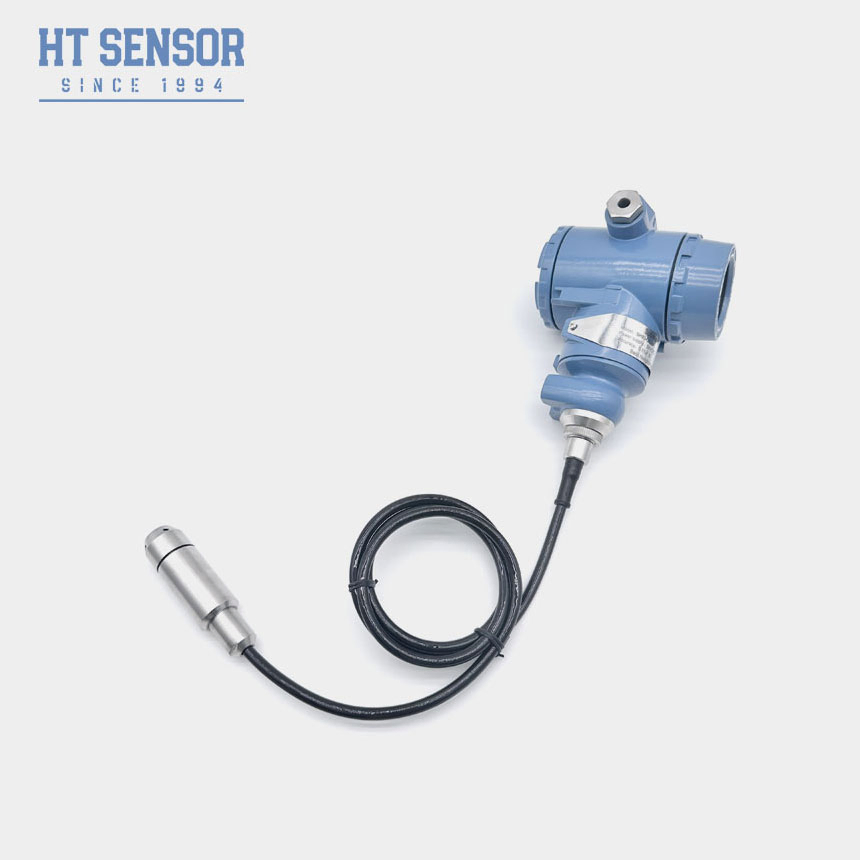

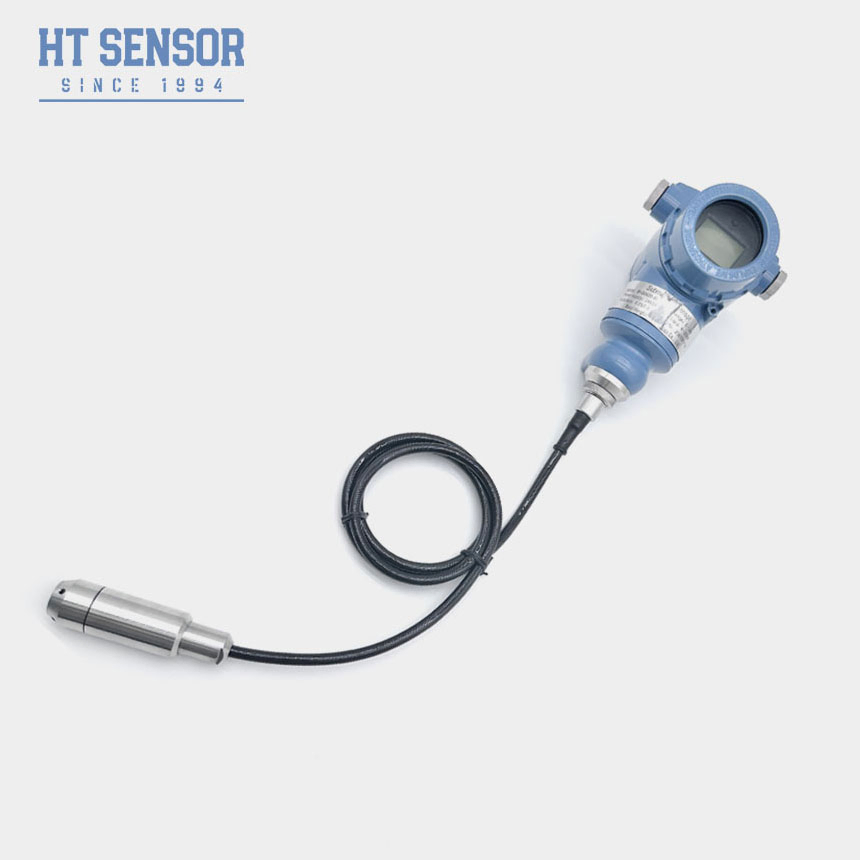

BH93420-III Water Leak Sensor Liquid Level Transmitter
BH93420-III liquid level measurement sensor with 4-20mA LED display for precise liquid level monitoring in various industrial applications.
Product Introduction
The BH93420-III liquid level sensor utilizes a highly precise Piezoresistive diffused silicon pressure sensor as its signal measuring element. It measures static pressure directly related to water level and converts it into standard signal output using amplification circuitry. The linear relationship between output signal and liquid level ensures precise and accurate water level measurement.
Product Features
- Split-type design for easy on-site wiring and calibration
- Integrated LED display
- Explosion-proof rating: ExiaIICT6
- High protection rating: IP68
- Cable options: PE, PU, PTFE
Applications
- Compatible with 316LSS and non-corrosive liquids
- Monitoring water levels in sewage, industrial and municipal water systems, water tanks, wells, rivers, seawater, and lakes
- Diesel, fuel, and other oil tank level monitoring
Performance Parameters
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.15%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | Cast aluminum, 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1.5Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane, PTFE cable |
| Output Signal | Supply Voltage | Output Type |
|---|
| 4~20mA | 15~30VDC | 2/3/4 wire |
| RS485 Communication Protocol | | 4 wire |
Outline Construction
Electrical Connection
Selection Examples
Ordering Information
Ordering Tips
Please ensure that the measured medium is compatible with the product components in contact with it during selection.
Specify the density of the measured medium.
For strong electromagnetic or radio frequency interference, please provide details and indicate it in the order.
To ensure reliable operation, install lightning protection devices on-site and ensure the product and power supply are reliably grounded.
Order Guide
| BH93420 | Code | Outline Construction |
| III | | Liquid level transmitter with the 2088 housing |
| Measurement Range | 0~10m…400m |
| Code | Power Supply |
| D1 | 24VDC |
| Code | Output Signal |
| S1 | 4~20mADC |
| S2 | RS485 |
| Code | Electrical Connection |
| B5 | 2088 with display |
| B6 | 3051A |
| Code | Pressure Type |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| Code | Material |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| Code | Cable Material |
| C1 | PE |
| C2 | PU |
| C3 | PTFE |
Frequently Asked Questions
Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available.
Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM service.
Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, so we are fully capable of meeting the needs of large-scale orders. However, it is advisable to contact our sales team in advance to ensure smooth production and delivery scheduling.
Q: What's the typical delivery period?
A: 5~8 working days for standard models. Customized products may vary.
Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 24 months after shipment, and our after-sales will respond to your questions within 24 hours. Remote instruction by PC network is always available.
