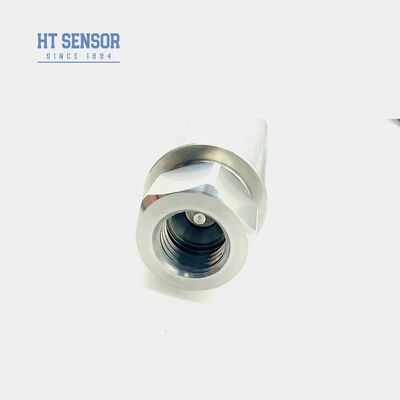

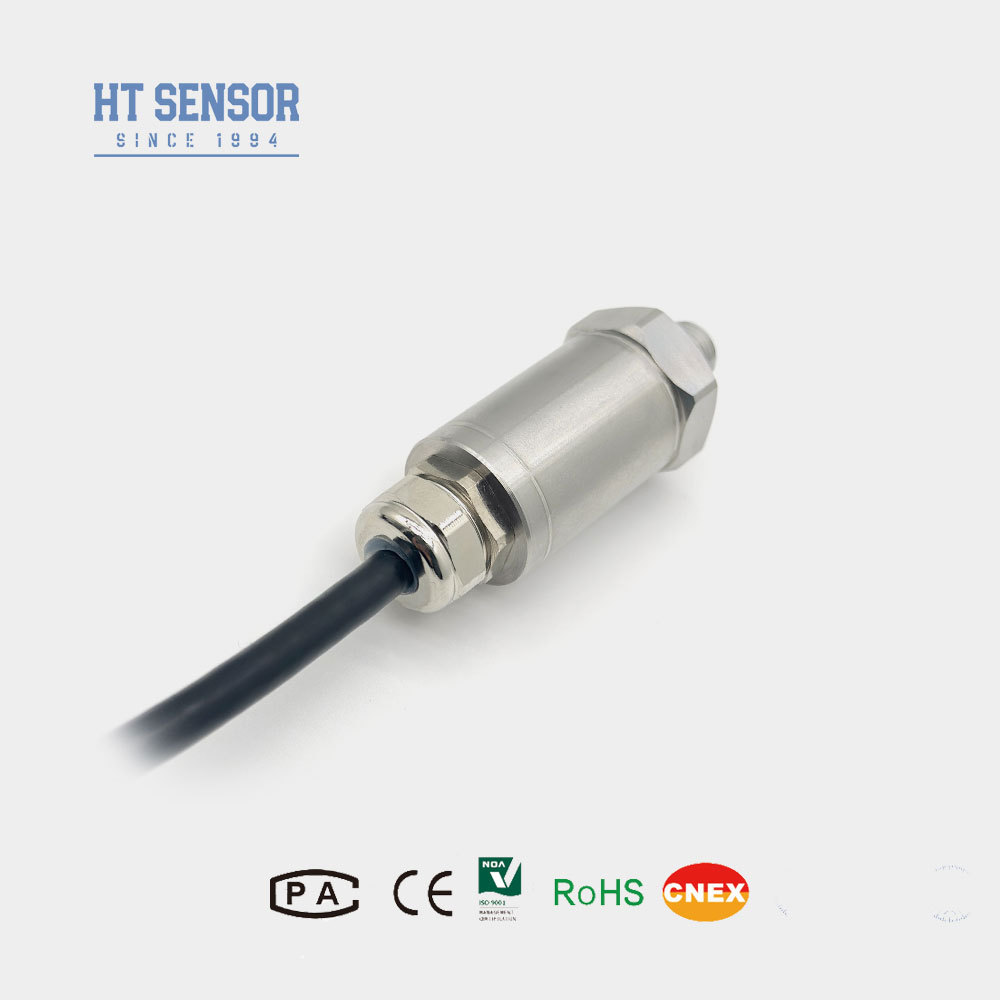

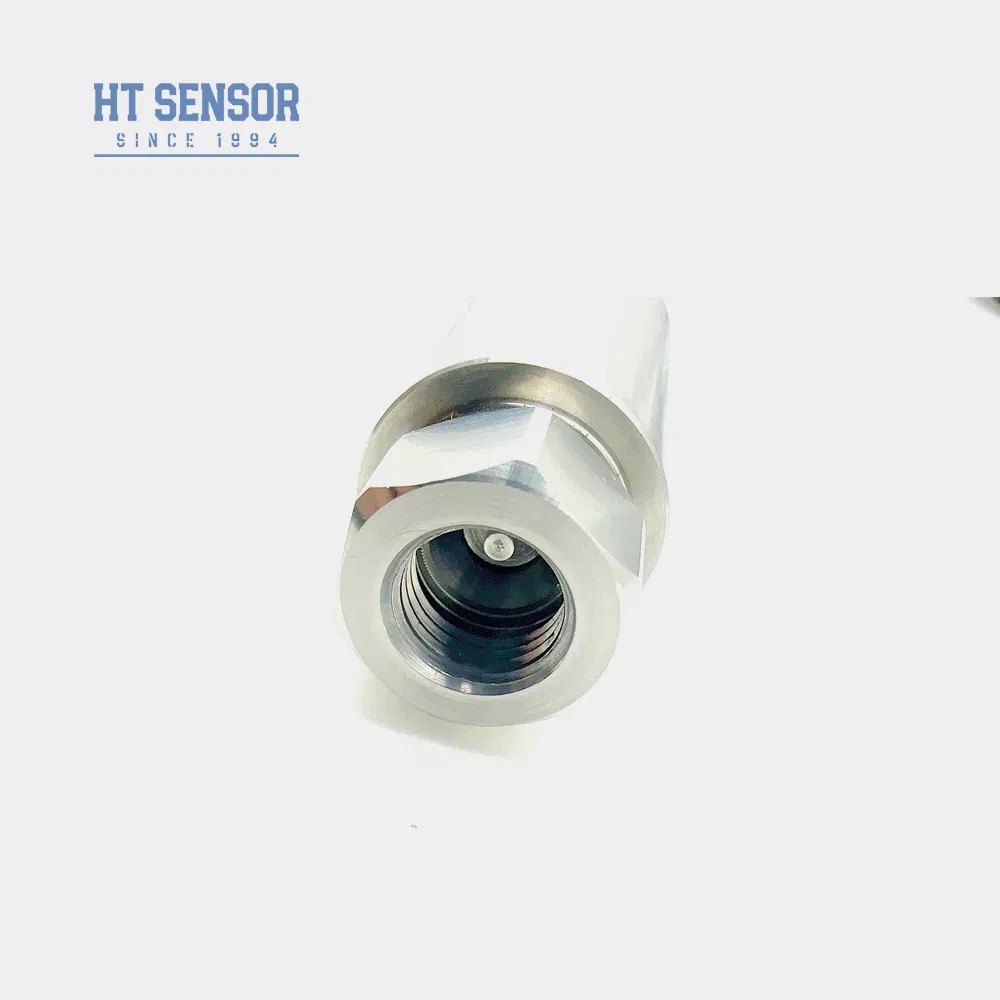

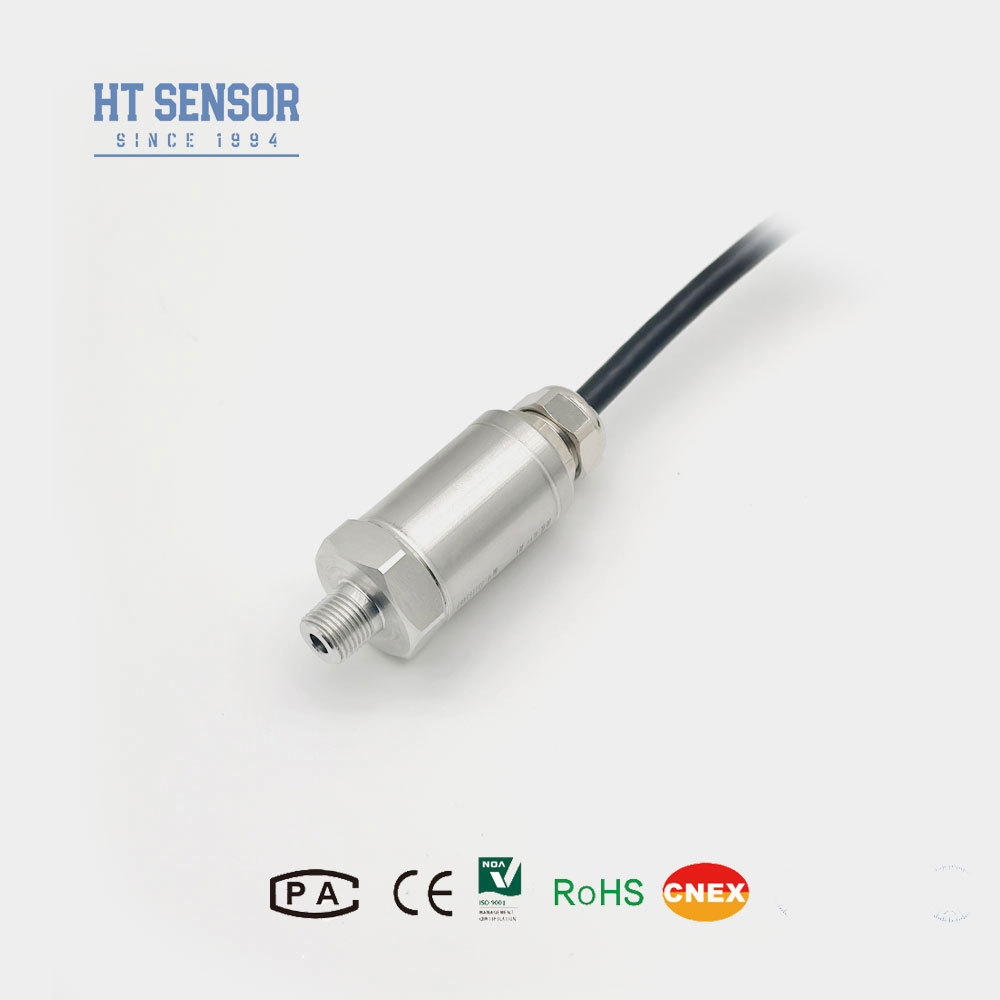

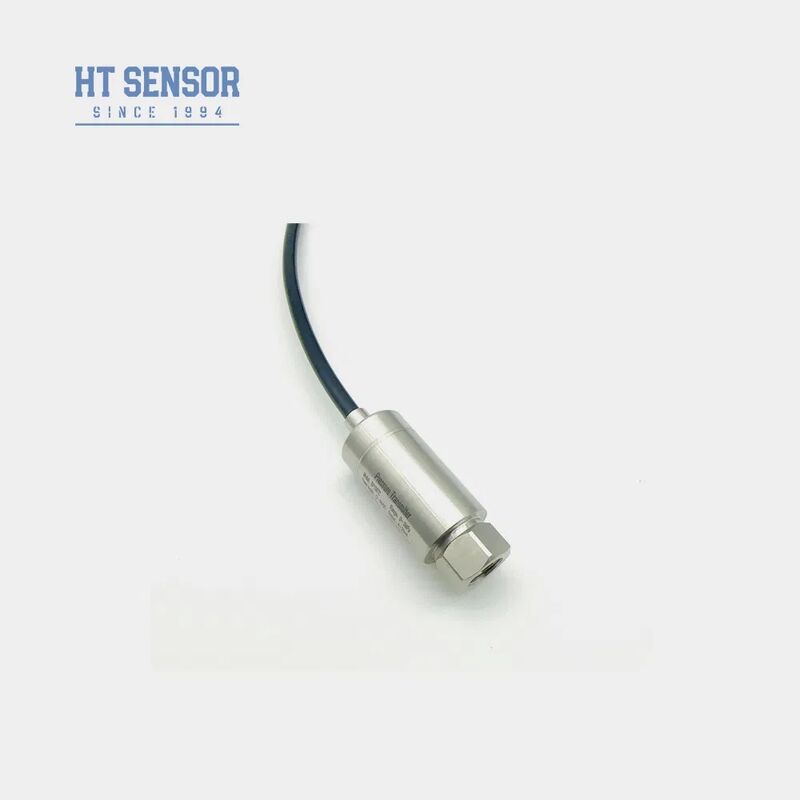

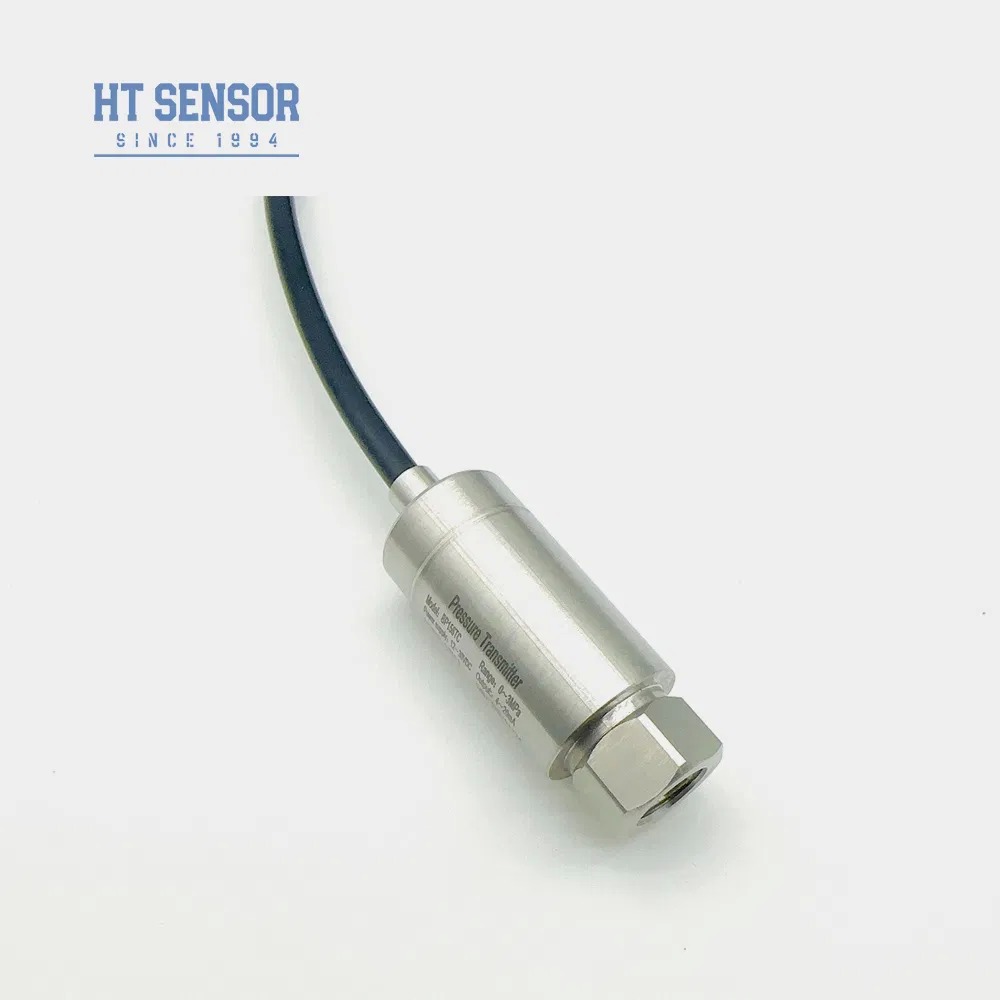

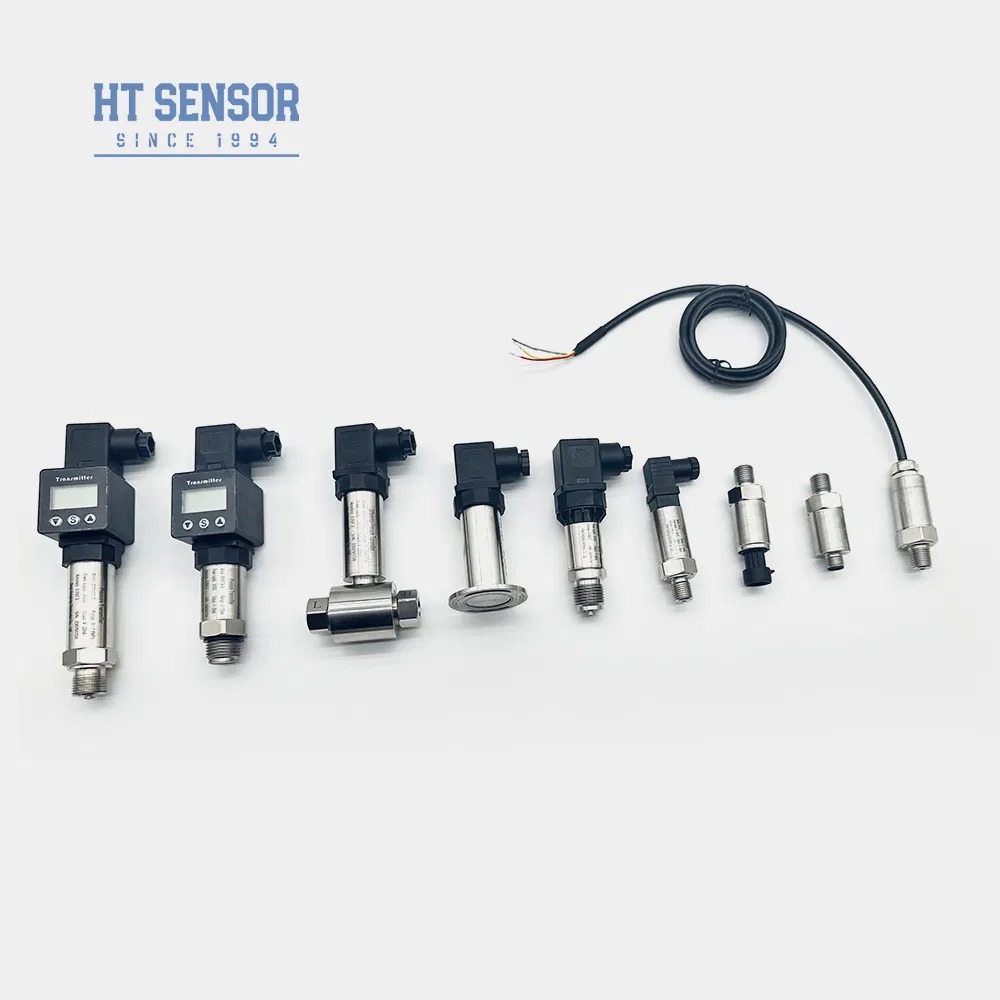

BP156 Pressure Transmitter
The BP156 pressure transmitter is a cost-effective solution specifically engineered for air compressors and refrigeration equipment. Incorporating advanced technology with our proprietary high-performance transmitter circuit, this product delivers exceptional reliability in demanding industrial environments.
Key Features
- Wide measuring range with stainless steel construction
- Multiple pressure interface configurations available
- Compact and lightweight design for easy installation
- High precision measurement with all stainless steel structure
- Adjustable zero and full-scale calibration
Industrial Applications
- Pressure measurement of non-corrosive gases and liquids using 316L stainless steel
- Marine and aviation industry applications
- Industrial process control in petroleum, chemical, metallurgy, power generation, and hydrology
- Hydraulic and pneumatic control systems
Performance Parameters
| Measurement Range | 0kPa ~ 10kPa…5MPa |
|---|
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
|---|
| Overload Capacity | ≤ 1.5 times of the rated range |
|---|
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
|---|
| Repeatability & Hysteresis | 0.02%F.S(Typ.) 0.05%F.S(Max.) |
|---|
| Long-Term Stability | ±0.1%F.S/Year(Typ.) ±0.2%F.S/Year(Max.) |
|---|
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
|---|
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
|---|
| Frequency Response | 2.4Khz |
|---|
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
|---|
| Operating Temperature | -20ºC~80ºC |
|---|
| Storage Temperature | -40ºC~120ºC |
|---|
| Vibration Resistance | 10g,55Hz ~ 2kHz |
|---|
| Housing Material | 304,316L |
|---|
| Diaphragm Material | 316L |
|---|
| Insulation Resistance | 100MΩ 100VDC |
|---|
| Explosion-proof Rating | Ex db IIC T6 Gb |
|---|
| Protection Rating | IP65 |
|---|
| O-Ring Seal | Fluoro rubber |
|---|
| Weight | ~0.05kg |
|---|
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | | 3 wire |
0/1~5V
0/1~10V
0.5~4.5V | 5VDC | |
Selection Examples
Ordering Information
Important Ordering Tips
- Ensure the measured medium is compatible with the product's contact materials
- Explosion-proof models do not include digital display heads
- Transmitters with LCD or LED display require power supply ≥20VDC
- Install lightning protection devices and ensure proper grounding for reliable operation
- For operating temperatures below -20ºC, select EPDM O-ring seal instead of Fluoro rubber
- Default cable length is 1.5m (polyethylene material)
- Specify special requirements for vibration, impact, or electromagnetic interference
Order Guide
BP15X | Analog Pressure Transmitter
| Code | Outline Construction |
|---|
| 5 | Packard plug |
| 6 | Sealed Direct Output Cable 1.5 meters |
| 7 | Mini Hirschmann Connector |
| 8 | Large Hirschmann Connector |
Measurement Range: 0kPa ~ 10kPa…5MPa
(0-X)Kpa or MPa | X: Indicates the Actual Measuring Range
| Code | Power Supply |
|---|
| D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Code | Output Signal |
|---|
| S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| Code | Pressure Connection |
|---|
| J1 | M20×1.5 |
| J2 | G1/2 |
| J3 | G1/4 |
| J4 | 7/16-20UNF |
| J5 | Others(¢50.4 Flange) |
| Code | Electrical Connection |
|---|
| B1 | Hirschmann |
| B2 | PG7 |
| B3 | Cable Sealed Outlet 1.5 meters |
| B4 | Other |
| Code | Pressure Type |
|---|
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
Frequently Asked Questions
What are the features of your pressure sensor transmitters?
High precision, durability, and excellent performance. Customization available.
Can I customize special specifications?
Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services.
What is your production capacity?
Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month, ensuring we can meet large-scale order requirements. We recommend contacting our sales team in advance for production and delivery scheduling.
What's the typical delivery period?
5-8 working days for standard models. Customized products may vary.
How are the products priced? Any discounts?
Competitive pricing with discounts available for bulk orders or long-term partnerships.
What is the warranty of your products? And after-sales service?
24-month warranty after shipment. Our after-sales team responds to inquiries within 24 hours, with remote PC network support always available.
