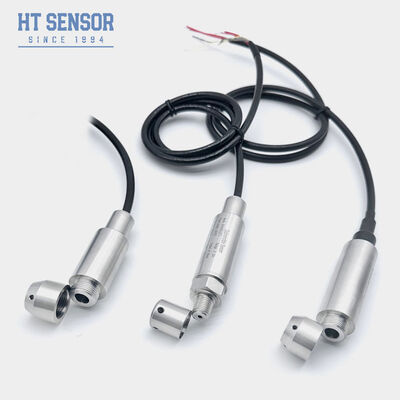

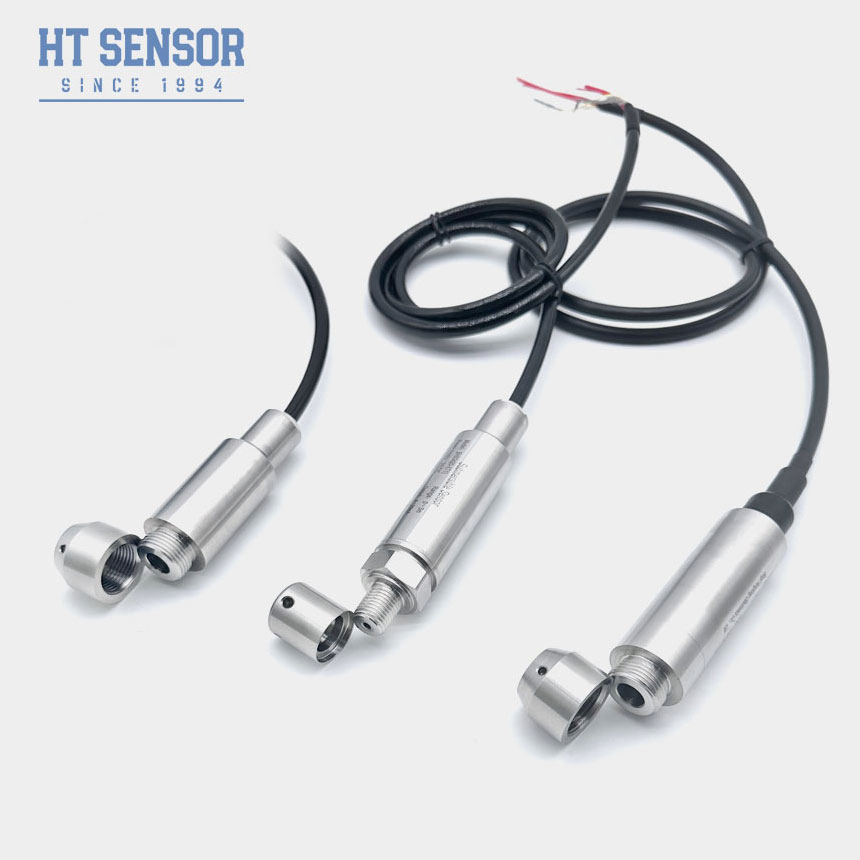

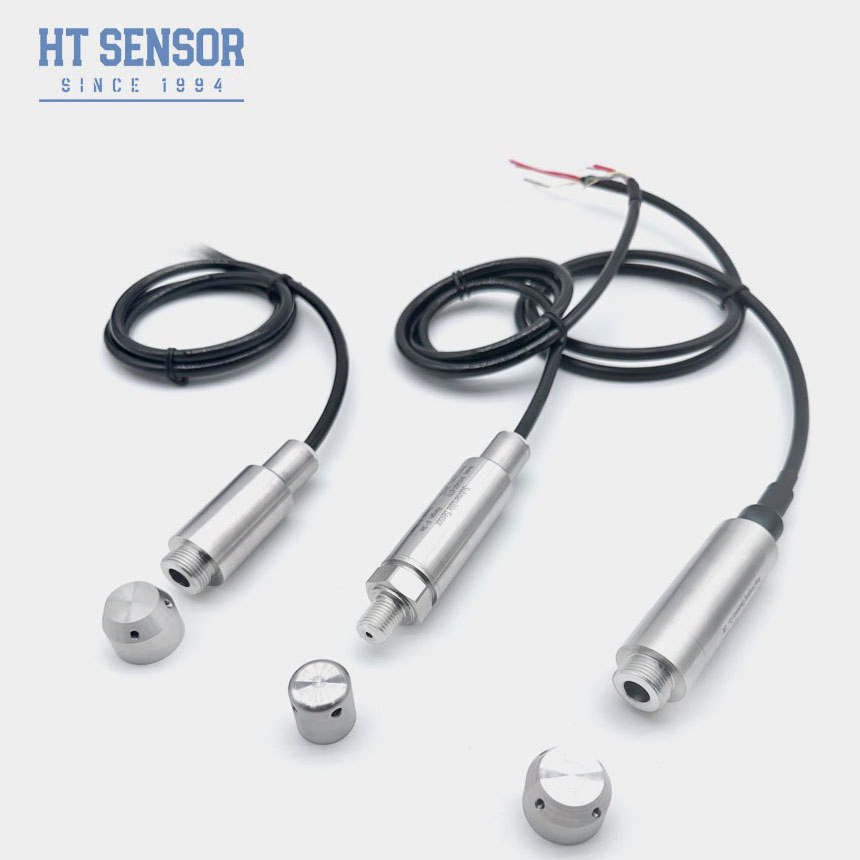

Stainless Steel Liquid Level Transmitter Probe
BH93420-IT liquid level transmitter utilizes HT series high-precision piezoresistive diffused silicon pressure sensor technology. Featuring a fully welded stainless steel housing with hexagonal and water guide head design, this transmitter employs advanced waterproof sealing technology to meet various installation requirements and adapt to diverse application scenarios.
Product Features
- Fully welded design ensuring safety and reliability
- Dual options for probe insertion and threaded installation
- Rigorously tested for high and low temperature applications
- Explosion-proof rating: ExiaIICT6
- Available with PTFE or PU cables
- Multiple output signal options
Applications
- Compatible with 316L stainless steel and non-corrosive liquids
- Monitoring water levels in sewage, industrial, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Measuring fuel levels in diesel and fuel tanks
Performance Parameters
| Parameter | Specification |
|---|
| Measurement Range | 0~10m…400m |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 2X rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC (0-1m . 0-2m ); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Shock | 100g |
| Housing Material | 1Cr18Ni9Ti,316L Stainless Steel |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
Output Signal Specifications
| Output Signal | Supply Voltage | Output Type |
|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | | 3 wire |
| 0/1~5V | 5VDC | |
| 0/1~10V |
| 0.5~4.5V |
Outline Construction
Electrical Connection
Selection Examples
Ordering Tips
Please ensure that the measured medium is compatible with the product components in contact with it during selection.
Specify the density of the measured medium.
For strong electromagnetic or radio frequency interference, please provide details and indicate in your order.
To ensure reliable operation, install lightning protection devices on-site and ensure proper product and power supply grounding.
Order Guide
| Component | Code | Description |
|---|
| Base Model | BH93420 | Pressure Transmitter |
| Measurement Range | | 0~10m…400m |
| Power Supply | D1 | 24VDC |
| D2 | 5VDC |
| D3 | Other |
| Output Signal | S1 | 4~20mADC |
| S2 | 1~5VDC |
| S3 | 0~5VDC |
| S4 | 0~10mADC |
| S5 | 0~20mADC |
| S6 | 0~10VDC |
| S7 | 0.5~4.5VDC |
| S8 | RS485 |
| Pressure Type | G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| Material | 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| Cable Material | C1 | PU |
| C2 | PTFE |
