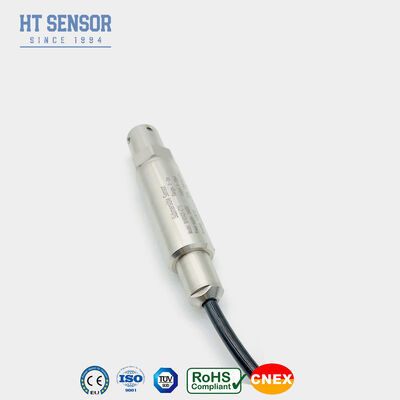

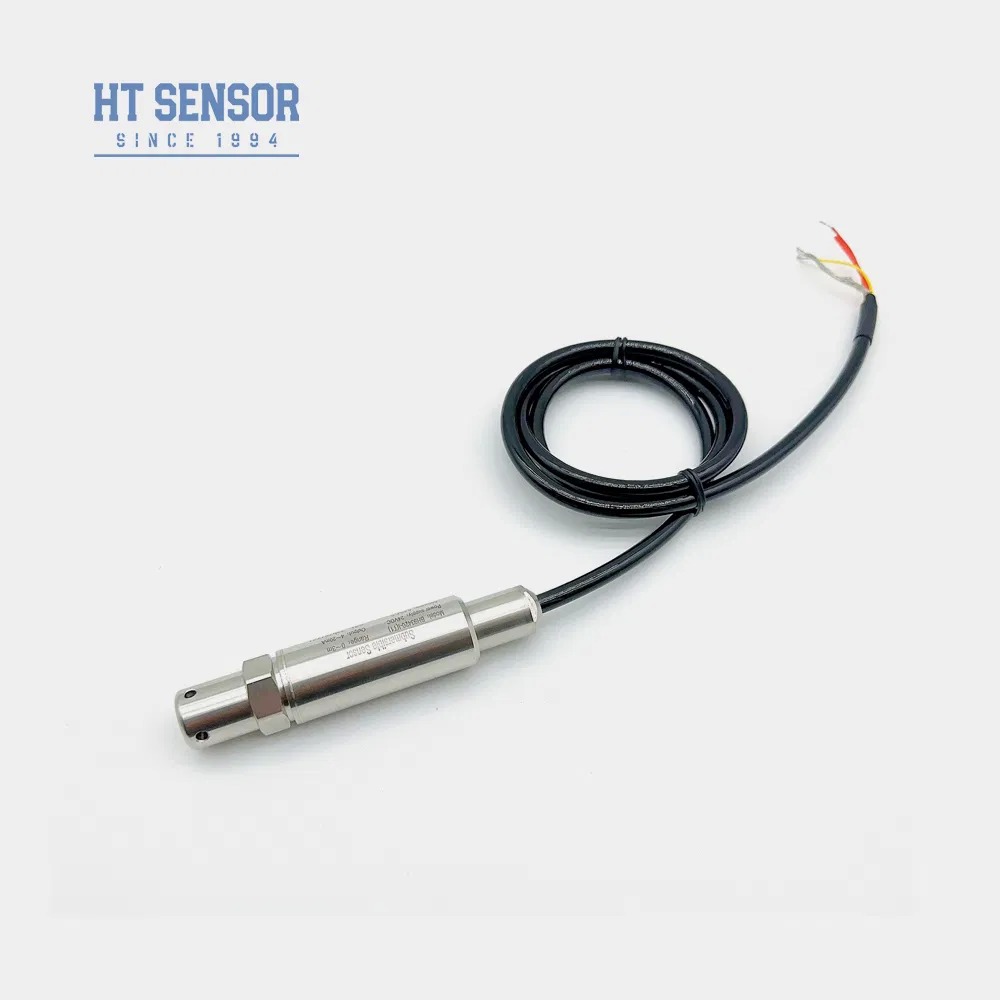

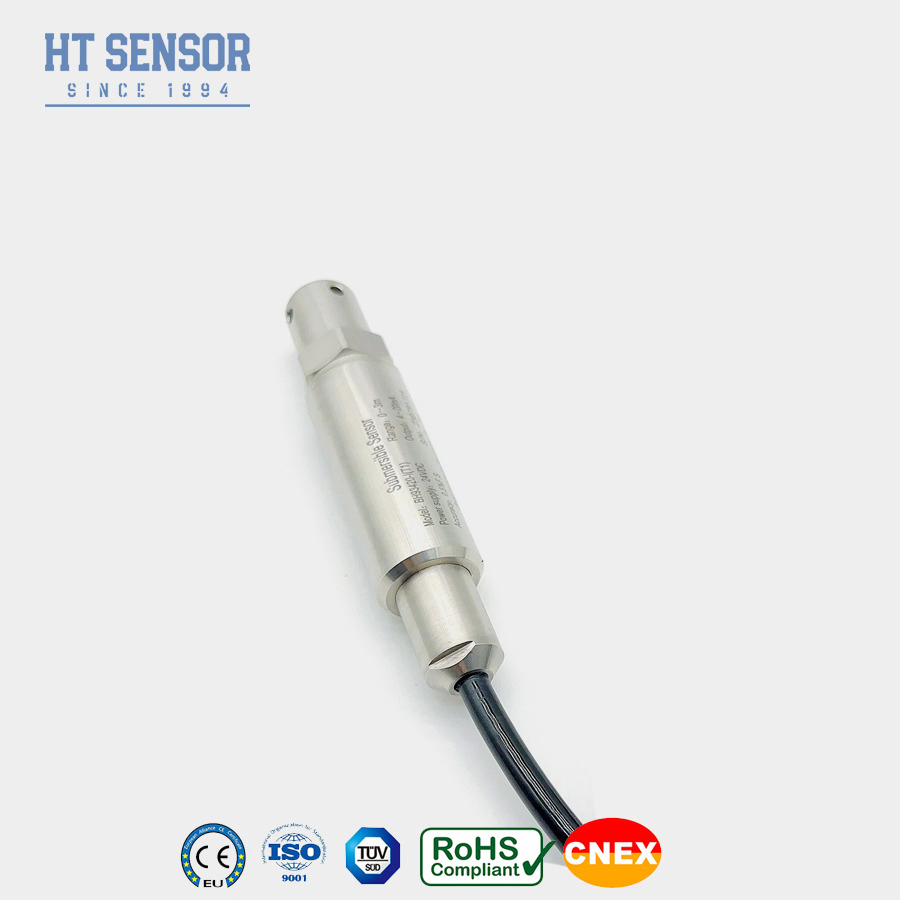

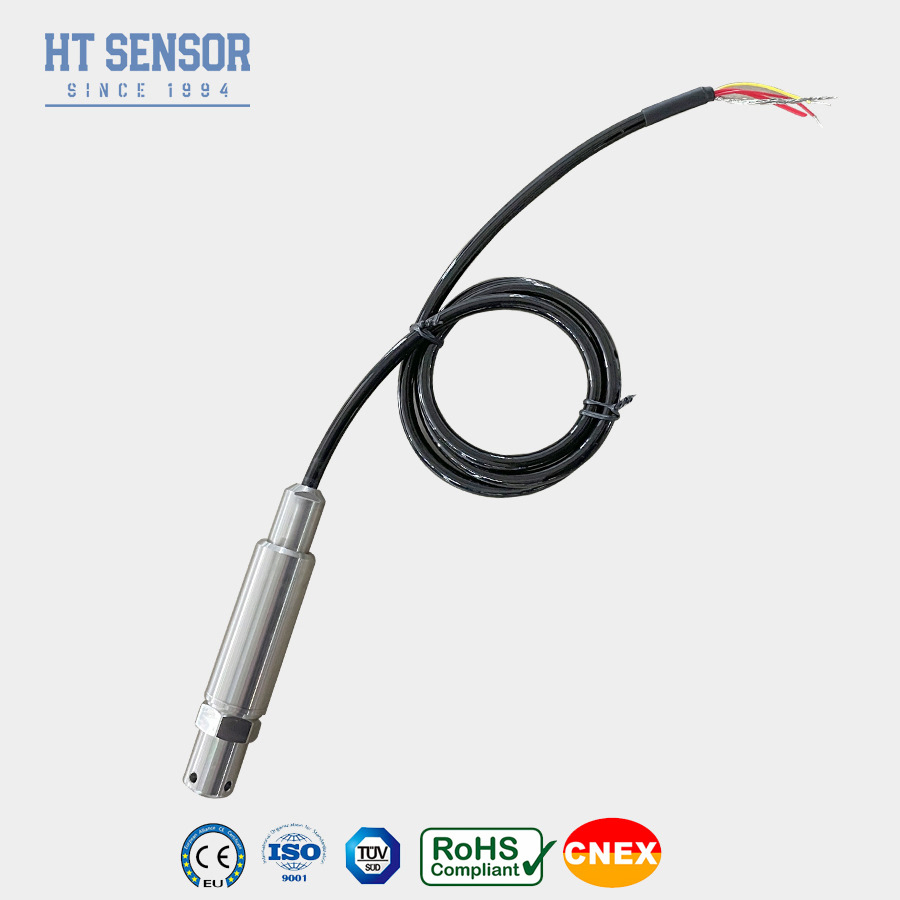

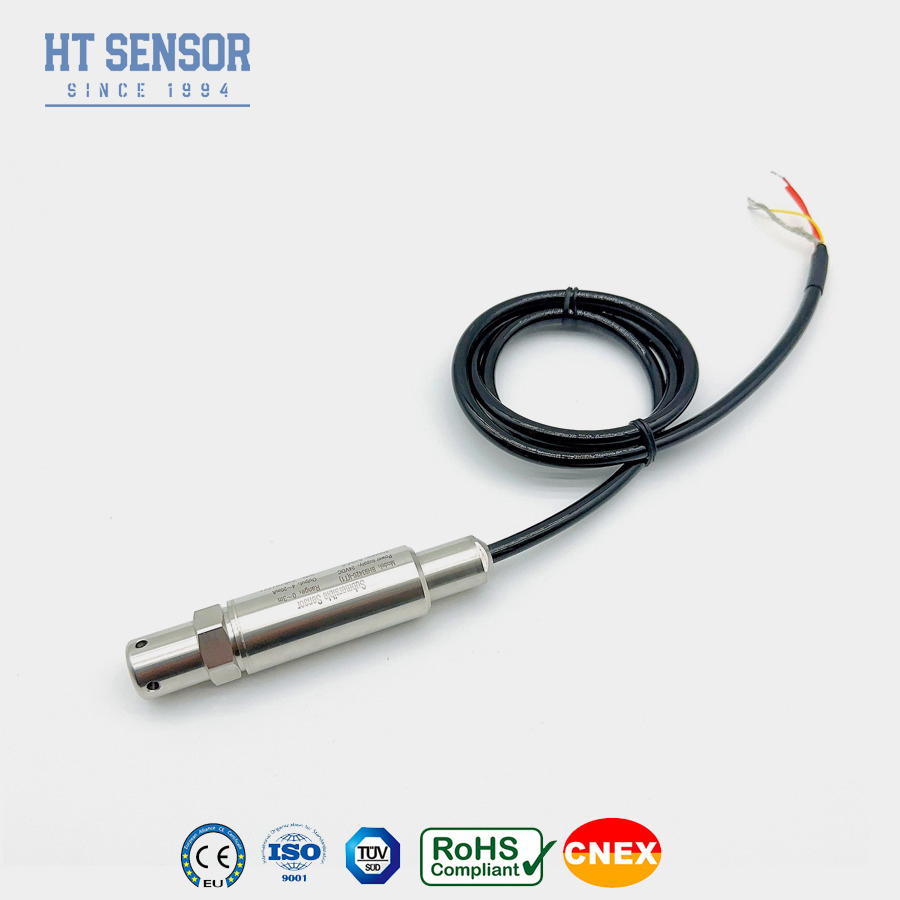

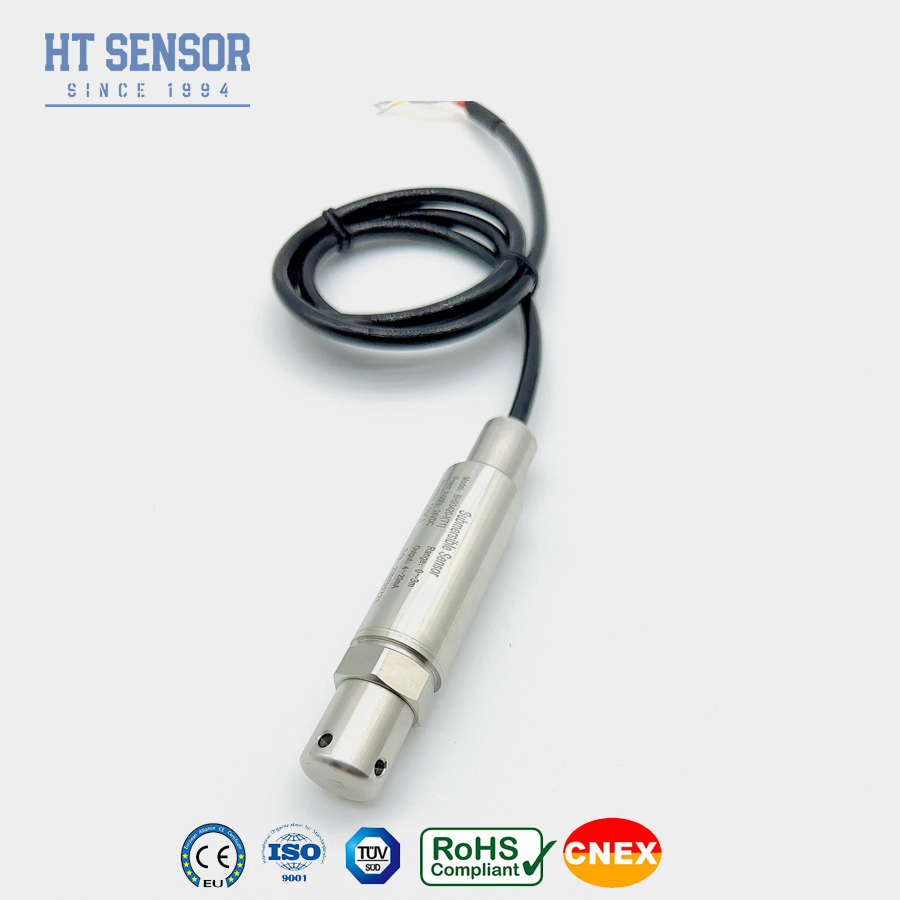

IP68 Water Pressure Sensor with 316L Stainless Steel and 4-20mA Output Liquid Level Transmitter
Product Details
| Output Signal: | Analog Type | Material: | Stainless Steel |
|---|---|---|---|
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Cable Material: | PE, PU, PTFE |
| Measurement Range: | 0~10m…400m | Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability: | ±0.03% (Typ.) ±0.05%FS (Max.) | Operating Temperature: | -20~80ºC |
| Storage Temperature: | -30~100ºC | Housing Material: | 1Cr18Ni9Ti |
| Insulation Resistance: | >=100MΩ@100VDC | Explosion-proof Rating: | ExiaIICT6 |
| Protection Rating: | IP67, IP68 | ||
| Highlight |
IP68 Water Pressure Sensor,316L Stainless Steel Level Transducer,4-20mA Output Liquid Level Transmitter |
||
Product Description
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Available with PE or PU cable options
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial water, municipal water systems
- Tank, well, river, seawater, and lake level measurement
- Fuel level measurement in diesel and fuel tanks
| Measurement Range | 0~10m…400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol |
- Verify compatibility between measured medium and product components
- Specify the density of the measured medium
- Disclose strong electromagnetic or radio frequency interference conditions
- Install lightning protection devices and ensure proper grounding for reliable operation
| BH93420 | Code | Outline Construction | |
| I | Pressure Transmitter | ||
| Measurement Range | 0~10m…400m | ||
| Code | Power Supply | ||
| D1 | 24VDC | ||
| D2 | 5VDC | ||
| D3 | Other | ||
| Code | Output Signal | ||
| S1 | 4~20mADC | S5 | 0~20mADC |
| S2 | 1~5VDC | S6 | 0~10VDC |
| S3 | 0~5VDC | S7 | 0.5~4.5VDC |
| S4 | 0~10mADC | S8 | RS485 |
| Code | Pressure Type | ||
| G | Gauge Pressure | ||
| A | Absolute Pressure | ||
| S | Sealed Reference Pressure | ||
| Code | Material | ||
| 01 | 304 Stainless Steel | ||
| 02 | 316L Stainless Steel | ||
| Code | Cable Material | ||
| C1 | PE | ||
| C2 | PU |
Product Highlights
IP68-rated submersible liquid level transmitter with 316L stainless steel construction for corrosion resistance. Offers high accuracy (±0.25%), explosion-proof certification (ExiaIICT6), and customizable output signals. Ideal for water, sewage, and fuel tank monitoring applications.
