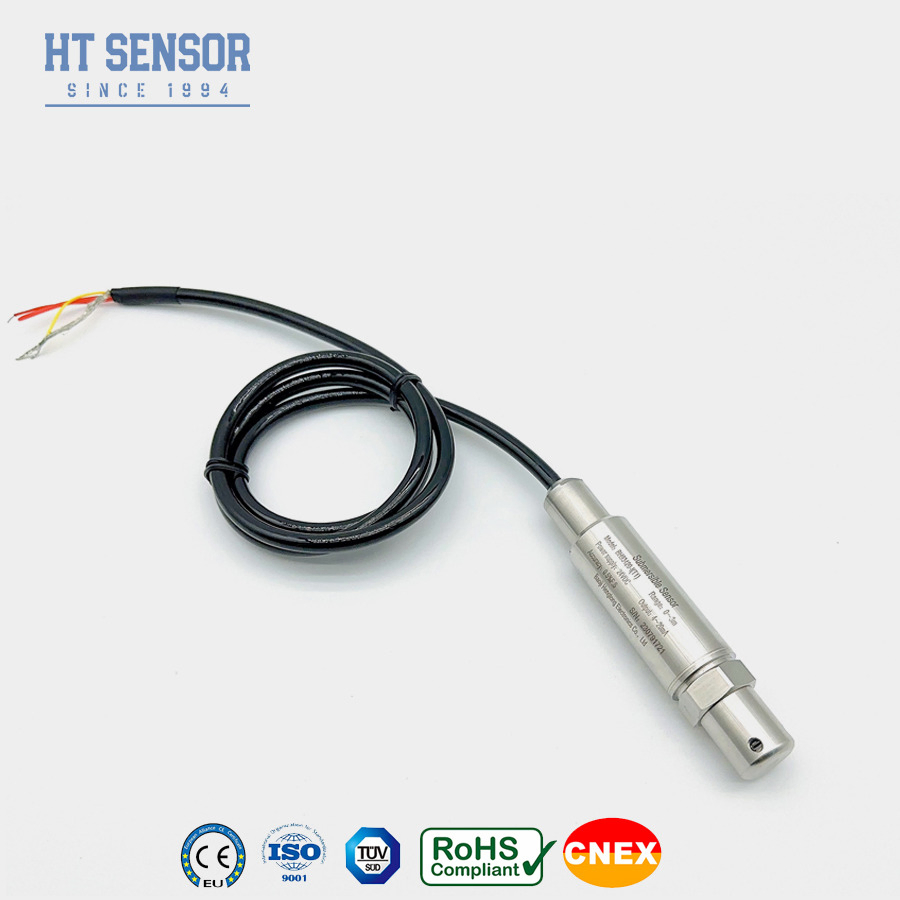

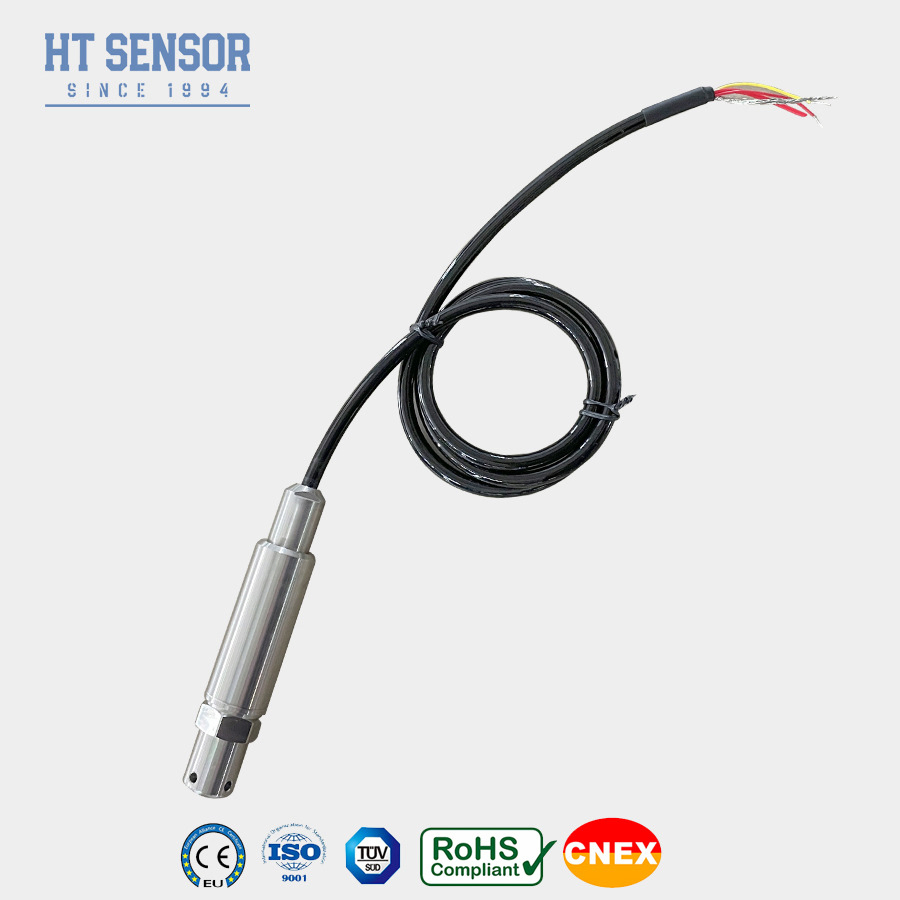

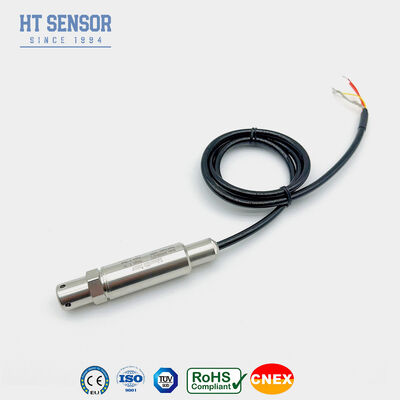

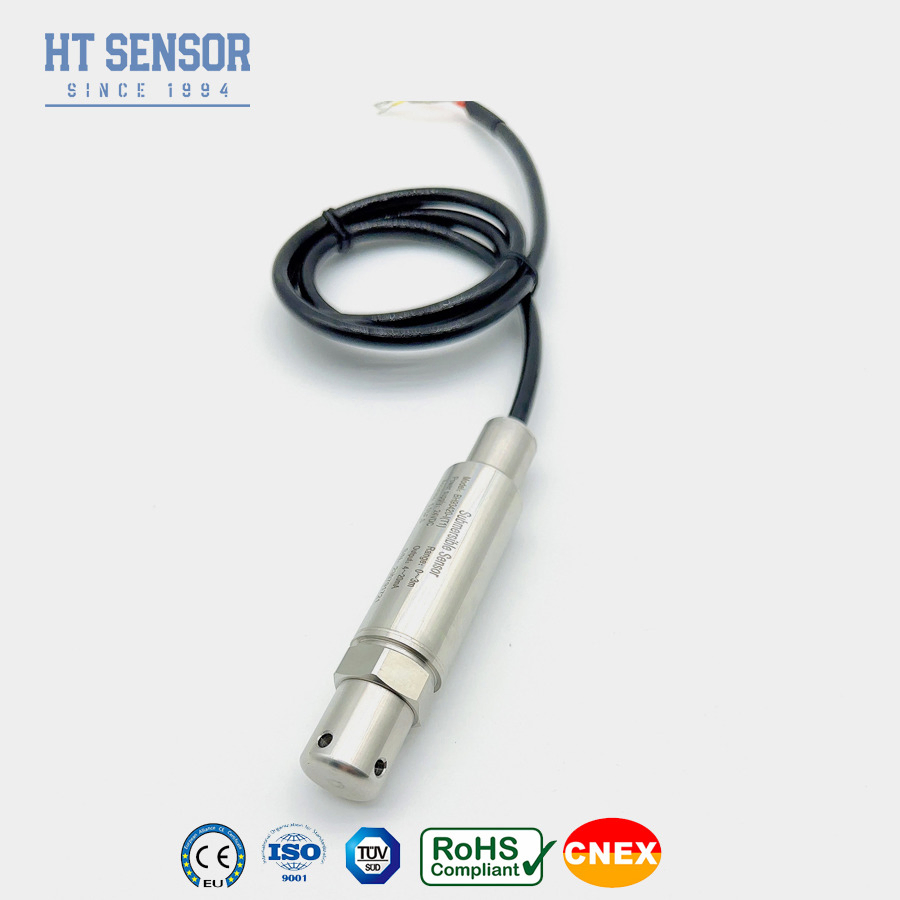

316L Stainless Steel IP68 Waterproof Liquid Level Transmitter with 4-20mA Output Pressure Transducer
Product Details
| Model NO.: | BH93420-I | Output Signal: | Analog Type |
|---|---|---|---|
| Production Process: | Oil Filled | Material: | Stainless Steel |
| IP Rating: | IP68 | Net Weight: | 0.3kg |
| Diaphragm Material: | 316L Stainless Steel | Cable Material: | PE, PU, PTFE |
| Measurement Range: | 0~10m…400m | Accuracy: | ±0.25% (Typ.) ±0.5% (Max.) |
| Operating Temperature: | -20~80ºC | Storage Temperature: | -30~100ºC |
| Explosion-proof Rating: | ExiaIICT6 | Protection Rating: | IP67, IP68 |
| Output Signal Options: | 4~20mA, 0~10/20mA, 0/1~5V, 0/1~10V, 0.5~4.5V, RS485 | ||
| Highlight |
316L Stainless Steel Liquid Level Transmitter,IP68 Waterproof Level Sensor,4-20mA Output Pressure Transducer |
||
Product Description
- Full stainless steel housing for diverse testing environments
- Immersion-type probe measurement for easy installation
- Multiple output signal options available
- Explosion-proof certification: ExiaIICT6
- High protection rating: IP68
- Available with PE, PU, or PTFE cable options
- Compatible with 316L stainless steel and non-corrosive liquids
- Water level monitoring for sewage, industrial water, municipal water systems, tanks, wells, rivers, seawater, and lakes
- Fuel level measurement in diesel and fuel storage tanks
| Measurement Range | 0~10m…400m |
| Overload Capacity | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration Resistance | 10g, 55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal Material | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V 0/1~10V 0.5~4.5V |
5VDC | |
| RS485 Communication Protocol |
| Component | Code | Description |
|---|---|---|
| Product Series | BH93420 | Pressure Transmitter |
| Measurement Range | 0~10m…400m | |
| Power Supply | D1 | 24VDC |
| Power Supply | D2 | 5VDC |
| Power Supply | D3 | Other |
| Output Signal | S1 | 4~20mADC |
| Output Signal | S2 | 1~5VDC |
| Output Signal | S3 | 0~5VDC |
| Output Signal | S4 | 0~10mADC |
| Output Signal | S5 | 0~20mADC |
| Output Signal | S6 | 0~10VDC |
| Output Signal | S7 | 0.5~4.5VDC |
| Output Signal | S8 | RS485 |
| Pressure Type | G | Gauge Pressure |
| Pressure Type | A | Absolute Pressure |
| Pressure Type | S | Sealed Reference Pressure |
| Material | 01 | 304 Stainless Steel |
| Material | 02 | 316L Stainless Steel |
| Cable Material | C1 | PE |
| Cable Material | C2 | PU |
- Q: What are the features of your pressure sensor transmitters?
A: High precision, durability, and excellent performance. Customization available. - Q: Can I customize special specifications?
A: Yes, our engineers can tailor products to meet specific needs. We provide OEM and ODM services. - Q: What is your production capacity?
A: Our manufacturing facilities can produce up to 30,000 pressure sensor transmitters per month. Contact our sales team in advance for large-scale orders. - Q: What's the typical delivery period?
A: 5-8 working days for standard models. Customized products may vary. - Q: How are the products priced? Any discounts?
A: Competitive pricing with discounts for bulk orders or long-term partners. - Q: What is the warranty and after-sales service?
A: 24-month warranty after shipment. Our after-sales team responds within 24 hours, with remote PC network instruction available.
Product Highlights
Submersible liquid level transmitter with IP68 & ExiaIICT6 ratings. Full stainless steel housing, ±0.25% accuracy, 4-20mA output. Customizable cables & specifications for diverse industrial applications.
