| Place of Origin: | Baoji，China |
|---|---|
| Brand Name: | HT sensor |
| Certification: | CE,RoHs,ISO9001 |
| Model Number: | HT3351 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 work days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Model NO.: | HT3351 | Customized: | Customized |
|---|---|---|---|
| Power Supply: | 12.5~45VDC | Weight: | 3.6kg |
| Stability: | +-0.1%F.S/Year | Pressure Type: | Differential Pressure |
| Specification: | 500pa~200kpa | Origin: | China |
| Type: | Capacitive Differential Pressure Transmitter | Measuring Medium: | Gas |
| Accuracy Grade: | 0.075% | IP Rating: | IP65 |
| High Light: | Flange Capacitive Differential Pressure Transducer,Capacitive Differential Pressure Transducer Hart 45VDC,45VDC Hart Dpt Pressure Transmitter |
||
Introduction:

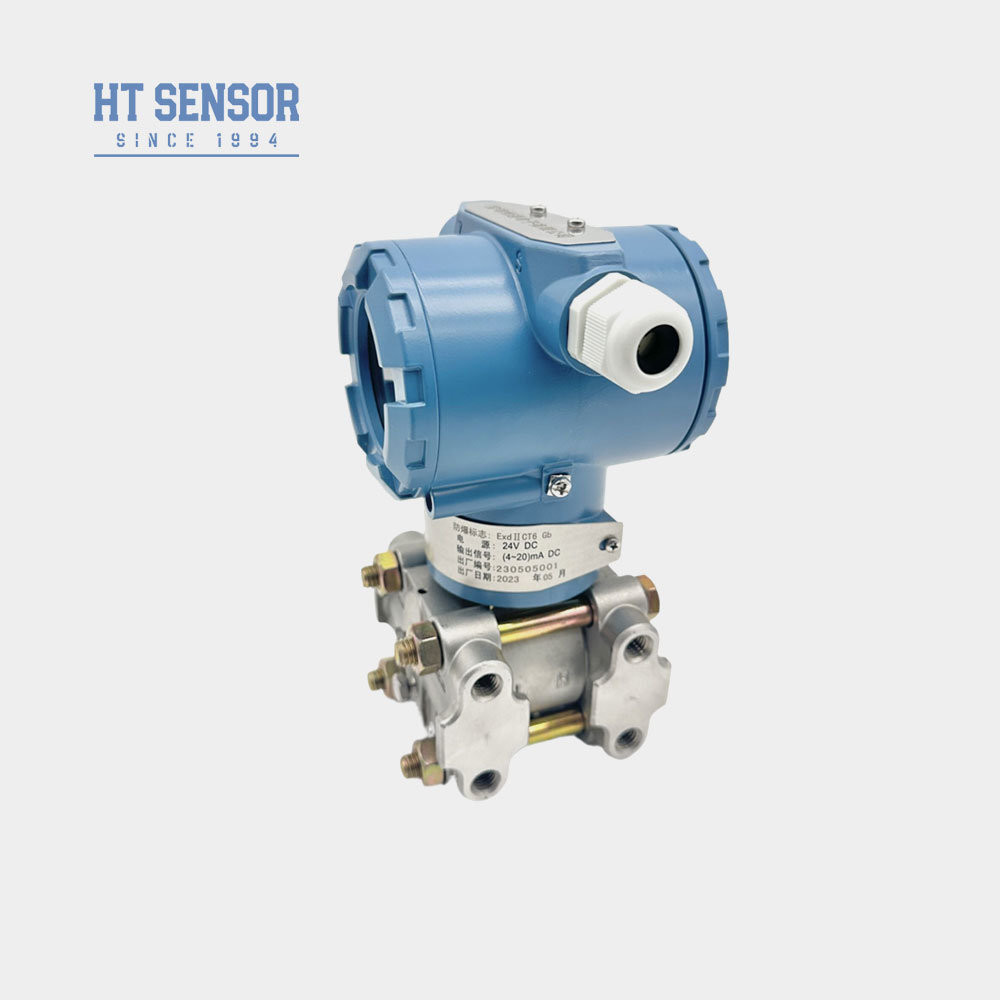

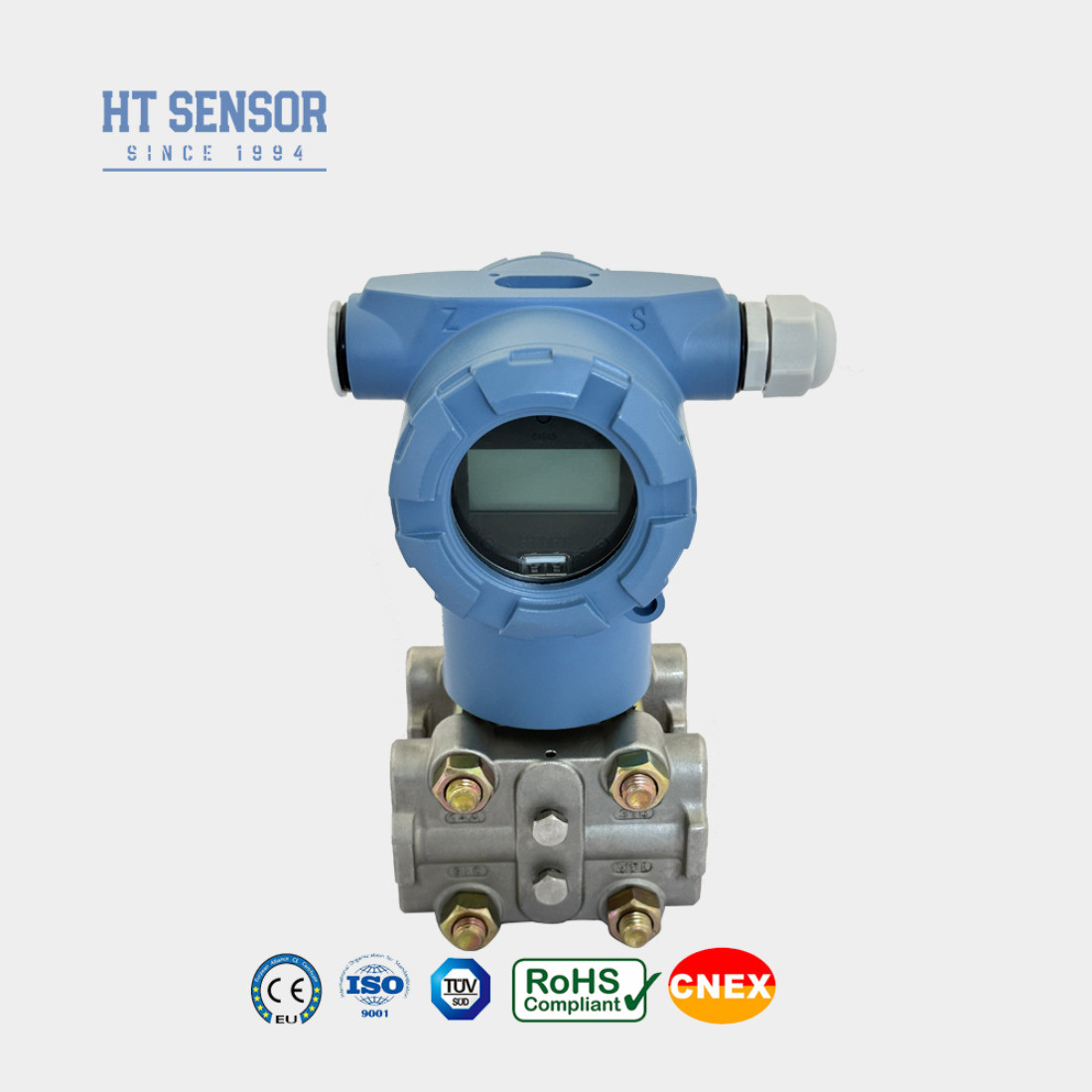

HT3351 Capacitive Flange Differential Pressure Transmitter Transmitter has the optional HART module. After the transmitter is added the HART module, it has HART communication capacity, with the conventional operation being controlled with the general manual operator. The special communication equipment and software provided by our company can operate the marking and temperature supplementation actions.
HT3351 series digitalized Intelligent Pressure/ Differential Pressure Transmitter can be widely sued in the sectors such as petroleum,
chemical, iron & steel, power supply, light industry and environmental protection, capable of realizing the measurement of various pressures,
differential pressures, flows and fluids, adaptable for all kinds of harsh and hazardous environment and corrosive agents.
Product Features:
1. The transmitter features a stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening, ensuring stable and reliable performances
3. The electrical interface can be selected as a plug-in or direct wiring option.
Applications:
1. Suitable for measuring differential pressure of various gases or liquids in pipelines of industries such as petroleum, chemical, power, and hydrology.
2. Applied in industrial on-site processes such as petroleum, chemica,metallurgy, power generation, and hydrology
3. Pressure measurement for pipelines and furnace chambers
Working Principle:
As indicated in the working principle, the outside pressure or differential pressure will cause some change in the sensor capacitance value. Through the digital signal conversion, it will change into the frequency signal, which is sent to the microprocessor. After the
calculation by microprocessor, a current control signal will be output to the current control circuit, converted into analogue 4-20mA current
output. Meanwhile, the microprocessor is responsible for the interactive and other actions (display and setting). The communication port used for digital communication needs the special port of our company. HART module will realize the transmitter HART communication.
Measurement Ways:
Fluid Level Measurement:
In the measurement of fluid flow, the pressure taps should be breached on the side of the process conduit to avoid the sediment of dregs. Meanwhile, the transmitter should be mounted beside or under the pressure taps, to prevent the air bubbles from being discharged into the process conduit.
