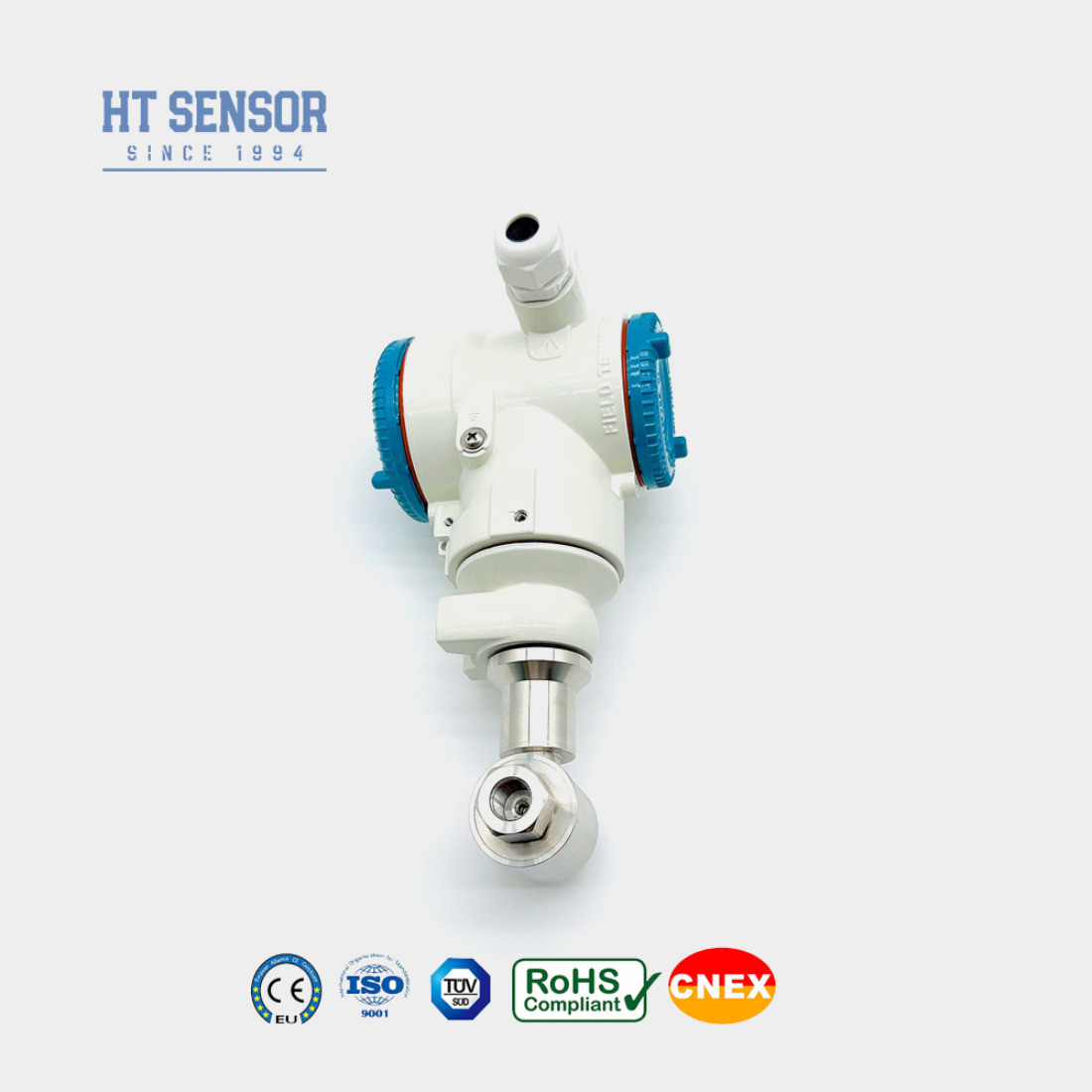

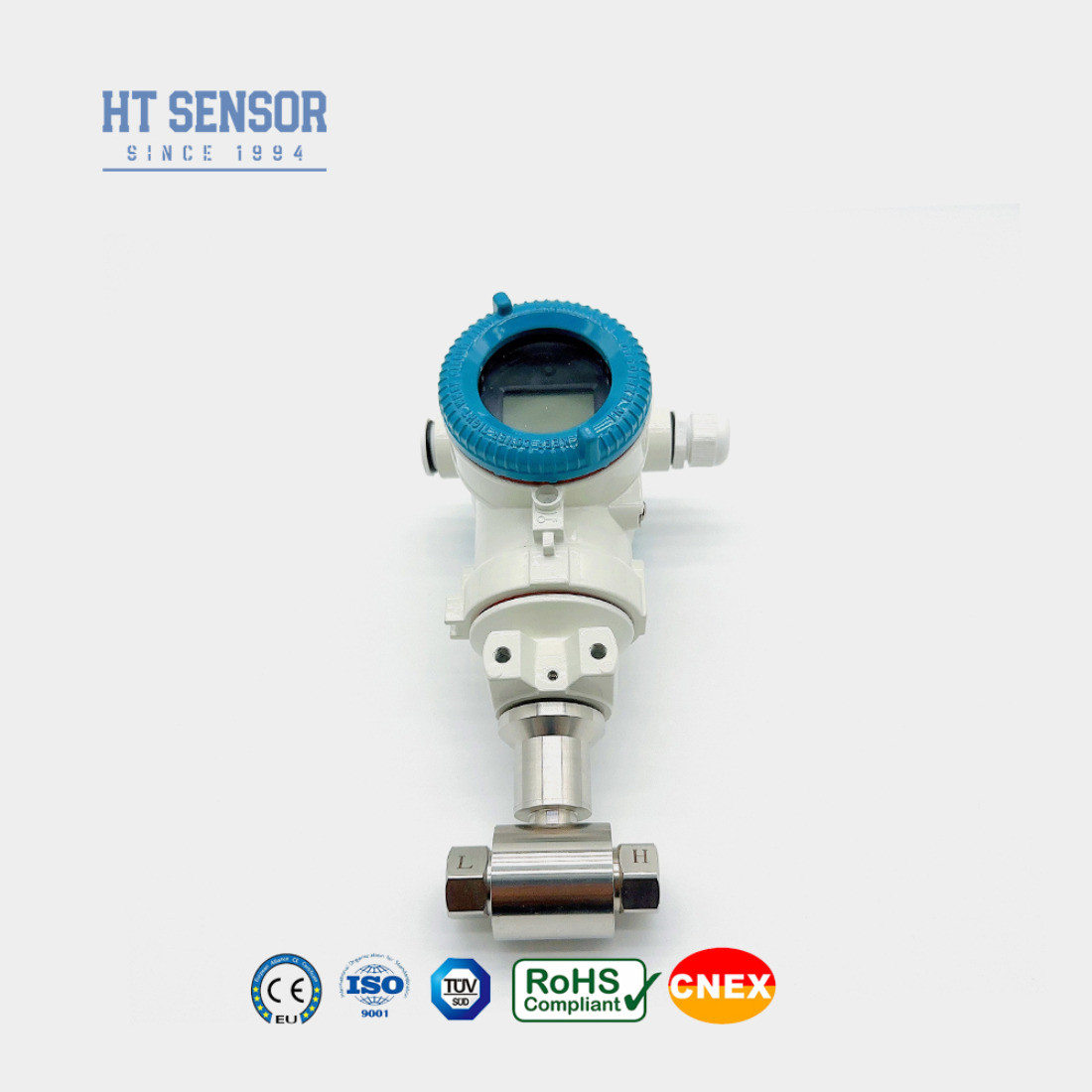

Aluminum Housing Dp Pressure Transmitter High Accuracy Differential Pressure Transducer
Product Details
| Model NO.: | BP93420D-III | Customized: | Customized |
|---|---|---|---|
| Max Range: | 2MPa | Output: | 4-20mA |
| Min Range: | 10kpa | Pressure Type: | Differential Pressure |
| Transport Package: | Standard Export Packing With Carton | Specification: | 10kpa~2Mpa |
| HS Code: | 9026201090 | Type: | Differential Pressure Transmitter |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.25%, 0.5%,0.3% |
| Highlight |
Aluminum Housing Dp Pressure Transmitter,Dp Pressure Transmitter High Accuracy,High Accuracy Differential Pressure Transducer |
||
Product Description
BP93420DIII differential pressure transmitter employs a piezoresistive silicon sensor. As the measured medium's differential pressure affects the corrugated diaphragms on both ends of the sensor, the Wheatstone bridge on the sensor chip produces an output signal that shows excellent linearity with the differential pressure. This allows for precise measurement of the differential pressure. The transmitter is ideal for conducting differential pressure measurements in diverse gas and liquid applications, particularly in industries like petroleum, chemical for pipeline installations.
1.Stainless steel structural design, making it compact and easy to install
2. It undergoes strict temperature compensation and aging screening,
1.Suitable for measuring differential pressure of various gases or liquids in
pipelines of industries such as petroleum, chemical, power, and hydrology.
2.Applied in industrial on-site processes such as petroleum, chemical,
metallurgy, power generation, and hydrology
3.Pressure measurement for pipelines and furnace chambers
| Measurement Range | 0-10KPa……~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25℃ | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(＞200KPa) |
| Zero Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/℃(＞100KPa), ±0.02%FS/℃ (≤100Kpa) |
| Compensation Temperature | 0-50℃(0-10KPa, 0-20KPa) ,0-70℃ ,-10-70℃ |
| Operating Temperature | -30℃~80℃ |
| Storage Temperature | -40℃~100℃ |
| Vibration | 10g,55Hz ～ 2kHz |
| Housing Material | 304 Stainless steel ,Cast aluminum |
| Diaphragm Material | 316L Stainless steel |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~1.4kg |
| Output Signal | Supply Voltage | Output Type |
| 4～20mA | 15～30VDC | Two/Three/Four Wire |
| 4～20mA with Hart | Two wire | |
| RS485 Communication Protocol | Four wire |
Ordering tips:
1, temperature compensation, diffused silicon pressure sensor is semiconductor, semiconductor has strong temperature characteristics, no temperature compensation, measurement error may be relatively large.
2, the diffused silicon pressure sensor sensing diaphragm is only a few tens of meters thick, do not touch.
3, the power supply voltage to be stable, the sensor is actually a bridge, the power supply voltage fluctuation will cause the bridge output changes, affecting the measurement accuracy.
4, to be used within the rated voltage, overvoltage will lead to sensor damage.
5, the output end do not short circuit.
Order Guide
| BP93420 | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DIII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S2 | 4～20mADC with Hart | |||||
| S3 | RS485 | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
