| Model NO.: | BP93420D-III | Max Range: | 2MPa |
|---|---|---|---|
| Output: | 4-20mA | Min Range: | 10KPa |
| Pressure Type: | Differential Pressure | Transport Package: | Standard Export Packing With Carton |
| Specification: | 10kpa~2Mpa | Origin: | China |
| HS Code: | 9026201090 | Supply Ability: | 2000PCS/Year |
| Type: | Differential Pressure Transmitter | Structure Type: | Diffused Silicon Pressure Transmitter |
| Measuring Medium: | Gas Or Liquid | Accuracy Grade: | 0.25%, 0.5% |
| Pressure Range: | 0-10kpa...~2MPa | IP Rating: | IP65 |
| Samples: | US$ 80/Piece 1 Piece(Min.Order) | Request Sample | ||
| High Light: | 4-20ma Differential Pressure Transmitter,Differential Pressure Transmitter Lcd Display 24vdc,4-20ma 24vdc Dpt Level Transmitter |
||

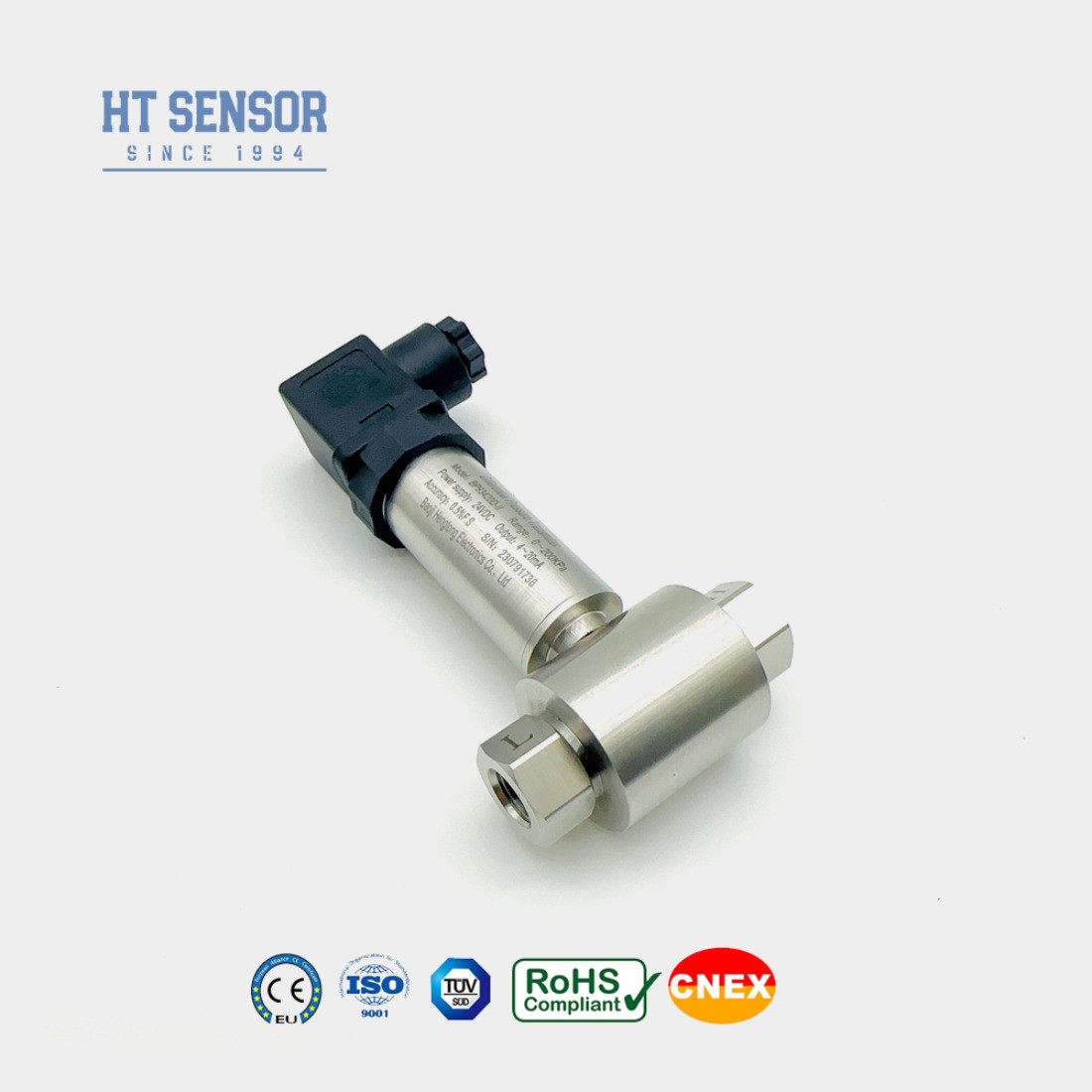

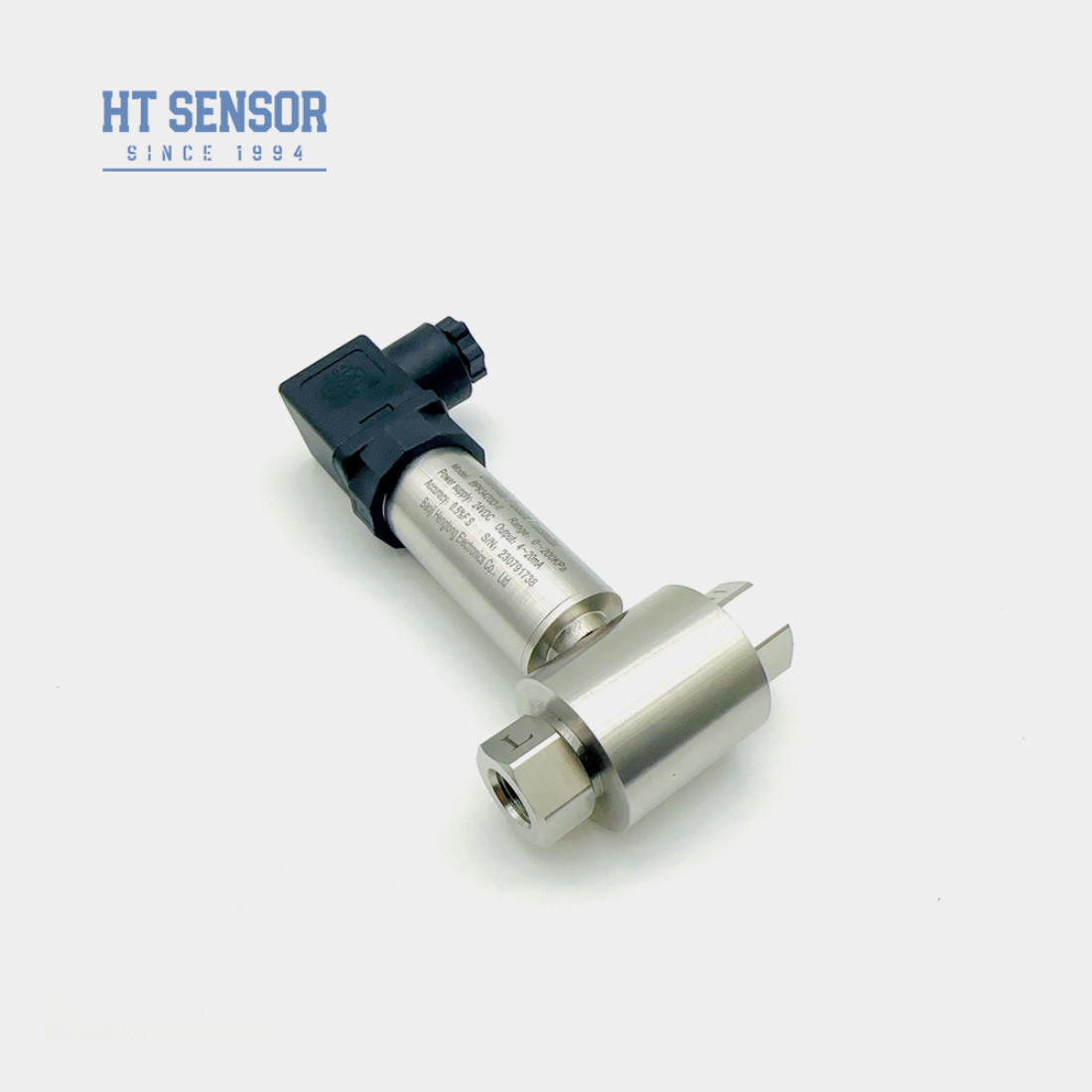

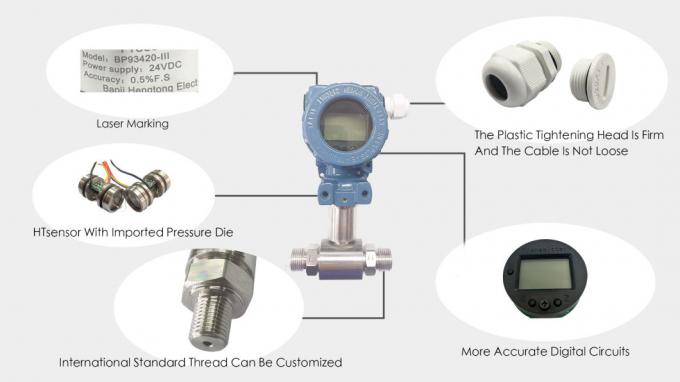

BP93420DIII 24VDC LCD DISPLAY 4-20MA DIFFERENTIAL PRESSURE TRANSMITTER

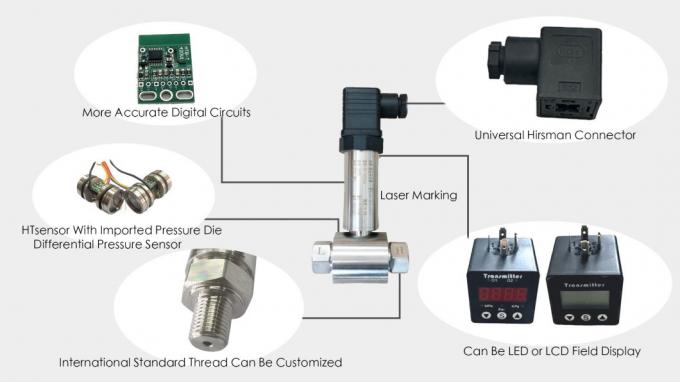

Introduction of differential pressure transmitter :
BP93420DIII differential pressure transmitter employs a piezoresistive silicon sensor. As the measured medium's differential pressure affects the
corrugated diaphragms on both ends of the sensor, the Wheatstone bridge on the sensor chip produces an output signal that shows excellent linearity with the differential pressure. This allows for precise measurement of the differential pressure. The transmitter is ideal for conducting differential pressure measurements in diverse gas and liquid applications, particularly in industries like
petroleum, chemical for pipeline installations

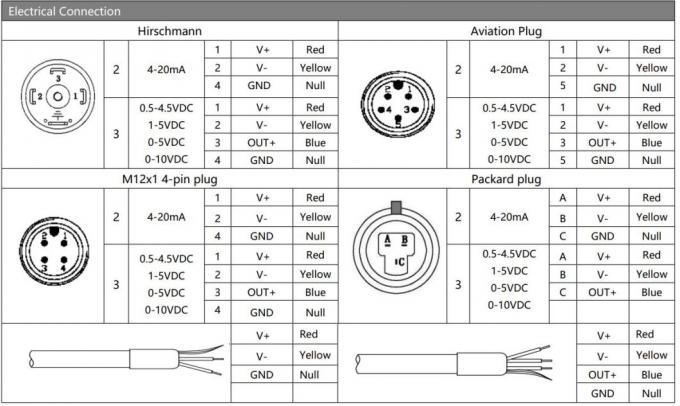

| Performance Parameters | |
| Measurement Range | 0-10KPa...~2MPa |
| Pressure Type | Differential Pressure |
| Single-side Overload | ≤3 times of the rated range |
| Static pressure | The minimum value between 5 times the rated range or 7 MPa |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.5%F.S/Year(≤200KPa) ±0.2%F.S/Year(>200KPa) |
| Zero Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Span Temperature Drift | ±0.01%FS/ºC(>100KPa), ±0.02%FS/ºC (≤100Kpa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -30ºC~80ºC |
| Storage Temperature | -40ºC~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 304,316L |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Explosion-proof Rating | Intrinsically safe and explosion-proof |
| Protection Rating | IP65 |
| Weight | ~0.45kg |
| Output Signal | Supply Voltage | Output Type |
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire |
|
| 0/1~5V | ||
| 0.5~4.5V | 5VDC |
| Ordering tips |
1. When selecting the product, please ensure that the measured medium is compatible with the product's contacting parts.
2. To ensure reliable operation, it is recommended to install a three-valve manifold between the measurement point and the transmitter, ensuring a slow and uniform pressure application to the positive and negative pressure chambers of the transmitter.
3. During installation, it is advisable to position the pressure interfaces at both ends horizontally to minimize the impact of the installation location on the product.
4. For special requirements such as strong vibration, instant impact force, strong electromagnetic interference, or radio frequency interference, please inform our company and specify these requirements in the order
Order Guide:
| BP93420X | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| DIII | Differential Pressure Transmitter | |||||||
| Measurement Range | 0-10KPa……~2MPa | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4～20mADC | S2 | 4～20mADC with Hart | |||||
| S3 | RS485 | |||||||

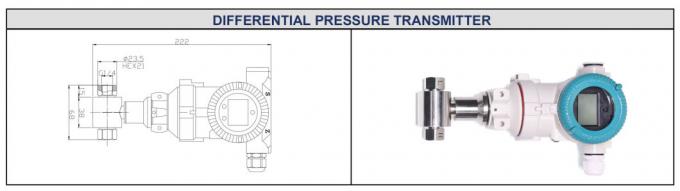

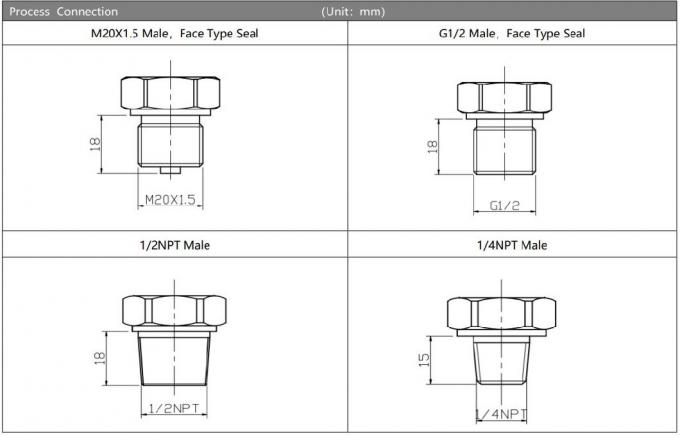

| Code | Pressure Connection | |||||||
| J1 | M20×1.5 Male | |||||||
| J2 | G1/2 Male | |||||||
| J3 | G1/4 Male | |||||||
| J4 | 1/2 NPT Male | |||||||
| J5 | Other | |||||||
| Code | Pressure Type | |||||||
| D | Differential Pressure | |||||||
