Industrial Electronic Pressure Switch Controller Within Silicon Pressure Sensor Transmitter
Product Details
| Model NO.: | BPZK04 | Power: | 24VDC 24VAC |
|---|---|---|---|
| Output: | 4-20mA With 2 Relay | Protection: | IP65 |
| Diaphragm: | SS316L | Specification: | 10kpa~40mpa |
| HS Code: | 80328100 | Structure: | Amplifier Built-in Type |
| Usage: | Control Switch | Application: | Industrial |
| Highlight |
Industrial Electronic Pressure Switch,Electronic Pressure Switch 24VAC,Pressure Switch Controller Within Silicon Pressure Sensor |
||
Product Description

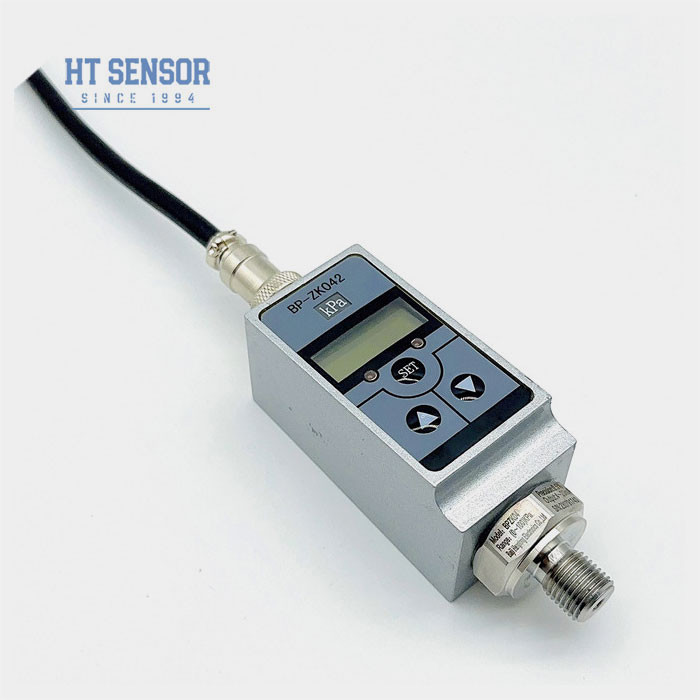

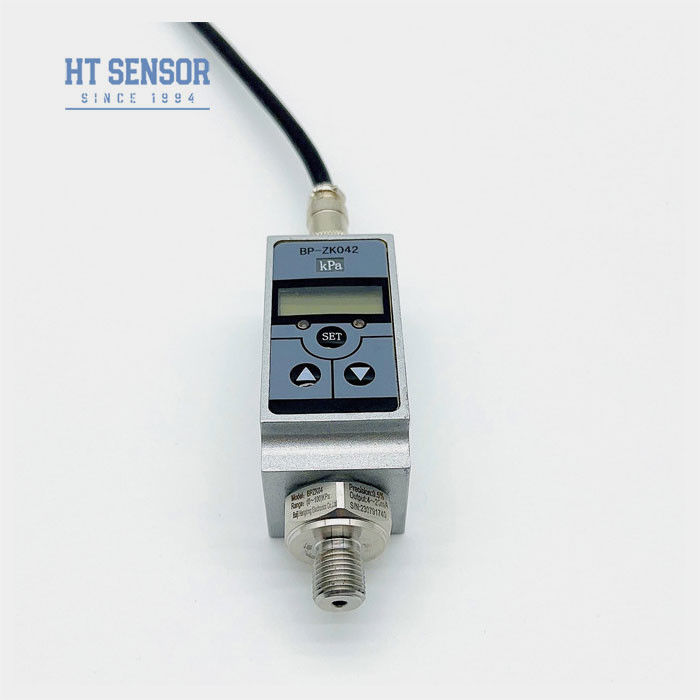

BPZK04 Electronic Pressure Switch Controller Within Silicon Pressure Sensor
Introduction of Electronic Pressure Switch:
Performance Parameters of Electronic Pressure Switch:
| Performance Parameters of electronic pressure switch | |
| Measurement Range | -100kPa…0kPa ~ 10kPa…100MPa |
| 0-10KPa~2MPa(Differential Pressure) | |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure,Differential Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Long-Term Stability | ±0.3%F.S/year |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Compensation Temperature | 0-50ºC(0-10KPa, 0-20KPa) ,0-70ºC ,-10-70ºC |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Relay Control | 1-2 channels of control or electronic switch quantity control |
| Contact Life | Exceeds 100,000 cycles |
| Display Range | -1999~9999 |
| Installation Method | vertical axis installation |
| Explosion-proof Rating | Intrinsically Safe |
| Protection Rating | IP65 |
| Weight | ~0.3kg |

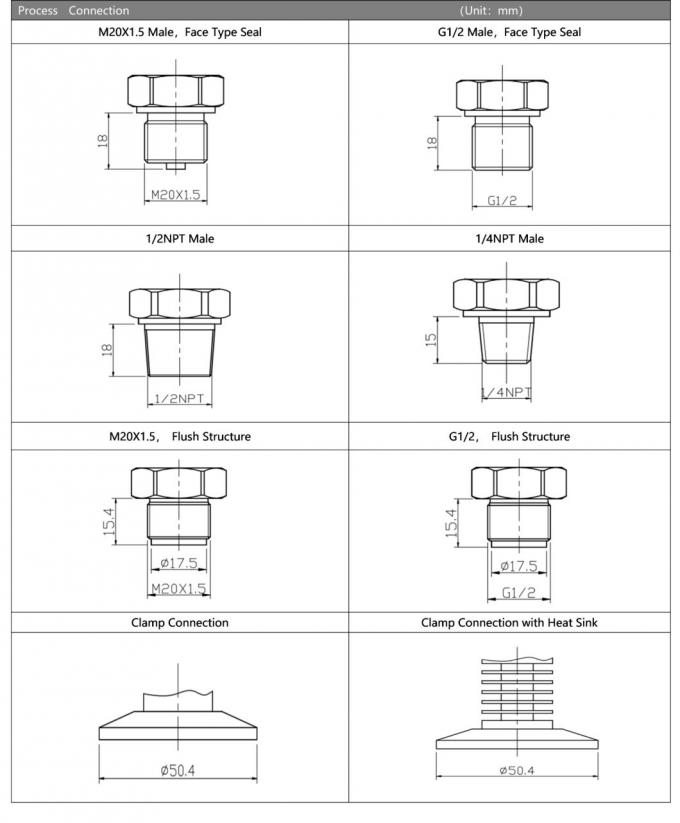

- Stainless steel structural design with versatile pressure interface options.
- with high-brightness LED pressure display.
- Powered 24VDC.
- Can provide up to two control relay outputs, with the ability to set arbitrary relay values and states for precise and reliable control.
- High accuracy.
Applications of Electronic Pressure Switch:
Measurement and control of pressure/differential pressure of fluid media in industries such as hydropower, metallurgy, and chemical engineering, for automatic control applications.
Ordering tigs of Electronic Pressure Switch:
1. When selecting the product, please ensure that the measured medium is suitable for the contact part of the product.
2. When ordering, please indicate the power supply, precision level, number of control points, whether with RS485 interface.
3. For users who choose differential pressure measurement, attention should be paid to the relationship between the differential pressure range and the allowed overpressure and maximum pressure of the high and low pressure chamber, and ensure that it meets the requirements of field applications. In order to ensure the safe and reliable operation of the product, it is recommended to install a three-valve manifold between the measuring point and the transmitter.
4. In order to ensure the reliable operation of the product, it is recommended to install the lightning protection device on the site and ensure the reliable grounding of the product and the power supply.In case of strong vibration, instantaneous impact force, strong electromagnetic interference, radio frequency interference and other special requirements, please inform us and indicate in the order.
.
.
