Multiple Type Input Electronic Pressure Switch Electronic Pressure Gauge Temperature
Product Details
| Model NO.: | BPK-IIIN | Application: | Industrial |
|---|---|---|---|
| Structure: | Display Gauge | Connection Type: | No |
| Function: | Local Indication Type, Electric Signal-controlled | Installation Structure: | No |
| Features Of Measurement Medium: | No | Indicating Pressure Reference: | Display Gauge |
| Transport Package: | Standard Export Packing With Carton | Specification: | Silicon Pressure Sensor |
| Trademark: | HTsensor | Origin: | Baoji, China |
| HS Code: | 9026209090 | Supply Ability: | 2000PCS/Month |
| After-sales Service: | On Line | Warranty: | 2years |
| Measuring Range: | Medium-pressure Gauge | Type: | Digital Display |
| Accuracy: | 1 | Display: | Digital |
| Samples: | US$ 60/Piece 1 Piece(Min.Order) | Request Sample | Customization: | Available | Customized Request |
| Model: | 1 | ||
| Highlight |
Multiple Type Input Electronic Pressure Switch,Electronic Pressure Switch RoHs,Electronic Pressure Gauge Temperature |
||
Product Description
Multiple Type Input Pressure Display Gauge Temperature Gauge
Product Description
Black plastic material displays the instruments with controlles

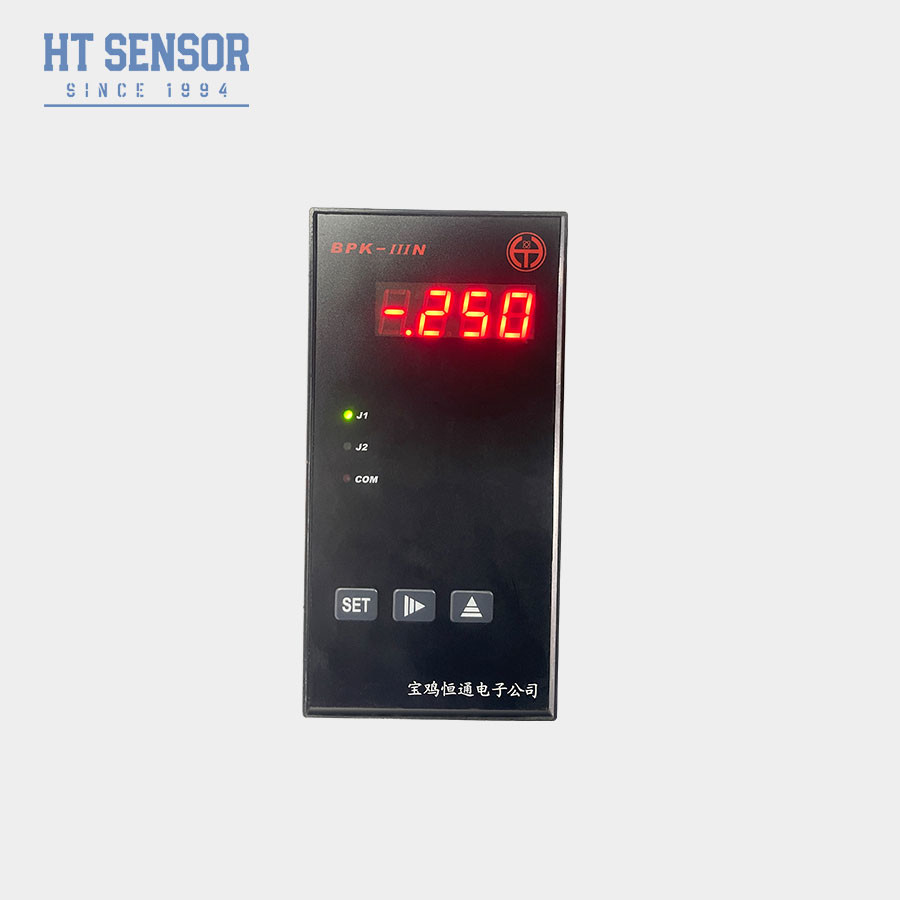

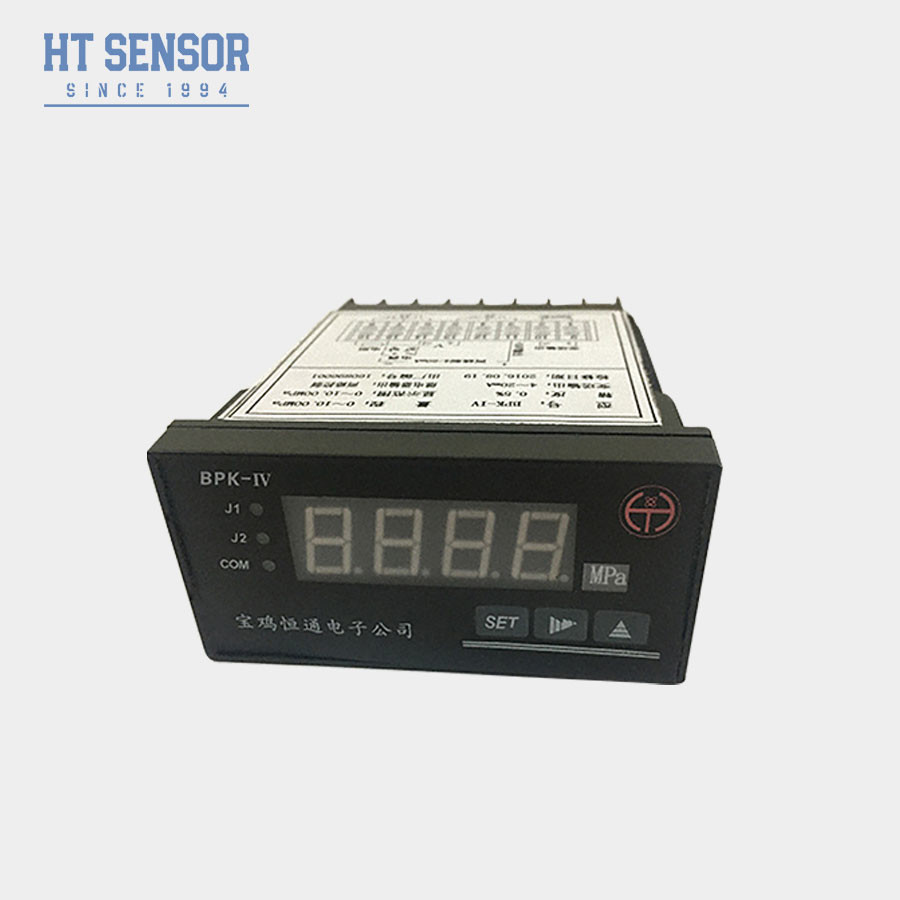

BPK-IIIN Pressure Gauge/Switch
Introduction:
1. Various RTD, Thermocouple or standard input signal(see Table) can be selected. Display scope can be calibrated for nonlinear signal, and it can be set for linear signal.
2. Isolated transmitting output is 12 bit resolution. Its scope can be set.
3. Two relay outputs, i t can be set to high/low, high/high-high or low/low-low alarm action types.
Specification
1. Supply voltage:220VAC /24VDC(±10%);
2. Ambient temperature:0~50ºC; relative humidity:≤85%Non corrosive gas;
3. Input signal , display scope and relevant parameters:(see Table1)
Table 1
| Input signal code | Input signal | Display scope | Resolution | Precision | Input impedance |
| 00 | T TC | 0~400ºC | 1ºC | 0.2% | 100K |
| 01 | R TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 02 | J TC | 0~1200ºC | 1ºC | 0.2% | 100K |
| 03 | WRe3-WRe25 TC | 0~2300ºC | 1ºC | 0.2% | 100K |
| 04 | B TC | 350~1800ºC | 1ºC | 0.2% | 100K |
| 05 | S TC | 0~1600ºC | 1ºC | 0.2% | 100K |
| 06 | K TC | 0~1300ºC | 1ºC | 0.2% | 100K |
| 07 | E TC | 0~900ºC | 1ºC | 0.2% | 100K |
| 08 | Pt100 RTD | -200.~600.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 09 | Cu50 RTD | -50.0~150.0ºC | 0.1ºC | 0.2% | (0.2mA) |
| 10 | 0~375Ω remote pressure | Low and high limit of scope can be set from -1999 to 9999 | Display scope is continuous from -1999 to 9999 using 16bit A/D sample | 0.2% | (0.2mA) |
| 11 | 0~75mVcurrent divider | 0.1% | 100K | ||
| 12 | 0~30mV | 0.1% | 100K | ||
| 13 | 0~5Vstandard signal | 0.1% | 100K | ||
| 14 | 1~5Vstandard signal | 0.1% | 100K | ||
| 15 | 0~10Vstandard signal | 0.1% | 100K | ||
| 16 | 0~10 mA standard signal | 0.1% | 20Ω | ||
| 17 | 0~20 mA standard signal | 0.1% | 20Ω | ||
| 18 | 4~20 mA standard signal | 0.1% | 20Ω |
Table 2
| Transmitting output signal | Current output | Transmitting scope | Isolated voltage | Max. resolution |
Precision | Load capacity | Open- circuit voltage |
| 00 | 4~20 mA | Transmit data within scope to standard current signal | 1500V | 12bits | 0.3% | ≤500Ω | 15V |
| 01 | 0~20mA |
This product is manufactured into only 4 ~ 20 mA or 0 to two 20mA output current signal. If the user needs voltage output signal transmission output, can be customized from the manufacturer or self is connected with 250 or 500 ohm resistor for 1 ~ 5V or 0 ~ 5V, 0 ~ 10V voltage and resistor (Note: the precision of resistor directly affects the precision of transmit output voltage).
5.Relay output contact capacity:(see Table 3)
Table3
| 250V/120V | 120V/48V | <48V | Relay life | ||||
| AC | DC | AC | DC | AC | DC | >100000 times |
|
| Max. current (Resistive load) | 3A | 2A | 4A | 3A | 5A | 4A | |
| Max .current (Inductive load) | 0.3A | 0.2A | 0.4A | 0.3A | 0.5A | 0.4A | |
6. External DC24V/30mA power. It can supply power to transmitter
7. With automatic temperature compensation function for thermocouple sensor.
8. With disconnection protection function
| Model | Outline dimension | Panel output dimension(mm) | Note |
| BPK-IIIS1 | 160×80×80(Horizontal ) | 152+0.8×76+0.7 | |
| BPK-IIIS2 | 96×48×112(horizontal) | 92+0.7×44+0.5 | |
| BPK-IIIN1 | 80×160×80(vertical) | 76+0.7×152+0.8 | |
| BPK-IIIN2 | 48×96×112(vertical) | 44+0.5×92+0.7 | |
| BPK-IIIF1 | 96×96×112(square) | 92+0.7×92+0.7 | |
| BPK-IIIF2 | 48×48×108(square) | 44+0.5×44+0.5 | With J2alarm lamp without J2 relay |
| BPK-IIIF3 | 72×72×112 | 67+0.7×67+0.7 |
Product Highlights
Multiple Type Input Pressure Display Gauge Temperature Gauge Product Description Black plastic material displays the instruments with controlles BPK-IIIN Pressure Gauge/Switch Introduction: BPK-IIIN series control have display, control and transmit functions, and have been applied to many automatic ...
19mm Oil Filled Pressure Transmitter Diffused Sillcon Pressure Transmitter Water Oil Test
Oil Filled Diffused Sillcon Pressure Transmitter Sensor For Water And Oil Test 19mm Silicon Piezoresistive Pressure Sensor Introduction of Pressure Transmitter Sensor: HT19F functions as a silicon piezoresistive pressure sensor ,with a core consisting of a highly stable diffused silicon element,. It effectively measures the pressure of liquids and gases by transmitting the pressure of the tested medium to the silicon diaphragm through an isolation diaphragm and silicon oil
OEM Water Oil Flush Diaphragm Pressure Transmitter Beverage Digital Level Pressure Sensor
BP93420-IIIQT1 OEM water oil Beverage glue Flush Diaphragm Pressure Sensor Transmitter BP93420-IIIQT1 Pressure Transmitter Introduction of flush diaphragm pressure sensor: BP93420-IIIQT1 flush-diaphragm pressure sensor transmitter is an analog pressure transmitter with a flat membrane structure, which increases the contact area with the medium. Wide temperature range, overload capacity, strong corrosion resistance, wide application. In order to ensure that this series of
BPHT24-III Digital Pressure Transmitter Flush Diaphragm Digital Pressure Sensor
Hengtong BPHT24-III Digital Flush diaphragm pressure sensor Transmitter China BPHT24-III Pressure Transmitter Introduction of flush diaphragm pressure sensor transmitter: BPHT24-III pressure transmitter is mainly used in the pressure measurement of viscous liquid mud anti-scaling and anti-crystallization oil shield machine. The whole adopts integrated stainless steel structure, and the two kinds of flat film structure with or without cavity can choose the material in contact
BPZK04-2 Pressure Switch Electrical 24VDC 4-20mA Digital Pressure Switch LCD Display Electronic Pressure Switch
24Vdc 4-20MA 2-Point Electronic Pressure Switch Digital Pressure Switch With LCD Display BPZK04-2 Electronic Pressure Switch Introduction: BPK-ZK04-2 electronic pressure switch is a set of pressure measurement, control display, transmission output as one of the full digital control products. It can be used as a signal device when the pressure of non-corrosive gases and liquids reaches a limit value, or as a circuit contact switch for a pressure regulator. The controller is
